Гибридный инвертор для солнечной батареи 12 В 24
- Категория: Solar Inverter >>>
- Поставщик: Shenzhen,Sunray,Power,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 90.32 $* | 95.3 $* |
| Aug-16-2025 | 90.90 $* | 95.37 $* |
| Jul-16-2025 | 75.66 $* | 79.38 $* |
| Jun-16-2025 | 88.43 $* | 92.61 $* |
| May-16-2025 | 77.85 $* | 81.6 $* |
| Apr-16-2025 | 87.66 $* | 91.0 $* |
| Mar-16-2025 | 86.58 $* | 90.77 $* |
| Feb-16-2025 | 85.18 $* | 89.86 $* |
| Jan-16-2025 | 84.37 $* | 88.54 $* |
Характеристики
Related Products

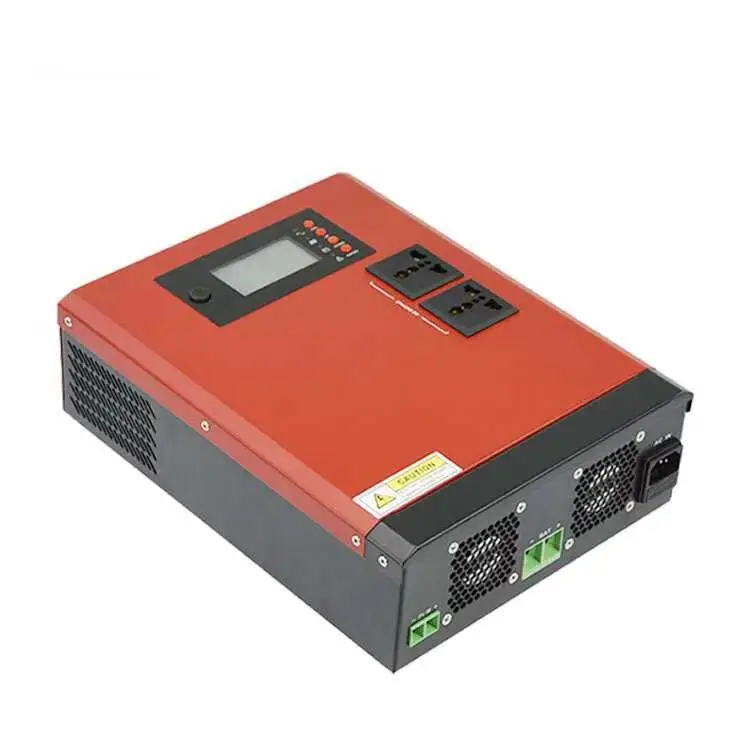

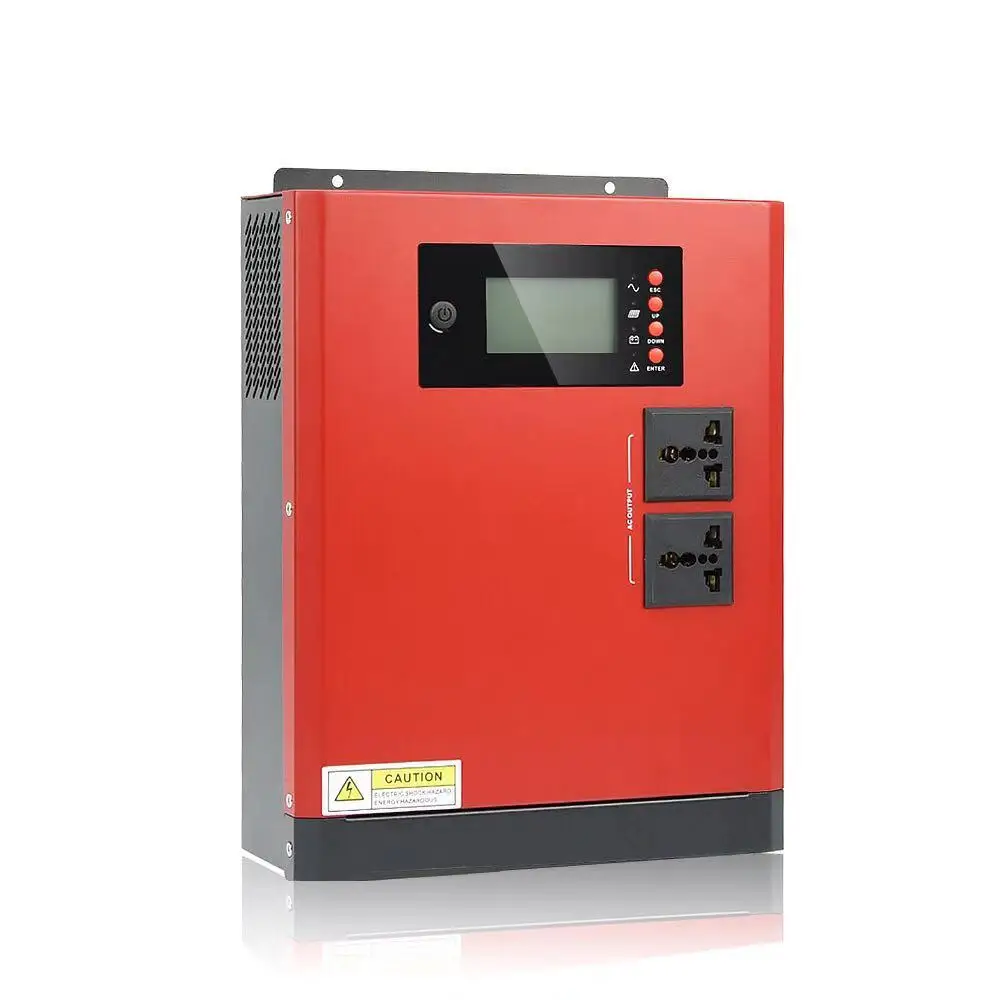

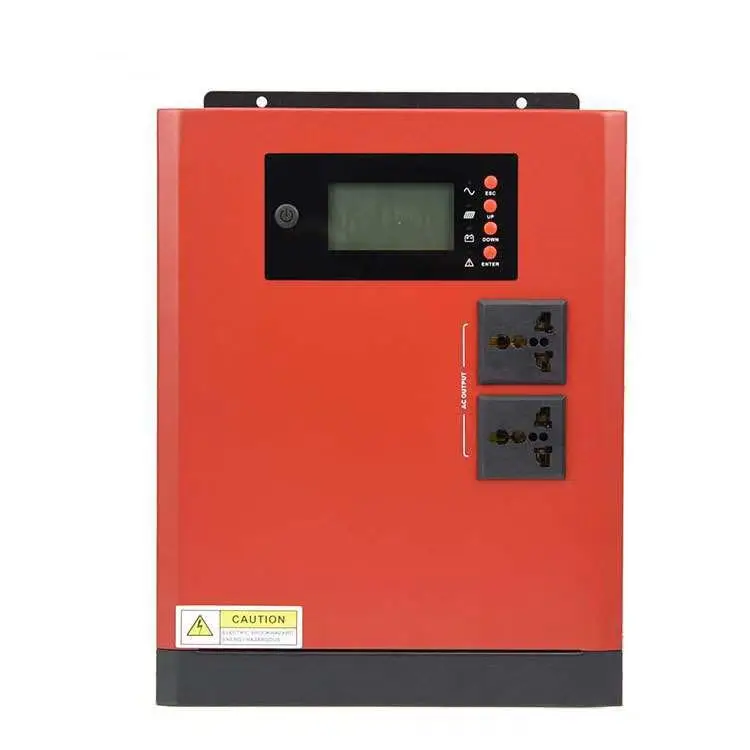

Off grid hybrid MPPT solar inverter 1200va 2400va
The Victor XM series is designed to power your home appliances or precious 3C electronics. It also can handle motor-type loads with high surge power such as vacuums, small freezers, or drills. With built-in solar charger, it can convert solar power to battery power and provide continuous power to connected equipment during night time.
Model | Victor XM-1200-12 | Victor XM-2400-24 |
RATED POWER | 1200VA/800W | 2400VA/1500W |
INPUT | ||
Voltage | 230 VAC | |
Selectable Voltage Range | 170-280 VAC (UPS mode) | |
90-280 VAC (INV. Mode) | ||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
OUTPUT | ||
AC Voltage Regulation (Batt. Mode) | 230VAC ± 10% | |
Transfer Time | 20 ms typical | |
Waveform | Simulated Sine Wave | |
BATTERY & AC CHARGER | ||
Battery Voltage | 12 VDC | 24 VDC |
Floating Charge Voltage | 13.7 VDC ±0.25 VDC | 27.4 VDC ±0.5 VDC |
Maximum Charge Current | 10A or 20A | |
SOLAR CHARGER | ||
System Voltage | 12VDC | 24VDC |
MPPT rated power | 500W | 1000W |
Operating Voltage Range | 15~80 VDC | 30~80 VDC |
Maximum Charging Current | 40A | |
Max. PV Array Open Circuit Voltage | 102 VDC | |
PHYSICAL | ||
Dimension, D x W x H (mm) | 282 X 221 X 73 | |
Net Weight (kgs) | 3.2 | 3.5 |
OPERATING ENVIRONMENT | ||
Humidity | 5% to 95% Relative Humidity(Non-condensing) | |
Operating Temperature | 0°C - 55°C | |
Storage Temperature | –15°C - 60°C | |
Products Details
| Details: |
This inverter can power all kinds of appliances in home or office environment, including motor-type appliances such as tube light, fan, refrigerator and air conditioner.
