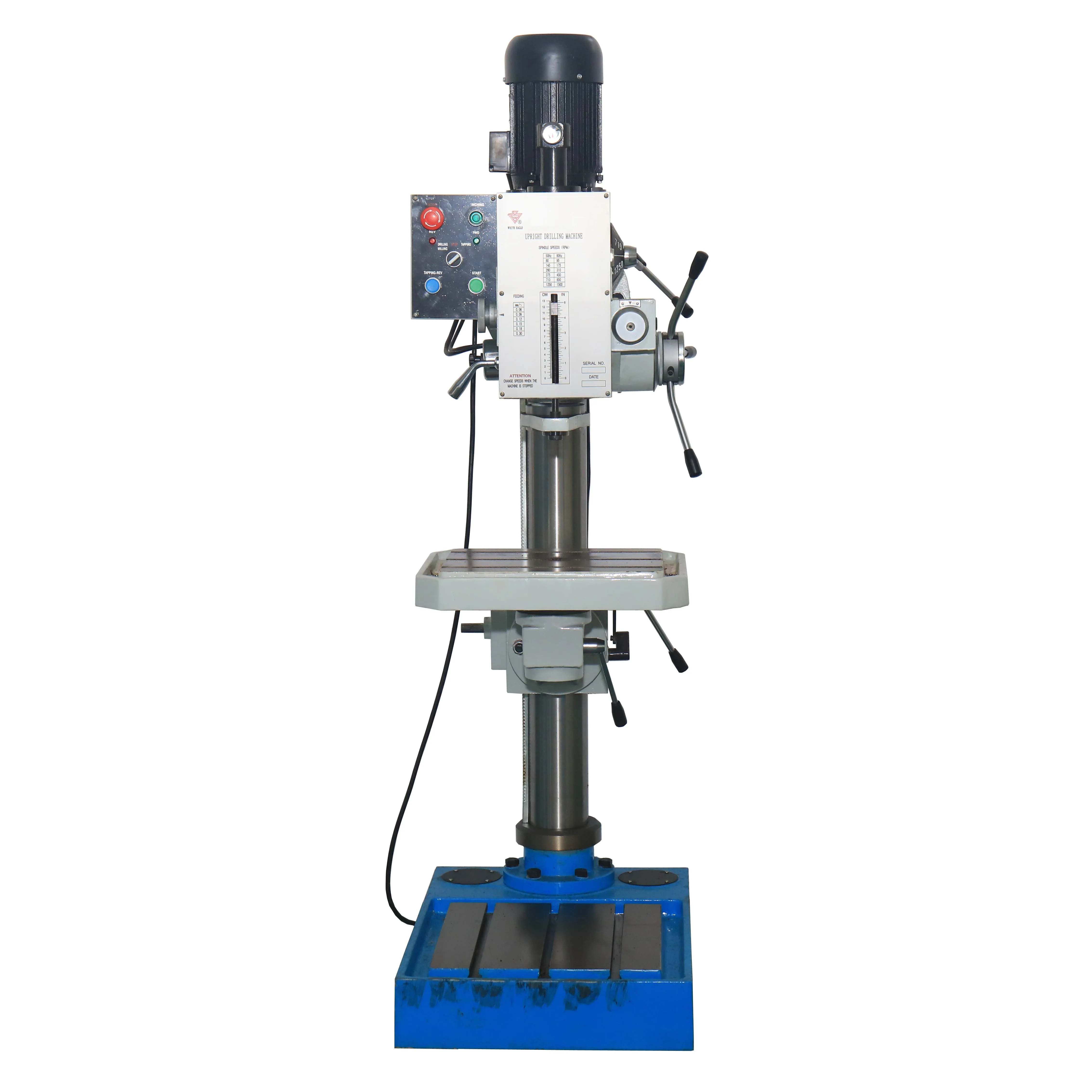

Вертикальный сверлильный станок для механического

Категория: Сверлильные станки >>>
Поставщик: Anhui,Chizhou,Household,Machine,Tool,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.80 $*	0.96 $*
Aug-18-2025	0.12 $*	0.84 $*
Jul-18-2025	0.26 $*	0.41 $*
Jun-18-2025	0.27 $*	0.75 $*
May-18-2025	0.99 $*	0.70 $*
Apr-18-2025	0.15 $*	0.28 $*
Mar-18-2025	0.74 $*	0.97 $*
Feb-18-2025	0.13 $*	0.66 $*
Jan-18-2025	0.12 $*	0.99 $*

Характеристики

Product Description

workshop use small drilling machine

Features:

1. Drilling,milling and tapping

2. Head swivels 360' horizontally

5. Headstock and worktable up & down perpendicularly

6. Super high column

7. Precision micro feed

8. Positive spindle lock

7. Distinct auto device for releasing tools,operate very easily

7. Gear-driven,lower noise

Specification
Model	Z5032/Z5040/Z5045	Z5032C /Z5040C/ Z5045C
Drilling capacity	φ32mm/φ40mm/φ45mm	φ32mm/φ40mm/φ45mm
Spindle taper	M.T.3 or R8/M.T.4 or R8/M.T.4 or R8
Spindle travel	130mm
Step of spindle speed	6
Range of spindle speed 50Hz	80-1250 r.p.m
60Hz	95-1500 r.p.m
Min.distance from spindle axis to column	283mm
Min.distance from spindle nose to worktable	725mm	700mm
Min.distance from spindle nose to stand worktable	1125mm
Max.travel of headstock	250mm
Swivel angle of headstock (horizontally)	360° ±45°
Max.travel of worktable bracket	600mm
worktable size of avaliablity	380×300mm	730×210mm
Swivel angle of table horizontally	360°
Table leaned	±45°	/
Size of stand worktable of avaliability	417×416mm
Table leaned	±45°
Size of stand worktable of avaliability	417×416mm
Work travel (X/Y)	/	500mm/205mm
Verical travel of worktable	/	570mm
Motor Power	0.75KW/1.1KW/1.5KW	0.75KW/1.1KW/1.5KW
speed of motor	1400r.p.m	1400r.p.m
Net weight/gross weight	430kg/480kg	430kg/480kg
Packing size	1850×750×1000mm	1850×750×1000mm

Detailed Images

Machine Parts

Name: Auto-feeding

Spindle speed step-changed cyclically and spindle auto-feeding and cyclic changed of feeding speed.

Adjustable gibs on table precision

Main Part

Name: Motor

Motor power:1.5KW

We also can provide you SIEMENS brand motor for special request.

Machine Parts

Name: Worktable

Adjustable gibs on table precision.

Packing & Delivery

Packaging
Size	1020(L) * 820(W) * 1160 (D) (MM)
Weight	N.W.280KGS / G.W. 330KGS
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Certifications

Our workshop

We In Fairs

Our Service

OEM APPROVED

* LOGO OEM accept.
* Packing design OEM accept
* Even machine design OEM accept.

Our team Service

* Professional team,perfect pre-sale and after-sale service.
* Engineers available to service machinery overseas.
* Good English speakers from sale department,can handle your suggestion
