Колба T лампа горячего расплава клея машина светодиодная дозирующая
- Категория: Electronics Production Machinery >>>
- Поставщик: Zhongshan,Huabiao,Industrial,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 1702.30 $* | 1787.29 $* |
| Aug-16-2025 | 1687.64 $* | 1771.40 $* |
| Jul-16-2025 | 1416.72 $* | 1487.82 $* |
| Jun-16-2025 | 1659.38 $* | 1742.17 $* |
| May-16-2025 | 1444.70 $* | 1516.39 $* |
| Apr-16-2025 | 1630.15 $* | 1712.86 $* |
| Mar-16-2025 | 1616.88 $* | 1697.70 $* |
| Feb-16-2025 | 1602.70 $* | 1682.2 $* |
| Jan-16-2025 | 1587.57 $* | 1666.70 $* |
Характеристики
Equipment features
一. Convenient and practical operation:
1. Adjust the glue flow rate and Moving speed, adjustable rotation angle, anti-wire drawing rotation angle;
2. The product can be changed up and down conveniently and quickly but can be positioned; 3. Quench time can be
adjusted according to the operation process to achieve cyclic work.
adjusted according to the operation process to achieve cyclic work.
二. High efficiency, high quality and stability:
1. Take bulb dispensing as an example, a machine is equivalent to two to three people in efficiency, which not only improves efficiency but also reduces costs for enterprises.
2. The machine runs stably and the glue is even and stable, thus ensuring the consistency of products and improving the market competitiveness of enterprises and products.
3. Full-automatic quantitative positioning brings back the suction function: glue output and positioning; The process of clicking one product to another product will not epoxy outflow space, which not only saves glue but also will not stain the machine table.
三. Strong versatility:
It can not only use all bulb, spotlights, the lamp Cup and lamps, but also apply to all round products that need dispensing and gluing.
四. Suitable for industries:
Bulb/Horn/motor/Watch and other round products bonding, packaging, coating, coating, etc.
五. Suitable for glue:
Silicon sealant, silicone adhesive, silicone rubber, red sealant, yellow glue, silver paste, UV curing adhesive, lubricating oil,
epoxy resin, silicone resin and other materials. 六. Equipment parameters: Working table turning diameter: 220mm Rotating head: 8 Driving Mode: precision stepper motor Mechanical repetition accuracy: ± 0.2mm Input pressure: 0.4 ~ 0.7Mpa Capacity: 2 seconds/piece (affected by glue performance) Fast rotation speed: 1080 degrees/second Power supply: AC220V, 50Hz, 200W Overall dimensions (width × length × height):450mm × 500mm × 600mm
epoxy resin, silicone resin and other materials. 六. Equipment parameters: Working table turning diameter: 220mm Rotating head: 8 Driving Mode: precision stepper motor Mechanical repetition accuracy: ± 0.2mm Input pressure: 0.4 ~ 0.7Mpa Capacity: 2 seconds/piece (affected by glue performance) Fast rotation speed: 1080 degrees/second Power supply: AC220V, 50Hz, 200W Overall dimensions (width × length × height):450mm × 500mm × 600mm
Weight: 24kg
Product Description
Place of Origin | Zhongshan, China (Mainland) |
Brand Name | HuaBiao |
After-sales Service Provided | Online support, Engineers available to service machinery overseas |
Warranty | 1 Year |
Weight | 69KG |
Power | 300W |
Color | White |
Voltage | 220V |
Supply Ability | 100 Set/Sets per Month |
Packaging Details | wooden case |
Port | zhongshan port |

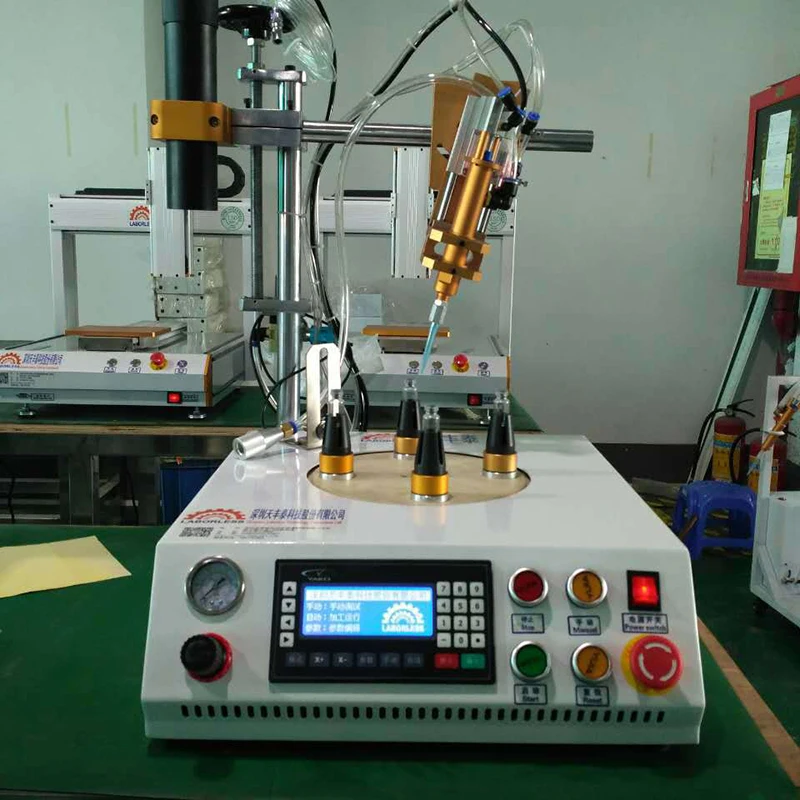

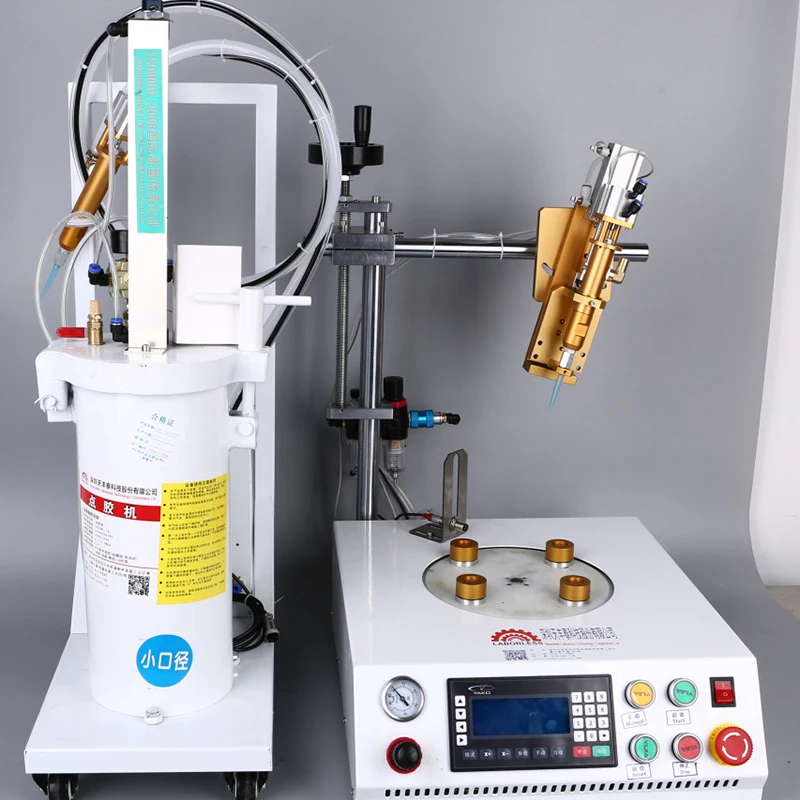

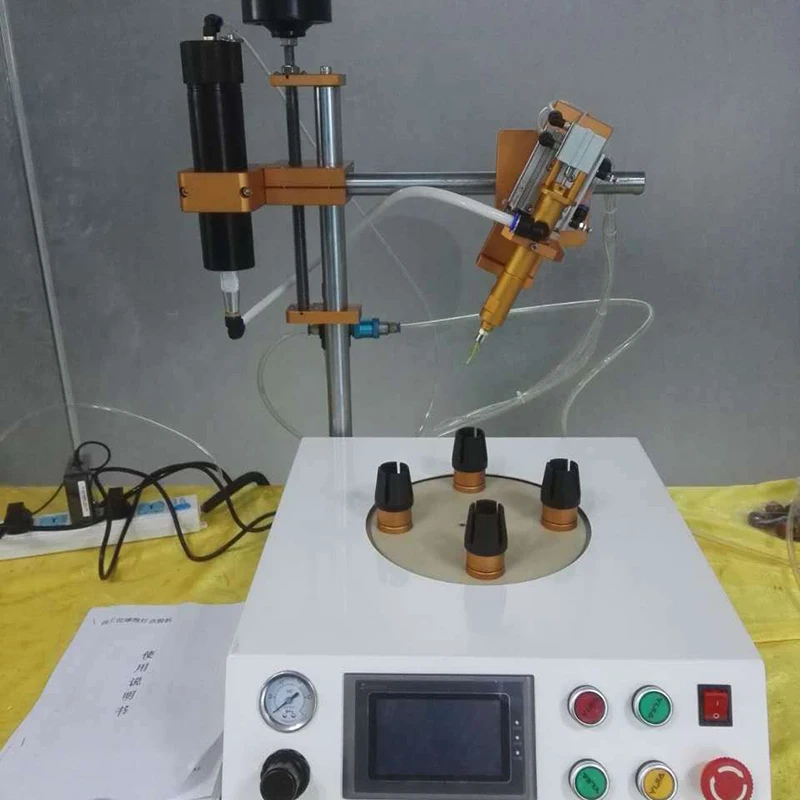

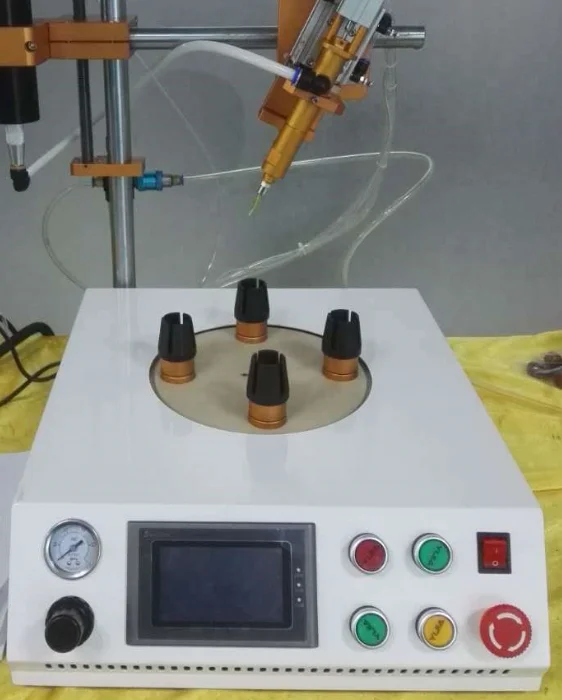

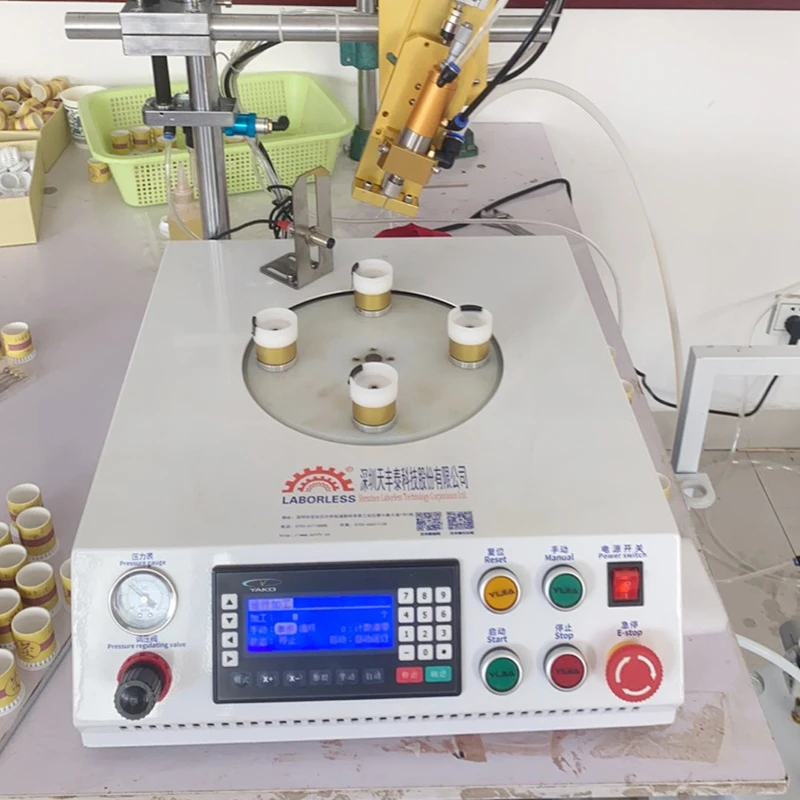

Detailed Images
