General Description
NAI-LOK offers a comprehensive range of regulators,valves and changeover systems that are ideal for analyzer and GC sample systems and other petro-chemical applications.Our convoluted diaphragms provide excellent sensitivity,acuracy and stable pressure control.
Specifications
Maximun Inlet Pressure | 3500 psig (241 bar) |
Outlet pressure ranges | 0-25,0-50,0-100,0-250,0-450 psig |
Operating Temperature | -40°C to 74°C |
Flow Capacity | Cv=0.06 |
Body | SS316 / Chrome plated brass |
Diaphragm | Hastelloy / SS316 |
Seat | Teflon |
Size | 1/4 Female NPT |
Weight | 0.9 kg |
Option | CGA connector / gauge / panel / fitting |
Loading Spring Spring loading is used with direct acting regulators with handknob adjustment.
Sensing-Diaphragm Diaphragms provide sensitive and accurate regulation for outlet pressure ranges up to 500 psig / 34.5 bar
Body material Chrome plated brass,316L stainless steel
Venting Non-venting is standard
Panel Panel mounting is available |
NR11 Series Regulator Drawing

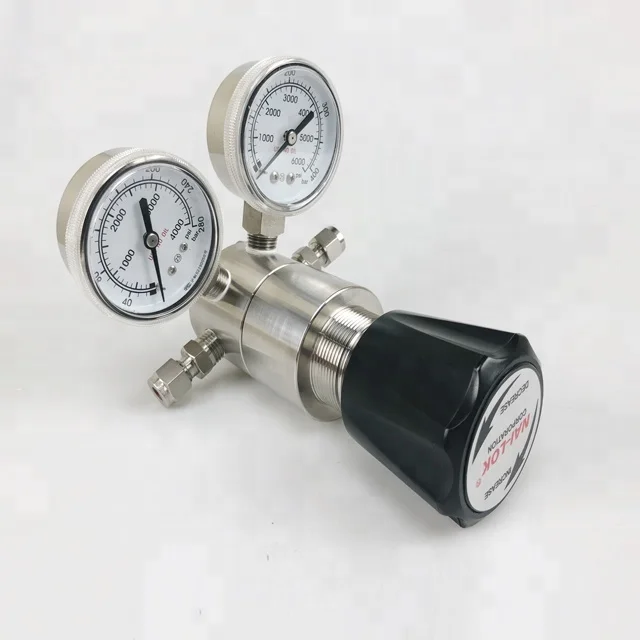

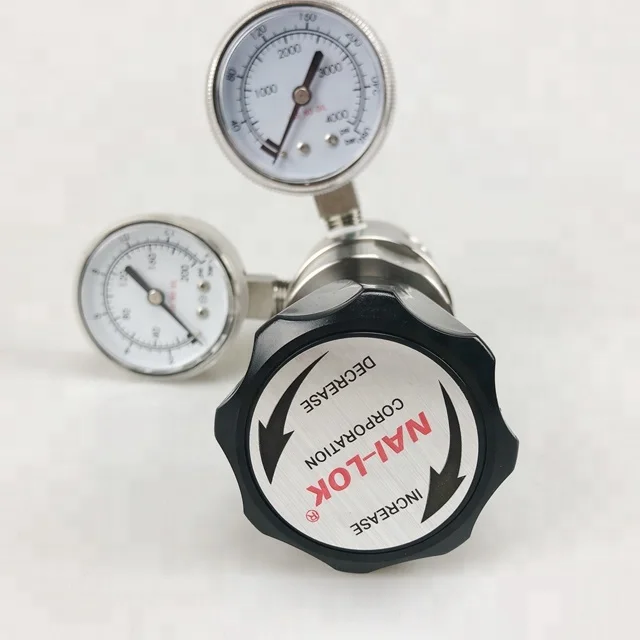

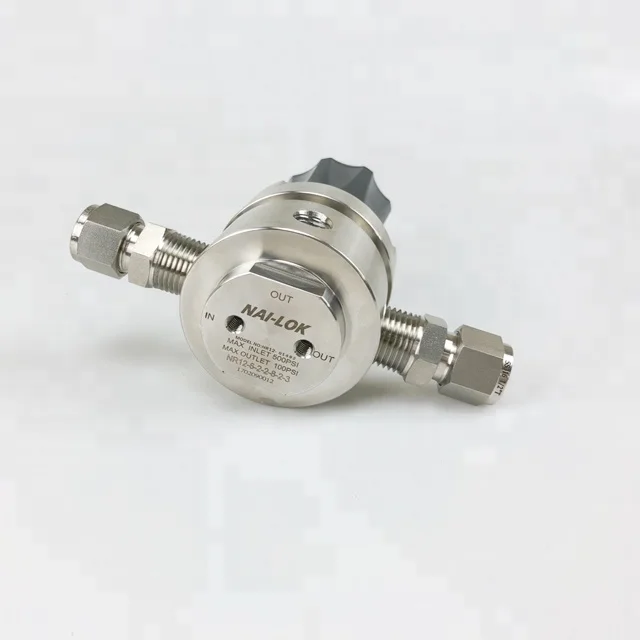

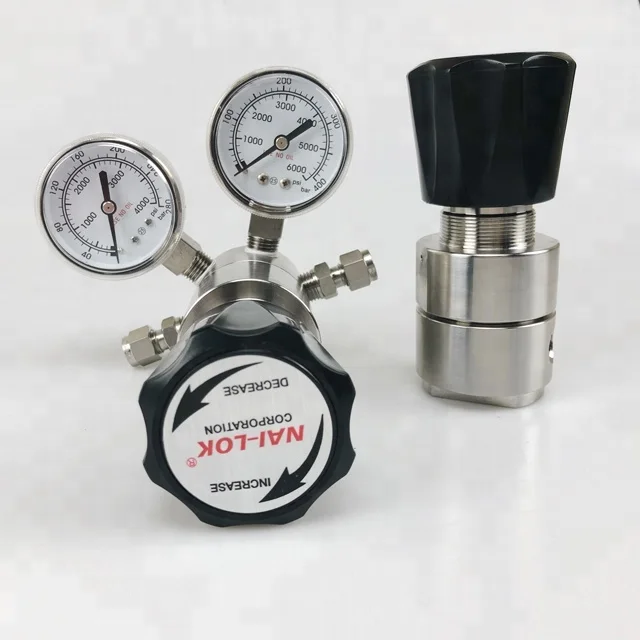

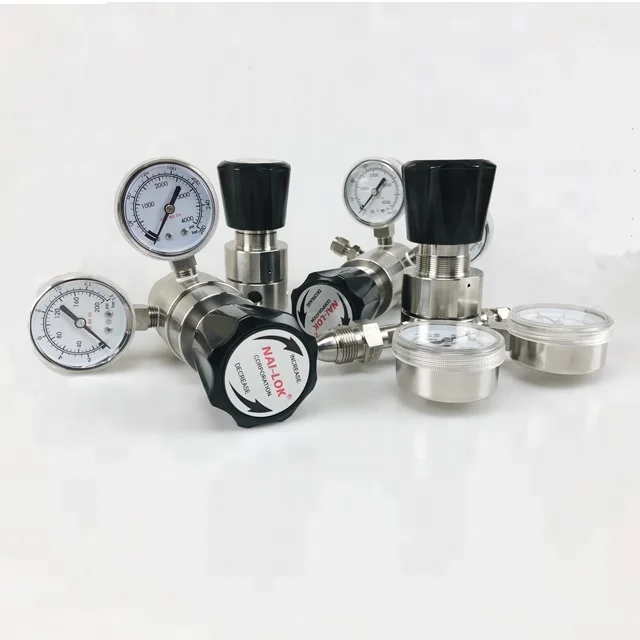

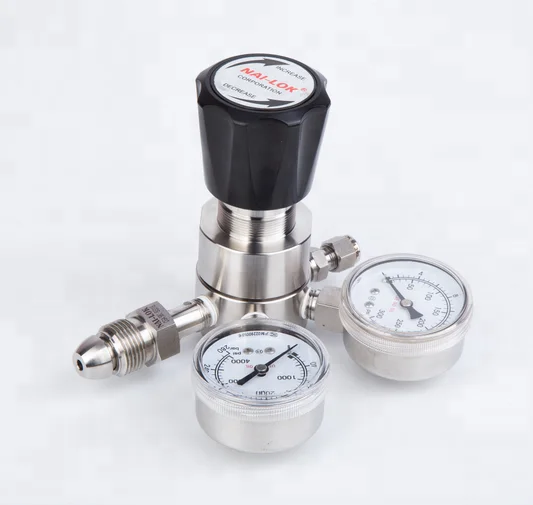

Sample
Application
NAI-LOK Cylinder manifolds,control 1 cylinder with purge valve.
NAI-LOK Semi-automatic changeover system,control 2 cylinder with purge valve.
Ordering information -NR11 Series
BASIC SERIES | BODY MATERIAL | INLET AND OUTLET PORT TYPE | INLET AND OUTLET PORT SIZE | INLET PRESSURE | FLOW CAPACITY | PORT TYPE |
NR11 | 1-Chrome plated brass | 0- 0-25 psig | 2- NPTF | 4- 1/4" | 1- 3500 psig CV=0.06 | 3- 3 ports |
6-316L Stainless steel | 1- 0-50 psig | 2- 400 psig CV=0.15 | 4- 4 ports | |||
2- 0-100 psig | 6- 6 ports (with relief valve) | |||||
3- 0-250 psig | ||||||
5- 0-450 psig | ||||||
with 3500psi inlet only |
