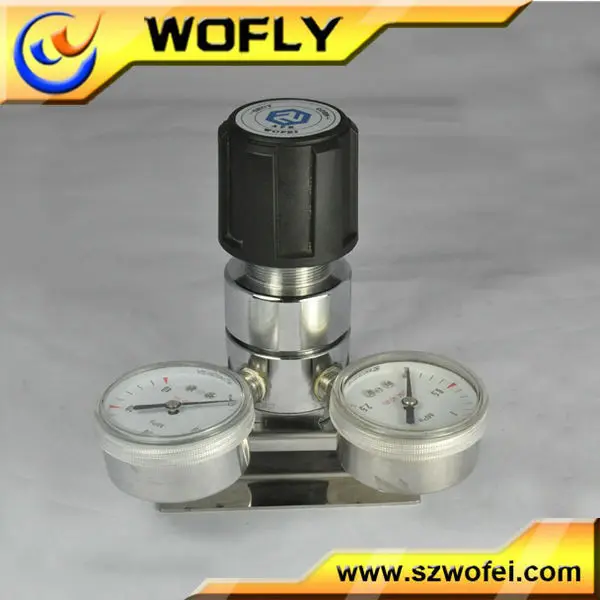

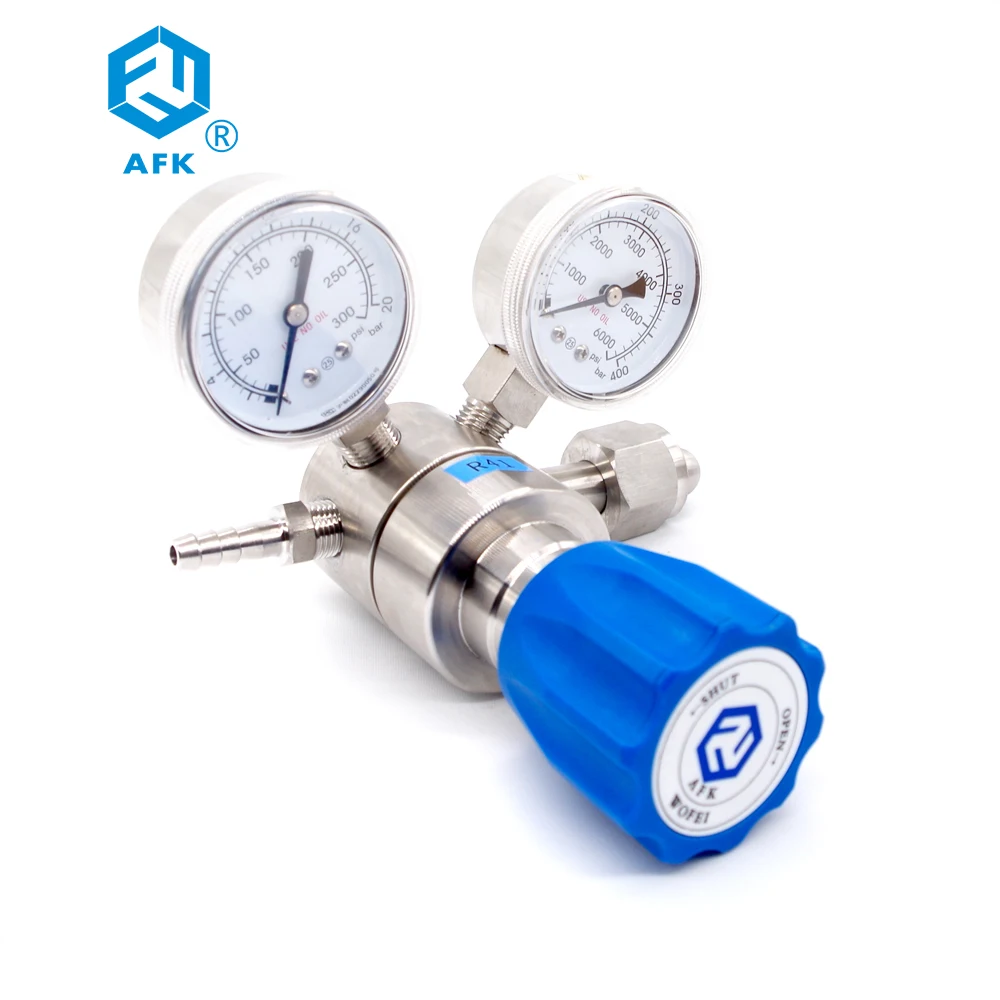

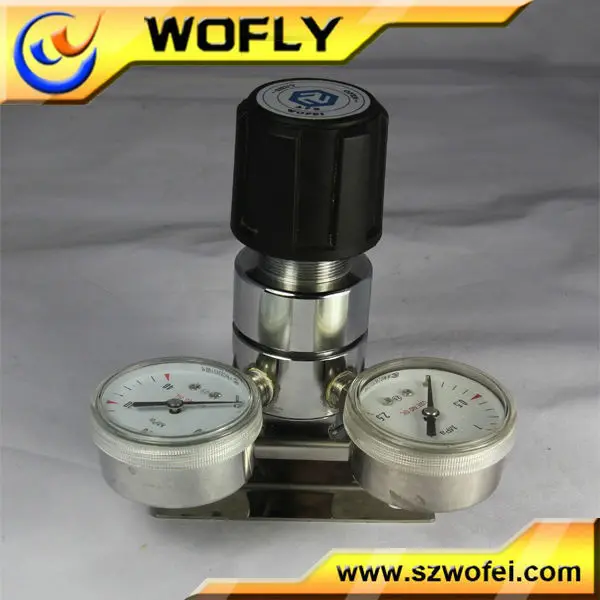

SS CGA540 кислородный регулятор резьбового типа с
- Категория: Pressure Regulators >>>
- Поставщик: Shenzhen,Wofly,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 189.43 $* | 193.52 $* |
| Jul-15-2025 | 153.99 $* | 156.44 $* |
| Jun-15-2025 | 186.52 $* | 190.5 $* |
| May-15-2025 | 185.65 $* | 189.19 $* |
| Apr-15-2025 | 148.99 $* | 151.57 $* |
| Mar-15-2025 | 182.32 $* | 186.28 $* |
| Feb-15-2025 | 180.13 $* | 184.40 $* |
| Jan-15-2025 | 179.66 $* | 183.49 $* |
Характеристики
Product Description
Features
* single-stage pressure-reducing structure
* Metal-to-metal diaphragm seal
* body thread: 1/4” NPT(F)
* easy to clean internal structure
* filter element installed internally

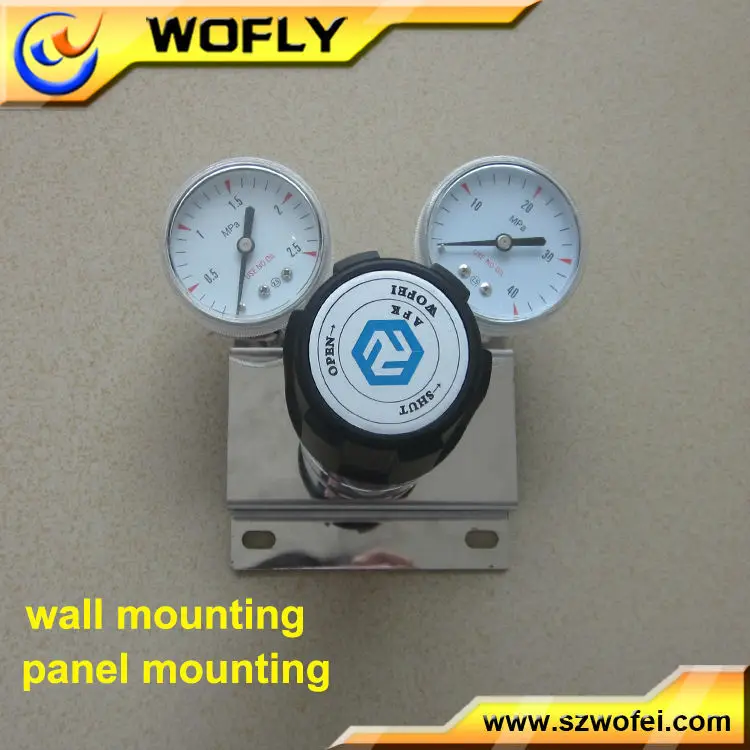

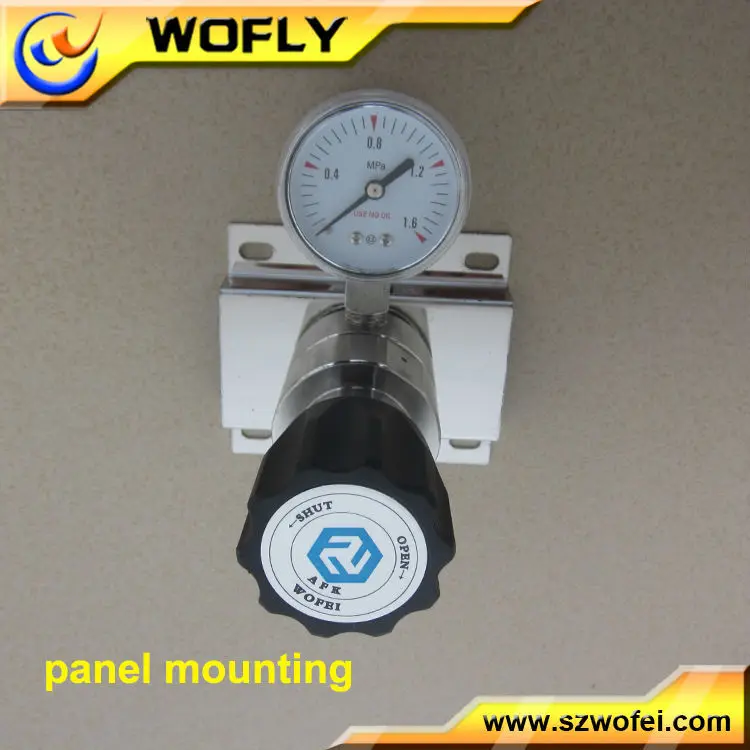

* panel mounting and wall mounting available
* Metal-to-metal diaphragm seal
* body thread: 1/4” NPT(F)
* easy to clean internal structure
* filter element installed internally
* panel mounting and wall mounting available
echnical Data
* Maximum inlet pressure: 500, 3000psig
* output pressure:0~25, 0~50, 0~100, 0~250, 0~500psig
* safety testing pressure: 1.5 times of maximum inlet pressure
* working temperature: -40~+165 deg F(-40~+74 deg C)
* leakage rate: 2×10-8 atm cc/sec He
* CV value=0.08
* output pressure:0~25, 0~50, 0~100, 0~250, 0~500psig
* safety testing pressure: 1.5 times of maximum inlet pressure
* working temperature: -40~+165 deg F(-40~+74 deg C)
* leakage rate: 2×10-8 atm cc/sec He
* CV value=0.08
Application
* laboratory
* gas chromatography
* gas lasers
* gas bus-bar
* petrochemical industry
* testing equipment
* gas chromatography
* gas lasers
* gas bus-bar
* petrochemical industry
* testing equipment
Material
* body: 316L, Brass
* bonnet: 316L, Brass
* diaphragm: 316L
* strainer: 316L(10μm)
* seat: PCTFE, PTFE, Vespel
* spring: 316L
* stem: 316L
* bonnet: 316L, Brass
* diaphragm: 316L
* strainer: 316L(10μm)
* seat: PCTFE, PTFE, Vespel
* spring: 316L
* stem: 316L
Specification
ORDERING INFORMATION | ||||||||||||||||
R11 | L | B | D | F | G | 00 | 00 | P | ||||||||
Item | Body Materia | Body Hole | Inlet pressure | Outlet pressure | Pressure gauge | Inlet size | Outlet size | mark | ||||||||
R11 | L:316 | A | D:3000 psi | F:0-500 psi | G:MPa gauge | 00:1/4 " NPT (F) | 00: 1/4 " NPT(F) | P:Panel mounting | ||||||||
B:Brass | B | E:2200 psi | G:0-250 psi | 01:1/4 " NPT (M) | 01: 1/4 " NPT(M) | N:Needle valve | ||||||||||
D | F:500 psi | l:0-100 psi | P:Psig/bar gauge | 23: CGA330 | 10:1/8 " OD | N:Needle valve | ||||||||||
G | K:0-50 psi | 24: CGA350 | 11:1/4 " OD | D:Diaphragm valve | ||||||||||||
J | L:0-25 psi | W:No gauge | 28: CGA660 | 12:3/8 " OD | ||||||||||||
M | 28: CGA660 | 15:6mm OD | ||||||||||||||
30: CGA590 | 16:8mm OD | |||||||||||||||
52: G5/8 "-RH(F) | ||||||||||||||||
63: W21.8-14H(F) | ||||||||||||||||
64: W21.8-14LH(F) | ||||||||||||||||
