Sale of mining ore vibrating feeder coal vibrating hopper feeder
US $4000-$10000
Превосходное качество небольшой вибратор конвейер электромагнитный Вибрационный
- Категория: >>>
- Поставщик: Xinxiang,Dahan,Vibrating,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 230881.76 $* | 242425.87 $* |
| Aug-19-2025 | 228941.10 $* | 240388.95 $* |
| Jul-19-2025 | 192078.14 $* | 201682.79 $* |
| Jun-19-2025 | 225061.59 $* | 236314.68 $* |
| May-19-2025 | 195958.55 $* | 205756.20 $* |
| Apr-19-2025 | 221181.6 $* | 232240.31 $* |
| Mar-19-2025 | 219240.68 $* | 230202.47 $* |
| Feb-19-2025 | 217300.23 $* | 228165.45 $* |
| Jan-19-2025 | 215360.87 $* | 226128.10 $* |
Характеристики

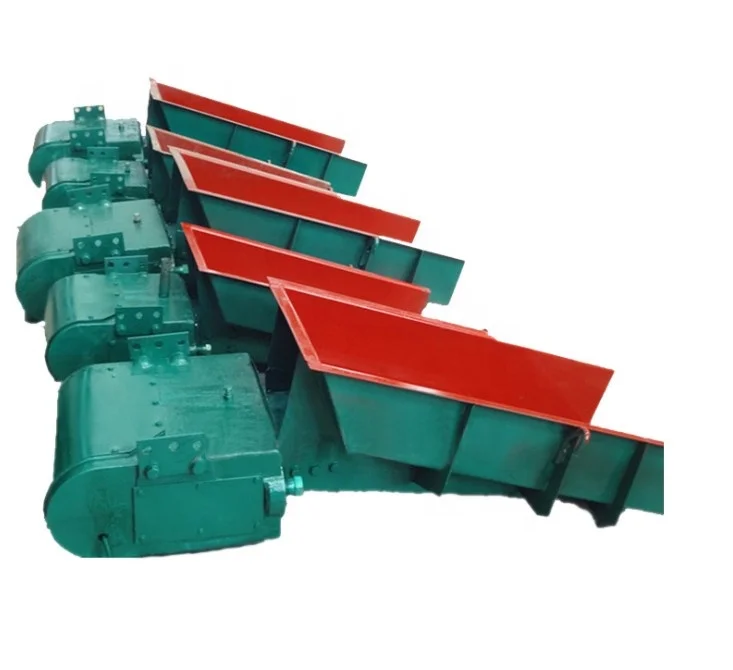

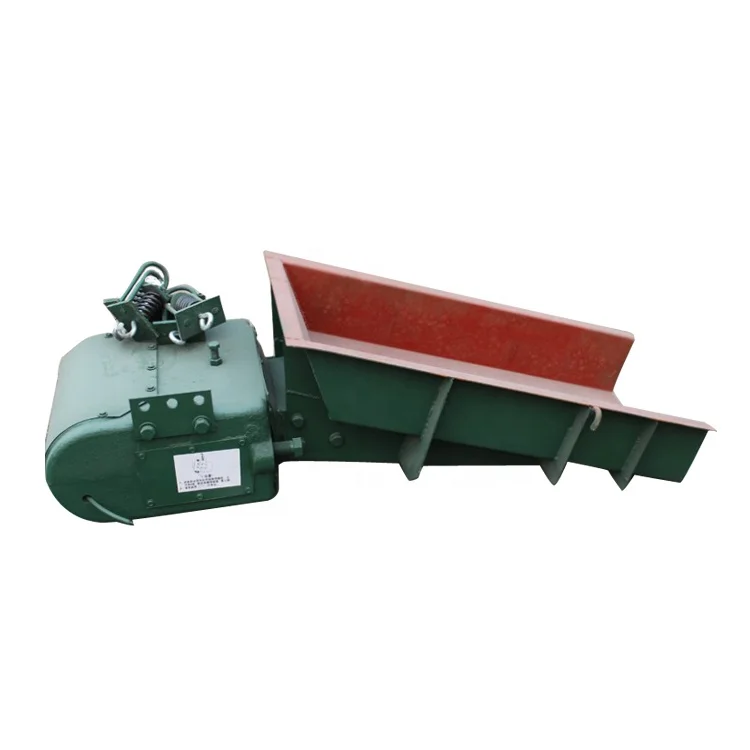

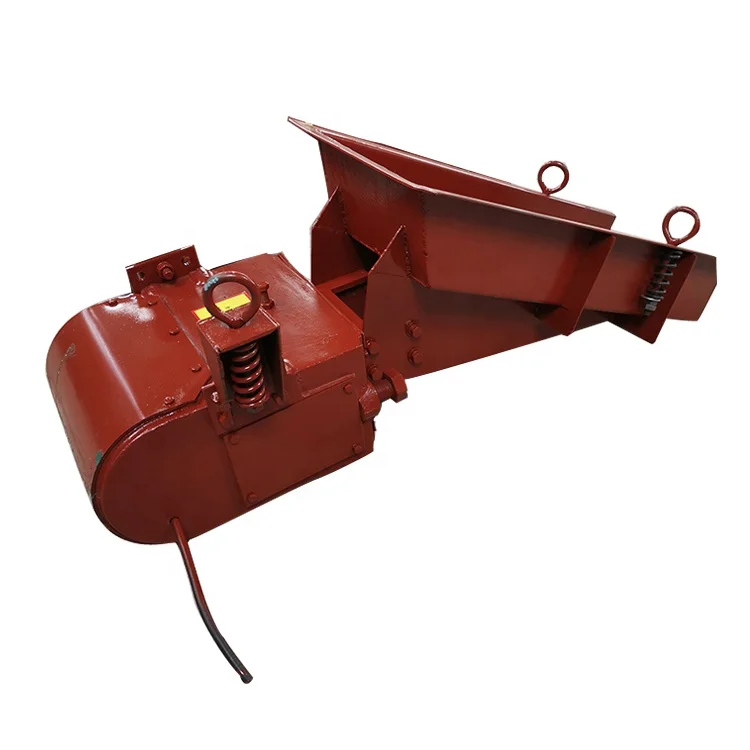

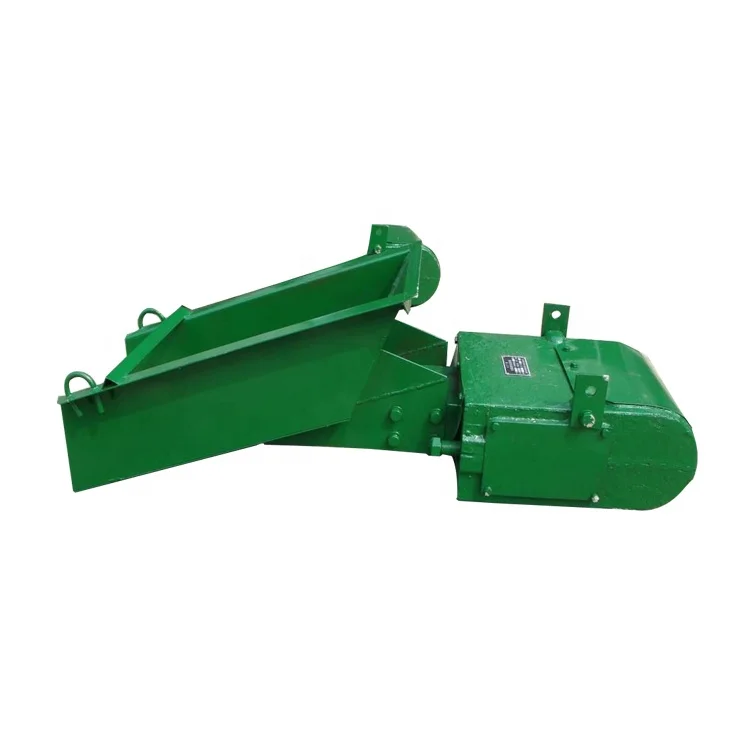

Superior Quality Small Vibrator Feeder Conveyor Electromagnetic Vibratory Feeder
Product Description
GZ series electromagnetic vibration feeder is widely used in mining, metallurgy, coal, building materials, chemical industry, electric power, grain and other industries. It is used to feed bulk, granular and powder materials uniformly, continuously or quantitatively from storage bin or other storage equipment to receiving equipment.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) This series of electromagnetic vibration feeder has the advantages of small volume, low noise, light weight, high working frequency, low power consumption, and can be used to realize automation of production process in automatic control process.
3) Stepless adjustment of feeding quantity can start frequently and run continuously under rated voltage and amplitude conditions, which is convenient for installation and maintenance.
Application
Technical Parameters
Type | Model | Capacity tph | Max Feeding Size (mm) | Double amplitude (mm) | Vibration frequency | Voltage (v) | Current A | Power (kw) | Weight (kg) | ||
Horizontal | -10° | Working Current | Indicated current | ||||||||
Standard | GZ1 | 5 | 7 | 50 | 1.75 | 3000 | 220 | 1.34 | 1 | 0.06 | 77 |
GZ2 | 10 | 14 | 50 | 3 | 2.3 | 0.15 | 151 | ||||
GZ3 | 25 | 35 | 75 | 4.6 | 3.8 | 0.2 | 233 | ||||
GZ4 | 50 | 70 | 100 | 8.4 | 7 | 0.45 | 460 | ||||
GZ5 | 100 | 140 | 150 | 12.7 | 10.6 | 0.65 | 668 | ||||
GZ6 | 150 | 210 | 200 | 1.5 | 380 | 16.4 | 13.3 | 1.5 | 1271 | ||
GZ7 | 250 | 350 | 300 | 24.6 | 20 | 2.5 | 1920 | ||||
GZ8 | 400 | 560 | 300 | 39.4 | 32 | 4 | 3040 | ||||
GZ9 | 600 | 840 | 500 | 47.6 | 38.6 | 5.5 | 3750 | ||||
GZ10 | 750 | 1050 | 500 | 39.4×2 | 32×2 | 4.0×2 | 6491 | ||||
GZ11 | 1000 | 1400 | 500 | 47.6×2 | 38.6×2 | 5.5×2 | 7680 | ||||
Up-vibrating | GZ3S | 25 | 35 | 75 | 1.75 | 220 | 4.6 | 3.8 | 0.2 | 242 | |
GZ4S | 50 | 70 | 100 | 8.4 | 7 | 0.45 | 457 | ||||
GZ5S | 100 | 140 | 150 | 12.7 | 10.6 | 0.65 | 666 | ||||
GZ6S | 150 | 210 | 200 | 1.5 | 380 | 16.4 | 13.3 | 1.5 | 1246 | ||
GZ7S | 250 | 350 | 250 | 24.6 | 20 | 2.5 | 1963 | ||||
GZ8S | 400 | 560 | 300 | 39.4 | 32 | 4 | 3306 | ||||
Closing | GZ1F | 4 | 5.6 | 40 | 1.75 | 220 | 1.34 | 1 | 0.06 | 78 | |
GZ2F | 8 | 11.2 | 40 | 3 | 2.3 | 0.15 | 154 | ||||
GZ3F | 20 | 28 | 60 | 4.6 | 3.8 | 0.2 | 247 | ||||
GZ4F | 40 | 50 | 60 | 8.4 | 7 | 0.45 | 464 | ||||
GZ5F | 80 | 112 | 80 | 12.7 | 10.6 | 0.65 | 668 | ||||
GZ6F | 120 | 168 | 80 | 1.5 | 380 | 16.4 | 13.3 | 1.5 | 1278 | ||
Light Tank | GZ5Q | 100 | 140 | 200 | 1.75 | 220 | 12.7 | 10.6 | 0.65 | 653 | |
GZ6Q | 150 | 200 | 250 | 1.5 | 380 | 16.4 | 13.3 | 1.5 | 1326 | ||
GZ7Q | 250 | 350 | 300 | 24.6 | 20 | 2.5 | 1992 | ||||
GZ8Q | 400 | 560 | 350 | 39.4 | 32 | 4 | 3046 | ||||
Horizontal Tank | GZ5P | 50 | 140 | 100 | 1.75 | 220 | 12.7 | 10.6 | 0.65 | 633 | |
GZ6P | 75 | 210 | 300 | 1.5 | 380 | 16.4 | 13.3 | 1.5 | 1238 | ||
GZ7P | 125 | 350 | 350 | 24.6 | 20 | 2.5 | 1858 | ||||
Wide Tank | GZ5K1 | 200 | 100 | 1.5 | 220 | 12.7×2 | 10.6×2 | 0.65×2 | 1212 | ||
GZ5K2 | 240 | 100 | 1343 | ||||||||
GZ5K3 | 270 | 100 | 1376 | ||||||||
GZ5K4 | 300 | 100 | 1408 | ||||||||
Packaging & Shipping
Certifications
We have established an efficient product quality control system in accordance with ISO9001&CE Quality Control System standard. Each process comes with a detailed quality record, and only the qualified products will be subjected to further processing. Thus we can guarantee that all the vibrating screen machine, vibrator motor, vibrating feeder and conveyor system are up to client’s requirements.
Company Information
Xinxiang DaHan Vibration Machinery Co,. Ltd ,which is established in the year of 2008, located in China biggest machinery manufacture base Henan province, is a professional vibration machinery manufactures which specializes in the production of sieving equipments, conveying equipments, as well as relevant parts. we committed to solve all kinds of sieving problem.Products are widely used in chemical, food, environmental protection, ceramic, foundry, construction, mining, abrasive, etc. Products are exported to Germany, Russia, Vietnam, Singapore, Indonesia and other European and American countries and East Asia, Southeast Asia all over the world.
Related Products
Our Services
We provide 12months quality warranty to make sure your machine well runs consistently.
Pre-sale services:
a. Professional engineer design the production line for you
b.Recommend suitable equipment according to your special demand.
During-sale services:
a.Pre-check and accept products before delivery
b.Send technicians to the jobsite for guiding the installation and adjustment
c.Training operators and finishing the check to satisfy your requiremnet
After-sale services:
a.Common problem can be solved through web in 24 hours,complex problem can be reacted immediately in 24 hours and solved as soon as possible
b.To establish long-term friendship, we will regulary contact with our customers.
FAQ
Q: What is the real delivery time of your factory?
A: 10 to 15 days for general series products, meanwhile, customized products would need 20 days to 40 days based on different situations.
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of DH for most of our customers at home or abroad.However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.
Q: How does your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale serve.
