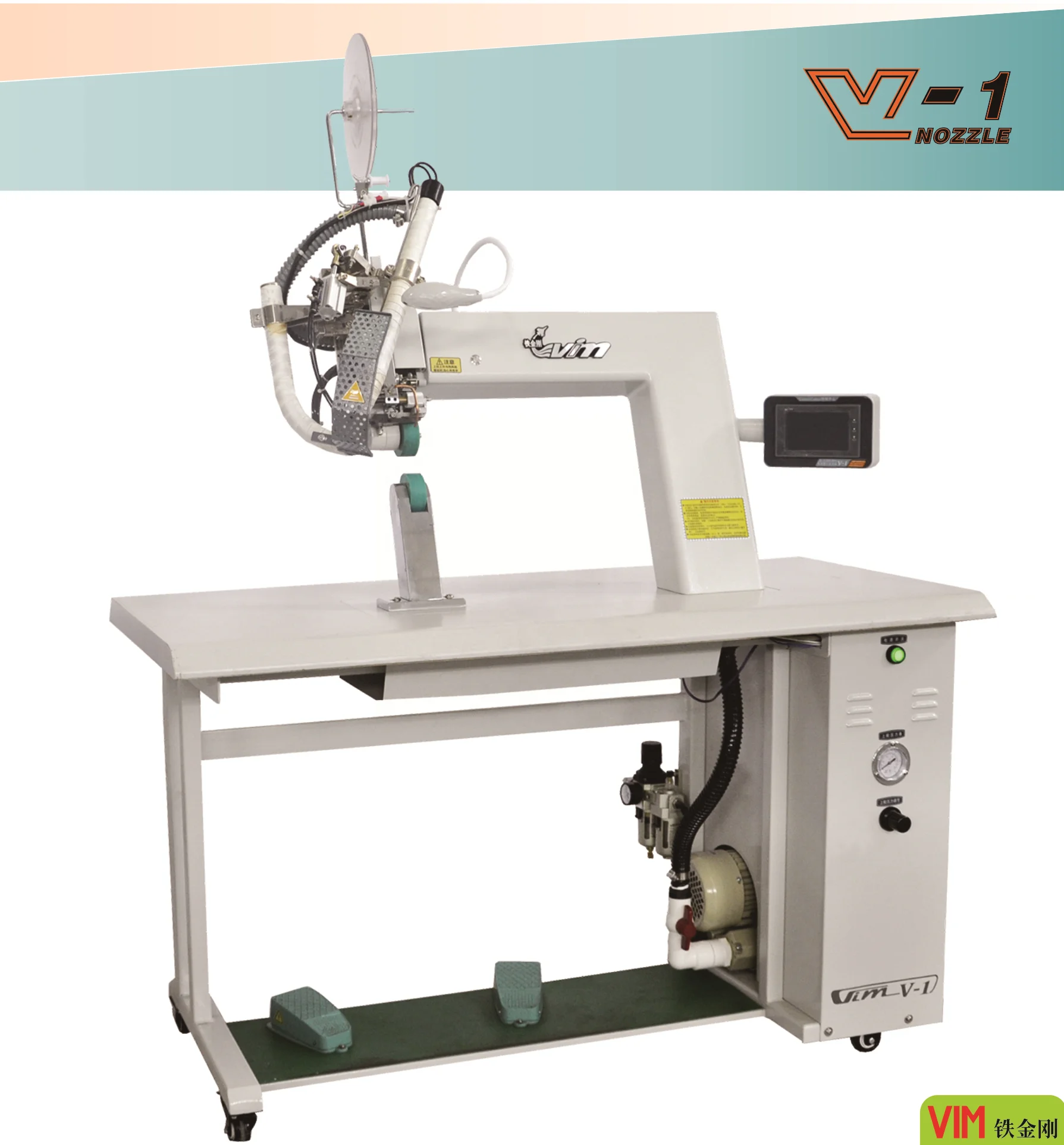

Машина для герметизации швов горячим

Цена:355 997,32 ₽*

Количество:

33 YEARS HISTORY, 33 YEARS EXPERIENCE

CUSTOMER FIRST, QUALITY BEST

EXCELLENT TECHNOLOGY WITH PERFECT WORKMANSHIP

==Product Features==

Controlled by programmable PLC with HMI soft-touch display, process can be modified according to users' requirements.
Auto controllable temperature with high stability slightly varies between±2°C, Warning device for Temperature upper limit is installed to protect heating wire.
It has the functions of synchrodrive of the upper and lower wheel chain, auto compensation, and auto reverse.
Double pedal control is designed according to human mechanics, simple and comfortable, suitable for long-time operation.
It is possible to work 24 hours continuously with high efficiency.
Blowing-in wind can be filtrated without oil or water by unique heater tube.
Super-thin lower column is suitable to sealing product with various sizes.

==Technical parameter==

Power supply:	AC 220V 50Hz
Rating efficiency:	2800W
Heat control:	Room temperature~700^oC
Air supply:	0.35~0.5 Mpa
Speed:	2~24 m/min infinitey varible
Width of pinch roller:	Standard: 25mm mill finish, steel grain, straight grain to be chosen according to demand
Width of seam sealing tape:	14mm-22mm standard, others are available according to requirements
Upper roller lift:	18~25 mm
Exterior size:	1300mm(L),600mm(W) , 1530mm(H)
Net weight:	140kg
Prevention against jumping over sewing work:	There are adjustable devices to prevent the gun from jumping over the seamed sections when the gun is moving inward with the idle wheel starting , or when the gun moving outward with the idle wheel stopping
