HuaEn ZJ-416 хиджабы Абайи шарфы кафтаны палантины маханы

HuaEn ZJ-416 хиджабы Абайи шарфы кафтаны палантины маханы

Категория: Other Apparel Machines >>>
Поставщик: Changzhou,Huaen,Garment,Machinery,Factory

Цена:5 985,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-15-2025	7601.20 $*	7753.39 $*
Jul-15-2025	6165.81 $*	6288.59 $*
Jun-15-2025	7481.14 $*	7631.53 $*
May-15-2025	7421.47 $*	7569.63 $*
Apr-15-2025	5925.29 $*	6044.37 $*
Mar-15-2025	7302.88 $*	7448.17 $*
Feb-15-2025	7242.28 $*	7387.60 $*
Jan-15-2025	7182.53 $*	7326.63 $*

Характеристики

Our Company

Changzhou HuaEn Garment Machinery Factory

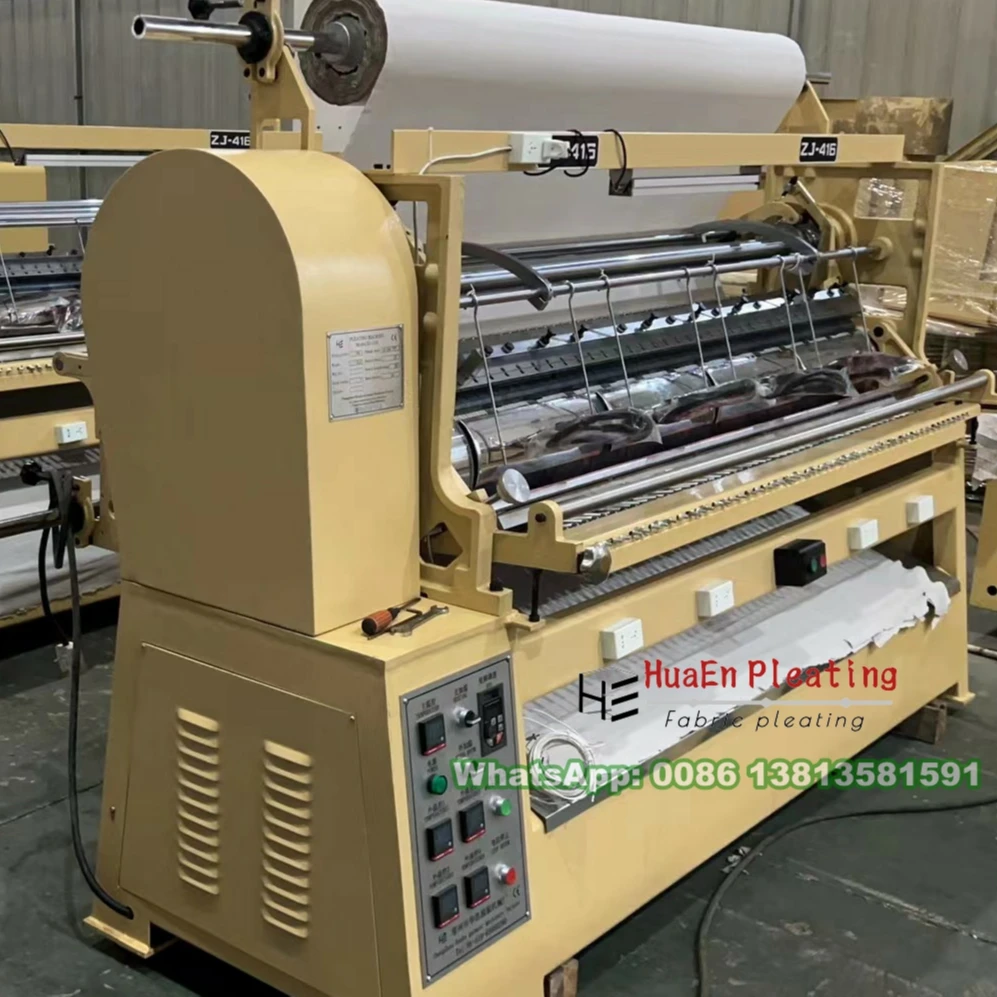

We have been engaged in manufacturing fabric pleating for nearly 15 days. This ZJ-416 dress pleating machine is dedicated for fabric(viscose), chiffon, nylon with single vertical toothpick/crystal pleat pattern at a high efficiency.

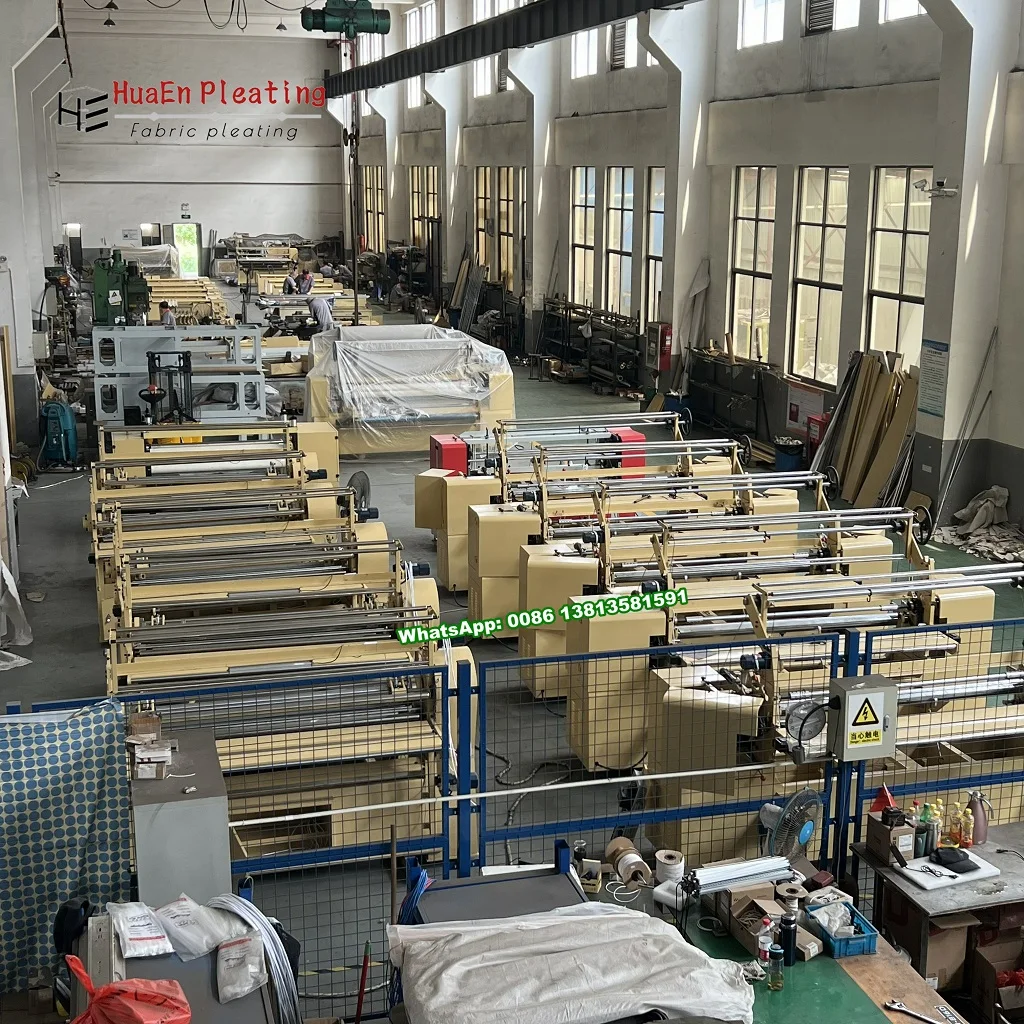

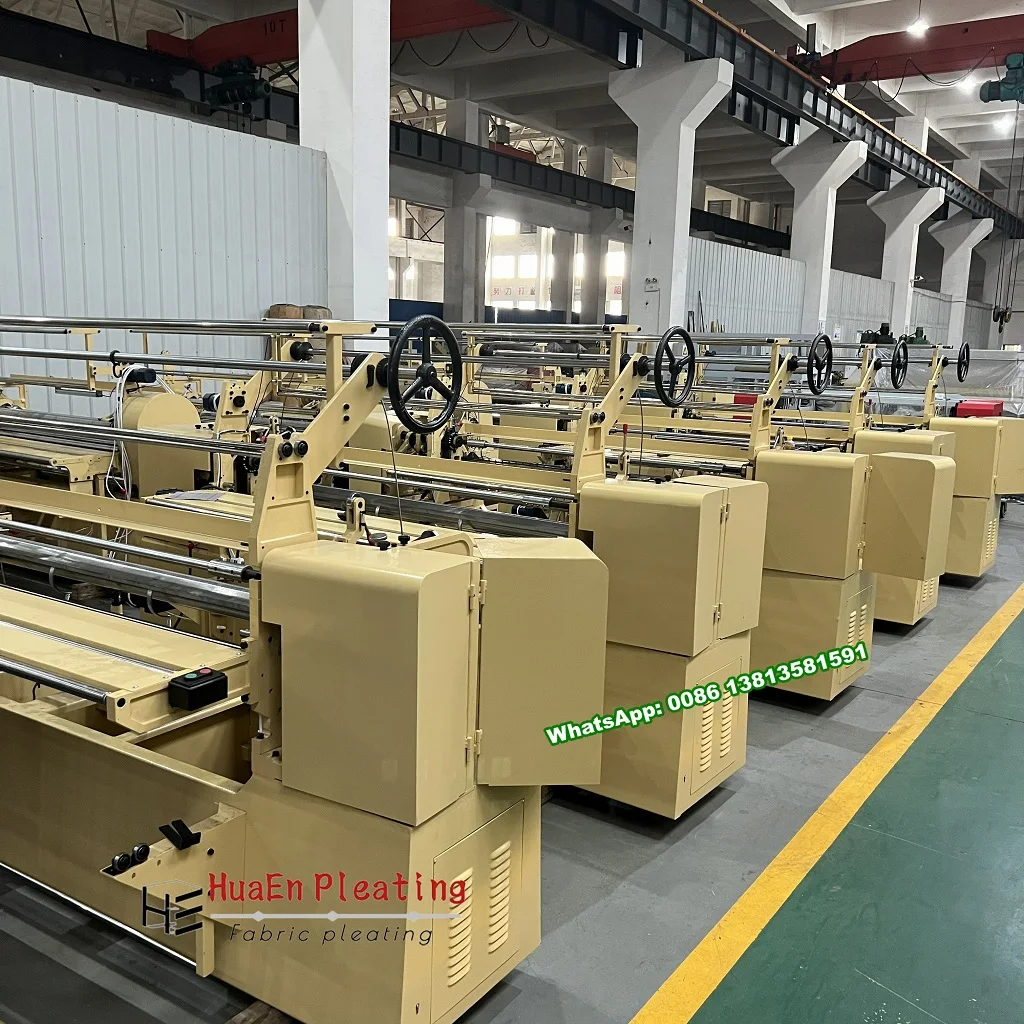

Our factory is located in Changzhou city, Jiangsu Province which is just 1 hour from Shanghai by train. You may send us sample to make a trial on our new installed machine before you place the order. We won't persuade you anything without fullfilling your expectation.

Product Description

Product Application

ZJ-416 fabric dress pleating machine produces only one type of pleat pattern like below. It is vertical shape we usually call toothpick/crystal pleat.

SPECIFICATIONS FOR MUSHROOM PLEAT MAKING MACHINE
Motor	Engine model	Three-phase asynchronous motor
		No. of motor	1
		Power	1.1kW
Main performance parameters	Main performance parameters	km/h
		Pleating speed (max. & min.)	200m/h
		Pneumatic system	Optional
Key parts	Knife / blade	No blade or knife but steel belt comb
		Pleat size can be changed on one fabric	by special roller
		Steel belt lifetime	Over 1 year, depends on working strength

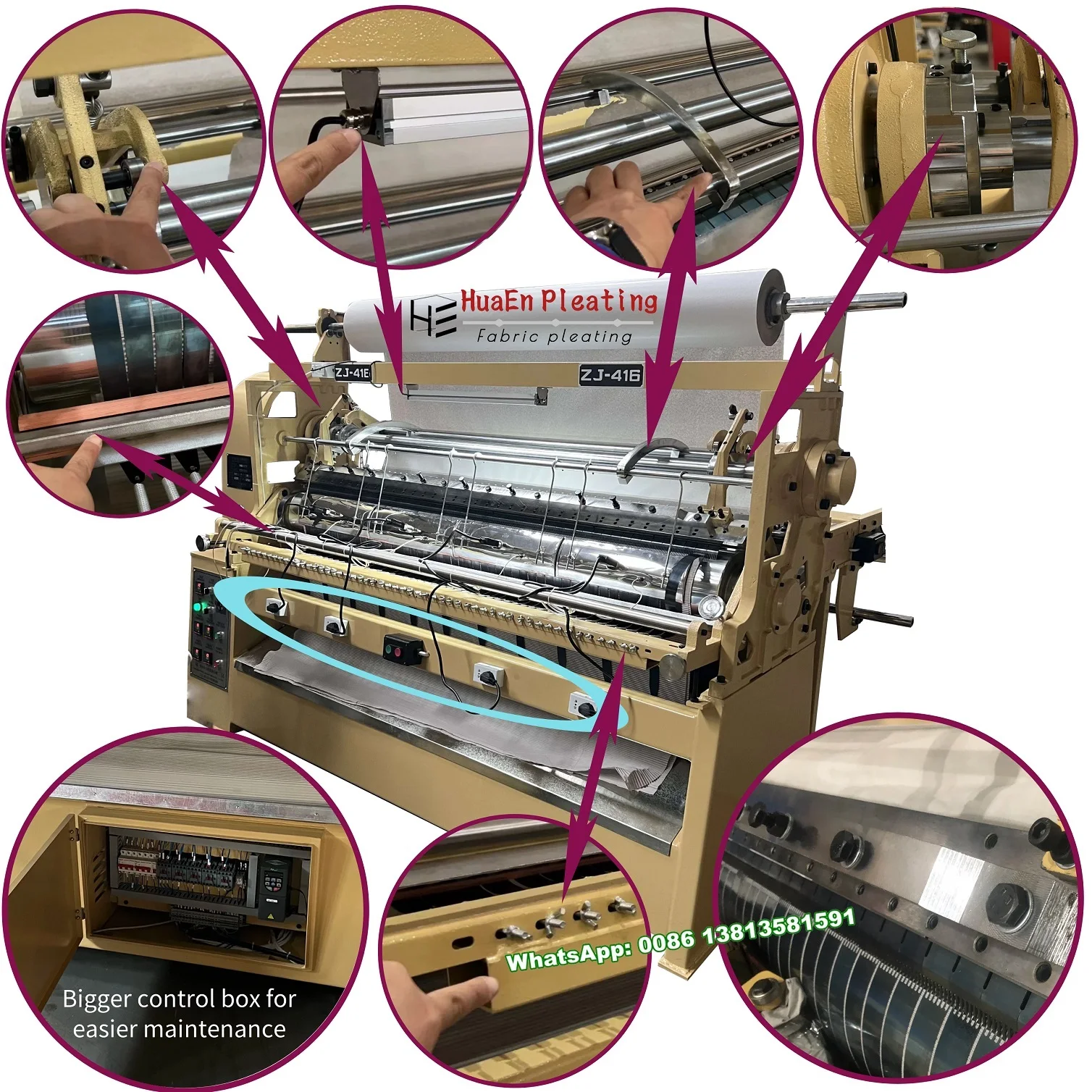

Small knives on ZJ-416 dress pleating machine

One pair of small knives are adopted to make different height synchronously.

There are totally 5 heating sections to ensure uniform heating on this dress pleating machine

These 5 heating sections are 1 major heating in the hollow roll through electric tubes.

The rest 4 assitant heating are in the below pictures. 4 pieces of assitant heating is able to cover the whole fabric length 1700mm.

Pleat pattern

The other model of dress pleating machine ZJ-217.

The knife is custom made and usually 3 knives will be included to cover the basic pleat designes.

Certifications

ZJ-217 pleating machine

The most functional

ZJ-316D pleating machine

Knife moves left/rightwards

ZJ-516 pleating machine

Sunray & Accordion pleating

Packing & Delivery

Packaging
Size	2700 (L) * 1550 (W) * 1800 (D)
Weight	1.25 T
Packaging Details	The normal package is ply-wooden box(Size: LWH). If export to European countries,the wooden box will be fumigated.If container is too tight,we will use PE film for packing or pack it according to customers special request.
