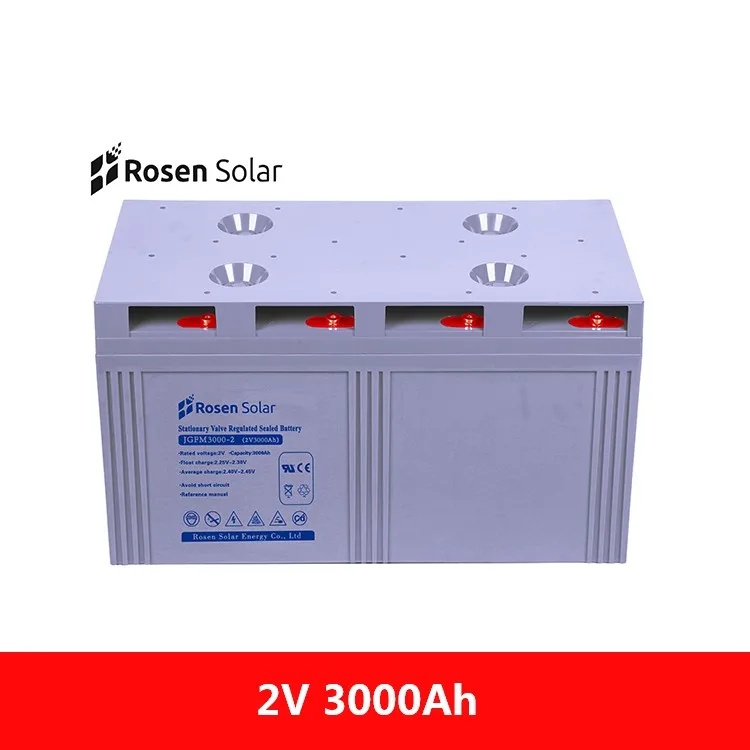

Перезаряжаемая свинцово-кислотная солнечная батарея Rosen с длительным сроком службы 2 в 3000
- Категория: Lead Acid Batteries >>>
- Поставщик: Rosen,Solar,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 690.26 $* | 725.7 $* |
| Aug-16-2025 | 684.84 $* | 718.51 $* |
| Jul-16-2025 | 574.41 $* | 603.67 $* |
| Jun-16-2025 | 673.91 $* | 707.24 $* |
| May-16-2025 | 586.77 $* | 615.31 $* |
| Apr-16-2025 | 661.44 $* | 694.54 $* |
| Mar-16-2025 | 655.92 $* | 688.29 $* |
| Feb-16-2025 | 650.82 $* | 683.21 $* |
| Jan-16-2025 | 644.48 $* | 676.22 $* |
Характеристики
Related Products
Product Description
2V Series Technical Data
1, Function Parameter | 5, Environment Temperature | ||||
Norminal Voltage | 2V | Discharge Temperature | -20-50℃ | ||
Norminal Capacity(10 hours rate) | 300Ah | Charge Temperature | -10-50℃ | ||
Numbers of Cells | 1cell | Storage Temperature | -20-60℃ | ||
2, Rated Capacity at 25℃(77℉) | 6, Inner Resistance & Max. Discharge Current | ||||
10 hour rate(0.1C, 1.80V/cell) | 300Ah | Fully Charge Battery at 25℃(77℉) | 0.47mΩ | ||
3 hour rate(0.25C, 1.75V/cell) | 211Ah | Max. Discharge Current | 800A(5s) | ||
1 hour rate(0.55C, 1.60V/cell) | 152Ah | Short Circuit Current | 2200A | ||
3, Capacity affected by Temperature(10 hour rate) | 7, Self-discharge@25℃(77℉) | ||||
40℃(104℉) | 102% | Capacity after 3 Month Storage | 92% | ||
25℃(77℉) | 100% | Capacity after 6 Month Storage | 84% | ||
0℃(32℉) | 90% | Capacity after 9 Month Storage | 74% | ||
-15℃(5℉) | 70% | Capacity after 12 Month Storage | 65% | ||
4, Constant Voltage Charging at 25℃(77℉) | 8, Dimension & Weight | ||||
Cycle Charge | 2.35-2.4V | Length | 176mm | ||
Maximum Charging Current | 75A | Width | 156mm | ||
Temperature Compensation | -5mV/℃ | Height | 332mm | ||
Float Charge | 2.23-2.27V | Total Height | 341mm | ||
Temperature Compensation | -3.3mV/℃ | Reference Weight | 18.9kgs | ||
Key Features :
♦Long service life according to EUROBAT Classification
♦Up to 2200 deep discharge cycles
♦High gas recombination efficiency
♦Wide suitability of ambient temperature range
♦Low self discharge
Battery Construction
A. Electrolyte: Be immobilized in the cell through the use of a gelling agent or absorbed in the separators and plates.The cells shall have no residual free or bulk liquid electrolyte.
B. Separators: Made of fiberglass. Be porous to electrolyte but electrically insulating.
C. Container & Cover: Cell containers and covers shall be made of a high impact, flame-retardant plastic
D. Terminal: Terminal posts shall be cast in lead or lead alloy and have a copper core insert.
E. Valve: The valve operate at the pressure limits specified. The valve will not allow ingress of outside air into the unit.
Element | Electrolyte | Positive Plate | Negative Plate | Container |
Material | Colloidal silicon | Lead dioxide | Lead | ABS |
Element | Cover | Safety valve | Terminal/Wire | Separator |
Material | ABS | Rubber | Copper | Fiberglass |
Production
Our Company
Factory
Our Factory
Workshop
Our Workshop
Production Line
Production Line
Team
Our Team

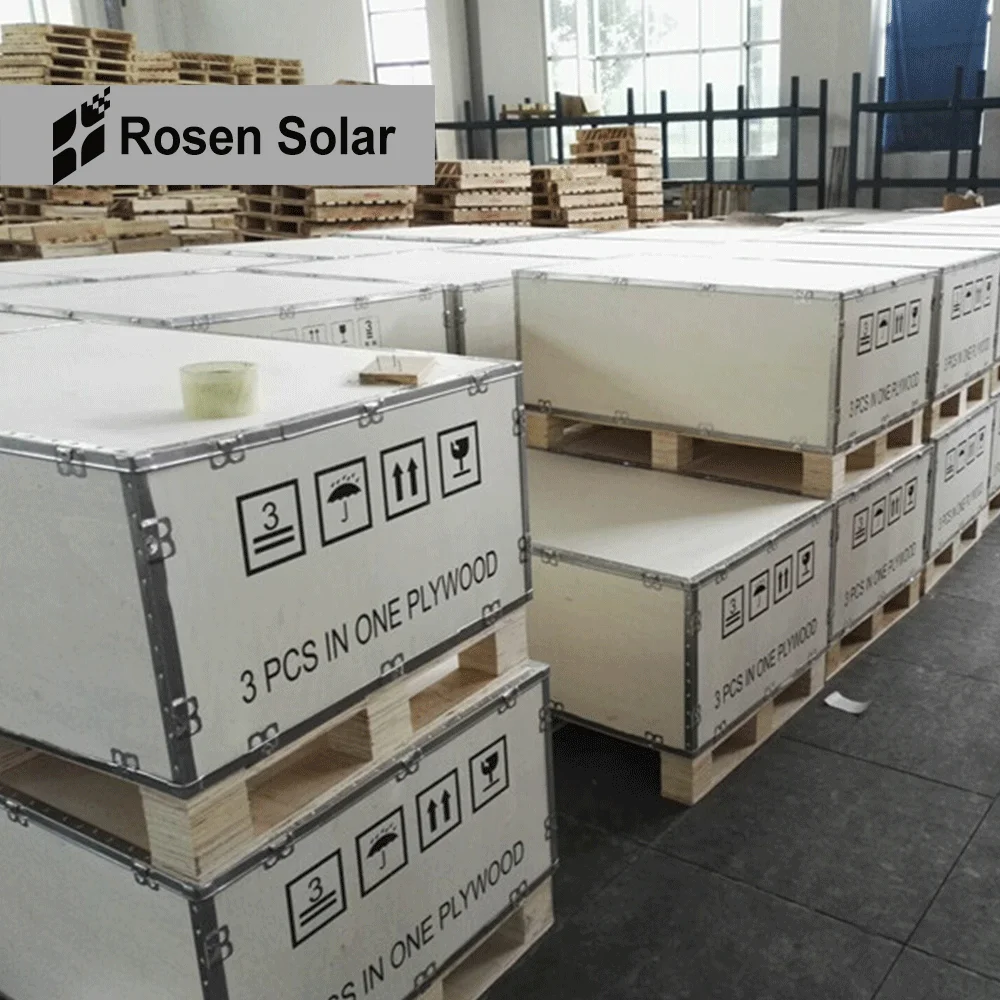

Packing & Delivery
Packing Details : carton box , wooden box and wooden pallet , 1unit per carton box
Delivery Details : 5-15days
