Ручной токарный мини-станок по заводской
- Категория: Сверлильные станки >>>
- Поставщик: Anhui,Chizhou,Household,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1428.14 $* | 1499.85 $* |
| Aug-18-2025 | 1416.99 $* | 1487.61 $* |
| Jul-18-2025 | 1188.76 $* | 1247.60 $* |
| Jun-18-2025 | 1392.24 $* | 1462.7 $* |
| May-18-2025 | 1212.81 $* | 1273.84 $* |
| Apr-18-2025 | 1368.24 $* | 1436.44 $* |
| Mar-18-2025 | 1356.1 $* | 1424.4 $* |
| Feb-18-2025 | 1344.65 $* | 1411.24 $* |
| Jan-18-2025 | 1332.17 $* | 1399.93 $* |
Характеристики

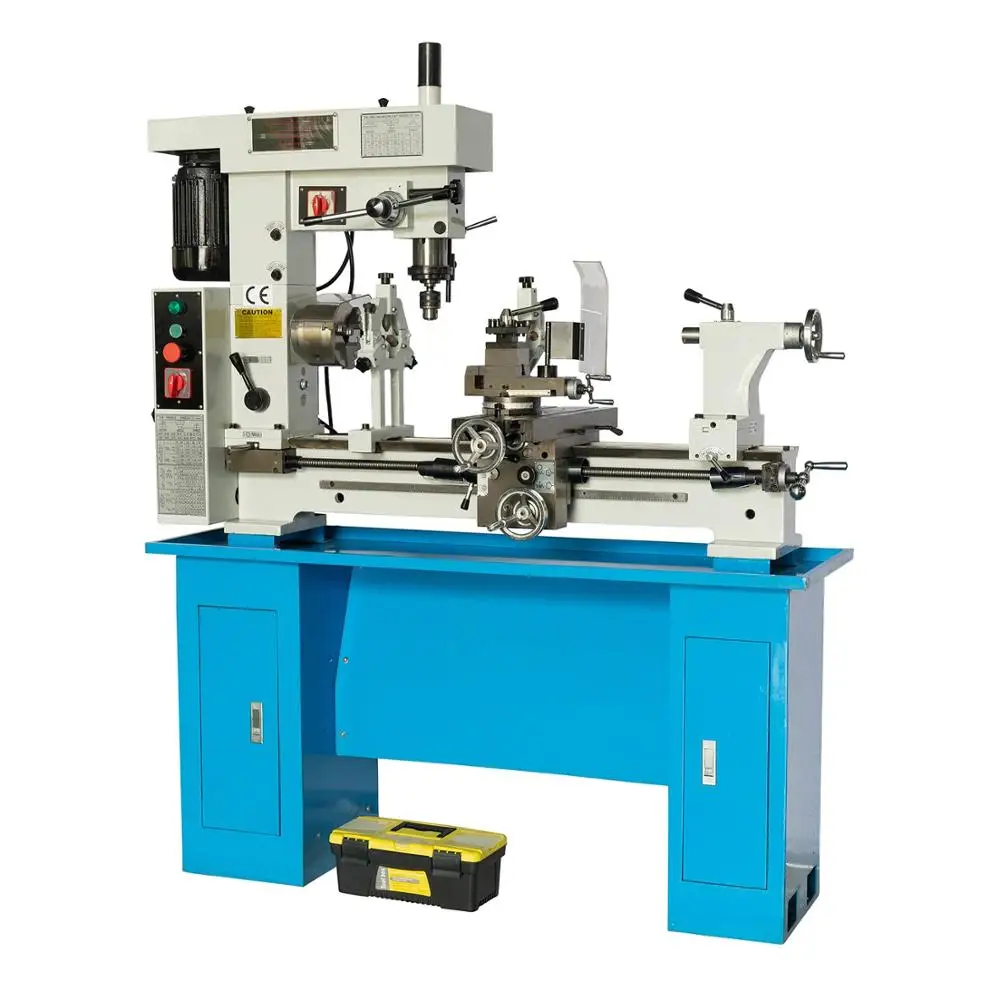

Product Description
- 1. Very practical machine with leadscrew for turning / milling / drilling of parts
2. Easy tooling change-over from turning to drilling / milling
3. Rigid machine bed with hardened and ground guideways, taper gibs for zero-backlash adjustments
4. Precision bearings ensure high spindle concentricity
5. Milling unit with swivel
Model | HQ500/HQ800 | |||||
Turning | Swing over bed | φ420mm | ||||
Distance between centers | 500mm/800mm | |||||
Max.longitudinal travel | 400mm/700mm | |||||
Max.cross travel | 195mm | |||||
Taper of spindle | M.T.4 | |||||
Spindle hole | φ28mm | |||||
Step of spindle speed | 7 | |||||
Range of spindle speed | 160~1360r.p.m | |||||
Metric thread range | 0.6~6mm | |||||
Inch thread range | 4~120T.P.J | |||||
Drilling&Milling | Max.drilling capacity | φ22mm | ||||
Worktable size(L*W) | 475*160mm | |||||
Max.end mill | φ28mm | |||||
Max.face mill | φ80mm | |||||
Distance between spindle center and column | 285mm | |||||
Distance between spindle and worktable | 306mm | |||||
Headstock travel of up and down | 110mm | |||||
Spindle taper | M.T.3 | |||||
Step of spindle speed | 16 | |||||
Rangle of spindle speed | 120~3000r.p.m | |||||
Swivel degree of headstock | ±360° | |||||
Motor | Motor power | 0.55kw | ||||
Other | Packing size | 1130*580*1100(1430*580*1100)mm | ||||
N.weigh/G.weigh | 245kgs/280kgs(275kgs/325kgs） | |||||
Features
1.A kind of combination machine with turning,milling,drilling and threading
2.Suitable for processing metal,wood and other materials
3.Excellent advantage of various functions,small occupation and economlization
4.Widely used in job-shops,car-shops technical school,factories and family for machine parts repairing and making,education trainin,household utensils'making,etc
Stadard Accs
1.Change gears
2.Tool post wrench
3.Wedge
4.Allen wrench
5.3-jaw chuck and wrench
6.Tie rod
