Характеристики
Company Brief Introduction - Jiangsu Xinrongplas Machinery Co., Ltd.
Top Plastic Machinery Manufacturer Since 1996.
Our main products are: plastic pipe extrusion line and plastic recycling machine.
The main products are popular in the domestic market,such as the East China market,Southwest market,Northeast market and Central China market.The products are also exported to international market,including Russia,Australia, Southeast Asia,Middle East,East Europe.Africa and other countries.
Final Products
PET Bottle Recycling.
Waste PET bottle recycling is no doubt the most important part of recycling market.
Recycled PET is in good value and has a wide range of application: to produce PET strapping, PET sheets, fibers, etc.
The quality of waste PET bottles varies greatly, and different customers have different quality requirement of recycled PET.
Our company provides customized solutions to meet different customer needs.
Quality Table of Final PET Flakes | ||||||
Moisture Content | ≤2% | PVC Content | ≤100ppm | |||
Bulk density | 0.25-0.35g/m³ | Glue Content | ≤30ppm | |||
Flake Size | ≤16mm，or customized | Metal Content | ＜20ppm | |||
Total impurity content | ≤200ppm | PE/PP Content | ＜20ppm | |||
Label Content | ≤30ppm | PH Value | 7-8 | |||
Products Description
PET BOTTLE WASHING & RECYCLING LINE.
1. PET cleaning equipment, fully automatic production line, is an equipment specially used for crushing and cleaning waste mineral water bottles and other PET plastics.
2. A new generation of high-efficiency and water-saving equipment has been developed after repeated trials by scientific research departments.
3. PET cleaning equipment mainly includes: conveyor belt, crusher, steamer, screw elevator, parallel cleaning machine, twin screw rinsing machine, bottle flake dehydrator, silo, electric control cabinet and so on.
4. Features: exquisite appearance, low energy consumption, high output, practical and reliable.
5. Flow chart: Conveyor belt-crusher-lifting-parallel cleaning-twin screw rinsing-lifting-steamer-parallel cleaning-bottle dewatering machine-blower-storage box.
2. A new generation of high-efficiency and water-saving equipment has been developed after repeated trials by scientific research departments.
3. PET cleaning equipment mainly includes: conveyor belt, crusher, steamer, screw elevator, parallel cleaning machine, twin screw rinsing machine, bottle flake dehydrator, silo, electric control cabinet and so on.
4. Features: exquisite appearance, low energy consumption, high output, practical and reliable.
5. Flow chart: Conveyor belt-crusher-lifting-parallel cleaning-twin screw rinsing-lifting-steamer-parallel cleaning-bottle dewatering machine-blower-storage box.
Machine List | ||||||||||
1.0 | Metal chain conveyor (sink into ground) | 8.0 | Steel platform | 15.0 | High speed dewatering machine | |||||
2.0 | Bale breaker | 9.0 | Manual sorting table | 16.0 | Two way screw conveyor | |||||
3.0 | Double screw loader | 10.0 | Metal detector and automatic separation device | 17.0 | Hot washer | |||||
4.0 | Trommel | 11.0 | Crusher | 18.0 | High speed friction washer | |||||
5.0 | Belt conveyor | 12.0 | Horizontal screw conveyor | 19.0 | Z type label blower | |||||
6.0 | Label remover | 13.0 | Screw loader | 20.0 | Silo | |||||
7.0 | Bottle washer | 14.0 | Floating washer | 21.0 | Electric cabinet | |||||
Machine Details
1.0 Metal chain conveyor
(sink into ground)
Manually release packed PET bottles by cutting the steel wire and convey to the next machine.
2.0 Bale breaker
Disperse PET bottles which can be easier to handle.
3.0 Double screw loader
Used to convey material into next machine.

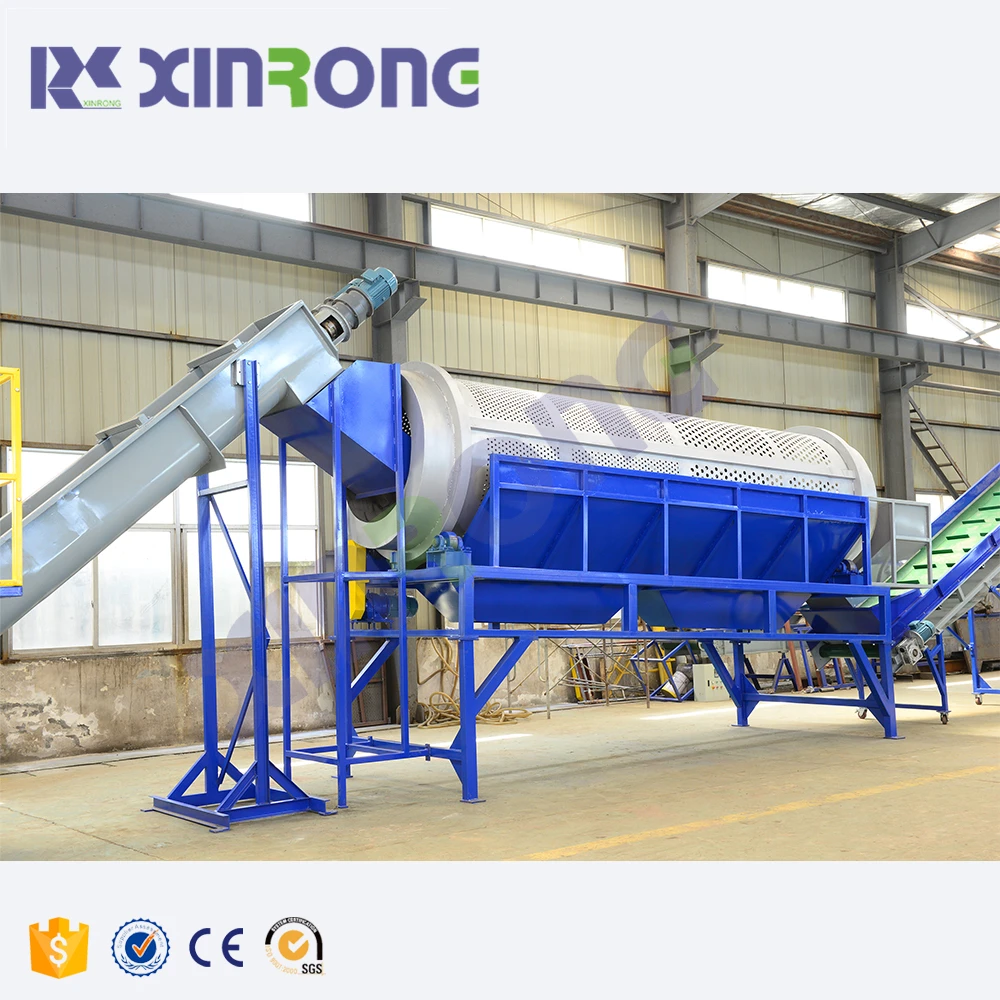

4.0 Trommel
Used to separate small impurities such as, metal, soil, sand, stone, etc.
5.0 Belt conveyor
Used to convey material into next machine.
6.0 Label remover
Remove labels attached on bottle surface.
7.0 Bottle washer
To remove impurities, soil and soil by inject high pressure water. The friction plates inside tank are made of special
wear-resistant steel for durability.
wear-resistant steel for durability.
8.0 Steel platform
To place the manual sorting table. The main frame adopts thick square tube and I-beam steel.
9.0 Manual sorting table
Manually sort out labels and other impurities.
10.0 Metal detector and automatic separation device
Detect metals, when metal detected, device will collect metal without stopping the machine.

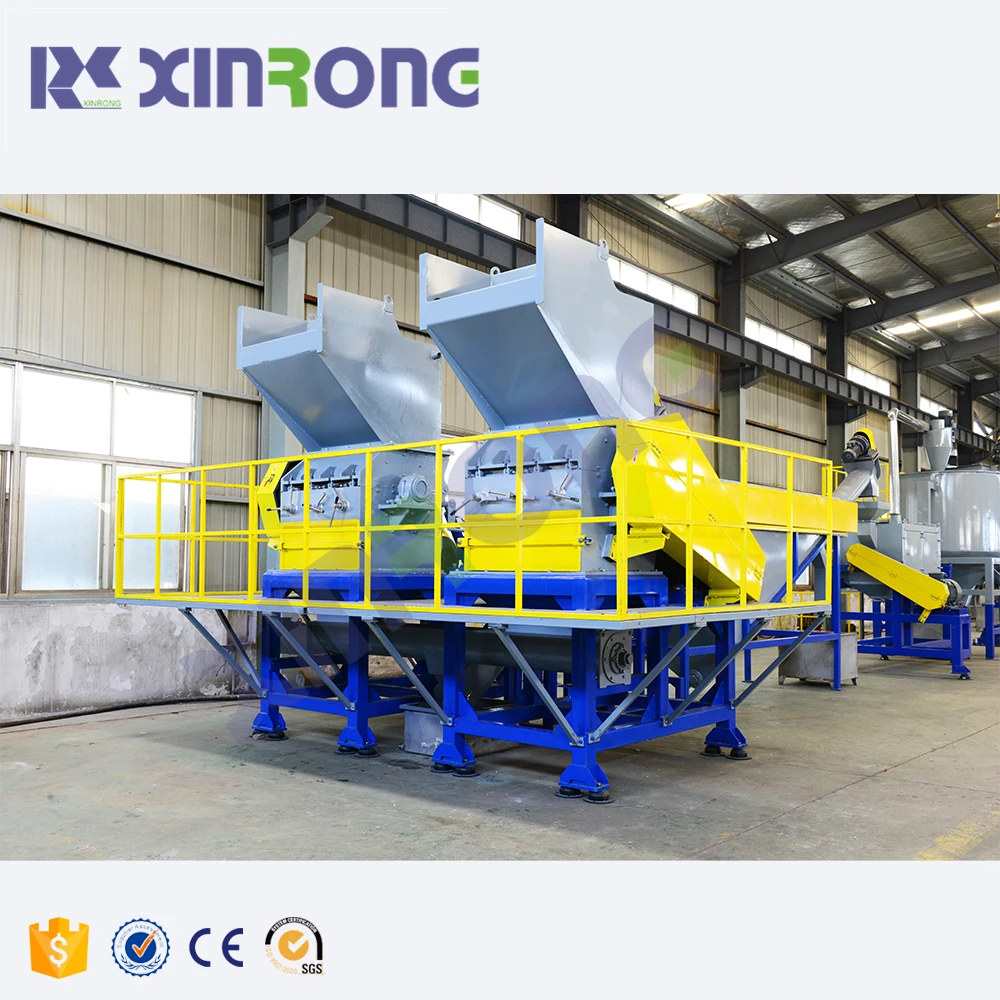

11.0 Crusher
To crush material into small sizes. With water to clean material and cool blades during crushing.
12.0 Horizontal screw conveyor
Use to collect material together and convey to next machine.
13.0 Screw loader
Used to convey material into next machine.

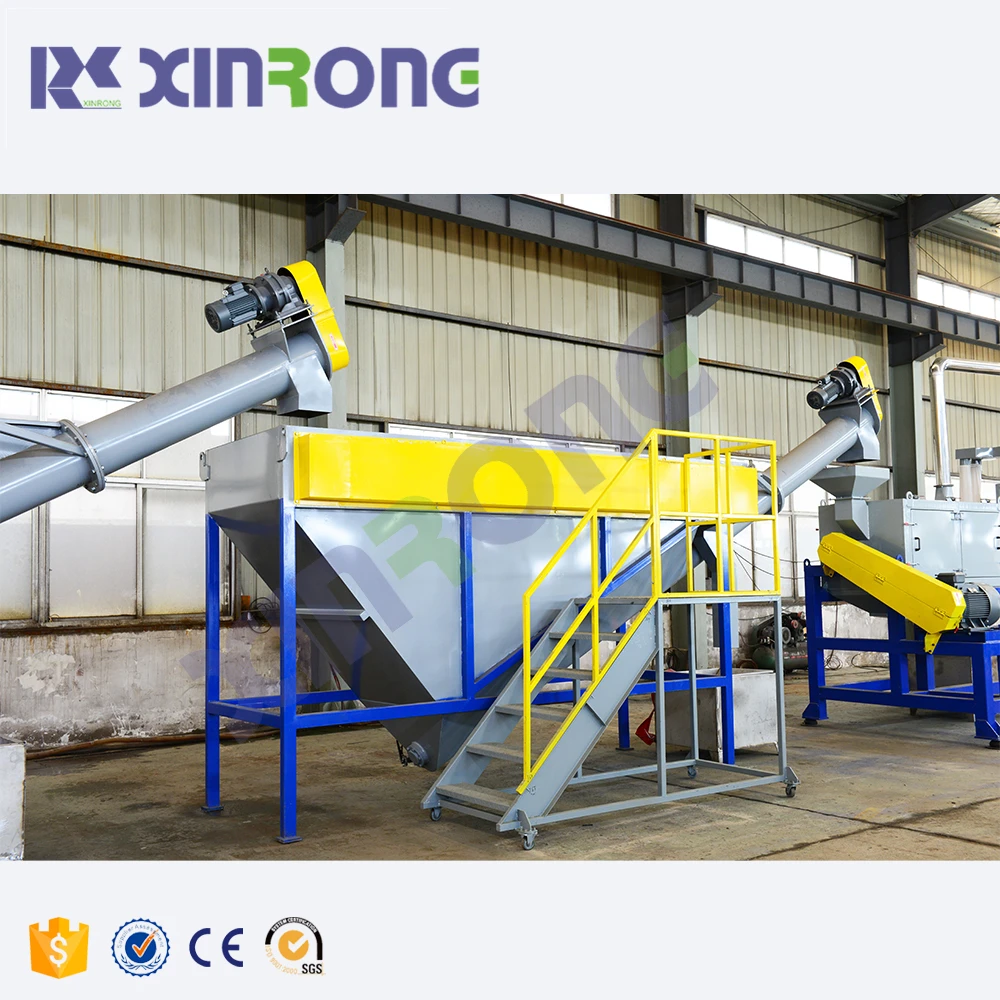

14.0 Floating washer
Make remaining label, caps and other impurity float and separate from PET flakes. With washing function for PET flakes.
15.0 High speed dewatering machine
To make PET flakes dried. Also with high speed friction to clean PET flakes further (get rid of glue, dirties, oil, detergent and etc.).
16.0 Two way screw conveyor
Two convey material in next two machines at same time.
17.0 Hot washer
Use hot water mixing with caustic soda or other detergent to remove oil, glue and other impurities.
With special design to discharge impurities which float on the water (such as label, bottle caps, etc). This design will improve washing effect.
18.0 High speed friction washer
To remove remaining caustic soda and other impurities by water and high speed friction.
The friction plates inside tank are made of special wear-resistant steel for durability.
19.0 Z type label remover
To separate remaining label and dust from PET flakes.
20.0 Silo
To temporarily store PET flakes.
21.0 Electric cabinet
To control the whole line and each machine unit.
Product Paramenters
Production Line Parameter (for reference only, can be customized) | ||||||||||
Capacity (kg/h) | Total Power (kw) | Area Required (㎡） | Labour Required | Steam Consumption (kg/h) | Water Consumption (m³/h) | |||||
500 | 200 | 350 | 6-8 | 320 | 1 | |||||
1000 | 450 | 650 | 8-10 | 480 | 2 | |||||
2000 | 700 | 1000 | 10-12 | 830 | 4 | |||||
3000 | 900 | 1500 | 12-14 | 1100 | 6 | |||||
5000 | 1200 | 2400 | 14-16 | 1500 | 10 | |||||
