Product Description

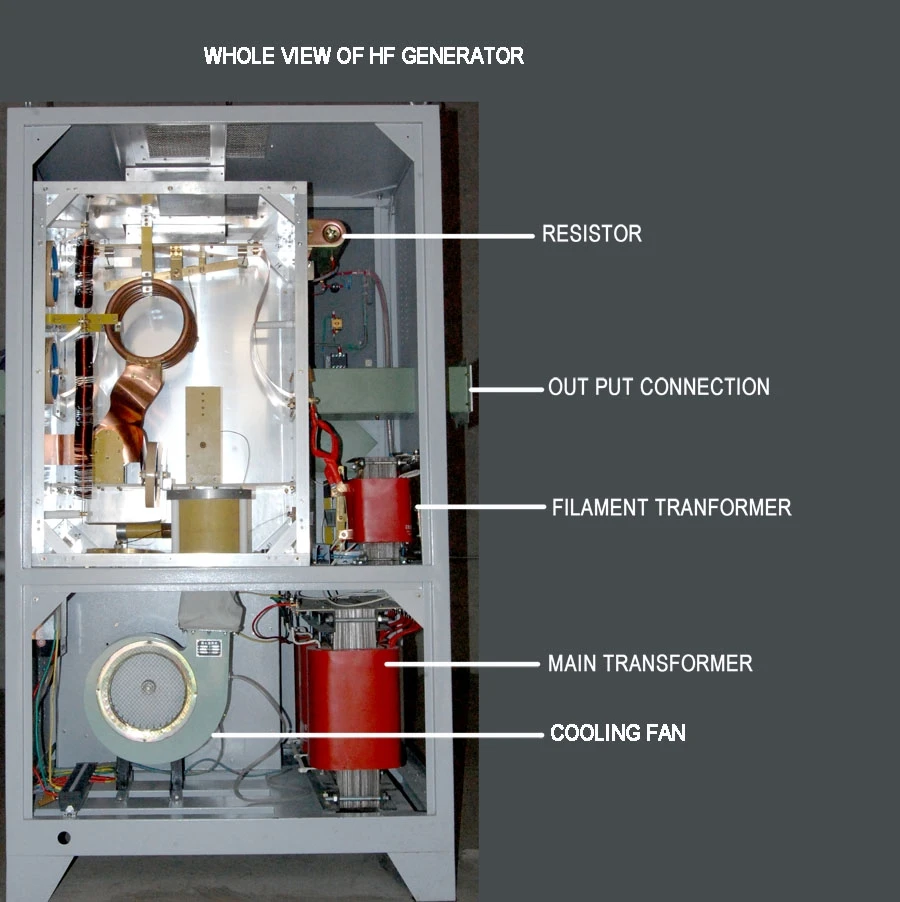

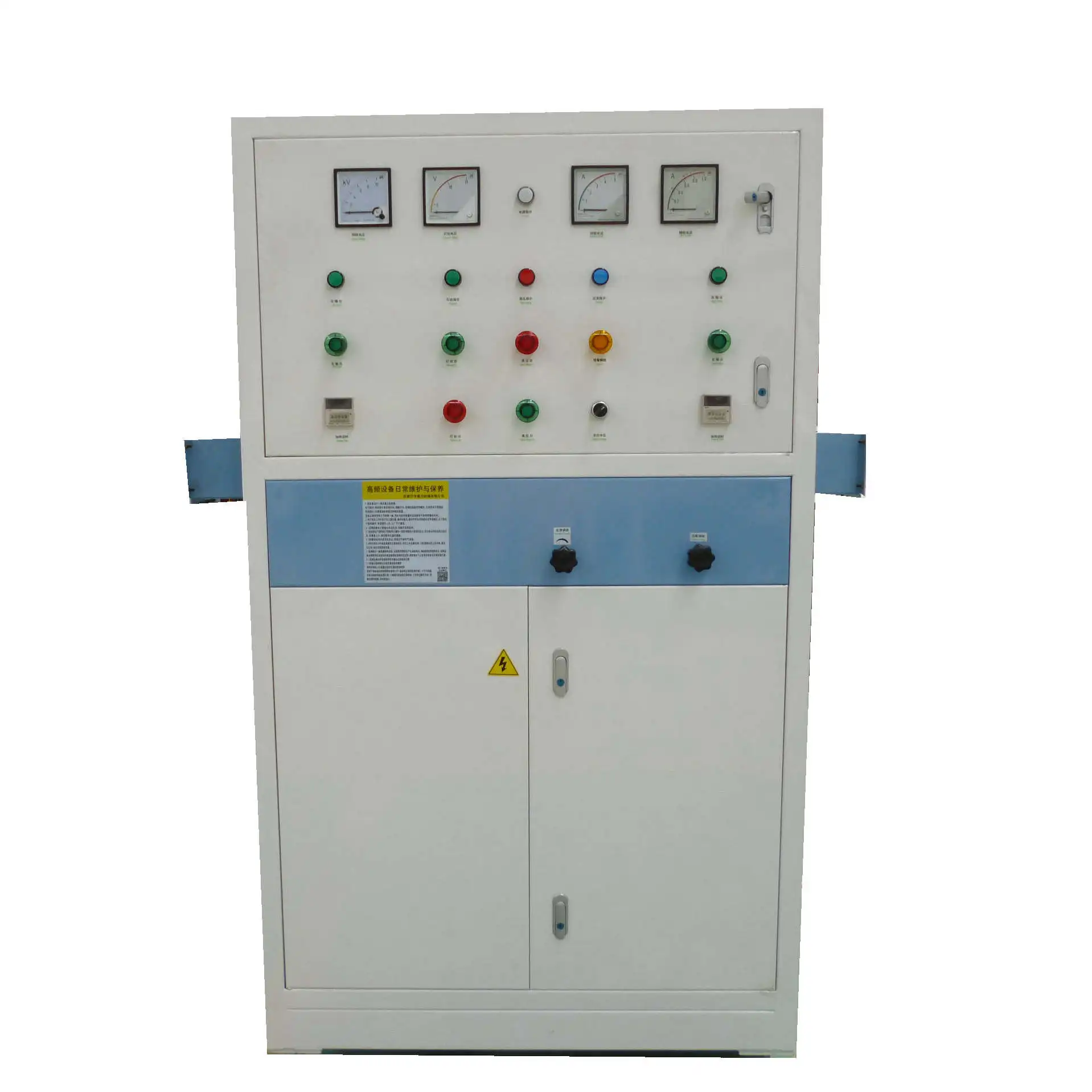

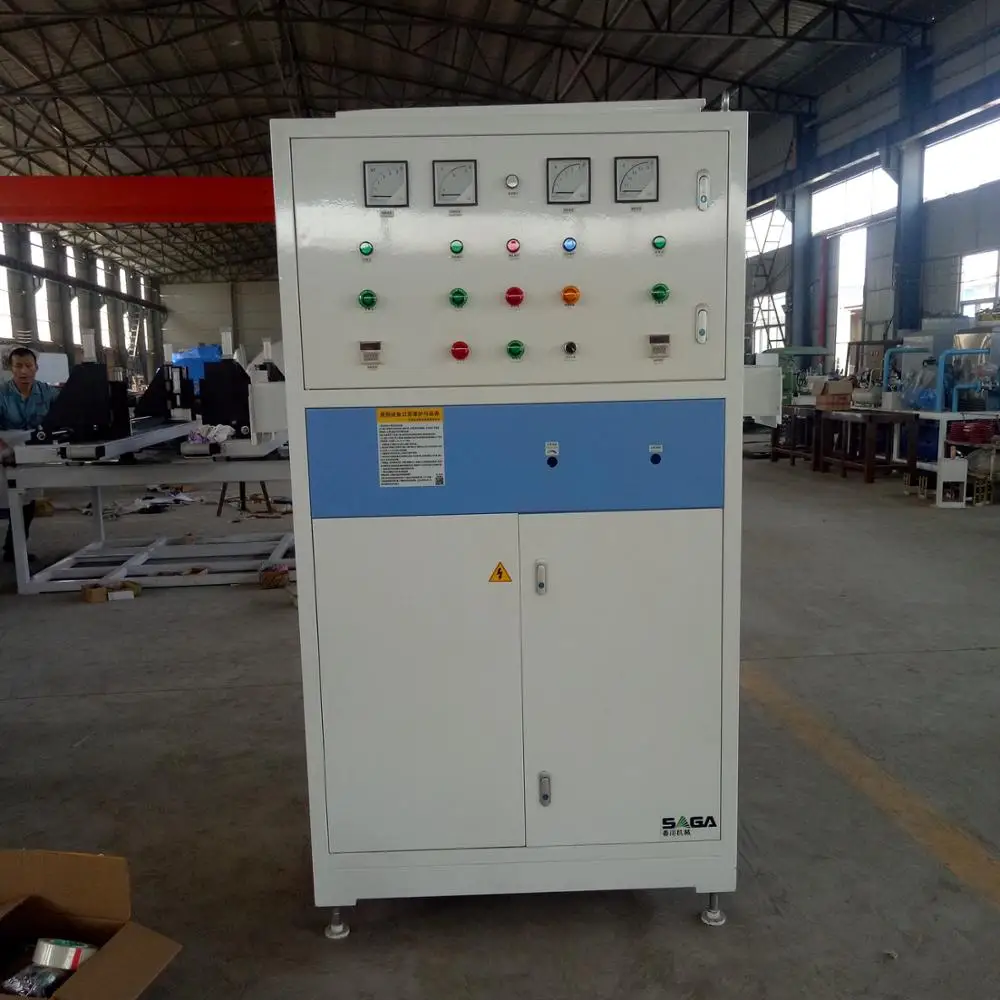

High Frequency(Radio Frequency) Dielectric Heating Generator For Sales HF30-SA
1.High frequency generator (Radio frequency generator, high frequency machines) is a plant which can turn normal electric power to high frequency (electro-magnetic) power, suitable for fast curing of glue or water.
2.High frequency generator is suitable for curved plywood forming or wood panel jointing or hard wood drying, it is a core plant for high frequency machinery.
SPECIFICATIONS FOR HIGH FREQUENCY GENERATOR | ||||||||
HF15-SA | HF20-SA | HF30-SA | HF50-SA | |||||
POWER | 380V 50HZ 3PHASE 4WIRE OR CUSTOMIZED | |||||||
INPUT POWER | 20KVA | 30KVA | 40KVA | 75KVA | ||||
OUTPUT POWER | 15KW | 20KW | 30KW | 50KW | ||||
OSCILLIATION | 6.78Mhz | |||||||
PROTECTION | Overload protection,wind pressure detection ,filament protection,cooling fan protection | |||||||

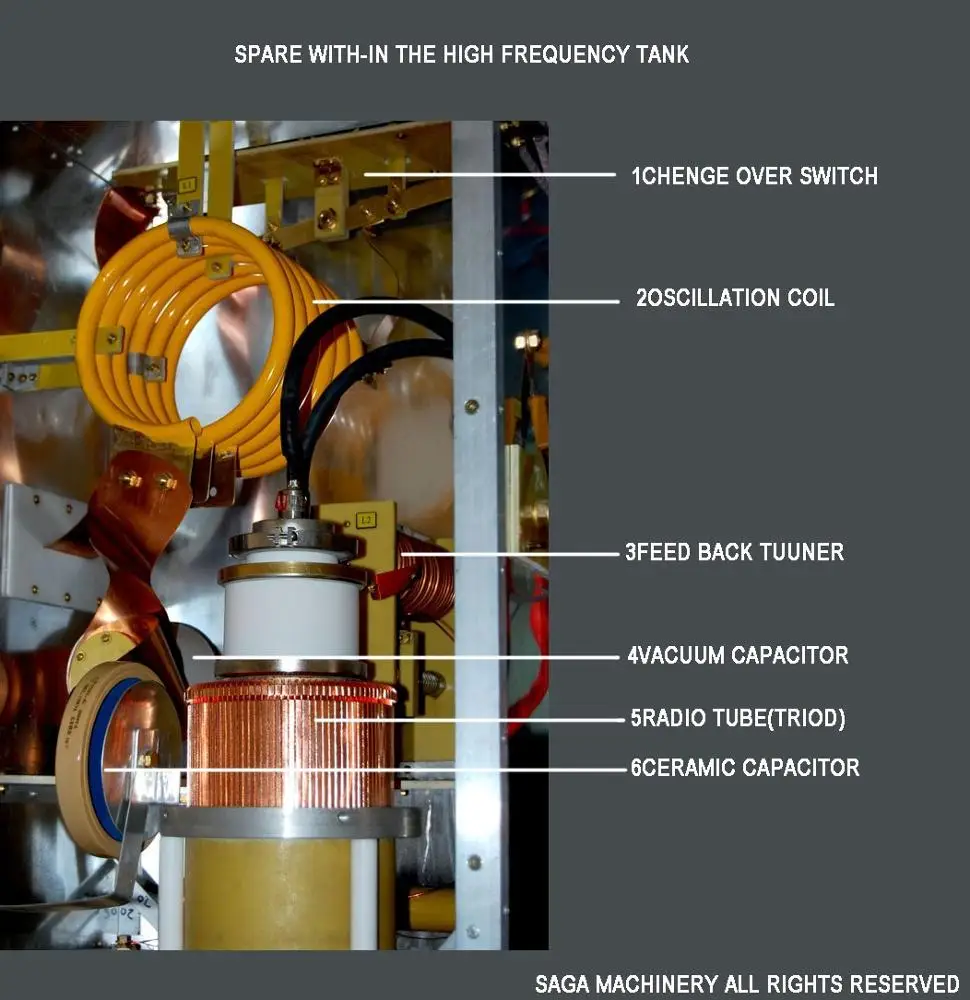

TUNNING MODE | Tunable vacuum capacitor | |||||||
COOLING MODE | Forced wind cooling | |||||||
OUTPUT | 2 output | |||||||
OVER SIZE | 950x1000x1800mm | 950x1000x1850mm | 1000x1100x1850mm | 1100x1200x1950mm | ||||
WEIGHT | 500kg | 600kg | 650kg | 980kg | ||||
Main Features
High Frequency Generator(Radio Frequency generator) is a plant which can turn normal electric power to high frequency(electro-magnetic) power,apply this power to the load equipment or electrode,the water or glue molecule with in the work pieces is polarized and rapidly change direction or move follow the frequently change of the electro-magnetic power,thus cause suddenly friction,this friction between molecule makes the temperature raise,thus the water vaporized and glue bond.

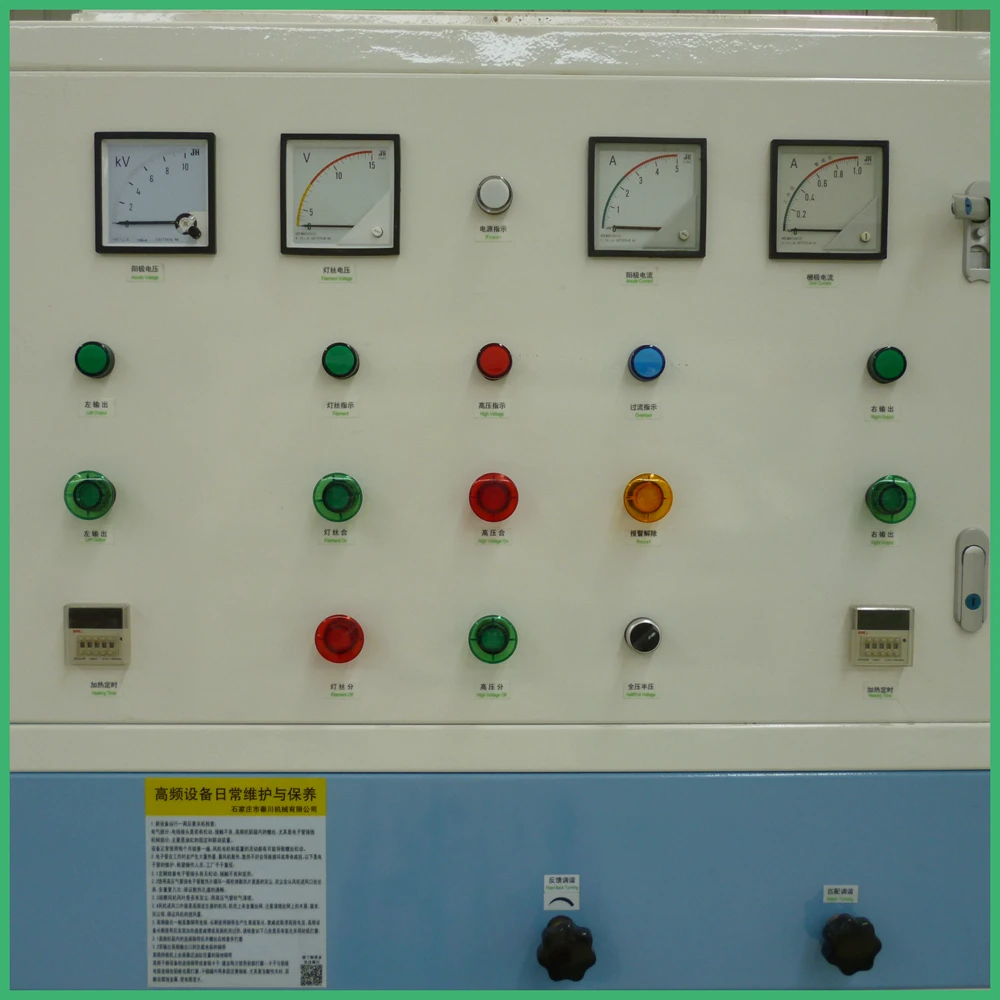

1.More scientific design,simple and humanistic control panel.

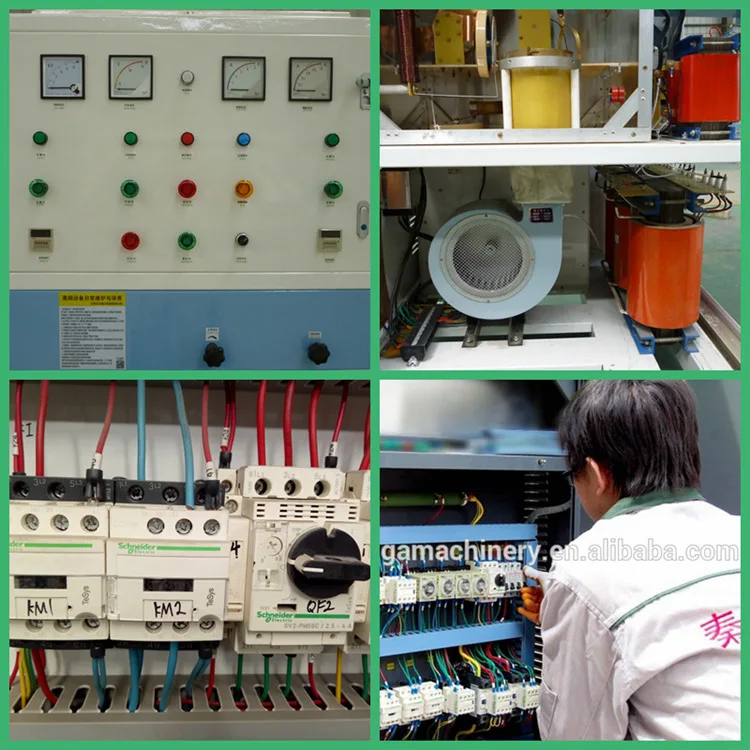

2.Control electric spare parts are mostly use Schneider or Ormron brand,stable and safe.
Certifications
Application
High Frequency Vacuum Wood Dryer
Name: HF vacuum wood dryer
Brand: SAGA
Original: China
High frequency generator as the heating source,combined with vacuum condition,drying wood from core to surface,fast and uniform humidity.
High Frequency Edge Gluer
Name:Wood joining machine,Edge gluing machine
Brand: SAGA
Original: China
High frequency heating with two direction hydraulic press,realize fast curing in 2-3 minutes,joining result is uniform humidity and high quality flatness.
High Frequency Plywood Curved Press Machine
Name: Wood bending,wood forming machine
Brand: SAGA
Original: China
Apply high frequency to hydraulic press,with wood mold and aluminum plate,is suitable for plywood chair bending,sofa handle making.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 1200 (L) * 1040 (W) * 2050 (D) | |
Weight | 650kg | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
