3 оси рекламные 35m3 50cbm сухого порошка силоса транспортировочный бак навального цемента балкерного танкер
- Категория: Прицепы >>>
- Поставщик: Jining,China,Machinery,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 16779.58 $* | 17618.36 $* |
| Aug-16-2025 | 16638.81 $* | 17470.8 $* |
| Jul-16-2025 | 13959.32 $* | 14657.67 $* |
| Jun-16-2025 | 16356.60 $* | 17174.9 $* |
| May-16-2025 | 14241.54 $* | 14953.96 $* |
| Apr-16-2025 | 16074.20 $* | 16878.40 $* |
| Mar-16-2025 | 15933.72 $* | 16730.97 $* |
| Feb-16-2025 | 15792.34 $* | 16582.73 $* |
| Jan-16-2025 | 15651.0 $* | 16434.13 $* |
Характеристики
Product Description
Production Name Bulk Cement Tanker Cement Bulker Tank Semi Trailer
SPECIFICATION
Trailer Model | 3 Axles Promotional 35m3 50cbm Dry Powder Silo Transport Tank Bulk Cement Bulker Tanker Trailer |
Overall Dimension | 11000×2500×3850mm |
Volume | 40 CBM |
Axle Brand | Standard 13 ton ZY brand |
Axle Number | 3 units |
Wheelbase(mm) | 8000+1310+1310 |
Steel Spring | -/10/10/10 leaf spring suspension |
The material of main beam | The height of the beam is 500 mm, upper plate is14mm,down plate is16mm,middle plate is 8mm |
Tank thickness | 5 mm, end/front 6mm |
Compartment | One, With 2 manholes |
Tire Type and quantity | 12R22.5 tubeless tires, taitong brand 12 pieces |
Steel rim | 12 pieces |
Traction Pin | 90mm or 50mm |
Spare Wheel Carrier | 1 piece |
Tool Box | 1 standard |
The diesel engine | Weichai Tianhe 4102 |
Air compressor | Bohai 12 CBM/min |
Landing Gear | Standard single speed 28ton |
Brake system | Dual Line braking system |
Brake air chamber | Six double air chamber, wabco emergency valve |
Electrical system | 1 Voltage: 24v 2 Receptacle: 7 ways (7 wire harness) 3 One set 6-core standard Cable. |
Side Guard | According to customer’s requirement |
Painting | Color by customer’s requirement |
Packing | Polish with wax before shipping |
Semi-trailer Drawing

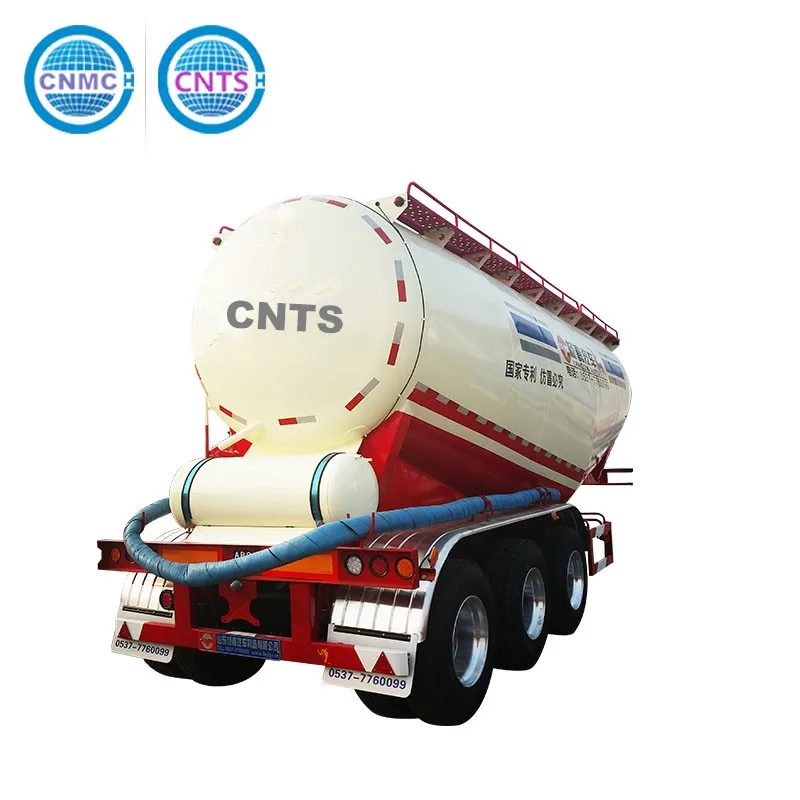

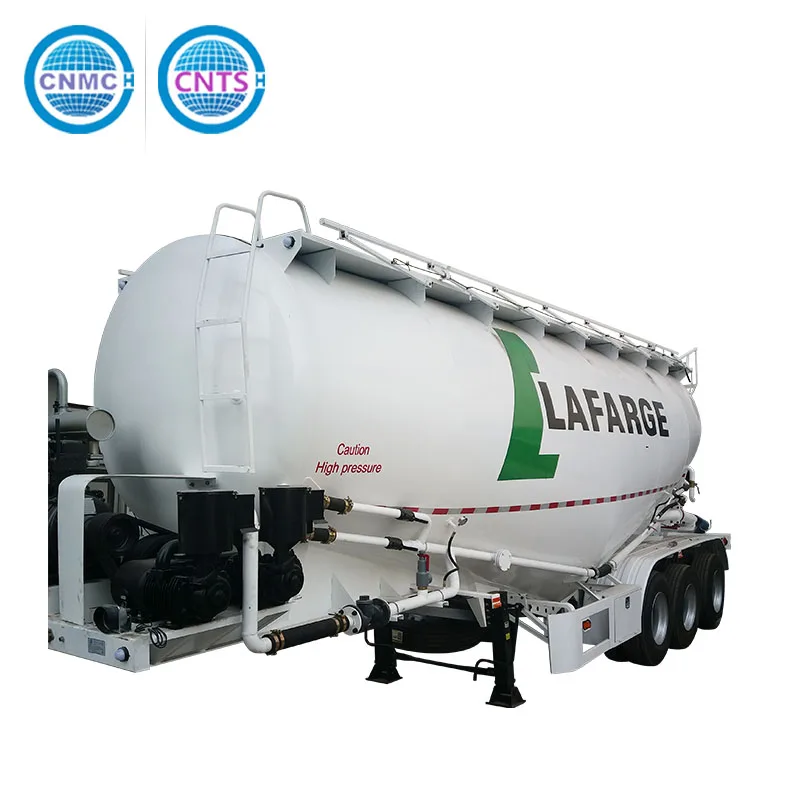

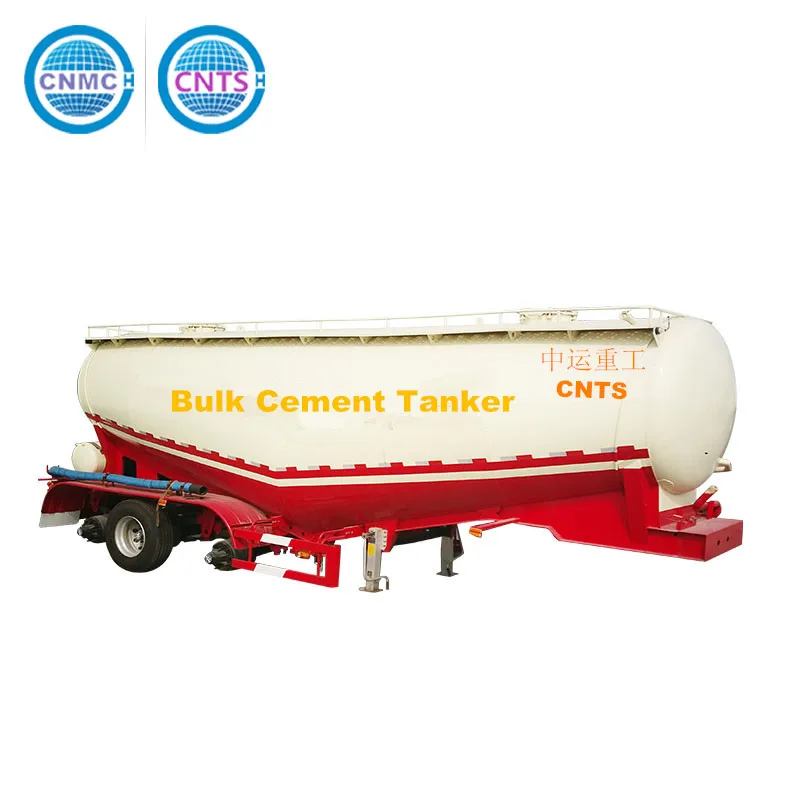

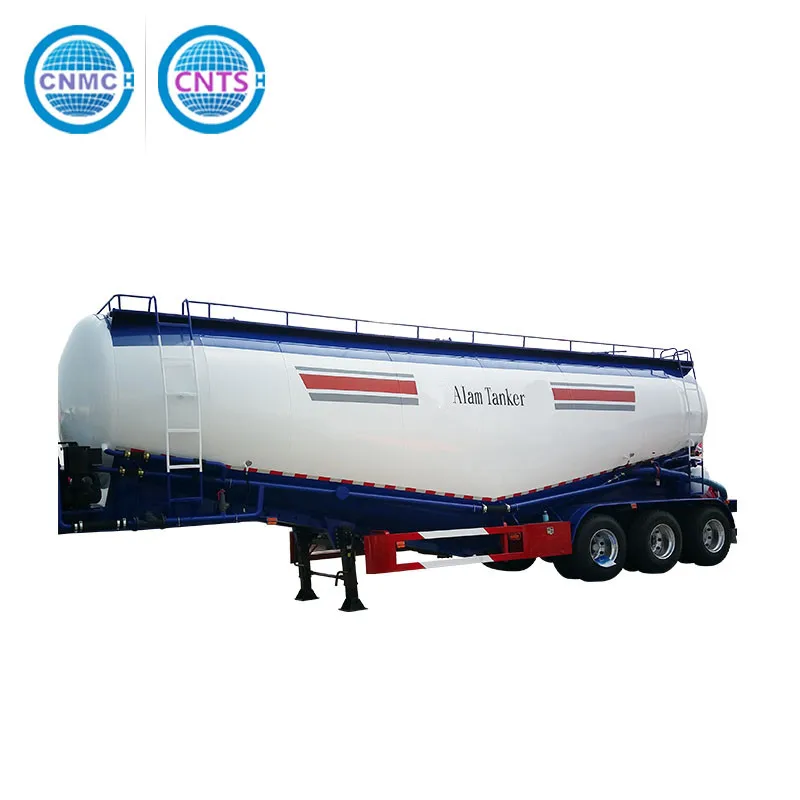

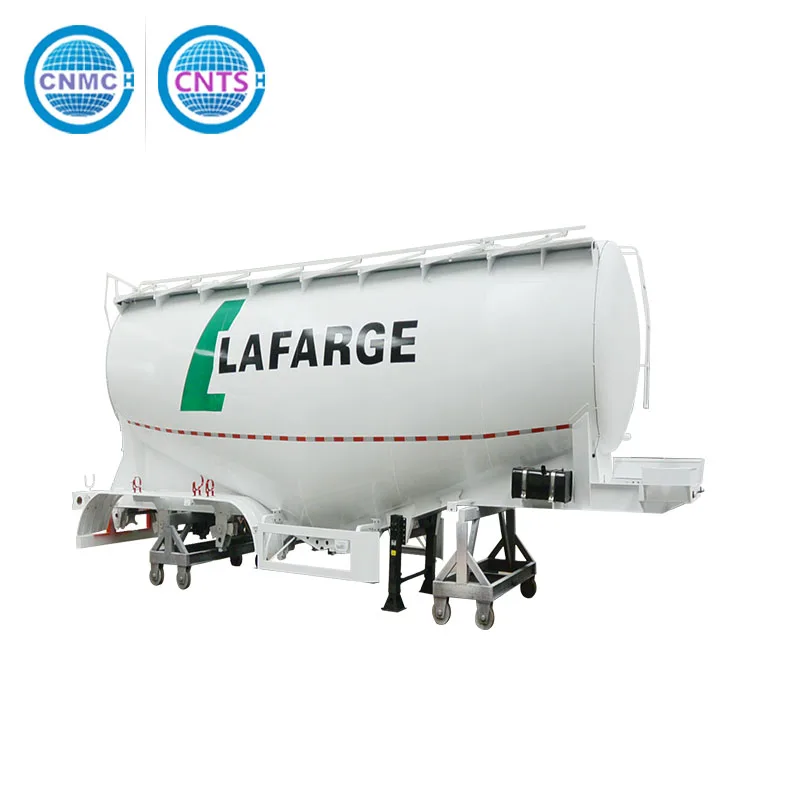

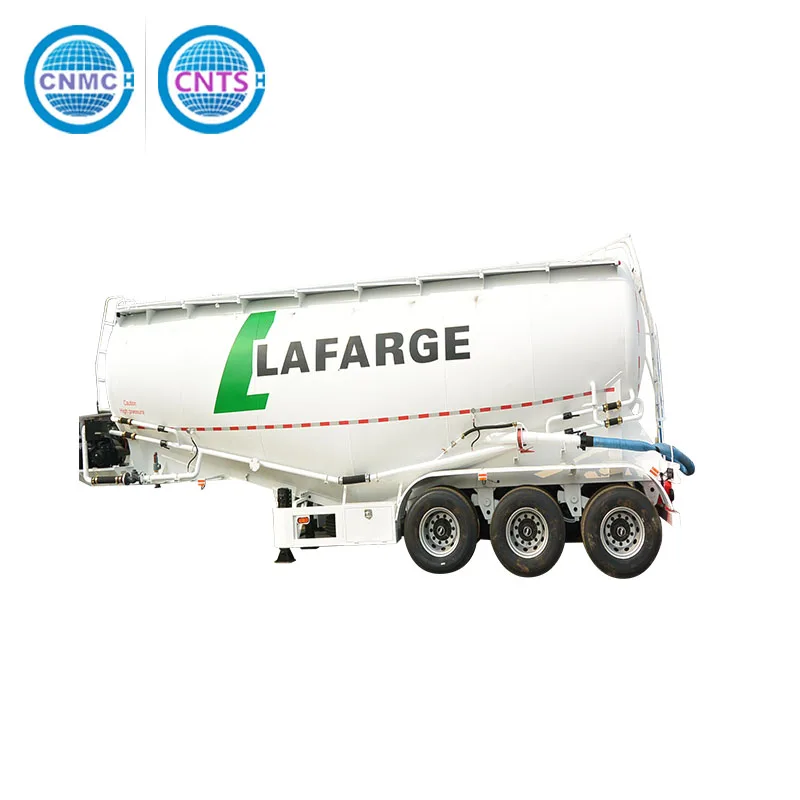

Detailed Images
CNTS bulk cement trailer manufacture consummate with quality raw material and parts, good performance and durable.
This trailer can carry bulk cement, grain, sodium bicarbonate and any bulk powder materials3.
There are 28ton – 125ton loading capacity, V type, W type and tipping type for your choose. We also support Customized design, it helps getting most suitable vehicles.
3D Drawing
Help optimum design, support load more, making more money form per trip
1.Higher loading rate: >98%, fully filling
2.Lower residual rate: <0.3%, make the most of transportation
3.Lighter tare weight: 5.8 ton minimum, reduce transport fuel consumption
HyperMesh & Ansys
Fully utilize physical property, support higher performance, reducing operating cost
1.Higher working pressure: Testing 3bar, working 2.5bar, >15m higher delivery height suitable most silo
Packing & Delivery
Our Company
China Machinery (Jining) Industrial Co., Ltd. is located in Asia's largest industrial base---Shandong Jining City. We are a professional manufacturer of construction machinery ,spare parts,and other heavy machinery equipments and accessories .
CHNMC owns it,s speiclal design, development, manufacturing as a professional manufacturer.We focus on a series of machines and accessories, a wide range of diversity, reasonable price and on-time delivery.
