Низкая цена U форма 3-х осевой 45 cbm самосвал прицеп для транспортировки
- Категория: >>>
- Поставщик: Shandong,Luyi,Dedicated,Vehicle,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 11429.96 $* | 11658.67 $* |
| Jul-15-2025 | 9269.39 $* | 9454.29 $* |
| Jun-15-2025 | 11249.15 $* | 11474.66 $* |
| May-15-2025 | 11159.48 $* | 11382.96 $* |
| Apr-15-2025 | 8909.18 $* | 9087.60 $* |
| Mar-15-2025 | 10979.29 $* | 11199.90 $* |
| Feb-15-2025 | 10889.6 $* | 11107.48 $* |
| Jan-15-2025 | 10799.43 $* | 11015.52 $* |
Характеристики
Low Price U shape 3 Axle 45 cbm Tipper Dump Trailer Truck For Coal Transport
Product Description
This series of dump trucks use Mallery type (T type), single cylinder floating connecting rod type (F type) or direct front Overhead hydraulic lifting mechanism, using hydraulic components of well-known brands at home and abroad; auxiliary frame.
The longitudinal beam of the carriage is welded and bent by high-quality manganese plate. There are three types of carriages, namely Pan shape, rectangular shape and U shape. With high strength and strong lifting force,Easy to unload.
Specification
Trailer Model | tipper trailers |
Overall dimension | 11000mm*2500mm*3200mm |
Loading Weight | 30-70T |
Axle | 3/4/5/6 axles, FUWA/BPW/YAHUA brand axle |
Wheelbase(mm) | 6700+1310+1310 or other |
Suspension system | Mechanical or air supension (American or German) |
Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
Floor Plate Thickness | 4mm/6/8/10 |
Sidewall Thickness | 3mm/4/6/8 |
Tire Type | 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 |
Rim | 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20/9.0-20 |
Cylinder | HYVA( model choice is according to the Load) |
Traction Pin | JOST 2''(50#)/3.5''(90*) changeable |
Spare Wheel Bracket | 2 sets(Patent type) |
Tool Box | 2 sets(waterproof type) |
Landing Leg | JOST, FUWA or CHINA brand 28T |
Brake system | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand); |
One piece of 45L air tanks | |
Brake air chamber | Six double chamber |
Painting | Sandblasting, rust prevention, two primer, two finish |
Shipping Terms | By bulk cargo carrier, RORO or 40HQ container. |

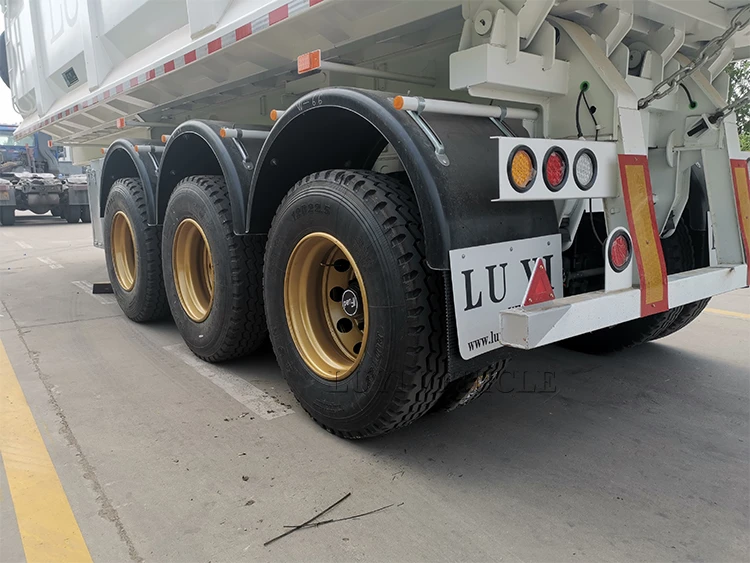

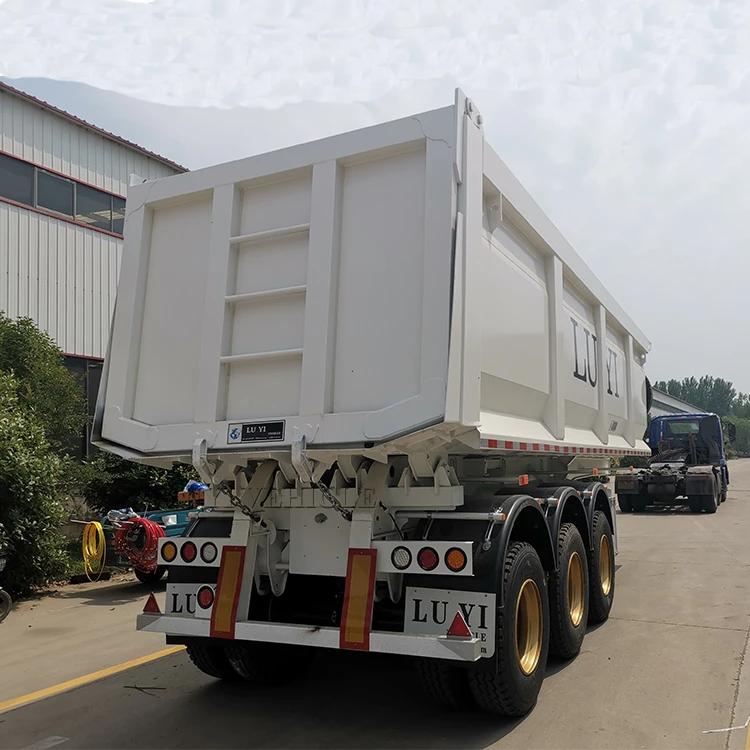

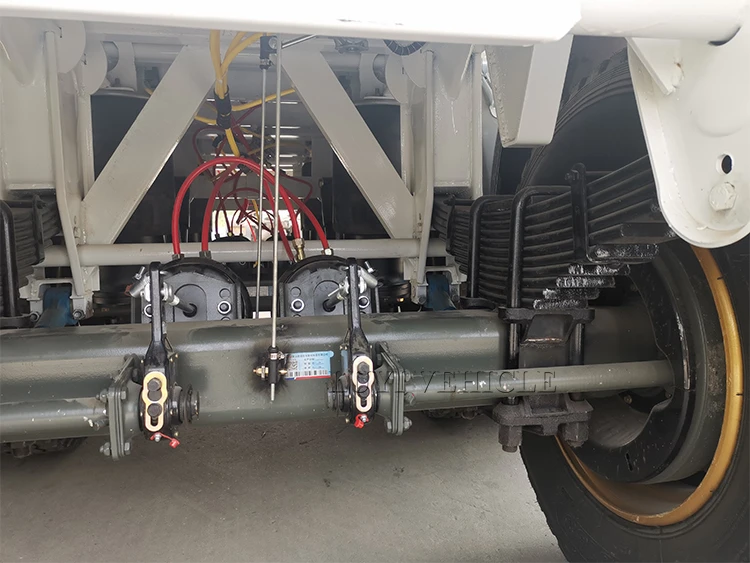

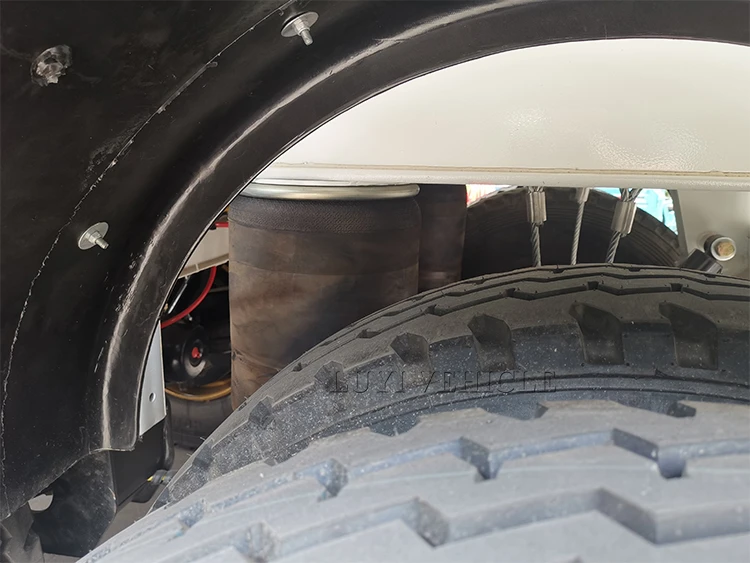

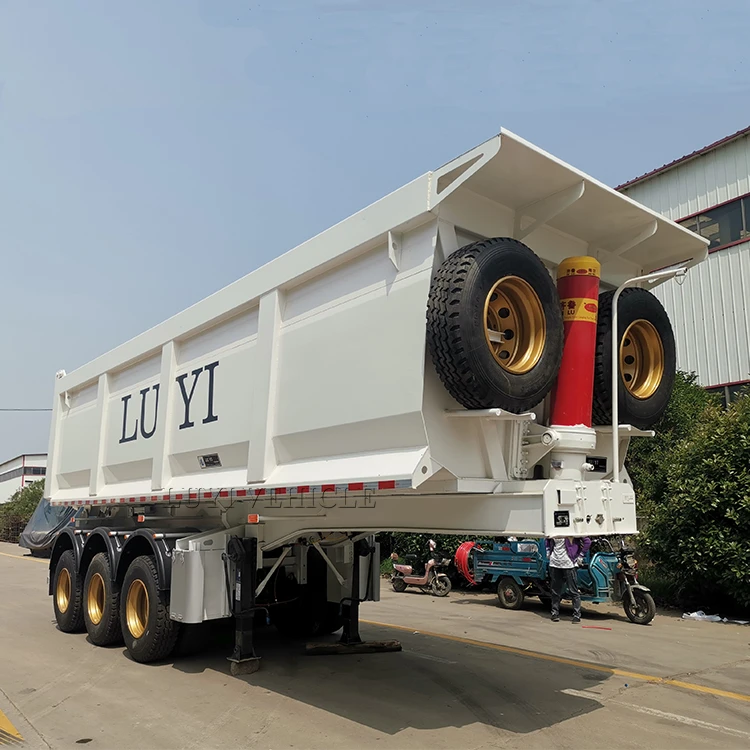

Product Display
They are designed to economically and specifically transport abrasive materials such as aggregates, asphalt and sand among other materials of this nature
The bucket are optimized for high loading volumes that range between 24 -60m3. More than that, the body is designed to tackle different challenges as would be needed on a daily basis.
The tow bar is sufficiently strong to withstand towing forces needed during towing.The box type is rectangular in shape and is designed with less sophisticated features for your use.
Product Details
Packaging and shipping
Packaging Details Nude and wax, shipped in bulk cargo ship, flat deck or RO-RO ,container tranport
(1)Wax: Do wax spray process to
against the trailer body suffer seawater corrosion during shipping
(2)Package: Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping: Reliable logistic service from famous freight supplier makes transport process safely and promptlyBy bulk cargo
orRO-RO ship , 3 or 4 sets can be shipped together to save freight
(4)2Units can load in 1 container
against the trailer body suffer seawater corrosion during shipping
(2)Package: Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping: Reliable logistic service from famous freight supplier makes transport process safely and promptlyBy bulk cargo
orRO-RO ship , 3 or 4 sets can be shipped together to save freight
(4)2Units can load in 1 container
Company Profile
Shandong Luyi Vehicle Co., Ltd. Is a designated automobile manufacturer approved by the ministry of industry and information technology of the People's Republic of China to manufacture various semi-trailers and commercial vehicles.Main product are Lowbed ,flatbed ,Cement tanker,Tanker,Tipper,Cargo trailer,Port trailer,Gas tanker,etc.
Luyi Vehicle has a first-class CNC cutting machine, automatic welding machine; Large bending machine, jigsaw machine, can machine, tank automatic welding turning machine, whole car through shot blasting machine, Swiss four-wheel positioning and other production and various testing equipment.
Why Choose Us
1.12months for main parts (engine, axle, body and beam, etc)
2. Technical Support by phone Whatsapp or email around the clock
3. Lifelong Parts Supports
4.The good faith management is our philosophy, and welcome visits our company at any time 5.According to your order, we provide suitable trailer.
6.We also provide rational packing and shipping program , let shipment save money and security.
Just trust us, you will get a satisfactory answer.
