FST200-201 4-20mA импульсный выход RS485 3 чашки Анемометр Датчик скорости
- Категория: Другие инструменты для испытаний >>>
- Поставщик: Hunan,Firstrate,Sensor,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.71 $* | 0.17 $* |
| Aug-15-2025 | 0.96 $* | 0.78 $* |
| Jul-15-2025 | 0.81 $* | 0.4 $* |
| Jun-15-2025 | 0.98 $* | 0.84 $* |
| May-15-2025 | 0.88 $* | 0.83 $* |
| Apr-15-2025 | 0.9 $* | 0.73 $* |
| Mar-15-2025 | 0.80 $* | 0.86 $* |
| Feb-15-2025 | 0.2 $* | 0.45 $* |
| Jan-15-2025 | 0.45 $* | 0.30 $* |
Характеристики

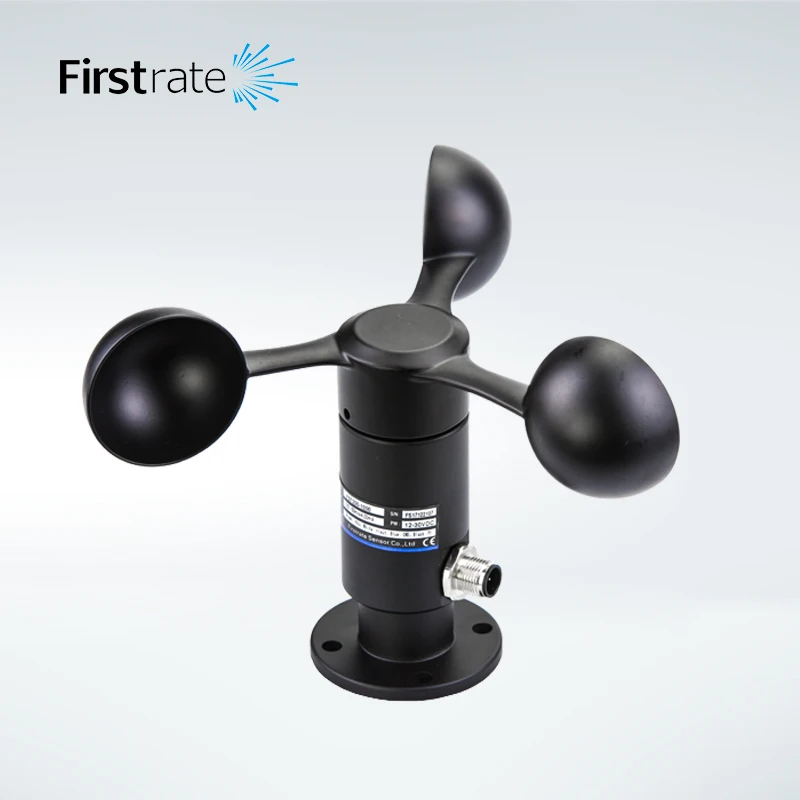

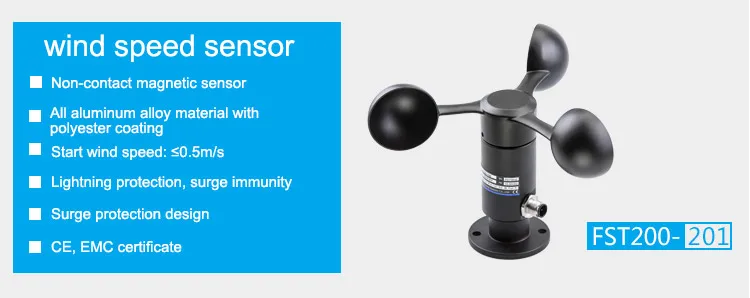

FST200-201 4-20mA Pulse Output RS485 3 Cup Anemometer Wind Speed Sensor
Product Description
| Product Introduction | |

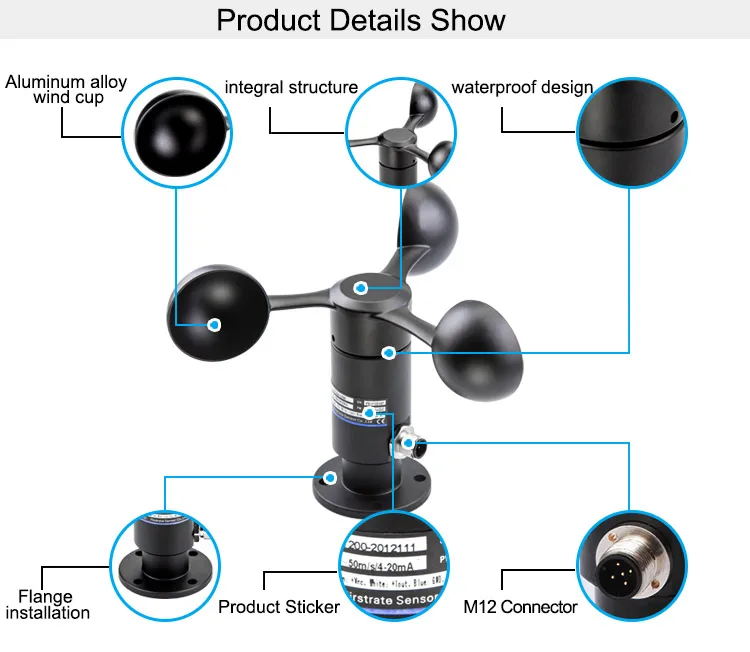

FST200-201 4-20mA Pulse Output RS485 3 Cup Anemometer Wind Speed Sensor is mechanical rotate sensor, cup turns round once be blown. Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are installed inside the sensor, it outputs voltage and current signals by electromagnetic induction, the value and horizontal wind speed are linear relation. Sensor external parts all are made of alloy material and finish by surface powder coating, featured with water proof, corrosion resisting. Inside and turning position have sealing rings with nice sealing function, stop water, salt fog and dust getting in. FST200-201A wind speed sensor is build-in electronic automatic heating system, when temperature fall to under 0°C, system will automatic heating, melting ice to prevent external turning parts freeze. | |
| Product Features | |
| ♦ Excellent resistance against impact, overload, shock and erosion ♦ Small and exquisite, easy to take, simple to install ♦ Alloy material finish, reasonable structure design and nice outlook quality ♦ Stainless steel Wind cup, anti-wind load can reach 70m/s ♦ low wind start ♦ Surge protection design  | |
| Technical Index | |
Output | Pulse signal (HZ) 0-5VDC 4-20mA RS485 (Modbus Protocol) |
Working Voltage | 5VDC 24VDC 12~36VDC(common 24VDC) |
Testing range | 0.5m/s~50m/s |
Start wind speed | ≤0.5m/s |
| Working Environment | Temperature: -20°C~+85°C Humidity≤95%RH |
Accuracy | ±0.5m/s(<5m/s) |
±3%FS(≥5m/s) | |
Working Environment | Temperature: -20°C~+85°C Humidity≤95%RH |
| Limit wind speed | Max: 70m/s 30min |

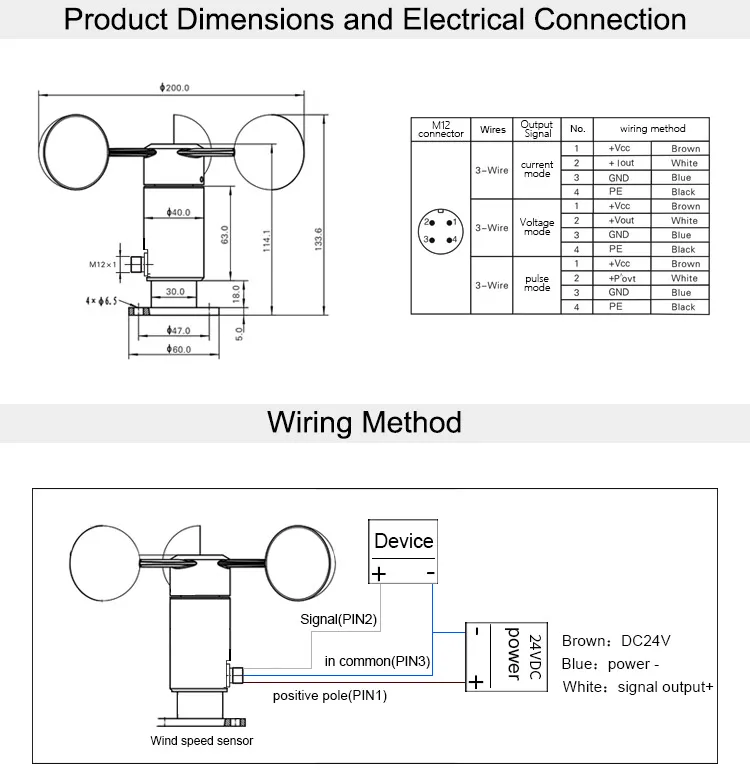

| Electrical connection | M12 |
| Environmental Protection | IP65 |
More Hot Products
 |  |
|
MORE PRODUCTS »»» WELCOME HERE

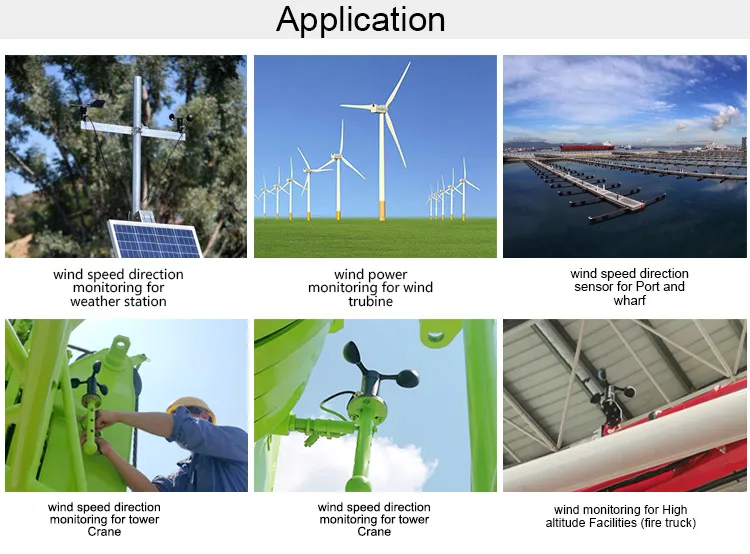

| Application | |
| ♦ Working aloft testing and control ♦ Engineering machine testing and control ♦ Weather station and environment protection testing and control ♦ Port and wharf environment testing and control ♦ Other industrial automation about wind speed and direction testing and control |
