Strong Flexible HDPE Plastic Geocell for Cellular Confinement Porous Pavement

[Brief Introduction] gravel stabilizer plastic hdpe geocell gras driveway

Cellular Confinement System(CCS), better known as plastic geocell , is a honeycomb shaped 3D network structure ultrasonically welded with plastic strips. Plastic geocell can be flat, textured or perforated according to customers’ need.

Product	strong flexible HDPE plastic geocell for cellular confinement porous pavement
Material of geocell	HDPE/Polymer Composite Alloys(PCA)
Color of geocell	Black/Green/Brown/Grey/White
Height(mm) of geocell	50,75,100,150,200
Thickess(mm) of geocell	1.0-1.7
Welding distance(mm) of geocell	330-1600
Seam peel strength(kN/m)of geocell	10-28

plastic geocell

[Features]

It is light and durable, and it is acid and alkali resistant;

It is expandable for convenient installation; and it is foldable for convenient transportation;

It can distribute the vertical pressure into the cell wall, which can improve the load capacity and reduce the thickness of the roadbed;

Plastic geocell can reduce the lateral movement of the soil, so it is resistant to deformation.

[Image ]

plastic geocell

[Geocell 3D Analysis]

Item of plastic geocell			Unit	Value
Dimensional deviation plastic geocell
Sheet Thickness	Smooth surface		mm	1.0-1.25
	Textured surface		mm	1.5-1.85
Geocell Height			mm	50-300
Welding Distance			mm	330-1600
Basic Performance-plastic geocell
Environmental stress cracking F50			h	≥80
Low temperature embrittlement point			℃	≤-50
Vicat softening temperature			℃	≥112
Oxidation induction time			min	≥20
Technical requirement-plastic geocell
Tensile strength 50mm HDPE geocell			MPa	≥20
Seam peel strength			kN/m	10-28
Connection place of geocell group		Edge of geocell plate	N/cm	≥230
		Middle of geocell plate	N/cm	≥120

plastic geocell

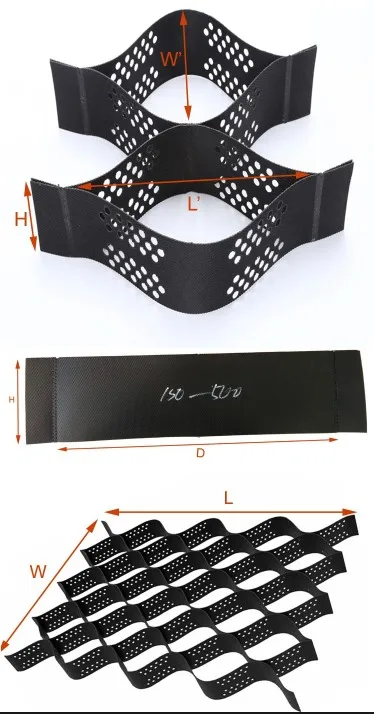

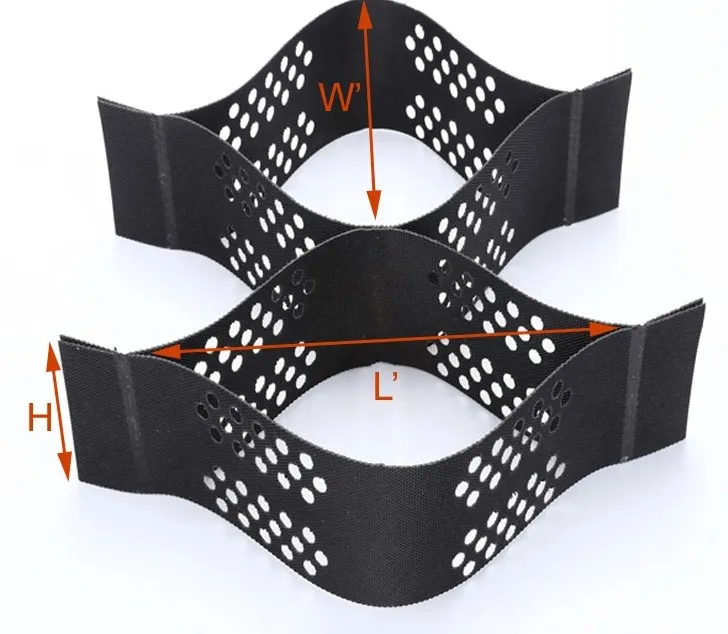

H=geocell height (thickness)

D=geocell welding distance

W=expanded panel width

L=expanded panel length

W'=expanded cell width

L'=expanded cell length

[Application]

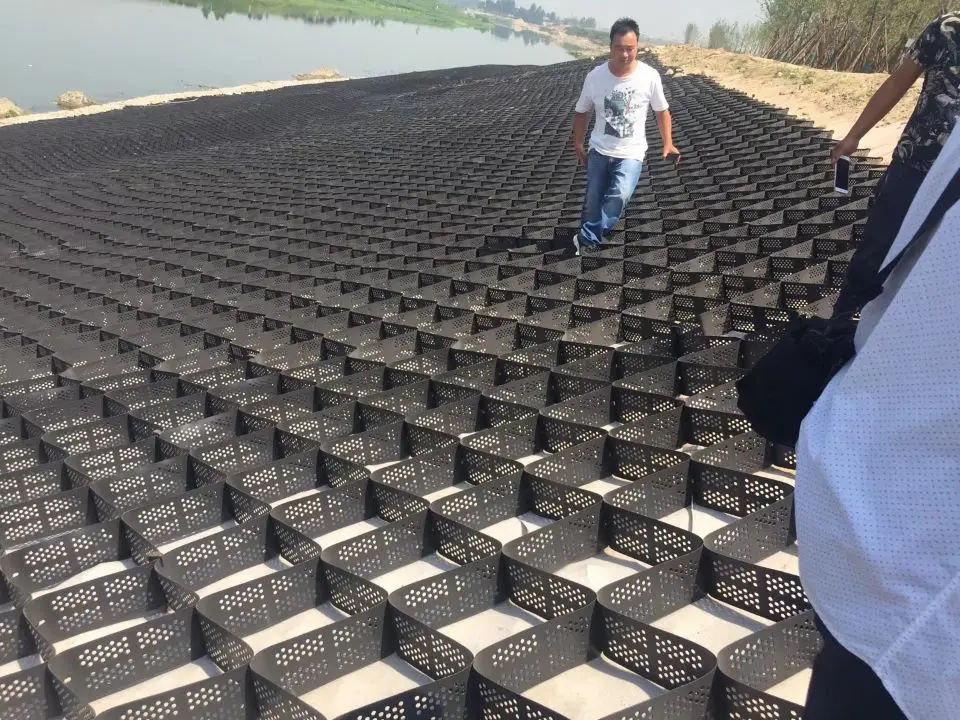

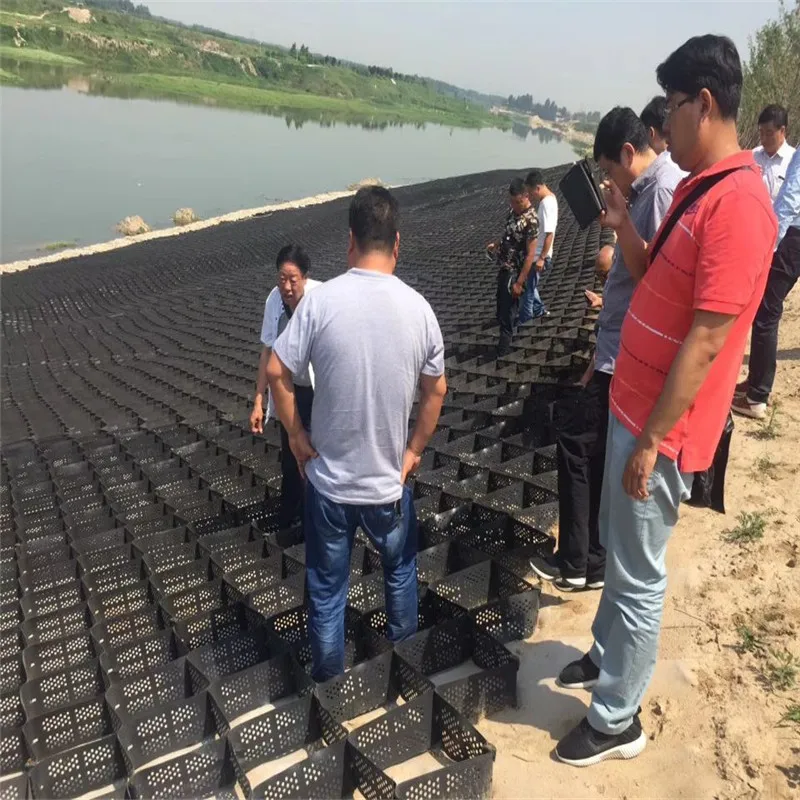

Slope protection-plastic geocell

· Solve the problem of slope surface soil stability and slope protection---roadway embankment, flood protection embankment, steep slope, bridge abutment, mountain roadside, prevent landslide especially in weathered forest, desert and marsh;

Retaining Wall--plastic geocell

· Solving the stability problem of steep slope soil--- retaining wall, vegetated wall, non-vegetated wall, culvert headwall;

Load Support -plastic geocell

· To solve the problem of load distribution, foundation stability and surface stability of weak foundation---roadbase stabilization for road, highway, railway, airport, sidewalk, parking lot, public square, etc.

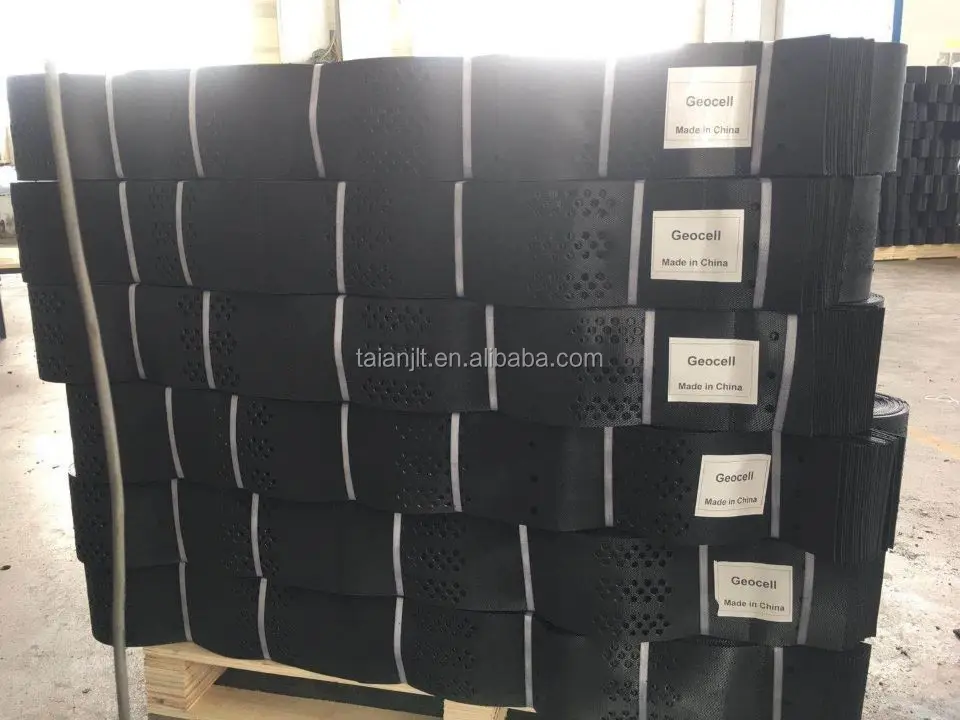

[Factory]
