Zbt 2 4/5 ГГц ac Беспроводной двухдиапазонный wifi маршрутизатор gigabit oem odm
- Категория: Компьютерное оборудование и программное обеспечение >>>
- Поставщик: Shenzhen,Zhibotong,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 26.41 $* | 27.3 $* |
| Aug-15-2025 | 26.45 $* | 27.3 $* |
| Jul-15-2025 | 22.70 $* | 23.44 $* |
| Jun-15-2025 | 26.28 $* | 27.30 $* |
| May-15-2025 | 22.19 $* | 23.56 $* |
| Apr-15-2025 | 25.92 $* | 26.81 $* |
| Mar-15-2025 | 25.70 $* | 26.15 $* |
| Feb-15-2025 | 25.80 $* | 26.72 $* |
| Jan-15-2025 | 24.89 $* | 25.24 $* |
Характеристики
Product Description
ZBT-WG108 is used new MT7621 wireless solution, performs better and more functions. Stable wireless performance, stronger scalability , the Max transmission rate could be 1200Mbps(the 11ac PCIE mode is necessary) . 2.4G 300Mbps, 5G will be 880M(Max).Provide 1* USB2.0 interface, 1*TF Micro slot .
2.Product Feature:
u Support 80.11ac / 802.11a / 802.11n / 802.11g / 802.11b network protocol, the max transmission rate could be 1200Mbps(2.4G 300Mbps+ 5G 867Mbps)
u Support 802.113 / 802.11u protocol, 5* 10/100/1000Mbps Auto MDI/MDIX
u 1 USB 2.0 date interface
u 1 Micro TF Card Slot
u Many kinds of way to protect your data transmission;
u Support 11AC,dual band (an option, need install with MINI-PCIE 5G module)
Hardware | ||
Main Chipset | MT7621A (880MHz) | |
2.4G Chip set | ||
5.8G Chip set | MT7612EN | |
RAM | DDR2 256MB (MAX DDR2 256MB) | |
SPI FLASH | 16MB (MAX 32MB) | |
Protocol | IEEE 802.11n.IEEE 802.11g.IEEE 802.11b.IEEE802.11ac. IEEE802.11a | |
RT Power | 11n:17dBm±1dBm 11g: 17dBm±1dBm 11b: 19dBm±1dBm 11a: 19dBm±1dBm 11ac: 18dBm±1dBm | |
Reception Sensitivity | 11N HT20 MCS7: -72dBm 11N HT40 MCS7: -69dBm 11G 54Mbps: -74dBm 11B 11Mbps: -86dBm 11A 54Mbps: -73dBm 11AC VHT20 MCS8: -66dBm | |
Work Channel | 2.4GHz choose :1-13 5GHz choose :149.153.157.161.165 | |
Wireless Rate | Max 1200Mbps(depends on the 11AC mode) | |
Work Frequency | 2.4GHz, 5.8GHz | |
Antenna | 4* non-removable Omni Directional 5dBi antenna | |

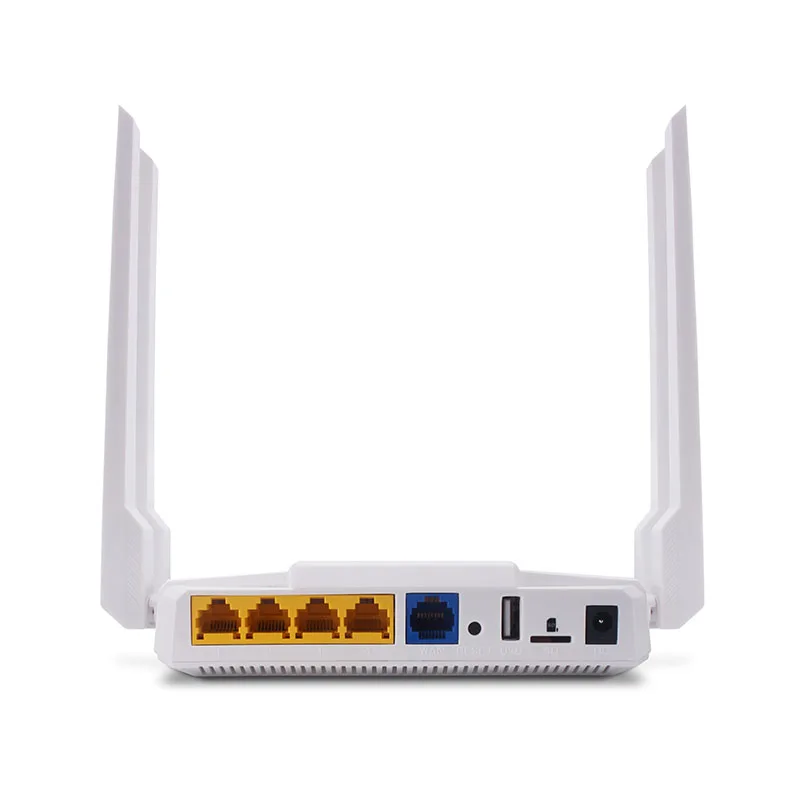

Interface | 1 *SIM card slot 1 *USB 2.0 port 1 *Micro SD card slot 1 *10/100/1000M WAN port(Auto MDI/MDIX) | |
LED | PWR.2G.5G.WAN.LAN1.LAN2.LAN3.LAN4 | |
Button | Reset Button | |
Max Power consumption | < 12W | |
Dimension(L*W*H) | 164*137*35MM | |
Software | ||
WAN Type | PPPoE,Dynamic IP, Static IP | |
Work Mode | AP; Router; | |
DHCP | Server, Client, DHCP Client List, Address Reservation | |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ | |
Firewall Security | Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding | |
DDNS | Support | |
VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) | |
Band Ctrl | Support | |
Static Router | Support | |
System Log | Support | |
Other Function | Mac clone | |
Others | ||
Work Environments | Operating Temperature:0℃ ~ 40℃; Operating Humidity:10%~90% non-condensing | |
Adapter | 12V 1A | |
Relate products
Certifications
Company Information
Shenzhen Zhibotong(ZBT) Electronics Co.,Ltd. is a professional manufacturer for Wireless Router and Ethernet Switch, support OEM&ODM.
ZBT can provide indoor&outdoor wireless router, 3g/4g wireless router, mega/gigabit wireless router, in-wall&ceiling ap, single band/dual band router for home, enterprise, hotel, car, vehicle, taxi.
We major in openwrt system. We have our own R&D department for our products, and you can easily find "ZBT" on openwrt office website. If you also need openWRT wireless router, we will be your best choice.
