Для рынка Австралии 192.168.1.1 Беспроводной Wi-Fi-ретранслятор 4g lte беспроводной маршрутизатор Антенна

Hardware

Main Chipse

MT7620A

RAM

DDR2 128MB (MAX DDR2 256MB)

SPI FLASH

16MB (MAX 16MB)

Protocol

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac ,

IEEE802.11a, IEEE 802.3, IEEE 802.3u

RT Power

802.11b 18dBm±2dBm; 802.11g 15dBm±2dBm;
802.11n 15dBm±2dBm; 802.11ac depends on the 11ac module

Reception   Sensitivity

802.11b: -83dBm@10% PER; 802.11g: -74dBm@10% PER
802.11n: -68dBm@10% PER; 802.11ac: depends on the 11ac module

Work Channel

2.4GHz choose : 1-13

5GHz choose : 149, 153, 157, 161, 165

Wireless Rate

Max 1200Mbps (depends on the 11ac module)

Work   Frequency

2.4GHz; 5.8GHz

Antenna

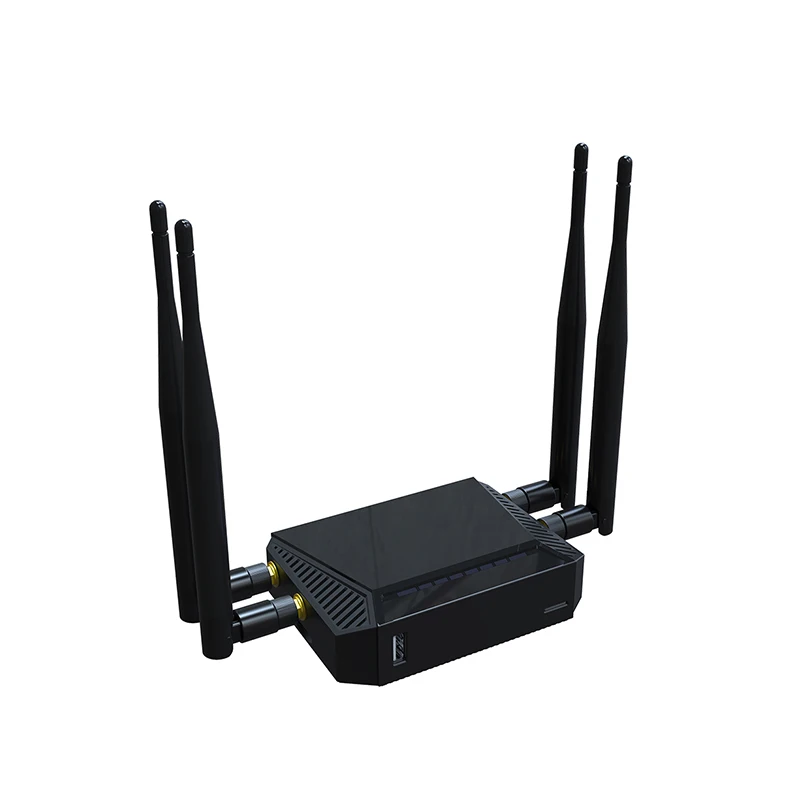

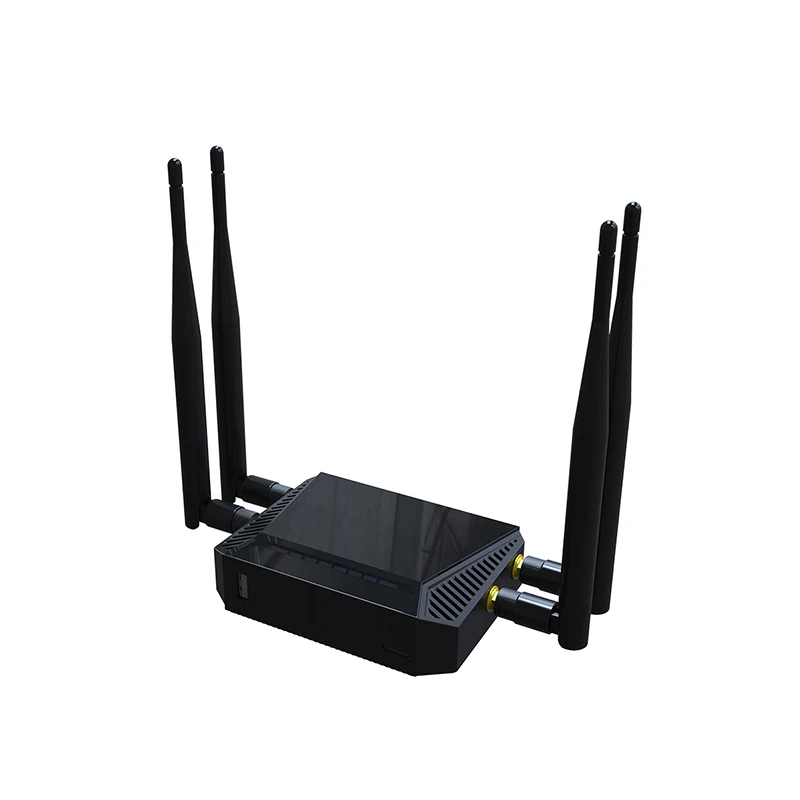

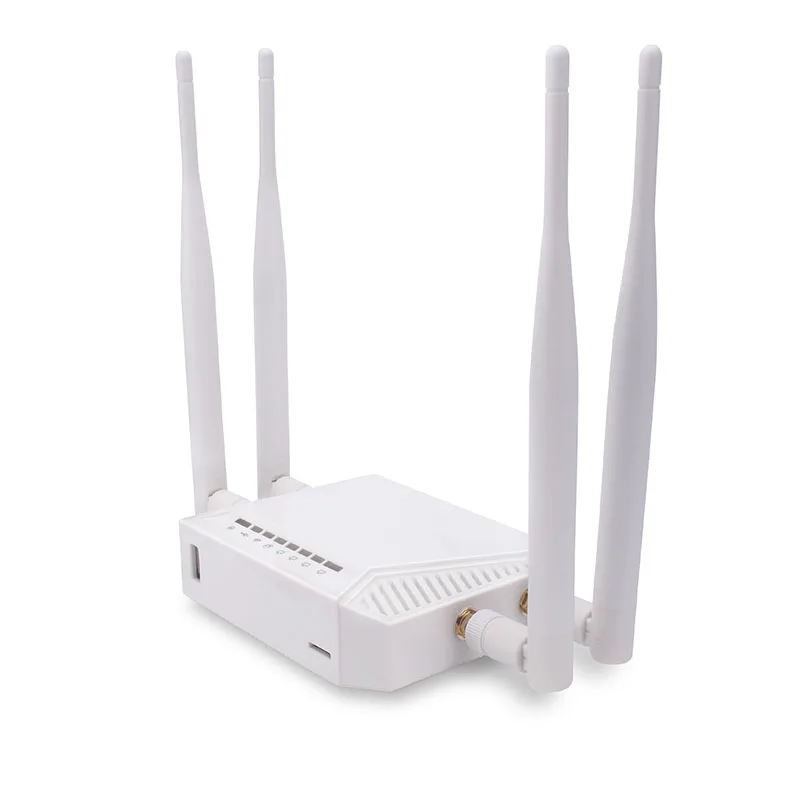

2 or 4 removable 5dBi antenna

Interface

1 PCI-E slot; 1 SIM card slot; 1 USB 2.0 port; 1 Micro SD card slot

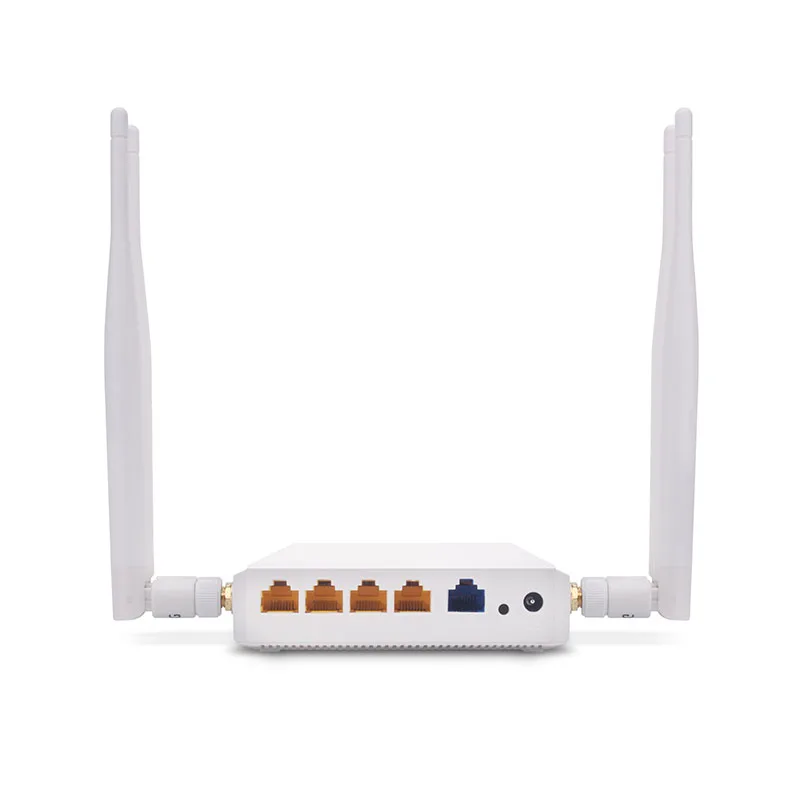

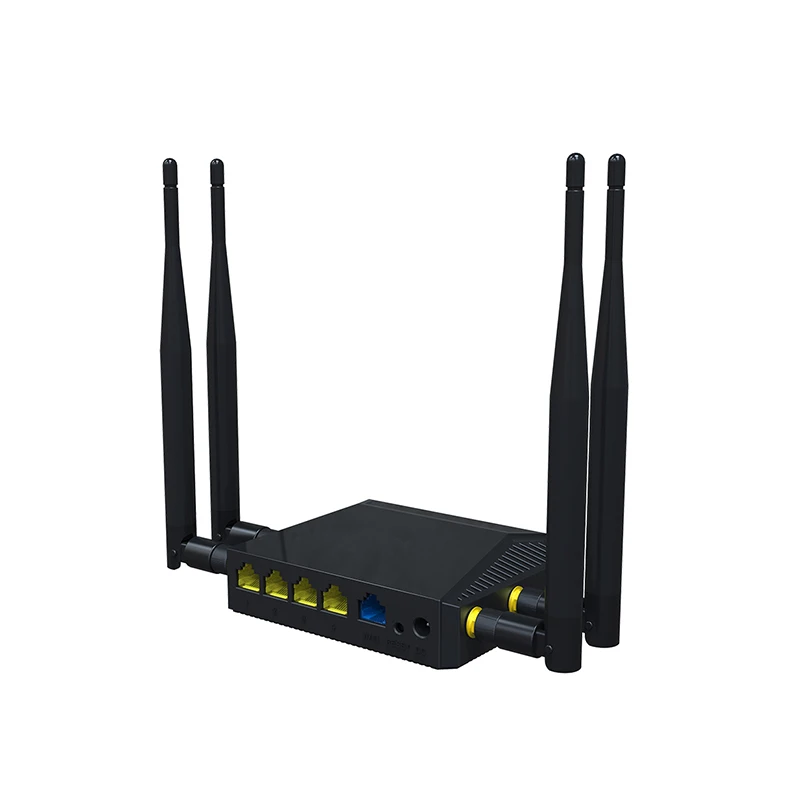

1 10/100M WAN port (Auto MDI/MDIX)
4 10/100M LAN port (Auto MDI/MDIX)

LED

Power, PCIE module, 2.4G, WAN, LAN1, LAN2, LAN3, LAN4

Button

Reset/WPS

Max Power  consumption

< 12W

Dimension (L*W*H)

141*85*26MM

Software

WAN Type

PPPoE, Dynamic IP,  Static IP

Work Mode

AP; Router

DHCP

Server, Client, DHCP Client List,  Address Reservation

Port    Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Firewall   Security

Dos, SPI Firewall
IP Address Filter/MAC Address Filter/ Domain Filter
IP and MAC Address Binding

VPN   Pass-Through

PPTP, L2TP, IPSec (ESP Head)

Support

DDNS; Band Ctrl; Static Route; System Log

Other   Function

Mac clone; NTP Synchronize; Web firmware upgrade

Others

Work   Environments

Operating Temperature: 0℃ ~ 40℃;
Storage Temperature: -40℃~ 70℃;

Adapter

12V 1A

Authentication

FCC & CE certifications
