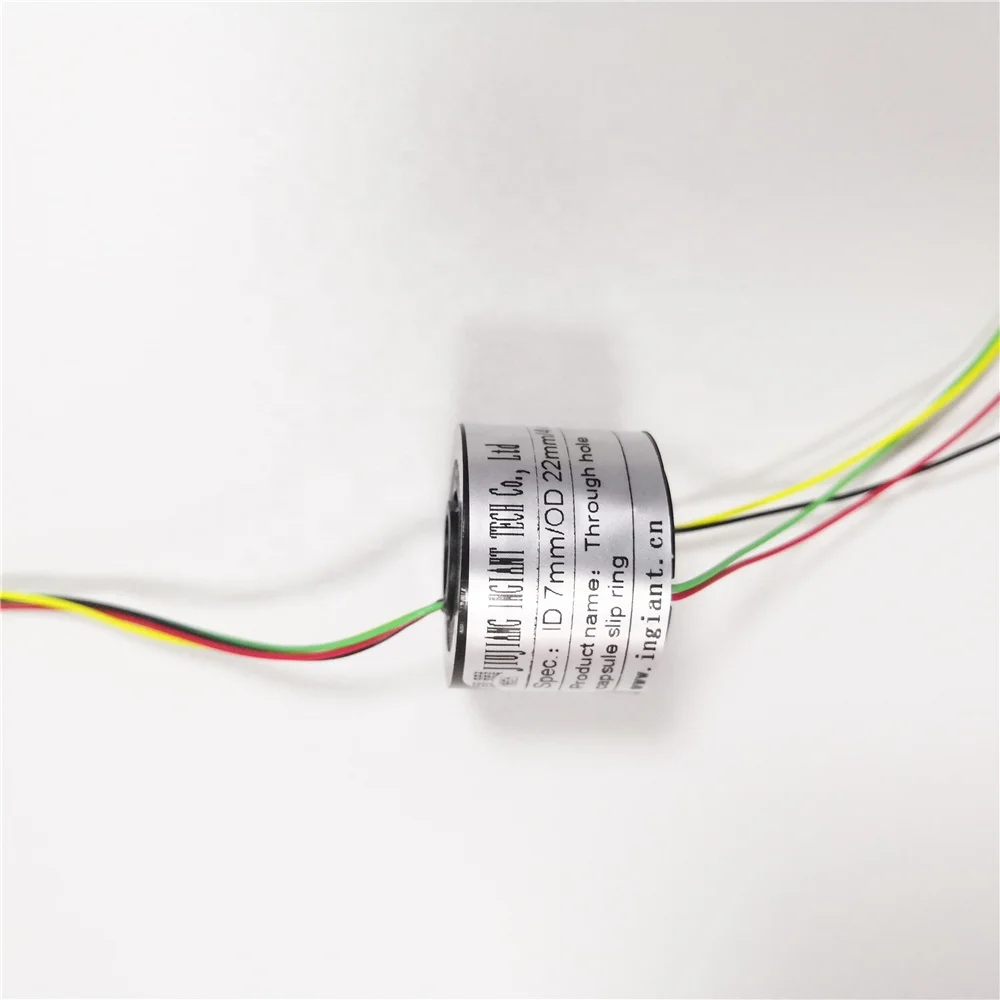

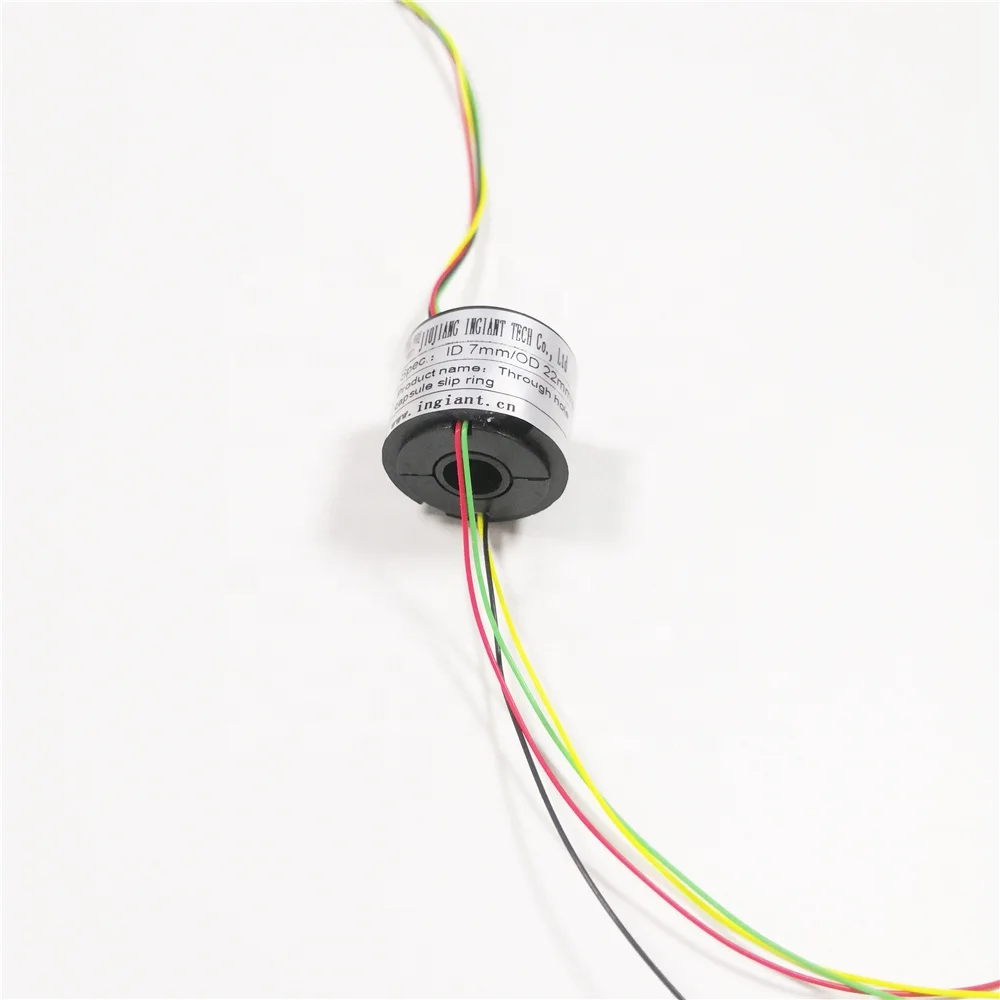

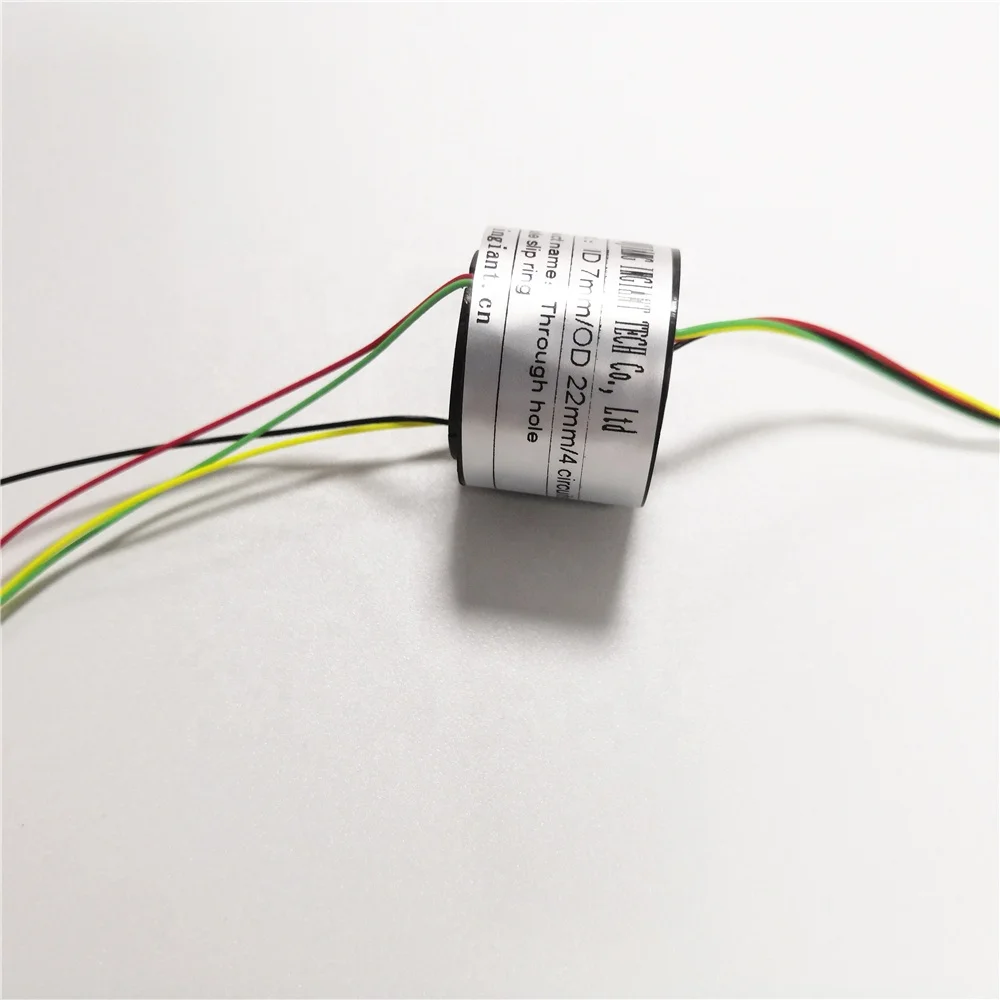

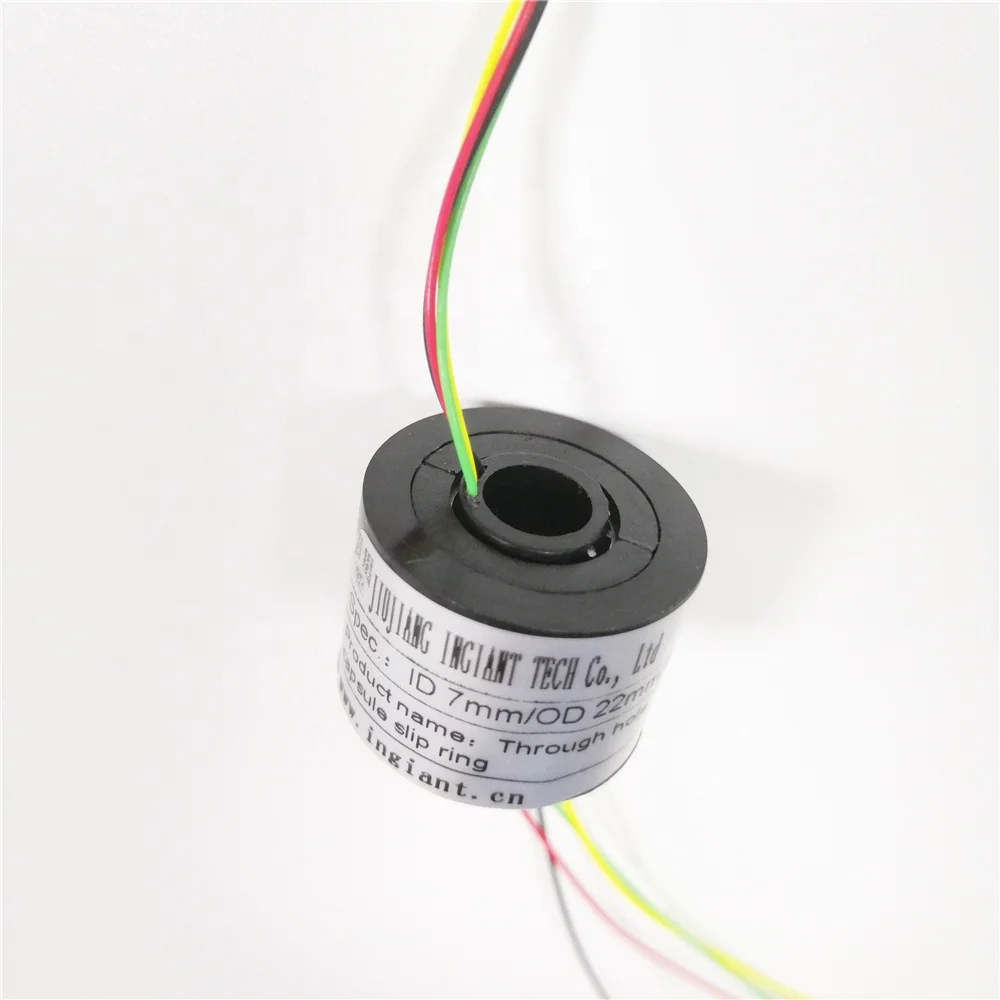

Скользящее кольцо с диаметром 22 мм 2 цепи 5
- Категория: Electrical Contacts and Contact Materials >>>
- Поставщик: Jiujiang,Ingiant,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 4.27 $* | 4.12 $* |
| Jul-17-2025 | 3.23 $* | 3.68 $* |
| Jun-17-2025 | 4.96 $* | 4.34 $* |
| May-17-2025 | 4.15 $* | 4.63 $* |
| Apr-17-2025 | 3.48 $* | 3.96 $* |
| Mar-17-2025 | 4.69 $* | 4.25 $* |
| Feb-17-2025 | 4.25 $* | 4.44 $* |
| Jan-17-2025 | 4.59 $* | 4.74 $* |
Характеристики
Specifications:
Wires | Max 12(see table as above) | Current | Signal(2A),Multiple 2A |
Voltage | 240 VDC/VAC | Max speed | 250RPM |
Overall diameter | 22mm(0.87") | Length | 260mm(1002") |
Contact Material | Precious Metal:gold-gold | Contact Resistance | <150mOhm(AWG28#,250mm) |
Housing Material | Plastics | Torque | 0.03N.m |
Working life | depends on working speed | Electrical noise | <10mΩ |
Dielectric strength | 600VDC@50Hz | Lead Wire | UL Teflon® Awg28 |
Insulation resistance | 1000MΩ@500VDC | Lead Lengths | 250mm |
Operating Temp. | -40°C to 80°C | Protection | IP51 |
Mechanical vibratio | MIL-SID-810E | Humidity | 10% to 90% RH |
Materials | Lead Free,RoHS compliant | CE Certified | YES |
Applications:
· CCTV Monitoring System.
· Electrical test equipment.
· Medical equipment.
· Rotary table
· Robotics
· Laboratory equipmen
· Manufacturing and process control equipment
Capsule Electrical Slip | Ring Technical Data | ||
Out Diameter | 12.5mm | Current Standard | 2A |
Circuits No. | 12 | Max Speed | 300MRP |
Voltage | 220 VDC/VAC | Lead Length | 230mm |
Lead Size | AWG12 Colour Coded FPE Insulated Lead Wires | Housing Material | Engineering Plastics |
Work Life | >20million Revolution | Contact Material | Gold-Gold |
Electrical Noise | <6mΩ | Torque | 0.1N.m,+0.03N.m/6Circuit |
Contact Resistance | <8mΩ | Lead Wire Spc | UL Teflon@Awg 12 |
Dielectric Strength | 1000VDC@50Hz,10s | Insulation Resistance | 1000MΩ@600VDC |
IP grade | IP 51 | Work Temperature | -40°C to 80°C |
Material | RoHS |
