Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
Заводская цена полностью автоматическая формовочная машина для производства ПЭТ бутылок с тремя
- Категория: Выдувная машина >>>
- Поставщик: Taizhou,Huangyan,Ouge,Machine,Mould,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 19040.57 $* | 19992.46 $* |
| Aug-18-2025 | 18880.83 $* | 19824.86 $* |
| Jul-18-2025 | 15840.49 $* | 16632.38 $* |
| Jun-18-2025 | 18560.18 $* | 19488.99 $* |
| May-18-2025 | 16160.28 $* | 16968.5 $* |
| Apr-18-2025 | 18240.7 $* | 19152.55 $* |
| Mar-18-2025 | 18080.31 $* | 18984.90 $* |
| Feb-18-2025 | 17920.77 $* | 18816.20 $* |
| Jan-18-2025 | 17760.44 $* | 18648.45 $* |
Характеристики
Product Description

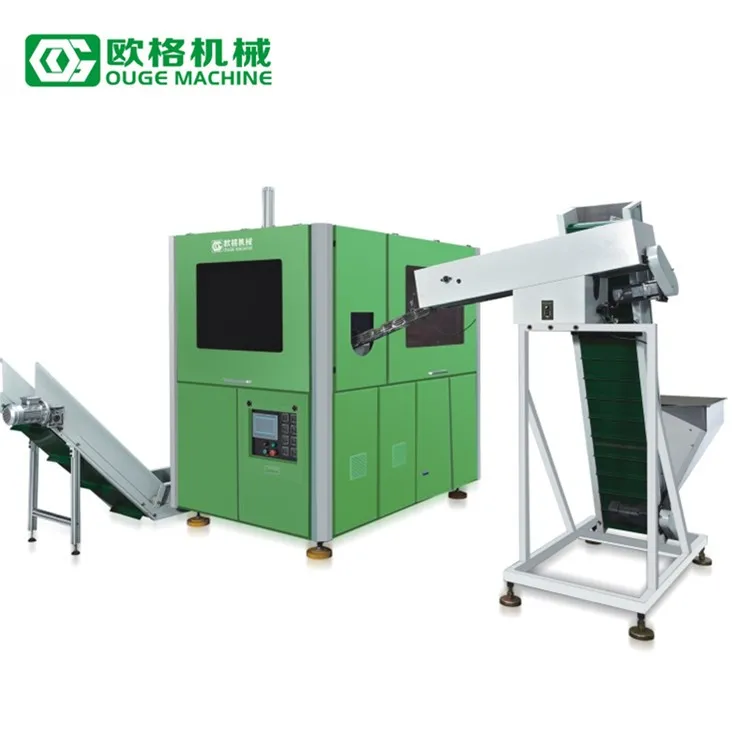

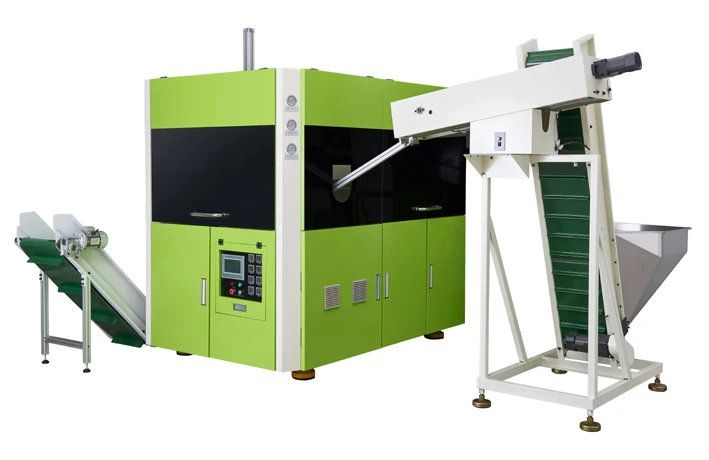

OGM-3 Plastic Bottle Blowing Machine
1.Blowing 0.5-1.5L PET common bottle.

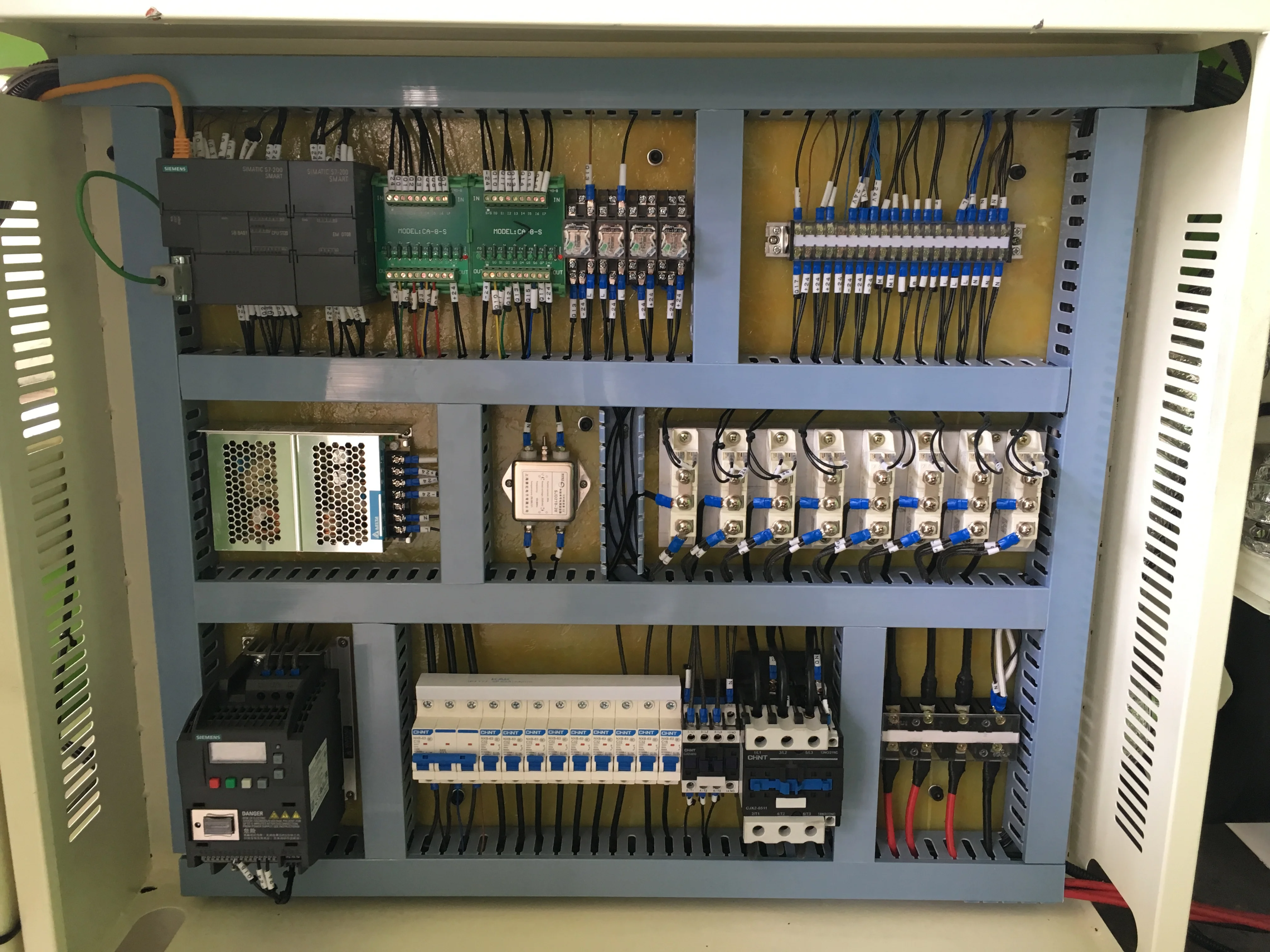

2.Durable PLC micro computer controlling system controls time can be accurate to 0.01 seconds.
3.Special recycling installation for high pressure air reduces the energy consumption.
4.The far-infrared heater uses a way of conversion self-rotating heating and the rail revolution makes the heating even,quick and reliable.
5.Every heating lamp has independent temperature control device to get ideal preform heating effect .
6.Particular pre-heater design makes preform close while heating.Change space shorten heating tunnel and reduce energy consumption according to the bottle size while blowing .
7.Simple installation and starting.
Specification
ITEM | 单位 | OGM-3 | ||||
理论产量 | Theoretical output | Pcs/h | 2200 | |||
瓶型规格 PRODUCT | 最大容积 | Max. Volume | L | 1.5 | ||
最大高度 | Max. height | mm | 360 | |||
最大直径 | Max. diameter | mm | 105 | |||
成型组规格 MOULD | 模穴数 | Number of cavities | / | 3 | ||
模板尺寸 | Mould plate dimension(LxH) | mm | 490×470 | |||
模厚 | Mould thickness | mm | 240 | |||
开模行程 | Mould opening stroke | mm | 220 | |||
电力规格 ELECTRICAL | 电源 | Power | 220-380V | |||
50-60Hz | ||||||
总功率 | Total power | KW | 18 | |||
加热功率 | Heating power | KW | 15 | |||
空压机规格 AIR SYSTEM | 动作压力 | Operation pressure | Mpa | 0.8-1.0 | ||
动作耗气量 | Action air consuming | M3/min | ≥1.0 | |||
吹气压力 | Blowing pressure | Mpa | 2.6-3.0 | |||
吹气耗气量 | Blowing air consuming | M3/min | ≥1.6 | |||
机器规格 MACHINE | 吹瓶机主机尺寸 | Main body dimension(LxWxH) | M | 2.05×1.45×2.5 | ||
吹瓶机主机重量 | Main body weight | KG | 1500 | |||
瓶坯输送带尺寸 | Preform autoloader | M | 1.7×2.1×2.2 | |||
瓶坯输送带重量 | Preform autoloader weight | KG | 200 | |||
瓶子输送带尺寸 | Bottle conveyor | M | 2.0×0.6×1.1 | |||
瓶子输送带重量 | Bottle conveyor weight | KG | 80 | |||
Packing & Delivery
Packing details :wooden case/seaworthy packing
Leading time :30 days after recevice the deposit
Company Profie
About us
OUGE company is located in the East China Sea Coast ,the famous "land of plastic mold "----Huangyan Zhejiang.Our company specilaized in manufacturing PET bottle blowing machine ,preform moulds and bottle moulds .The main products include:all kinds of carbonated beverage bottles,juice bottles,alcohol drinks bottles,and cosmetic containers,PMMA lamps,PP infusion bottles ,edible oil bottles,ect.OUGE consists of many professional engineers with rich experience in the PET industry and high-quality staff.Over the past several years ,OUGE has always been devoting its utmost efforts to improving the technology, reseaching the market and developing new products to suit for all customers needs.
Our service
Providing complete blow molding strategy according to clients' requirement
Initial evaluation
According to your plan and product features .
Parameter design
Analyze and design your technical parameter, including the technology,mechine and electric control.
Plan detemination
Make product layout on base of your factory diagram to confirm the final decision.
Manufature supervision
Follow up the project until passing the final test.
Personnel training
Teain the engineer according to his technology.
After-sales service
Offer the fast and efficient service customer is the first.
According to your plan and product features .
Parameter design
Analyze and design your technical parameter, including the technology,mechine and electric control.
Plan detemination
Make product layout on base of your factory diagram to confirm the final decision.
Manufature supervision
Follow up the project until passing the final test.
Personnel training
Teain the engineer according to his technology.
After-sales service
Offer the fast and efficient service customer is the first.
Our Exhibition
The 125th Canton Fair
2019 Chinaplas
2019 SWOP Show
Our Certifications
FAQ
1.Q: Are you a factory or trading company?
A: We are a factory directly supplier.
A: We are a factory directly supplier.
2. Q: Do you provide bottle blow mould and air compresor ?
A: Yes, we provide complete system and you will no need to find the suitable air compressor and chiller...etc
A: Yes, we provide complete system and you will no need to find the suitable air compressor and chiller...etc
3.Q: What is the language of the PLC and touch panel?
A: Don’t worry, we will translate the language in English,Spanish or any other language to make sure you will have an easy
operation.
A: Don’t worry, we will translate the language in English,Spanish or any other language to make sure you will have an easy
operation.
