Бесконтактный цифровой токоизмеритель-зажим для дома с автоматическим диапазоном бесконтактного напряжения и бесконтактным индикатором 6000

Описание и отзывы

Трекер стоимости

Характеристики



HT206D

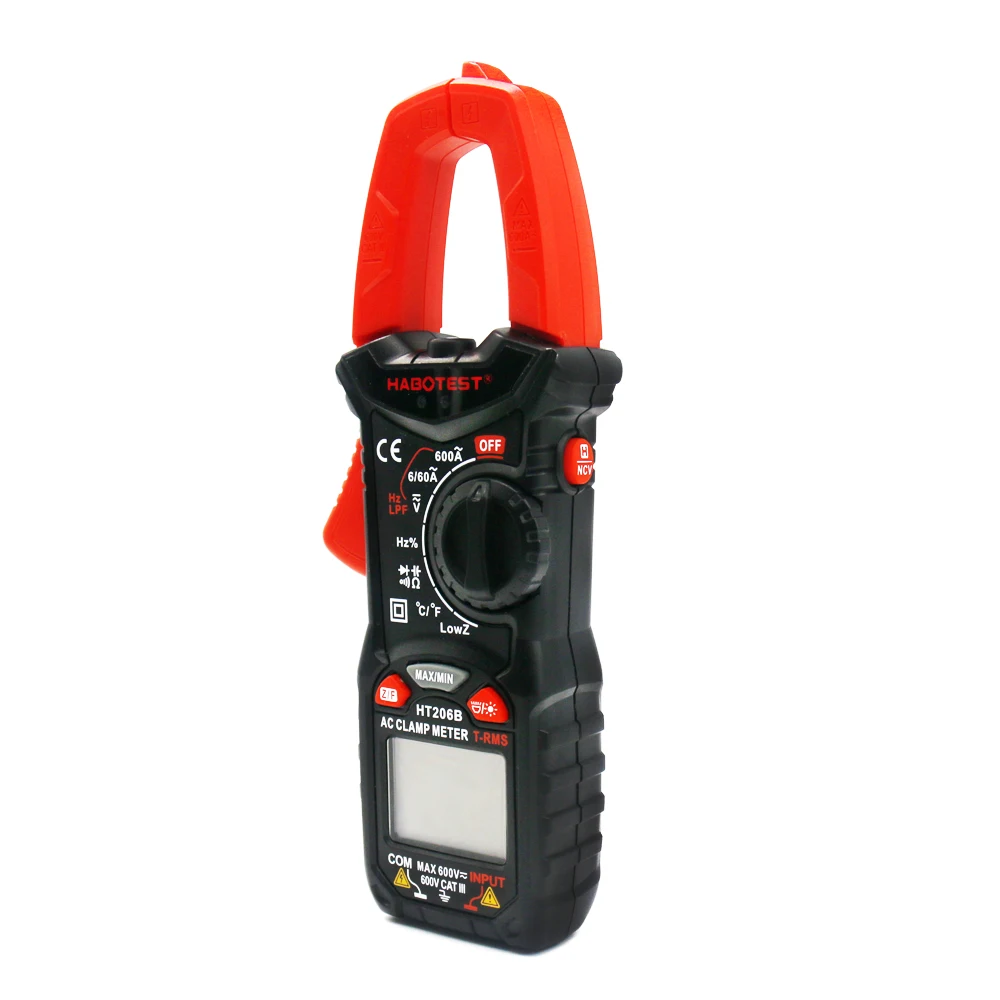

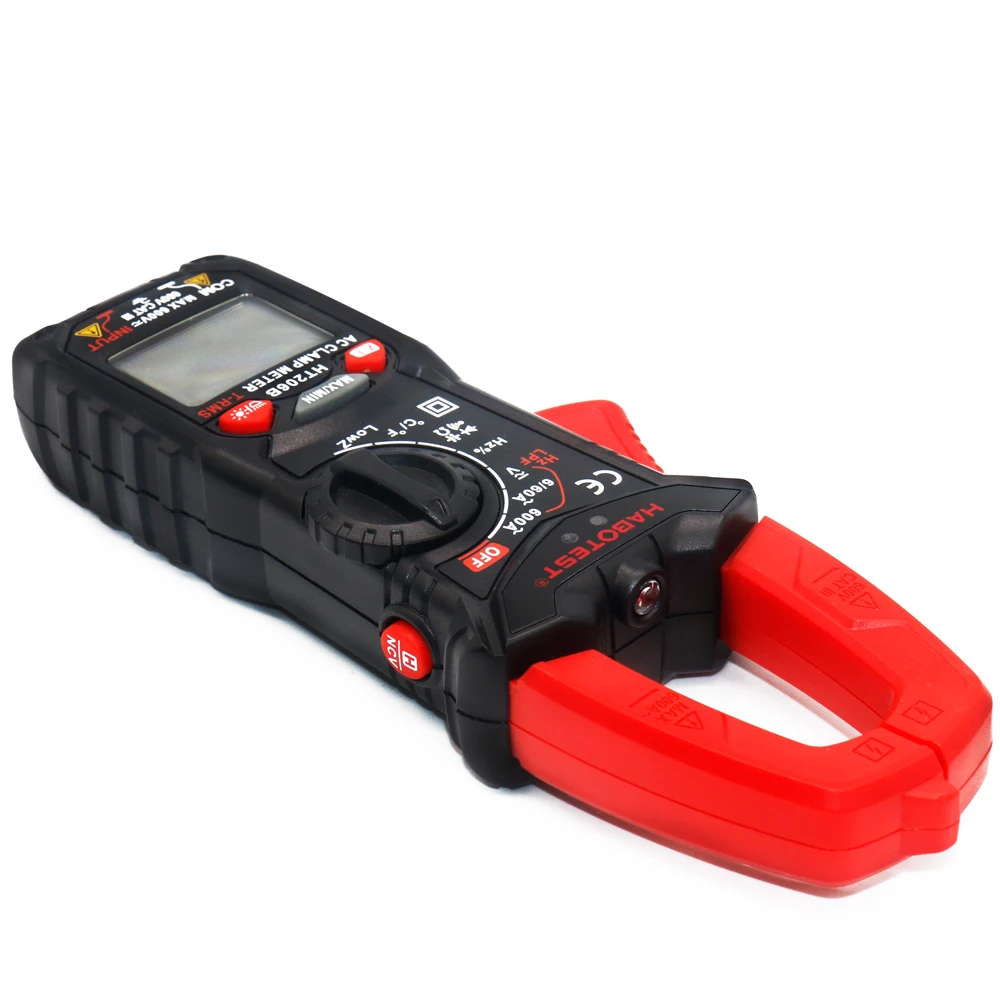

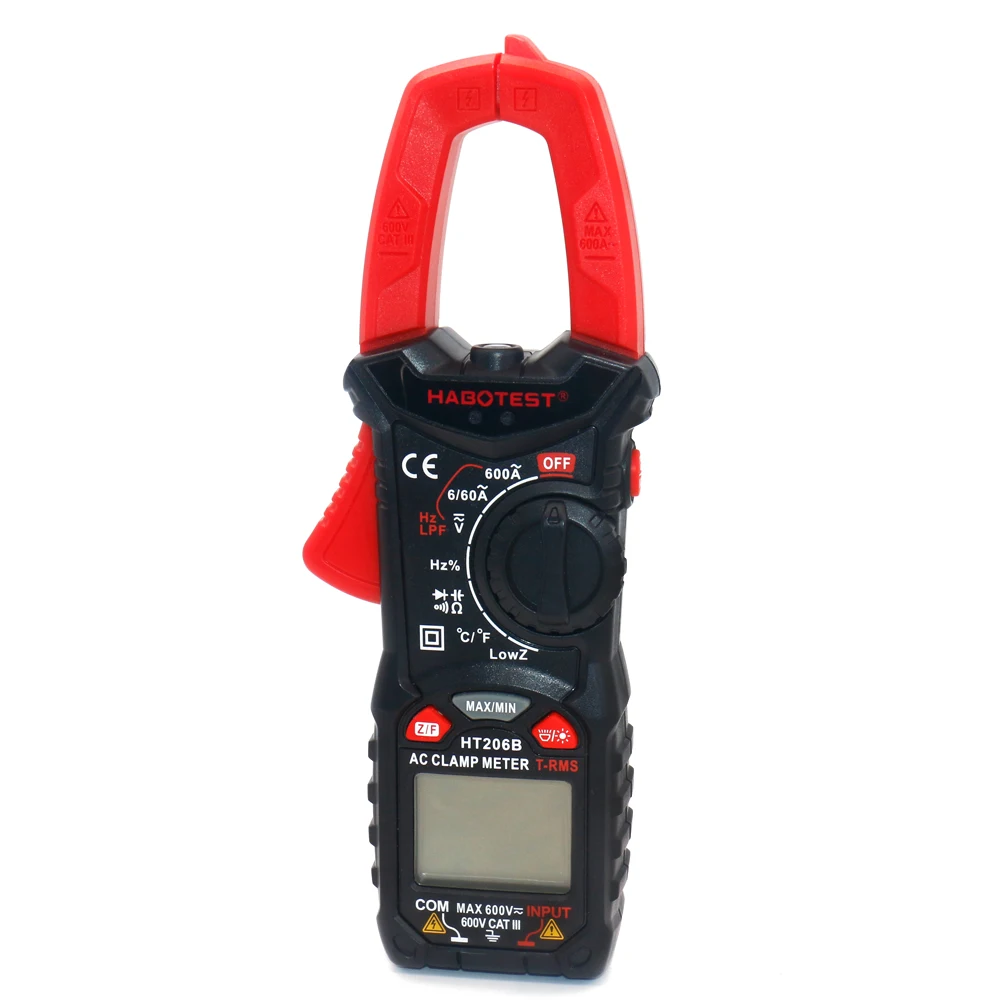

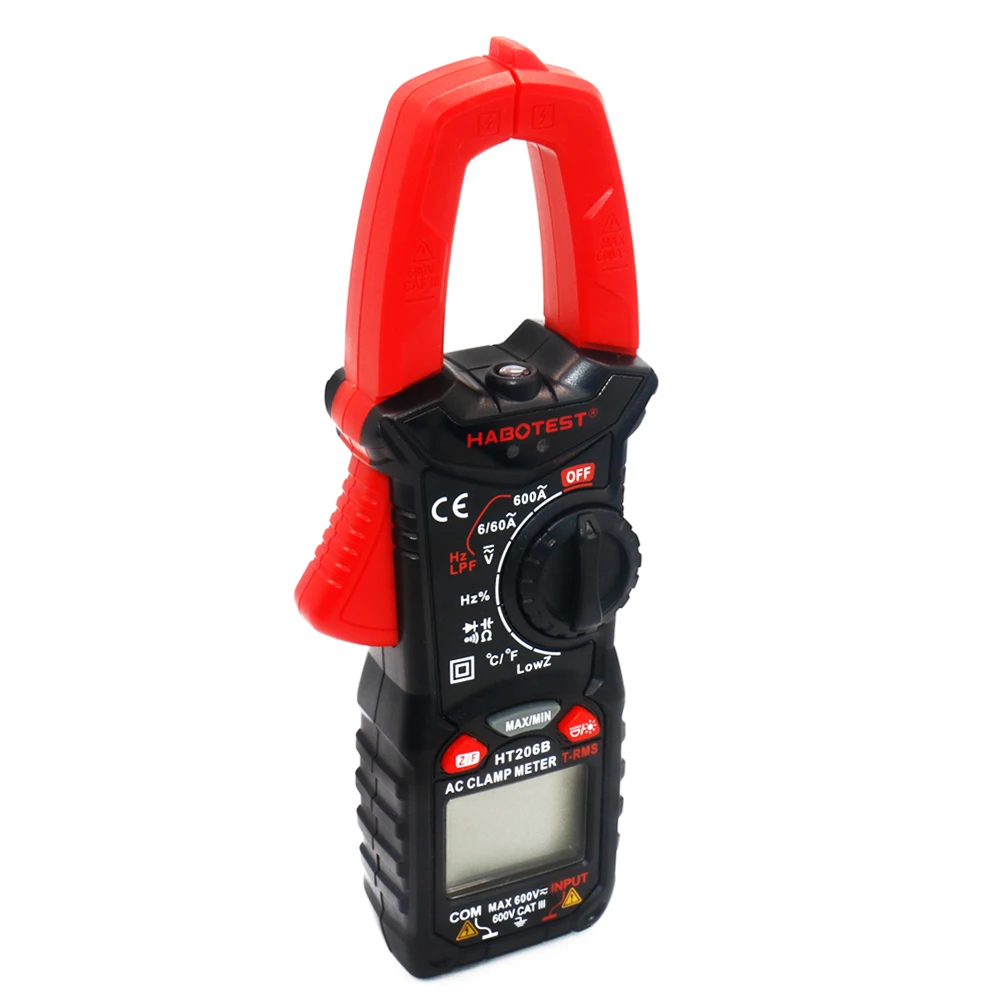

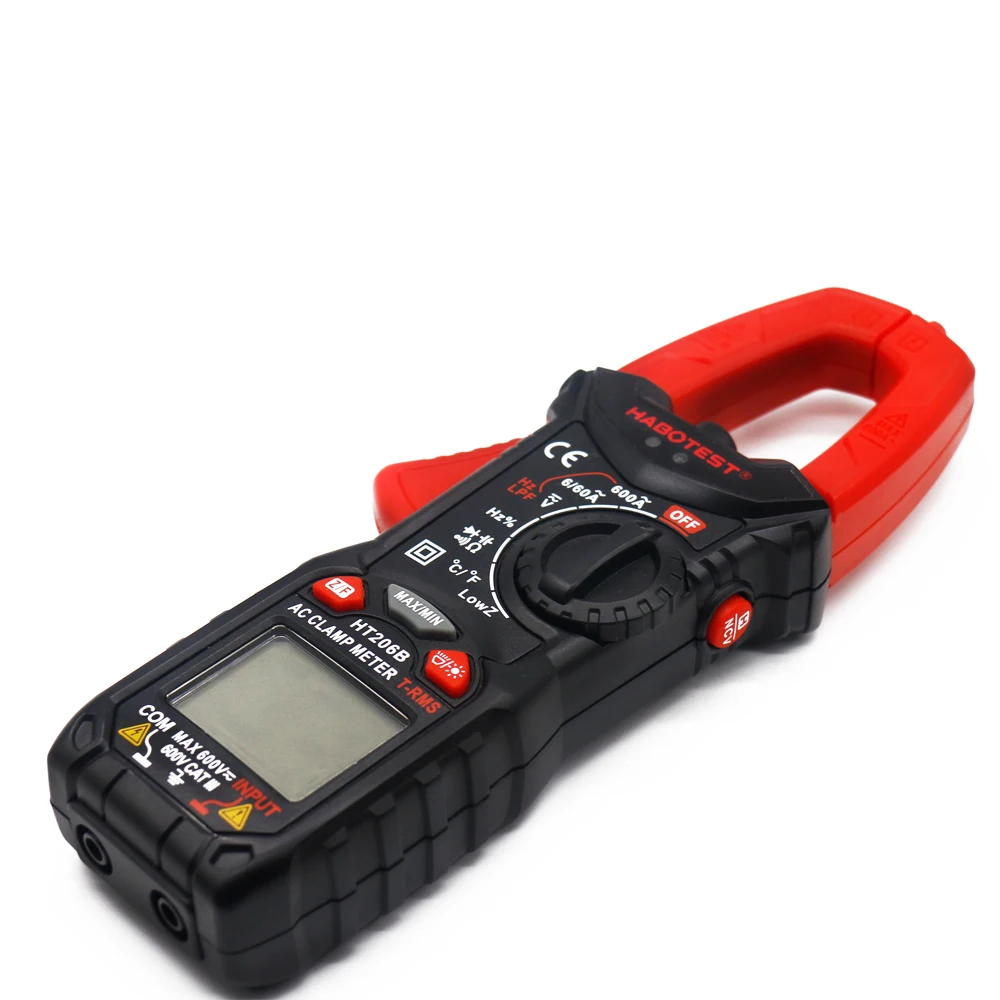

Digital Ammeter Clamp Type Clamp Current Universal Meter AC / DC Full Automatic Multifunctional



Introduction of functions

1. Intelligent anti-burning and overload protection
Full - range intelligent overload protection to prevent damage to license issuing instruments during measurement.
2. Automatic measuring range
The matching of engineering switch keys and dial plate effectively reduces the wear of dial plate and prolongs the service life of instrument.
The dial is not required to switch the measuring range and the resolving range, thus improving the measuring accuracy.
3. High - definition display screen with clear handwriting, clear display and convenient use in dark places
4. NCV non-contact measurement
NCV gear automatically detects the voltage intensity when the non-contact voltage sensing area is close to the circuit.



specifications

Specifications	Range	Accuracy
DC Voltage	600mV/6V/60V/600V/600V	±(0.5%+3)
AC Voltage	6V/60V/600V/600V	±(1.0%+3)
DC Current	6A/60A/600A	±(2.5%+5)
AC Current	6A/60A/600A	±(2.5%+5)
Resistance	600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ	±(0.5%+3)
Capacitance	10nF/100nF/1uF/10uF/100uF/1mF/10mF	±(4.0%+3)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(0.5%+5)
Duty	1%~99%	±(1.0%+2)
Temperature(℃/°F)	-40℃~1000℃	±(1.0%+2)
	-40°F~1832°F	±(1.0%+2)
Counters		6000 counters
Auto/manual range		Auto
Continuity		√(sound and light alarm)
Diode test		√
Data hold		√
NCV		√(sound and light alarm)
Backlight		√
Flashlight		√
DCA ZERO		√
Low battery indication		√
Auto power off		√
True RMS		√
LPF		√
Max/MIN		√
LowZ		√
Power	2*AAA(1.5V)batteries
Weight	Appro*.260g
Size	193mm*73mm*34mm
Safety rating	EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT III 600V
