Замкнутая петля шаговые двигатели nema 23 для diamond светоотражающие
- Категория: Шаговый электродвигатель >>>
- Поставщик: Changzhou,Jinsanshi,Mechatronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 60.76 $* | 63.63 $* |
| Aug-16-2025 | 59.30 $* | 62.42 $* |
| Jul-16-2025 | 50.95 $* | 53.68 $* |
| Jun-16-2025 | 58.40 $* | 61.40 $* |
| May-16-2025 | 51.74 $* | 54.79 $* |
| Apr-16-2025 | 57.88 $* | 60.36 $* |
| Mar-16-2025 | 57.89 $* | 60.38 $* |
| Feb-16-2025 | 56.69 $* | 59.37 $* |
| Jan-16-2025 | 56.72 $* | 59.69 $* |
Характеристики
Product Description

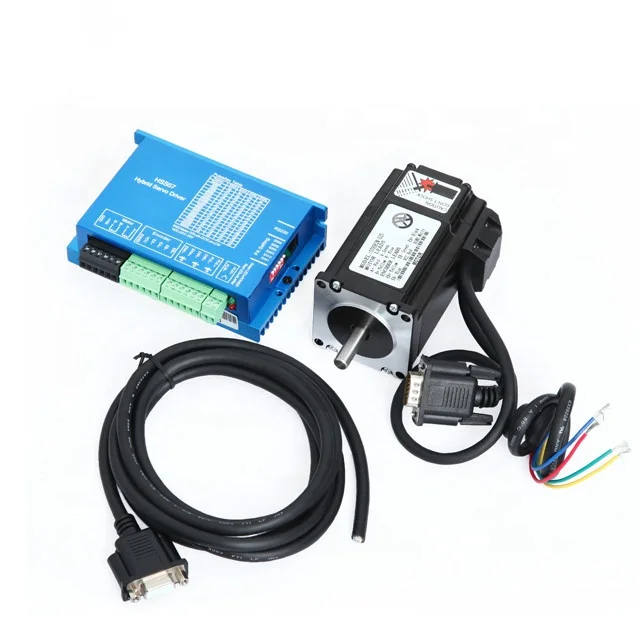

Hybrid nema 23 encoder position controler stepper motor
Product Description

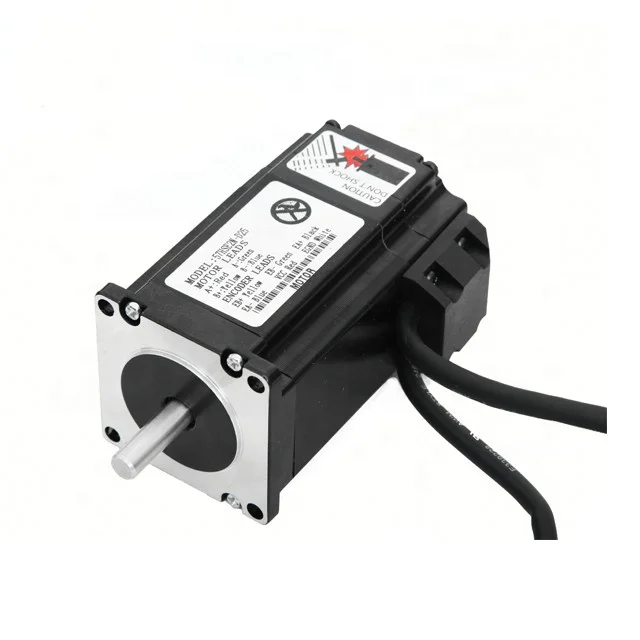

NEMA23 Easy Servo Series(NEMA23 Closed Loop Series)
Motor Eelctrical Parameters:
| Mode | Step angle | Current (A) | Resistance (Ω±10%) | Inductance (mH±20%) | Holding torque(N.m) | Motor length(mm) | Encoder Resolution(PPR) | Weight(kg) |
| 57HSE2N-D25 | 1.8° | 4.2 | 0.5 | 1.8 | 2.0 | 76 | 1000 | 1.15 |
Motor dimension:mm
Torque/Frequency Curve

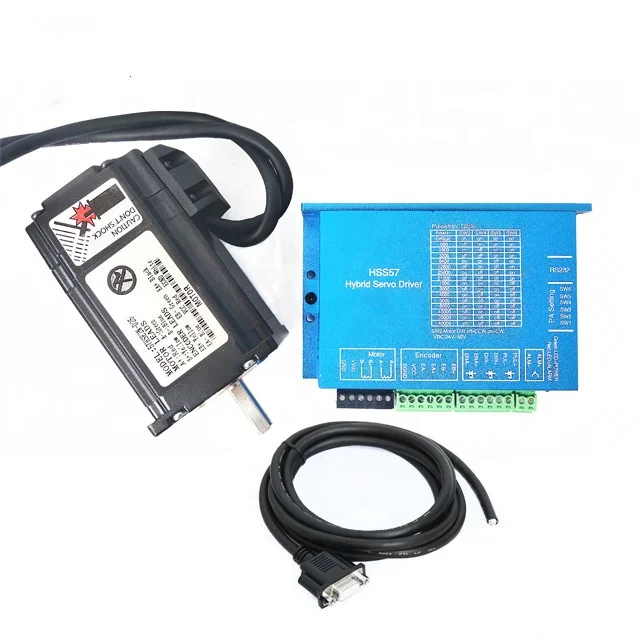

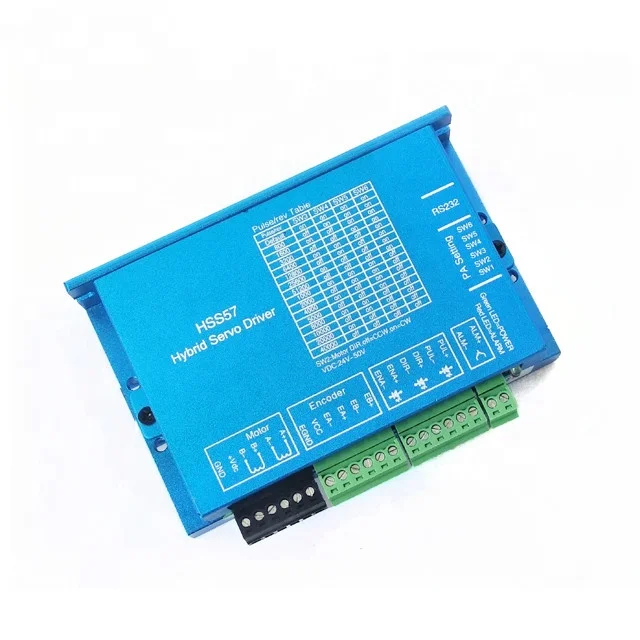

Driver HSS57
Features:
1. Position error correction and never lose steps
2. Quick response and perfect acceleration, High torque at high speed
3. Automatic current adjustment based on load, lower temperature rising
4. Over-current, over-voltage and position ultra difference protection function
5. Pulses response frequency can reach 200KHZ
6. 16 kinds microsteps choice, highest 51200microsteps/rev.
7. Drive nema 23 series 2N.m closed loop stepper motor
8. Voltage range: DC24V~50V
Microstep selection:
Micorstep/rev | SW3 | SW4 | SW5 | SW6 |
Default(400) | on | on | on | on |
800 | off | on | on | on |
1600 | on | off | on | on |
3200 | off | off | on | on |
6400 | on | on | off | on |
12800 | off | on | off | on |
25600 | on | off | off | on |
51200 | off | off | off | on |
1000 | on | on | on | off |
2000 | off | on | on | off |
4000 | on | off | on | off |
5000 | off | off | on | off |
8000 | on | on | off | off |
10000 | off | on | off | off |
20000 | on | off | off | off |
40000 | off | off | off | off |
Driver dimension (mm):
Wiring Diagram:
Product Description
Produce process
Our Services
Different specification of stepper motor with competitive price for your choice:
A wide range of application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
First-class service:
customization and OEM is available.
Warranty: 12 months
Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.
Contact me :
WhatsApp: +86 18306110590
Phone: +86 18306110590
Packaging & Shipping
We have standard package for our products. We can also make it as per your special requirements.
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.
Company Information
Changzhou JSS Motor Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting stepper motor, motor driver, BLDC motor and PM motor for several years. We have two our own production base and a strong R&D team.
Till now, Dewo has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008.
If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations. We are looking forward to cooperate with you!
Certifications:
FAQ
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
