Хорошее качество 192.168.1.1 3g/4g модем hotspot со слотом для
- Категория: Wireless Routers >>>
- Поставщик: Shenzhen,Zhibotong,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 21.82 $* | 22.98 $* |
| Aug-20-2025 | 21.7 $* | 22.79 $* |
| Jul-20-2025 | 18.25 $* | 19.63 $* |
| Jun-20-2025 | 21.63 $* | 22.89 $* |
| May-20-2025 | 18.27 $* | 19.20 $* |
| Apr-20-2025 | 21.94 $* | 22.97 $* |
| Mar-20-2025 | 20.57 $* | 21.56 $* |
| Feb-20-2025 | 20.51 $* | 21.84 $* |
| Jan-20-2025 | 20.56 $* | 21.83 $* |
Характеристики
Good Quality 192.168.1.1 3g/4g modem hotspot with SIM card slot
Warm Remind
The web price is not including any 3G or 4G module, that means you can not get the Internet by inserting SIM card. Because different country has different operators, here need to install different 3G or 4G module. If you want to order here and also need the 3G or 4G, please check the Frequency below and "Click" the suitable version!
Frequency | Region |
|
FDD-LTE: B2/B4/B12 WCDMA: B2/B4/B5 | North Americas, EMEA |
|
LTE-FDD: B1/B2/B3/B4/B5/B6/B7/B8/B28 LTE-TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 | Latin America, Australia, New Zeland, Taiwan |
|
FDD LTE:B1/B3/B5/B7/B8/B20 | Europe, some Asia Area, Africa etc |
Product Description
WE2416 uses the latest QCA9531 chipset wireless solution,with stable performance and rich functions.It can bring more user experience.2.4GHz can be up to 300Mbps,provide 1*USB 2.0 port,1*SIM card slot to support 3G/4G function after install 3G/4G PCIE module inside of router.It is provided 3G/4G signal strength LED to display show the signal status.
u Supports IEEE802.11b/802.11g/802.11n/802.3/802.3u
u Wireless transmitted power :802.11b 18dBm±2dBm,802.11g 15dBm±2dBm,802.11n 14dBm±2dBm
u Receiving sensitivity :802.11b: -83dBm@10% PER,802.11g: -72dBm@10% PER,802.11n: -68dBm@10% PER,
u 5 Port 10/100 Mbps Auto MDI/MDIX
u 1*USB 2.0
u Supports RESET function
u Support watchdog feature
u 3G/4G signal strength LED
u Rich software management settings
Hardware | |
Main chipset | QCA9531 |
RAM | DDR2 128MB |
FLASH | SPI 16MB |
Protocol | IEEE802.11b/802.11g/802.11n/802.3/802.3u |
Wireless speed | 2.4g 300Mbps |
Work frequency | 2.4GHZ |
Antennas | 2 *4G detachable 5dBi antennas and 2 *Non-detachable 5dBi antennas (customers can choose the antennas for the module) |

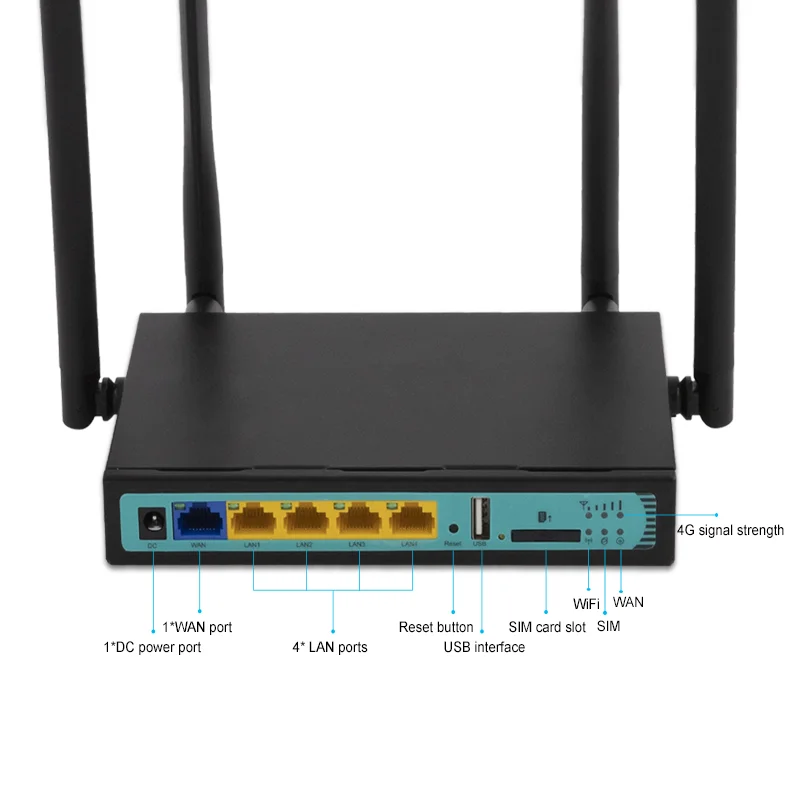

Interface | 1*PCI-E slot 1*SIM card slot 1*USB 2.0 port 1*10/100M WAN port,support Auto MDI/MDIX |
LED | Power,PCIE module indication light,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 4G signal 1, 4G signal 2, 4G signal 3,4G signal 4,4G signal 5, |
Button | 1*Reset button. |
Power adapter | DC 12V/1A |
Whether support POE supply | No |
Max Power consumption | < 12W |
Product size(L*W*H)&Color | Size:26.5*22*5CM Color:(Metal) Black(Optional)
|
Software | |
WAN Type | PPPoE,Dynamic IP, Static IP,3G(4G)dial-up |
Work mode | AP; ROUTER; |
DHCP server | Server, Client, DHCP Client List, Address Reservation |
System | SDK,Openwrt, Ecos. |
Virtual Server | Port Forwarding |
Security settings | Client filter |
DDNS | Support |
VPN | Support |
Band Ctrl | Support |
Static Router | Support |
System Log | Support |
Other Function | Mac clone |
Others | |
Work Environments | Operating Temperature:0℃ ~ 40℃; Operating Humidity:10%~90% non-condensing |
Certification | CE,FCC &roHs |

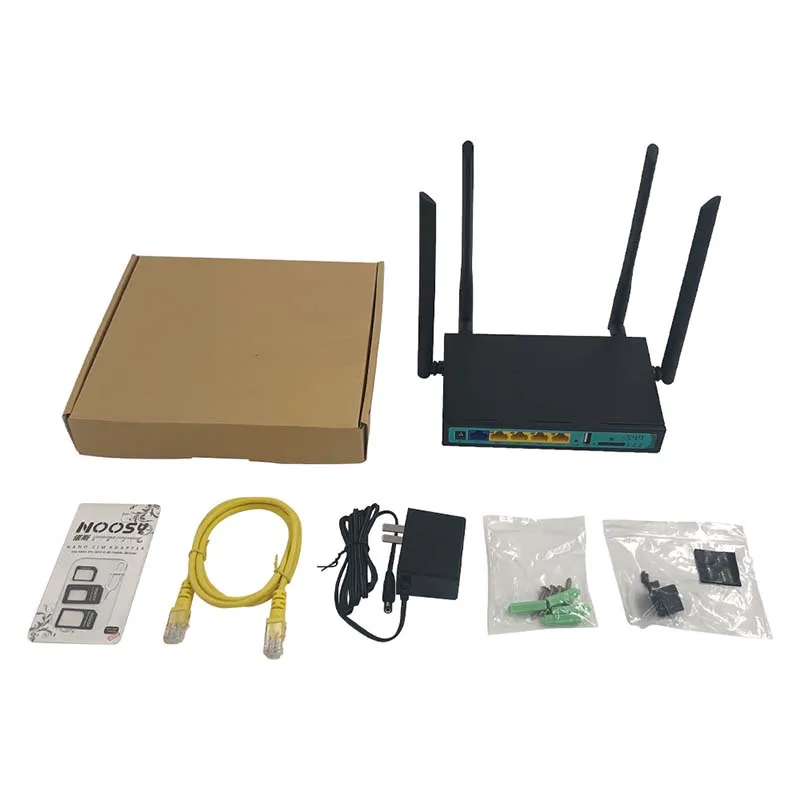

Packing list | 1*Power adapter (12V/1A, 1.5M) 1*Lan cable.,1M |
Packing box | 26.5*22*5CM |
Net weight | 0.86 KG |
Gross weight | 1.0 KG |
FAQ
Do you provide customer LOGO?
Yes, we accept to customize LOGO on firmware and hardware.
Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
