Характеристики

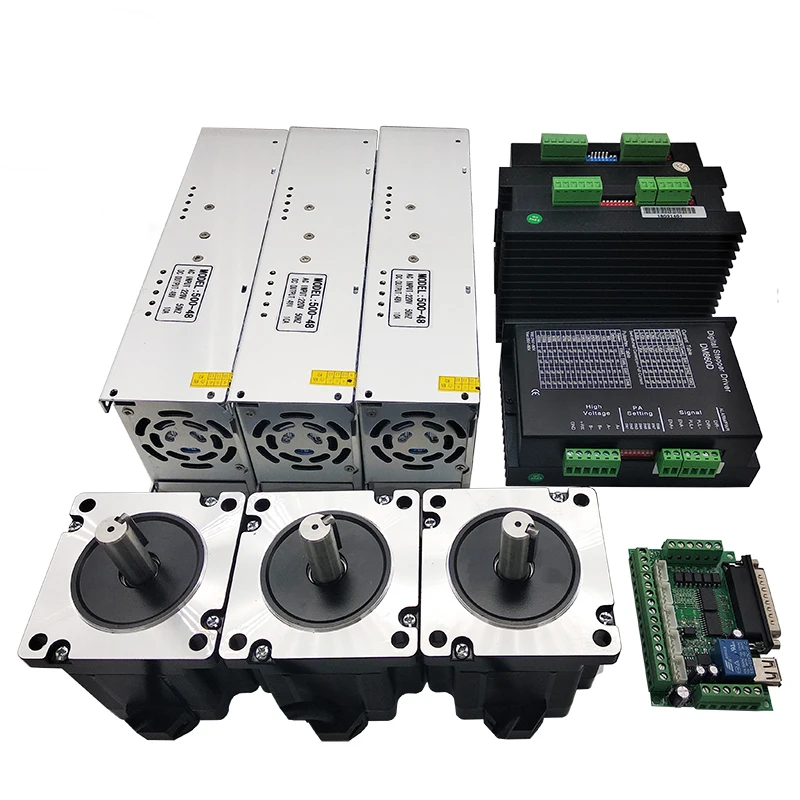

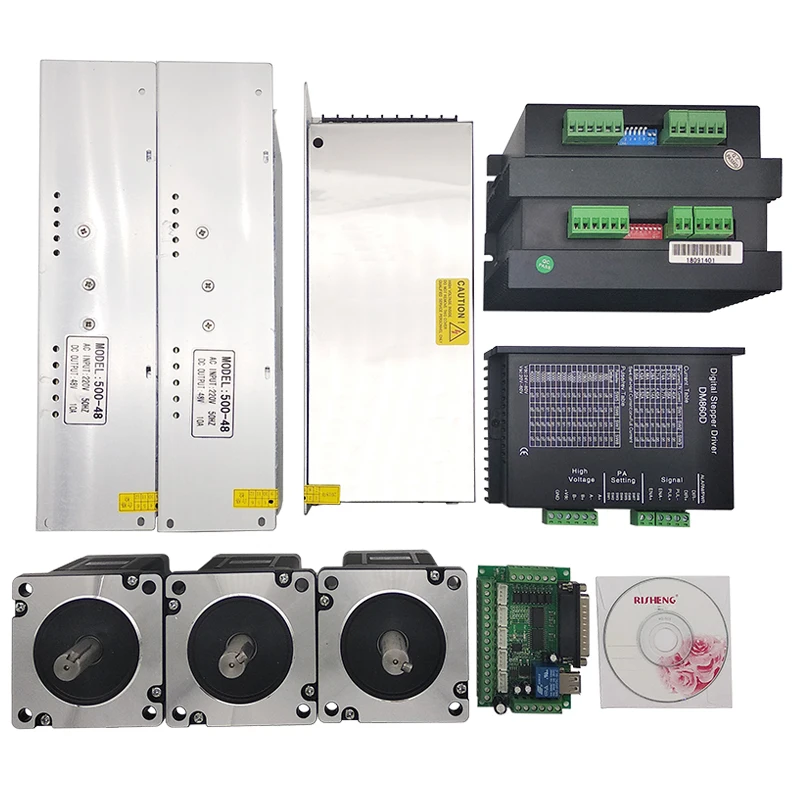

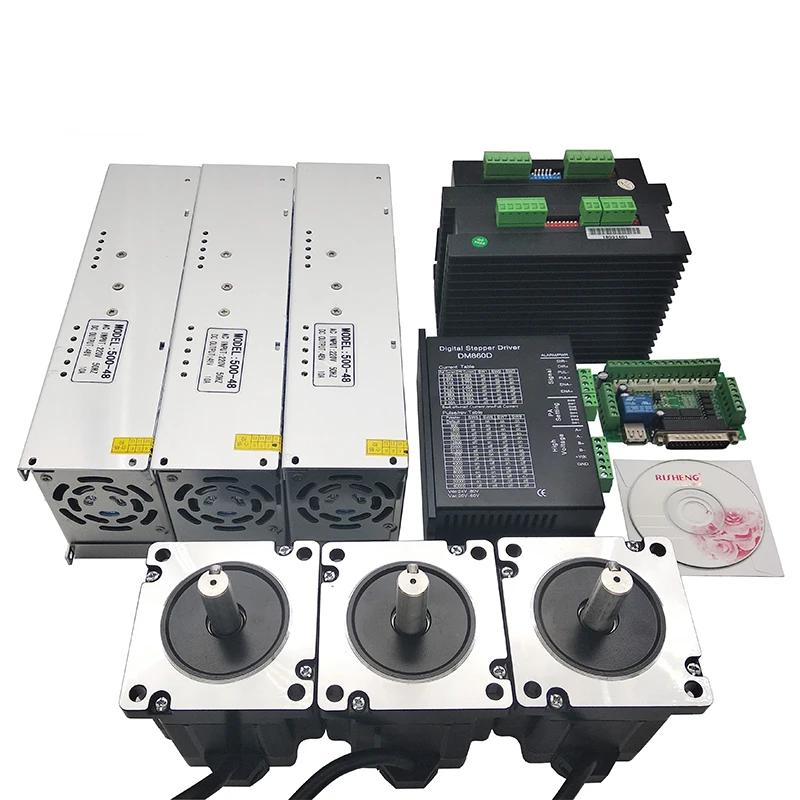

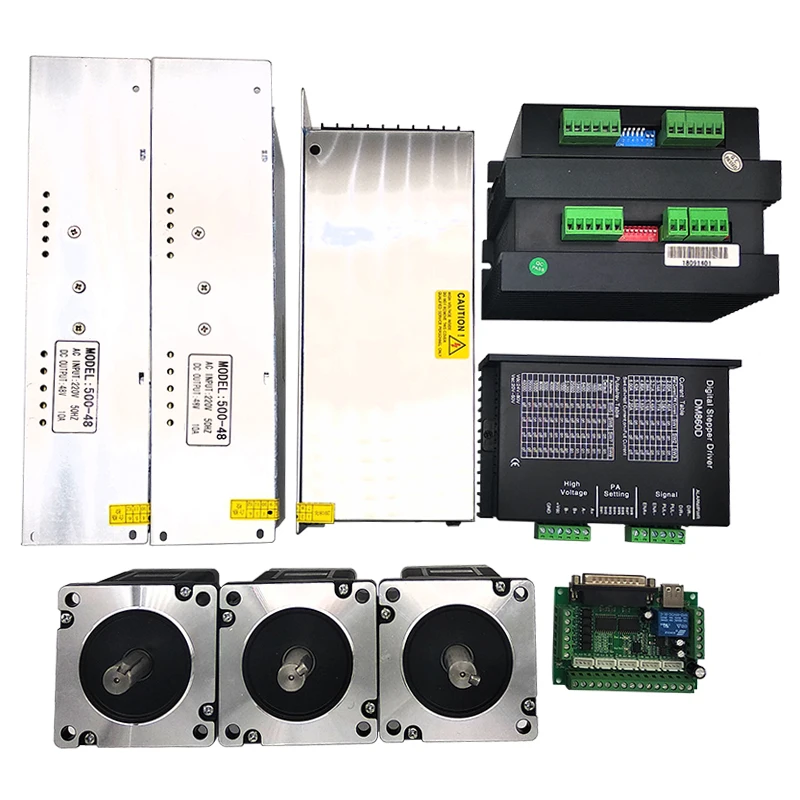

3 axis cnc kit stepper motor, stepper driver, power supply, controller board:
86HS nema 34 series stepper moter :
| Model No | Step Angle (°) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm) | Motor Length (mm) | Leads No. | Motor Weight (Kg) |
| 86HS65-4004 | 1.8 | 4 | 0.7 | 3.9 | 32 | 68 | 4 | 1.7 |
| 86HS78-4204 | 1.8 | 4.2 | 0.45 | 4 | 45 | 78 | 4 | 2.3 |
| 86HS78-6008 | 1.8 | 6 | 0.5 | 4 | 45 | 78 | 8 | 2.3 |
| 86HS82-4504 | 1.8 | 4.5 | 0.32 | 2.8 | 45 | 82 | 4 | 2.5 |
| 86HS82-5608 | 1.8 | 5.6 | 0.35 | 3 | 50 | 82 | 8 | 2.5 |
| 86HS100-5004 | 1.8 | 5 | 0.5 | 4 | 68 | 100 | 4 | 3.2 |
| 86HS100-5008 | 1.8 | 5 | 0.5 | 4 | 65 | 100 | 8 | 3.2 |
| 86HS118-6004 | 1.8 | 6 | 0.6 | 6 | 85 | 118 | 4 | 3.7 |
| 86HS118-5608 | 1.8 | 5.6 | 0.6 | 6 | 85 | 118 | 8 | 3.7 |
| 86HS156-5504 | 1.8 | 5.5 | 0.7 | 9 | 120 | 156 | 4 | 5.5 |
| 86HS156-6204 | 1.8 | 6.2 | 0.75 | 9 | 122 | 156 | 4 | 5.5 |
| 86HS156-5608 | 1.8 | 5.6 | 0.65 | 9 | 120 | 156 | 8 | 5.5 |
Wiring Diagram And Dimensions:
Stepper Driver for Nema 34 Stepper Motor
DM860D and DM860A Digital stepper driver:
1. over current, over voltage, under voltage, over heating, autmatic semi-flow prection fuctions, low noise.
2.dimensions: 150mm × 98mm × 51mm
3. Current 2.4A-7.2A, 24-80VDC/24-80VAC
