Ручная Ударная дрель Y6 Y8 Y10 Y20 Y24 Y26 Y28 Ty24c пневматический
- Категория: Буровая установка для шахт >>>
- Поставщик: Yantai,Panda,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.45 $* | 0.1 $* |
| Aug-18-2025 | 0.48 $* | 0.36 $* |
| Jul-18-2025 | 0.29 $* | 0.55 $* |
| Jun-18-2025 | 0.66 $* | 0.30 $* |
| May-18-2025 | 0.60 $* | 0.94 $* |
| Apr-18-2025 | 0.17 $* | 0.51 $* |
| Mar-18-2025 | 0.65 $* | 0.21 $* |
| Feb-18-2025 | 0.64 $* | 0.63 $* |
| Jan-18-2025 | 0.23 $* | 0.82 $* |
Характеристики
Product Description

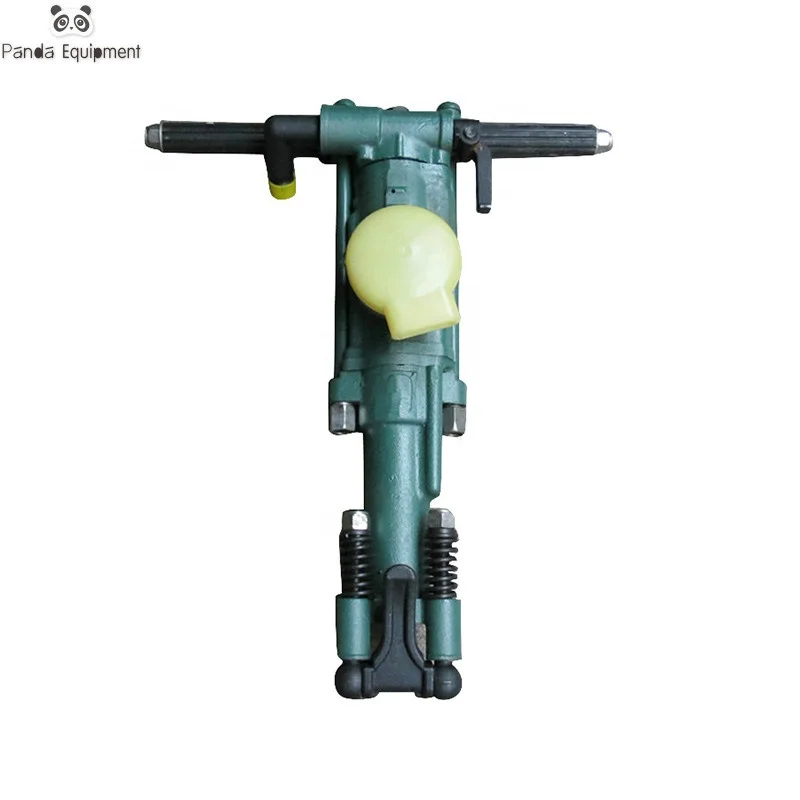

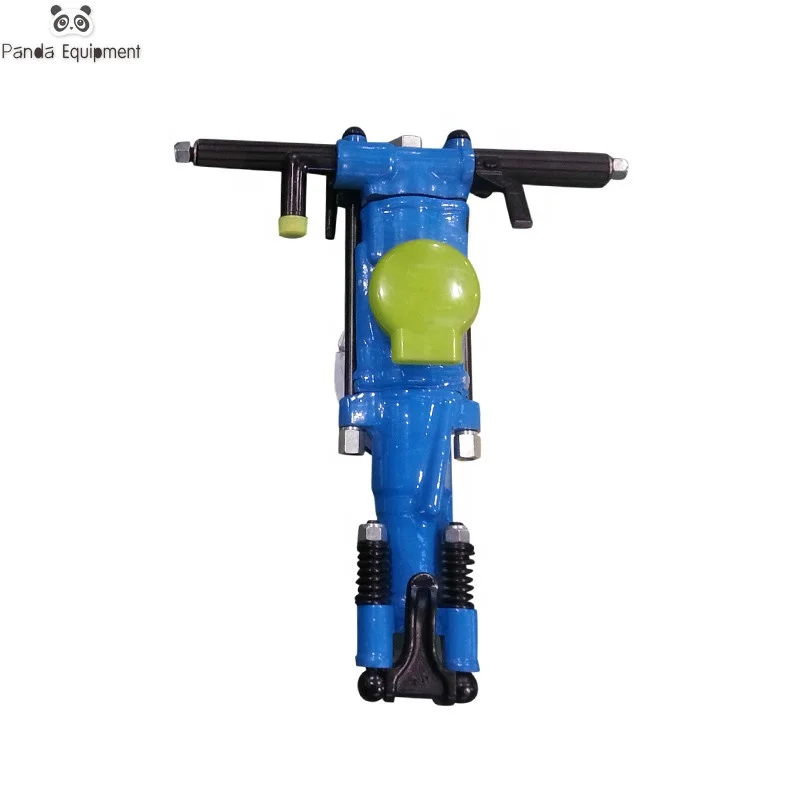

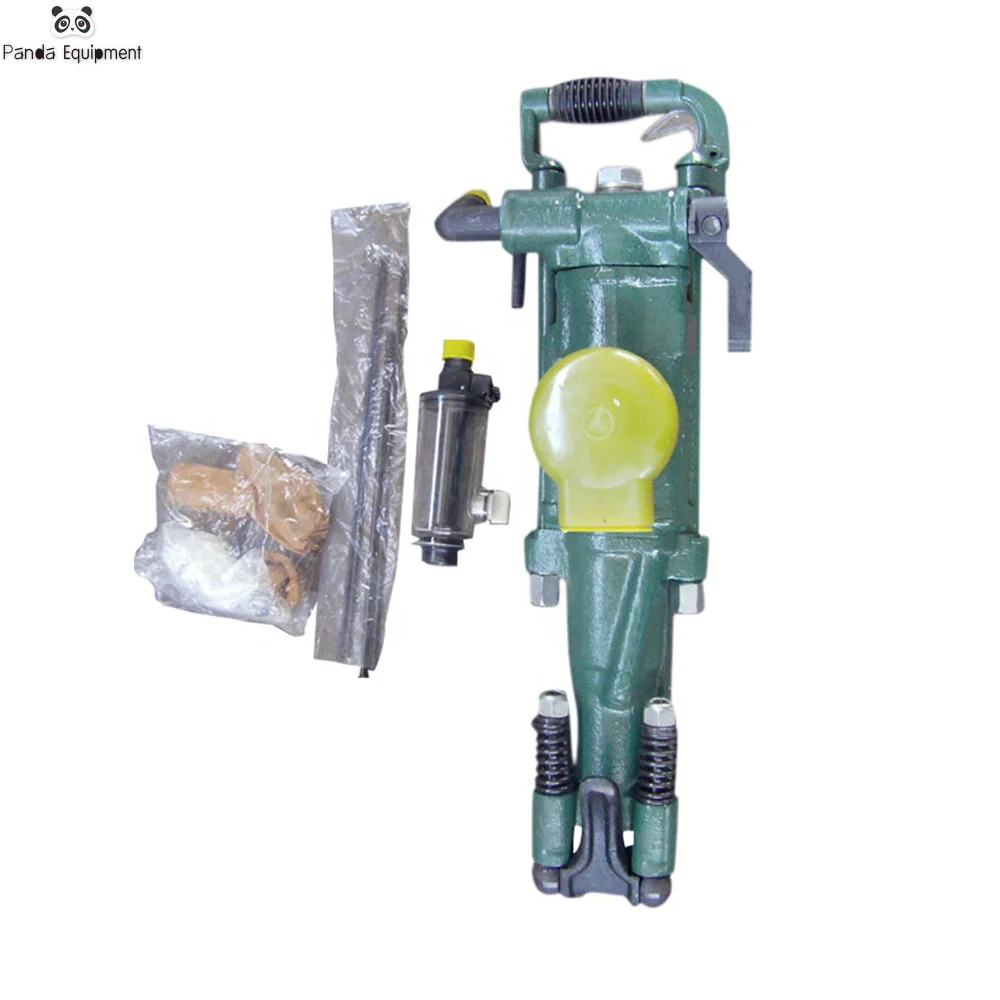

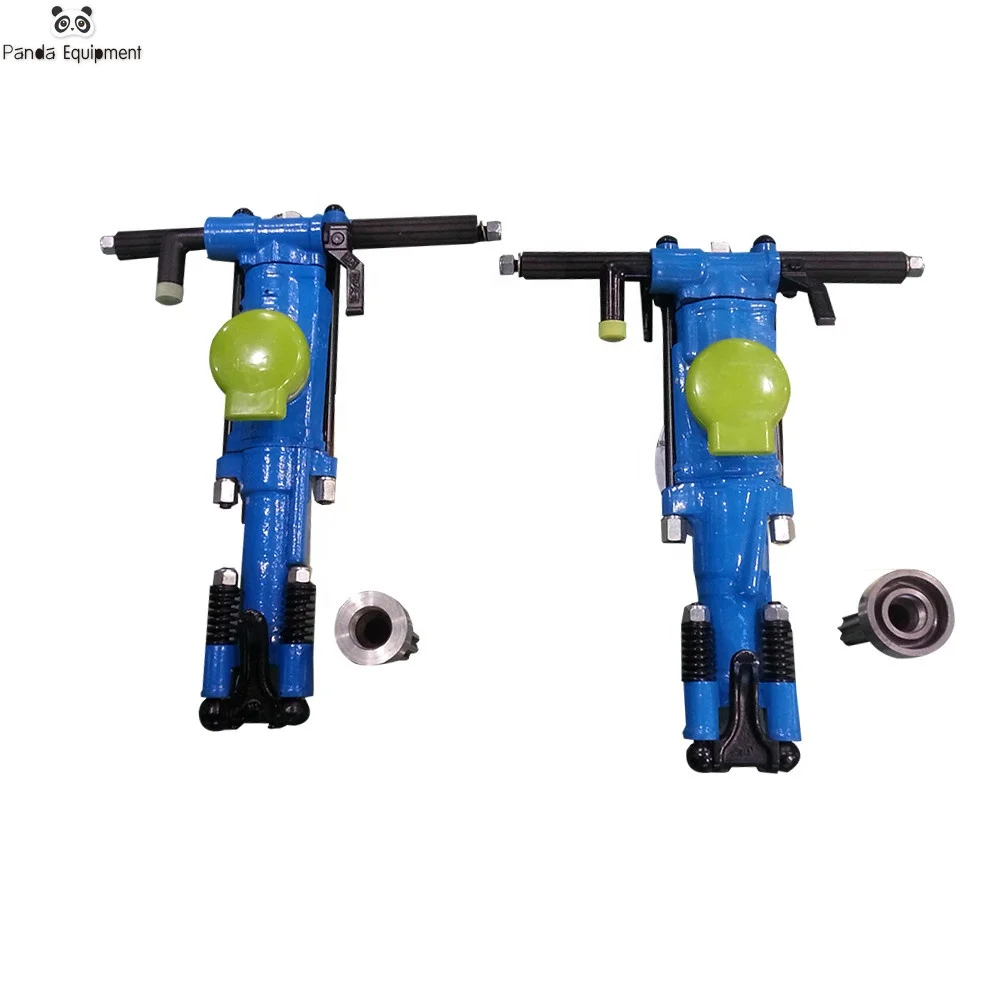

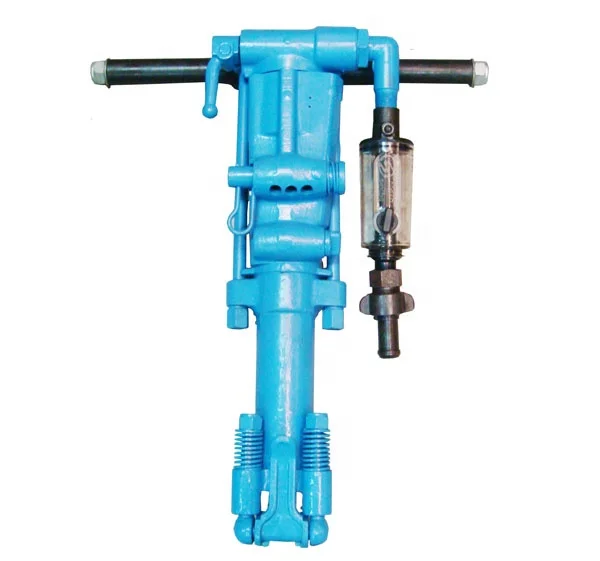

PANDADRILL Hand-held Rock Drill is widely used for dry drilling in the medium-hard and hard rock. It is mainly used for blasting holes and other drilling works in quarries, railway construction,water conservancy construction and defence project facility.It is suitable for drilling and blasting under various of rocks at any direction angles.Blast hole dia. is 34-42mm,drill hole depth is 5 m.
Advantage.:
1 Higher efficiency
2 Lower noise
3 Stronger impact frequency
4 Lighter weight
5 Longer life of wearing parts
6 Better economic returns
7 Environment protection
Specification:
HAND HELD ROCK DRILL SPECIFICATION | ||||||||||
TYPE | Y20LY | Y24 | Y26 | Y28 | TY24C | |||||
WEIGHT(KG) | 18 | 23 | 26 | 25 | 23 | |||||
SHANK SIZE(MM) | 22*108 | 22*108 | 22*108 | 22*108 | 22*108 | |||||
CYLINDER DIA(MM) | 65 | 70 | 75 | 80 | 67 | |||||
PISTON STROKE(MM) | 60 | 70 | 70 | 60 | 70 | |||||
WORKING PRESSURE(MPA) | 0.4 | 0.4-0.63 | 0.4-0.63 | 0.4-0.5 | 0.4-0.63 | |||||
IMPACT FREQUENCY(HZ) | 28 | 28 | 28 | 28 | 28 | |||||
AIR CONSUMPTION | 25 | 55 | 47 | 75 | 55 | |||||
AIR PIPE INNER DIA(MM) | 19 | 19 | 19 | 19 | 19 | |||||
ROCK DRILL HOLE DIA(MM) | 30-45 | 30-45 | 30-45 | 30-45 | 30-45 | |||||
ROCK DRILL HOLE DEPTH(M) | 3 | 6 | 5 | 6 | 6 | |||||
Application
Our Service
Professional R&D Team
First-Class Sales Team
Effective Production Team
Perfect After-Sales Service Team

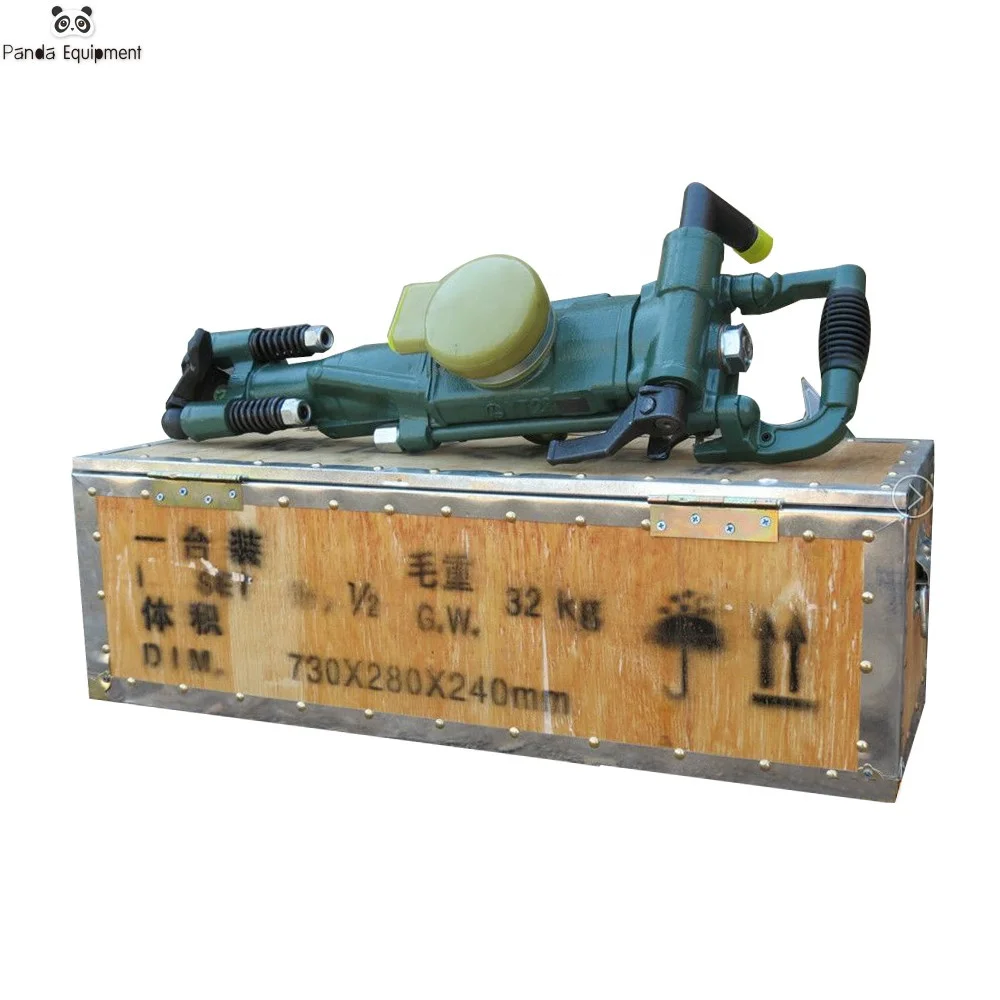

Packing & Delivery
Ply-Wooden Boxes + Pallet
Protect your goods from door to door
By Air/Sea/Express
Fast and Safe Delivery Team
Related Products
Taper Button Bit
97.8% Response Rate
Taper Rod
98.8% Response Rate
Integral Drill Rod
98.8% Response Rate
Certifications
FAQ
Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.
Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
Q4: Can I have a visit to your factory before the order?
A: Sure, welcome, here is our address: Yantai, Shandong.
