Полный набор плавающей/ТОНУЩЕЙ линии производства корма для

This Complete sets of floating/sinking fish feed production line is widely used for producing maize flour, soybean flour or compound powder, wheat bran into high grade aquatic feed pellets for fish, catfish, shrimps, dog,.cat etc. The puffing feed extruder for pet feeds can float on the water surface for over12 hours without water pollution.

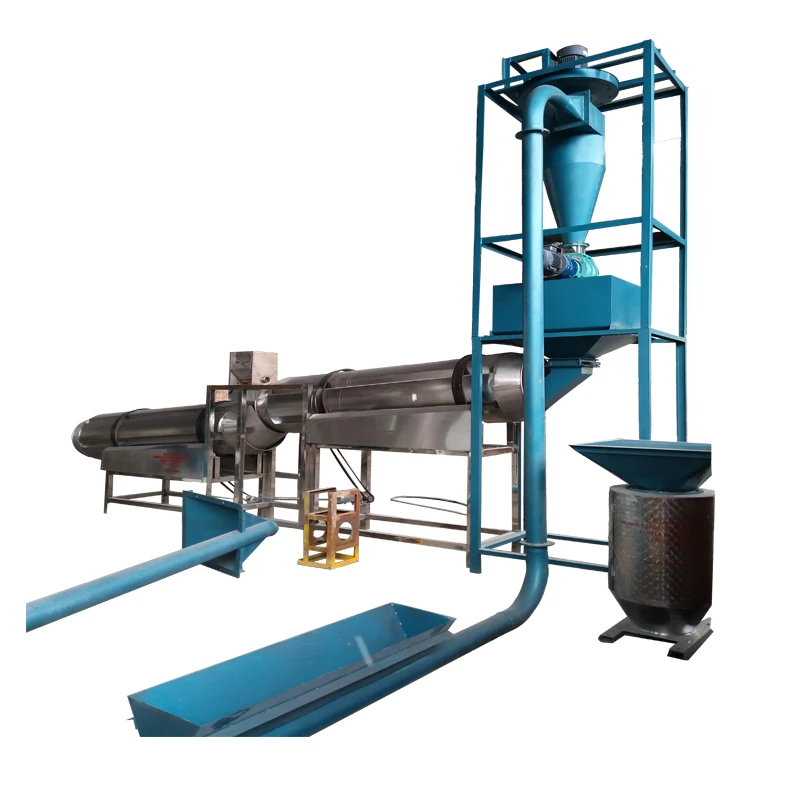

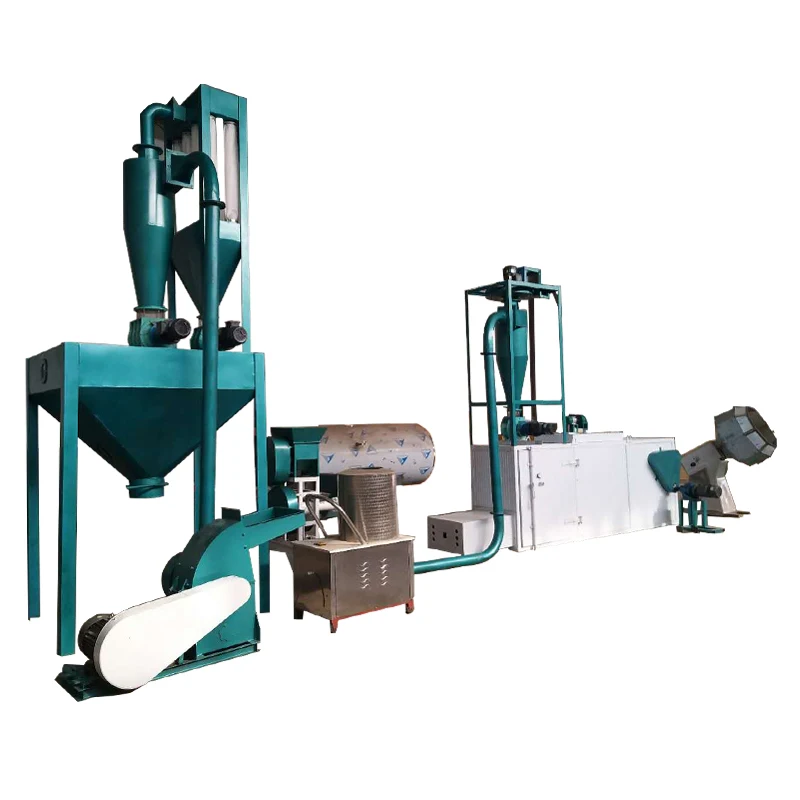

 Mixer → Screw conveyor→Extruder →Air conveyor→Dryer→Flavoring line→Cooling machine

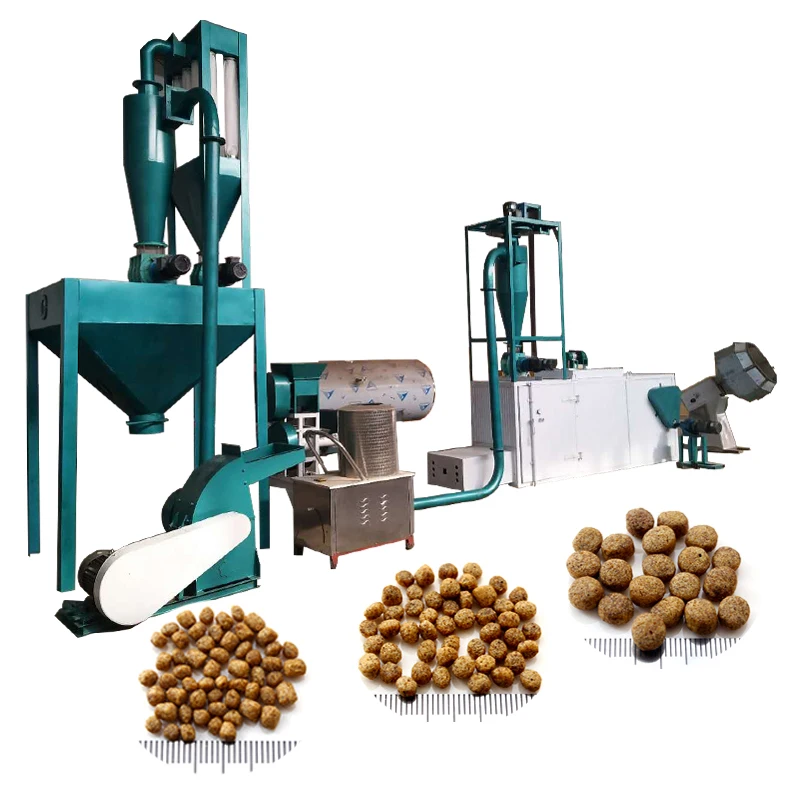

Different kinds of feed can be made, which can be done: suspended aquatic feed pellets, submerged fish and shrimp crab feed particles, pet food pellets, fishing feed grains and so on.

Round Shape, Big Bone Shape,  Small Bone Shape
Diameter:0.9-15mm by replace the moulds

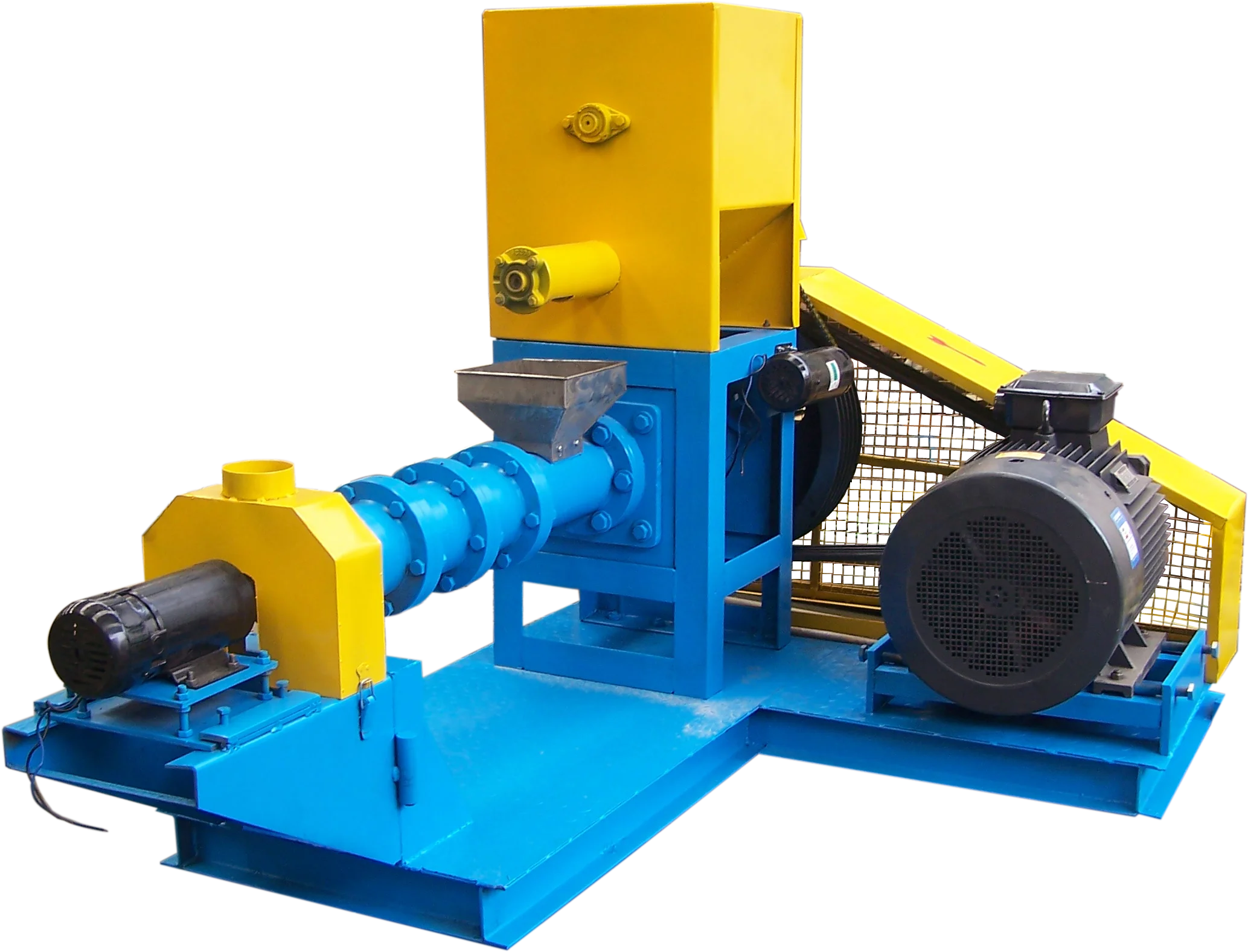

1. Our fish feed extruder is of single screw design.
2. The pellets extruded from pellet mill is about 80℃ and moisture content is 18%-20%, so you should equip a dryer and cooler if the capacity is more than 500kg/h. While for small capacity, you can complete the drying and cooling with a cooler.
3. We provide technical formula for making floating fish feed pellets after placing order.
4. We send extra easy wear parts for free including two sleeves, one screw, one cutting knife and three die mould.

5.Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
6.High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and
also makes the pellets easily to digest.
7.The cutting device can be adjusted to make pellets of different length.
8.The wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.

Parameter of dry way fish feed extruder machine:

Different model of dry floating fish feed pellet machine for customers' choice.

Tell us your requirement ,we rise our price for your study, Voltage can be customized as per client local voltage.

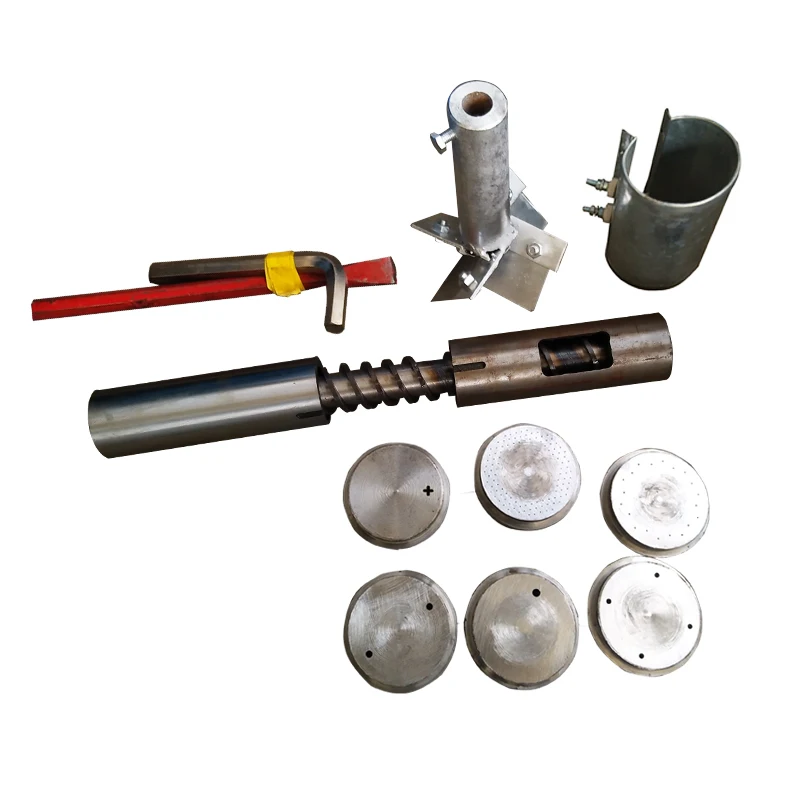

Spare Parts
The spare parts including screw,sleeve,heating plate,cutter.
We will supply 3 sets moulds and one whole set wear parts ( 1 screw, 2 sleeve, 1 cutter, 1 heating plate) freely for you.

1. machines with the best quality and proper price and with high efficiency and low power consumption;
2. warm and elaborate service(before and after sale). We insist that quality is always in the first priority and customer's satisfaction is our final intention.
