Медицинская капсула блистерная пластина Cartoner машина фармацевтическая таблетка таблетки доска

Описание и отзывы

Трекер стоимости

Характеристики

Model	RQ-ZH-26OW
Speed	260 carton/min
Total power	5.0 KW
Power supply	220/380V   50Hz
Requirements of carton	size range of carton:L(70-180)*W(35-80)*H(12-50)mm
Requirements of instructions	size range of instructions:L(80-250)*W(90-170)mm
	range of folding times of instructions:1-4 fold
Pressure	pressure intensity:≥0.6MPa
	air consumption:120-200 L/min
Overall size of machine	6800*1600*186mm
Net weight of machine	about 3400kg

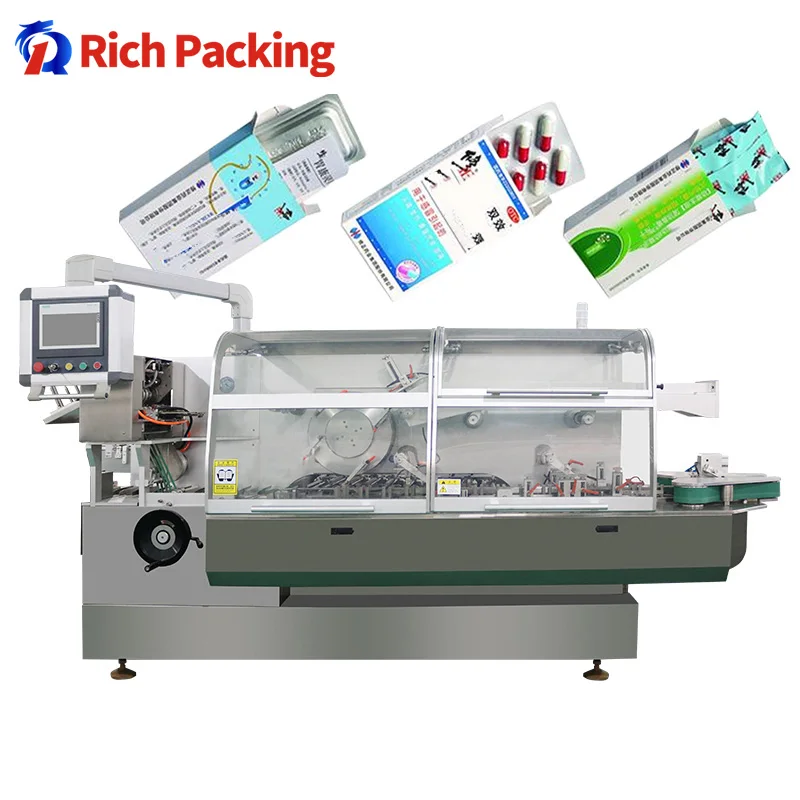

The 260 tea bag cartoning machine vertical servo motor is a new good design and is one of the professional pharmaceutical machinery produced by RICH PACKING. Our 260 tea bag cartoning machine vertical servo motor function is packaging cartons, such as packaging capsules, tablets, small or large sachets, tea bags, daily necessities, facial masks, etc. 260 tea bag cartoning machine vertical servo motor use is very common. According to the your needs, you can interconnect the 260 cartoning machine tea bag vertical servo motor with a counting machine, a blister packaging machine and a sealing machine.

260 tea bag cartoning machine vertical servo motor can meet the needs of any product, and can be packaged in a bag or box of a suitable size. These 260 vertical servo motor use the PLC processing systems to deal with solutions. The progress of all working tasks of the machine vertical servo motor is controlled by the intelligent CPU chip of the PLC man-machine system. 260 machine vertical servo motor has a forward-push feed design, which is easy for the customers to operate. So when using 260 tea bag cartoning machine vertical servo motor in the production process, workers can easily control and observe it. Even if any situation arises, the employees can easily solve is by 260 vertical servo motor.
