Products Description


China Cartoner Packing Machine For Bottle/Syrup/Oral Liquid /Bag/Food/Soap/Blister
Packing Machine in Affordable Price

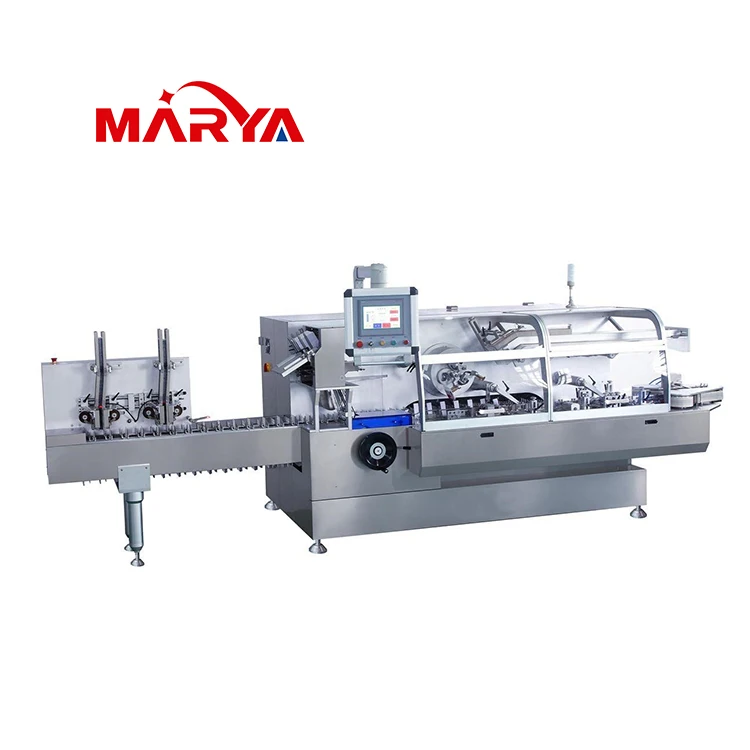

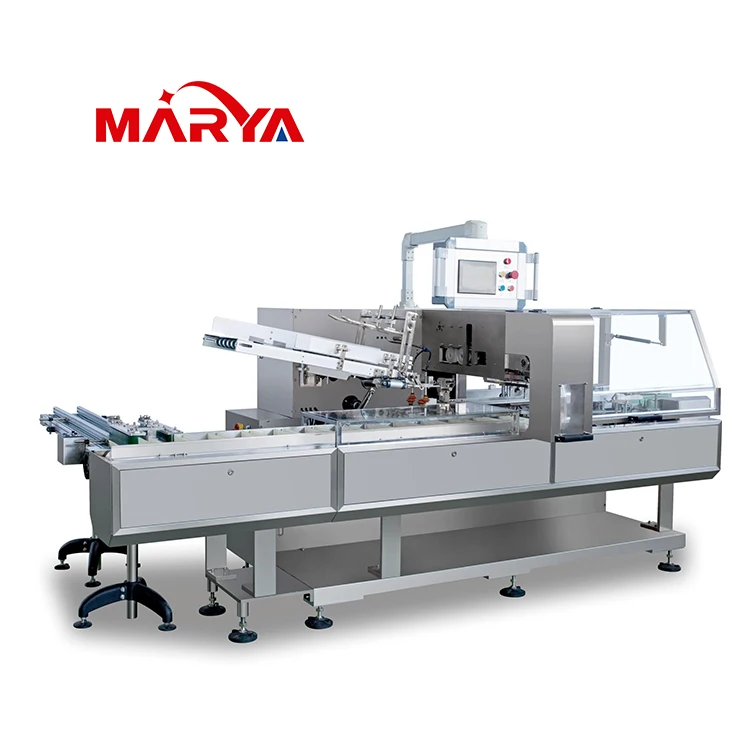

The characteristics of Cartoning Machine ZH300:
ZH300 is the fastest Continuous Motion Cartoning Machine in our company. It is suitable for pharmaceuticals, food, household chemicals, hardware and electrical industries for the packaging of blisters, bottles, vials, pillow packs, toothpaste, ect. It can fold leaflets, open cartons, insert the products and leaflets into cartons, emboss, tuck-in or hot-melt closures and automatically discharge cartons. The machine is equipped with a series of sensors and automatic protective devices to assure the machine runs safely and effectively. It can connect with the Blister Machine, Pillow Packaging Machine, Shrink-Wrapper, etc., to form a Packaging Line. It is the best choice for mass production.




Main units of this Cartoning Machine:
Gear Device:
The gear drives the carton conveyor chain and blister cards conveyor chain running in continuous motion.

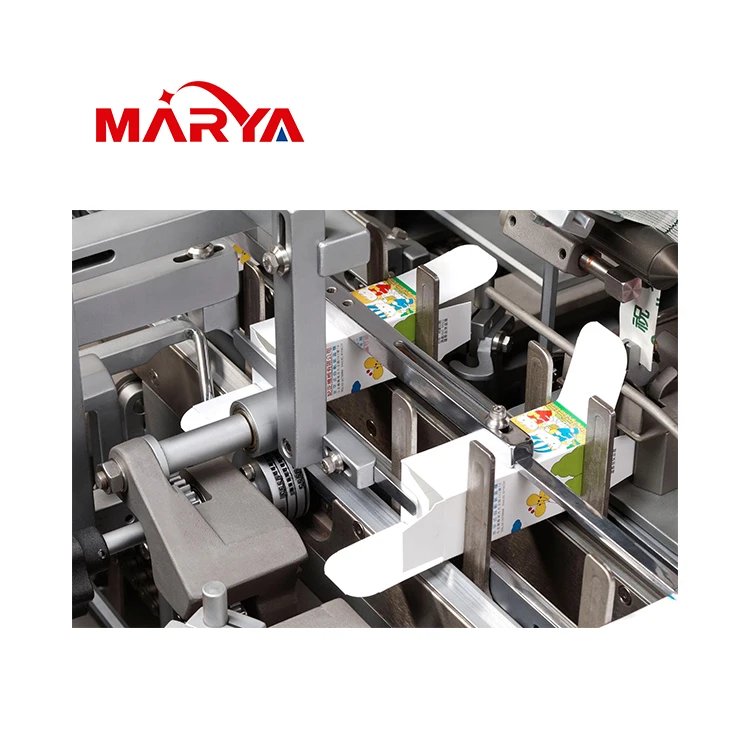

Carton Conveyor Chain:
The carton conveyor chain is used to transfer opened cartons to every stations, that can automatically complete the actions of inserting of blister cards and leaflets into cartons, embossing, closing of cartons, discharging of cartons.
Leaflet Conveyor Chain:
The leaflet conveyor chain is applied to send folded leaflets to the blister feeding station then the leaflets and the blister cards are inserted into cartons together.

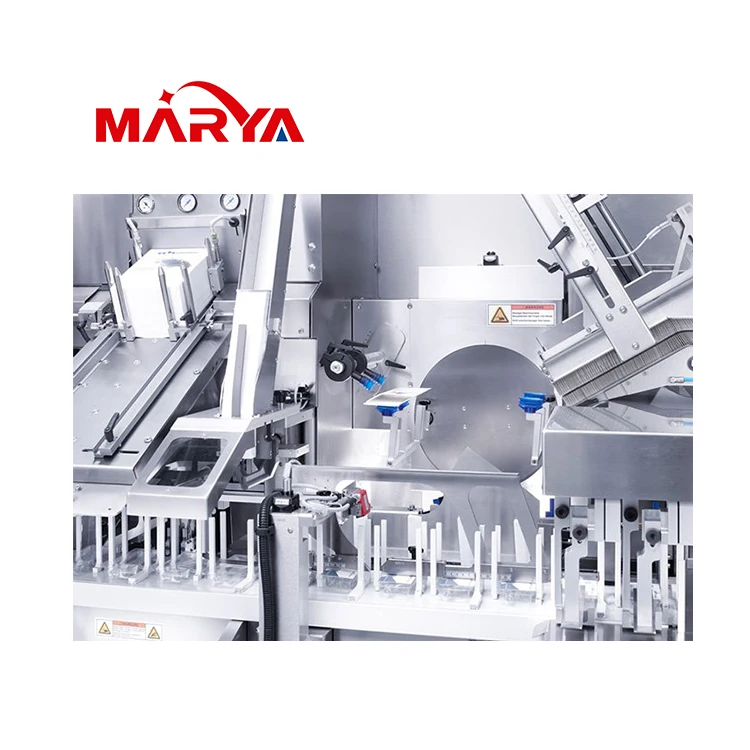

Rotary Carton Pick-up Device:
The rotary carton pick-up with mechanical pre-break function, it can sucks the cartons from the carton magazine, open the carton, place it on the carton conveyor

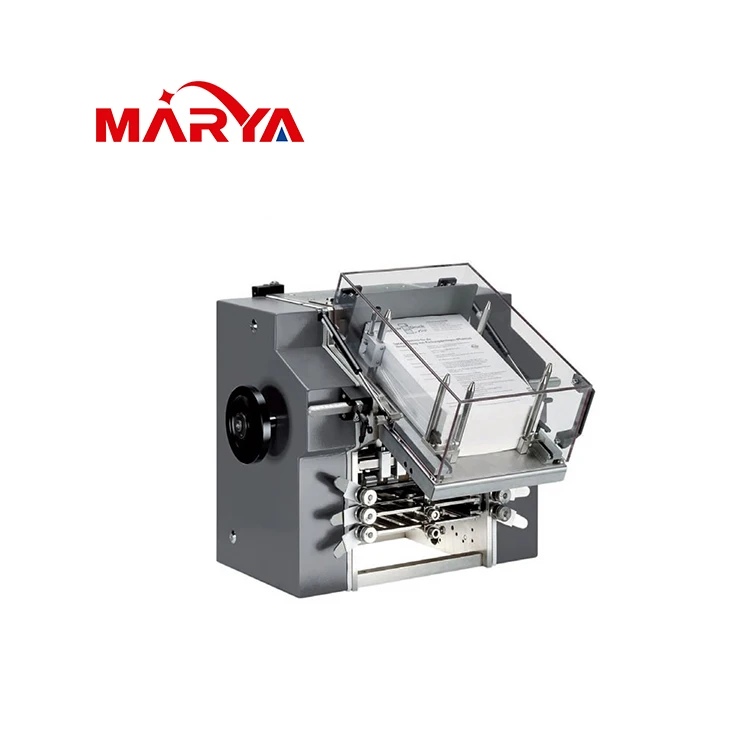

Leaflet Folding Device:
The leaflet folding device can make the leaflet fold one to four folds according to customer’s demand .
Inserter Device:
The inserter device can push the blister cards into the carton in continuous motion.

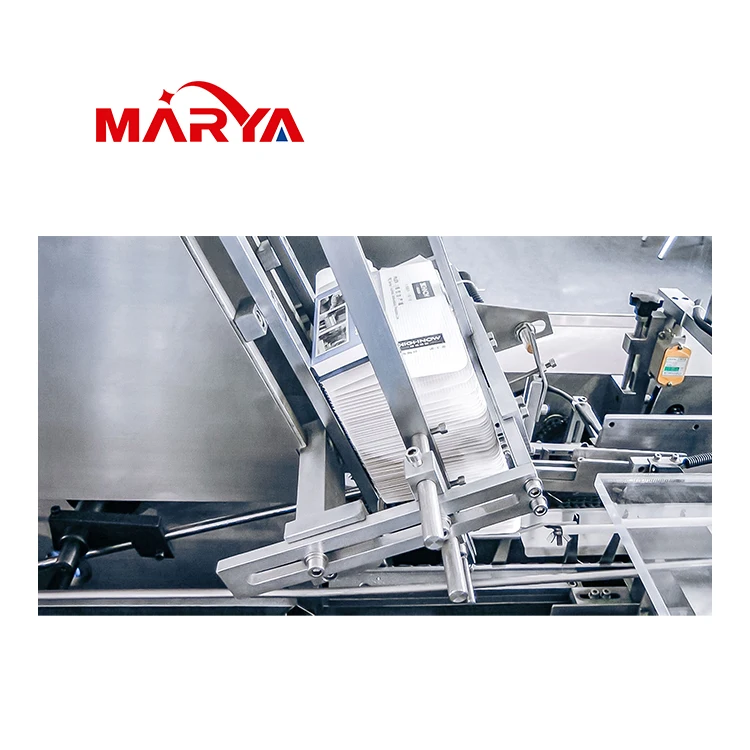

Carton Magazine Device:
Adopt long carton magazine for approximately 1000 cartons.




Technical data
Max.Speed:
blister:300 cartons/min. Bottle: 160 bottles/min
Range of Carton Size:
Max.160mm*110mm*60mm Min .55mm*30mm*15mm
Unfolded Leaflet Size:
70mm∼210mm*150mm∼260mm
Folded Leaflet Size:
70mm∼210mm*20mm∼40mm
Machine Power:
4kw
Machine Dimension:
4000mm*1200mm*1700mm
Machine Weight:
2400kg
