Характеристики


Product Description

1. The Scope of Application

The model ELMS is specially for the egg box , label on the top surface two sides of different size of egg box.

2. Device Characteristic

Adopt mature technology PLC control system, stable and high-speed operation
Touch-screen Man-machine interface operating system, simple and efficient
Screw adjustment to press label object move accurately
Synchronization chain mechanism ensure label smooth and precise
Advanced technology of pneumatic coding system, print the batch number and expiry date clearly

3. The design of mechanical structure

Ultra-resistant roll label device adopts a special rubber material which is durable
Installing one fixed roller to ensure the stability of label object
 Transportation agency is variable speed, company with the out label speed,make sure labeling without wrinkle
 Solid and durable various parts, all adopt standardized modular design, high interchangeable, ensure the safety and stability of 24-hour operation

Technical Parameter
\t
Production(pcs/min)
\t
30-80
\t
Driving Mode
\t
Servo motor
\t
Label position
\t
top and two sides surface
\t
Conveyor speed
\t
≤40 (m/min)
\t
Label Specifications
\t
adhesive sticker
\t
The application of box
\t
customized
\t
The application of label
\t
Width 15-300 mm length 15-300 mm
\t
inner diameter of label roll
\t
76mm
\t
outer diameter of label roll
\t
350mm(max)
\t
Voltage (In China)
\t
AC220V 50/60HZ Single phase
(Can customized as client need)
\t
No
\t
Name
\t
Model
\t
Unit
\t
Brand
\t
1
\t
PLC control system
\t
288-1ST20-OAAO
\t
1 set
\t
SIEMENS
\t
2
\t
Touch screen
\t
648-OCC11-3AXO
\t
1 set
\t
SIEMENS
\t
3
\t
Photoelectric sensor
(check label object)
\t
FS-N18N
\t
1Set
\t
Japan KEYENCE
\t
4
\t
Photoelectric sensor
(Check opaque label)
\t
GS61/6.2
\t
1 Set
\t
German Leuze
\t
Photoelectric sensor
(Check transparent and opaque label)
\t
GSU 14B/66.3-S12
\t
1 Set
\t
German Leuze
\t
5
\t
Servo motor
\t
1FL6 034-2AF21-1AA1
\t
1 Set
\t
SIEMENS
\t
6
\t
Drive
\t
6SL3 210-5FB10-4UA1
\t
1 Set
\t
SIEMENS
\t
7
\t
Main transport motor
\t
90YS90DV22
\t
1 set
\t
German JSCC
\t
8
\t
Speed Controller
\t
40-90W
\t
1 set
\t
German JSCC

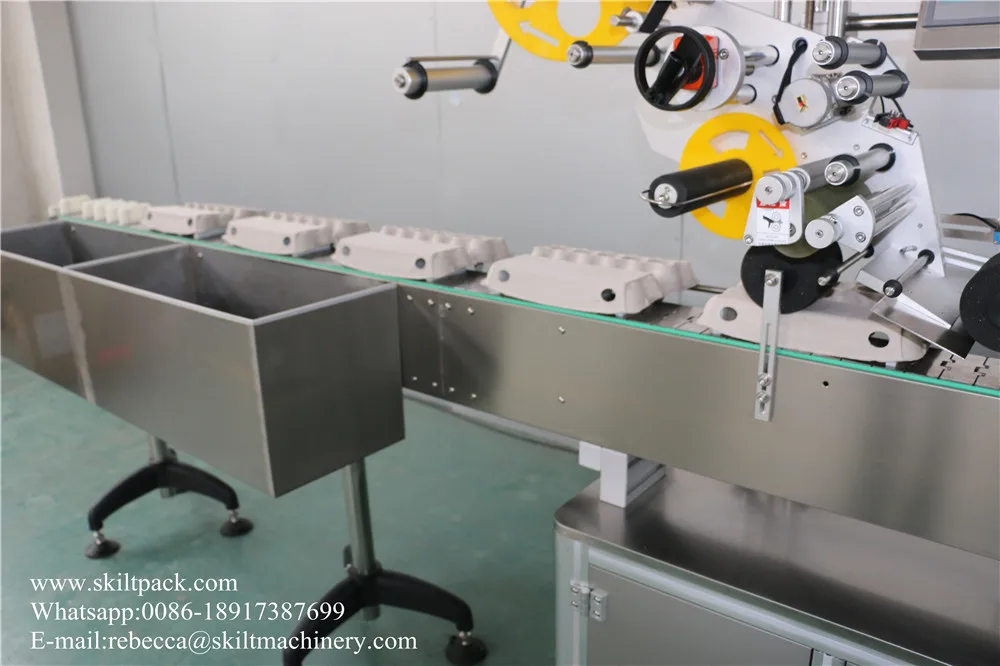

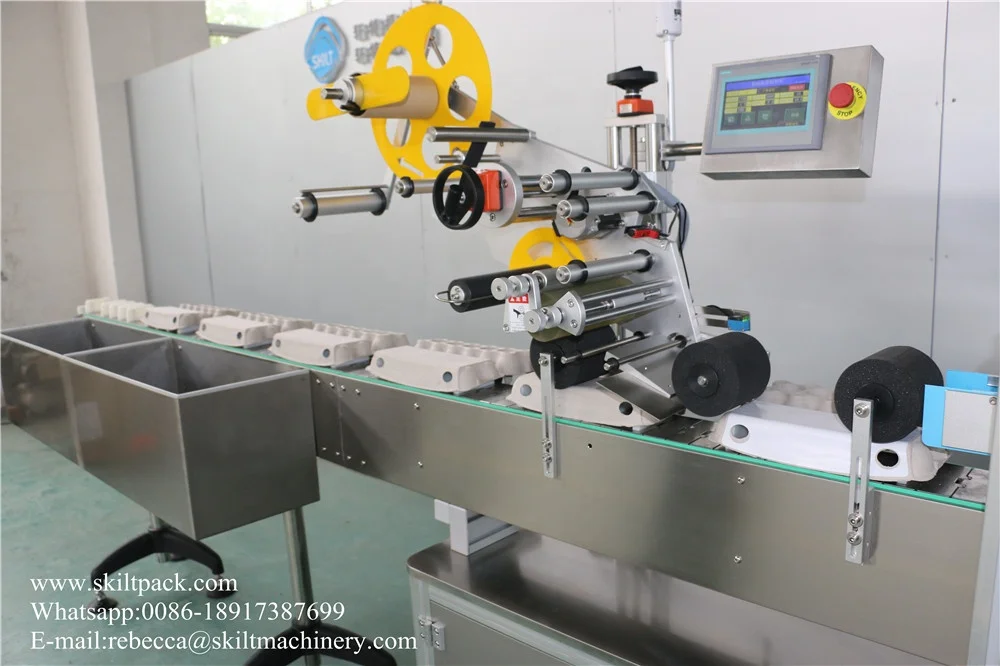

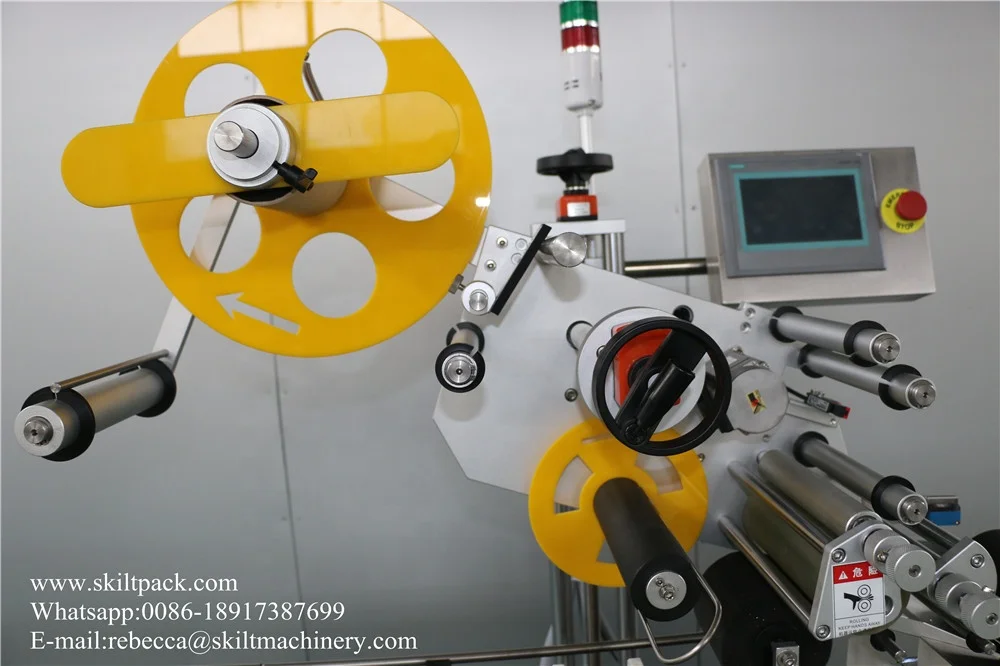

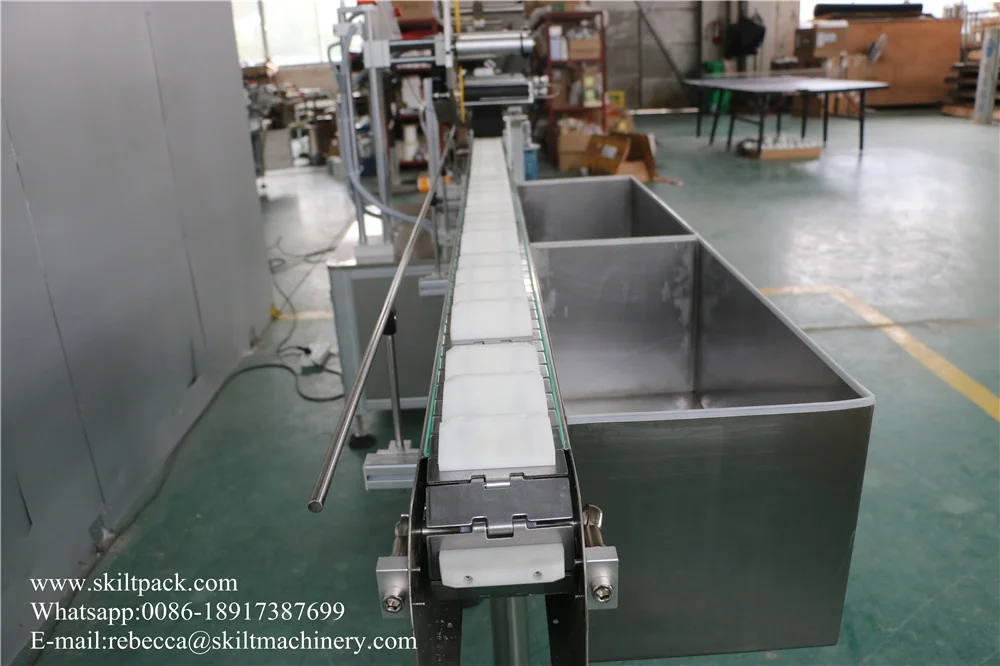

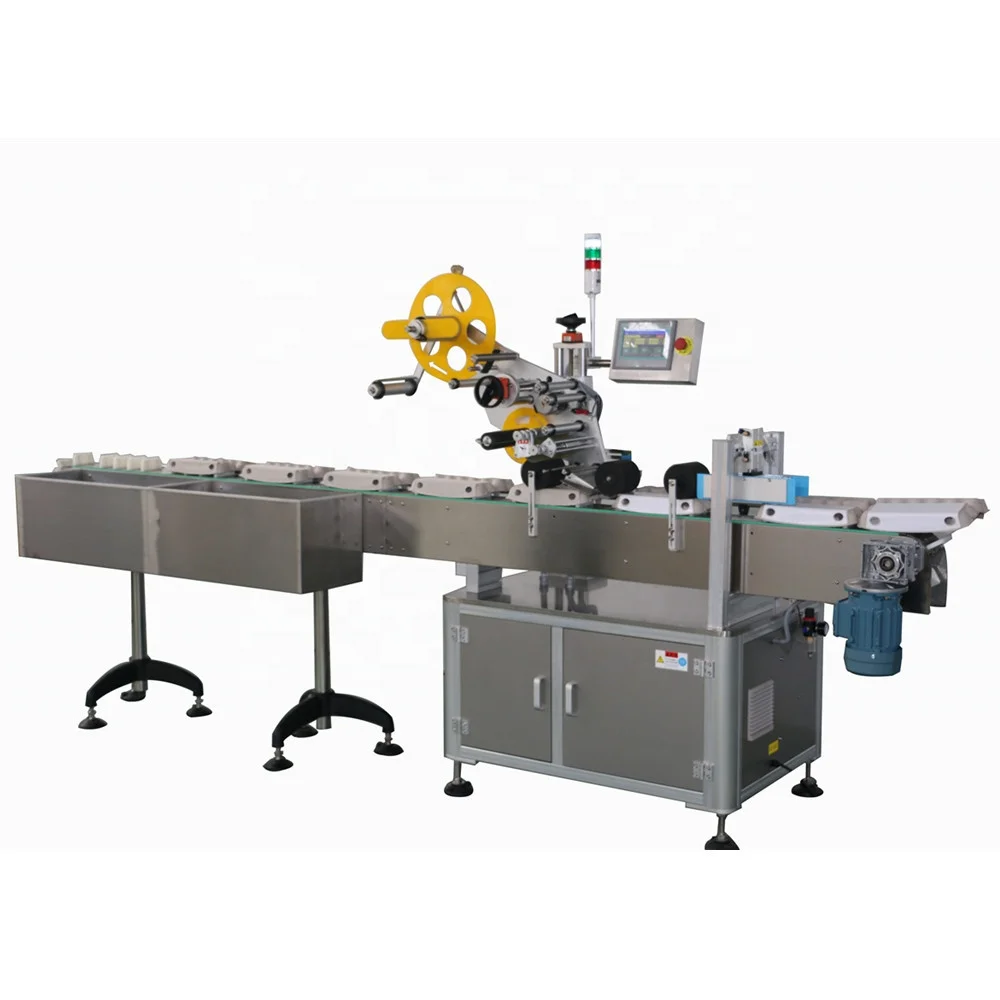

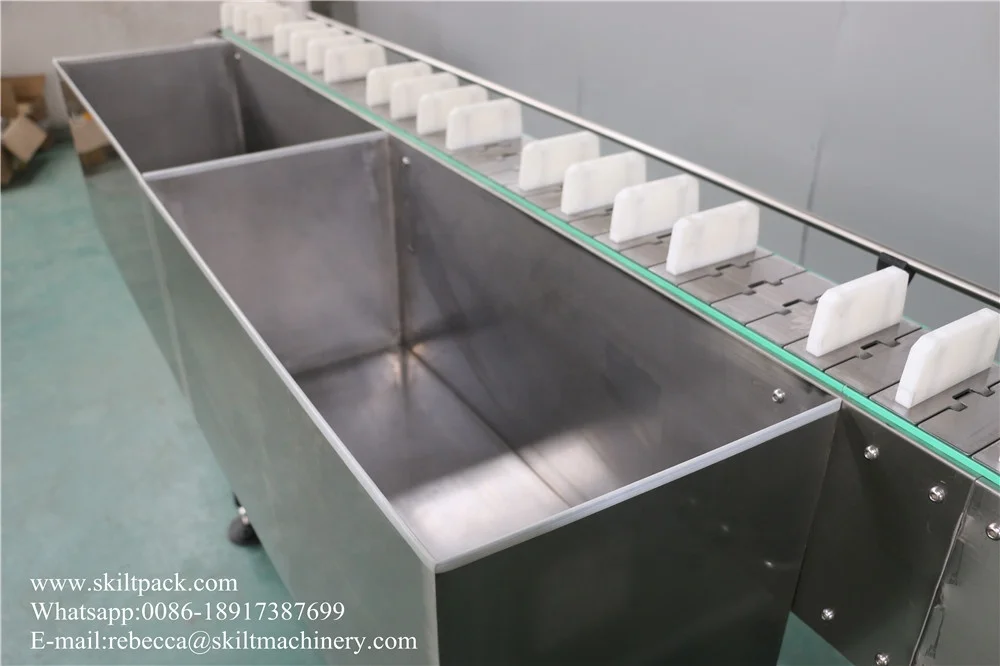

Detailed Images
Machine Processing
Our Service

Pre-sales:
According to client specific labeling requirement, supply reasonable machine sketch map,quotation and similar video for client ref first.

During Sales:
1) Depends on client products and labeling position, made reasonable reform base on the standard machine.
2) Repeat 20 ongoing hours testing equipment operation stability .
3) Execute GMP certification for the equipment and materials used in the production process requirement and specification strictly.

After sale:
1. Range experienced senior engineer come to client company for installation .
2. Supply systematic operation training for client workers.
3. Guarantees all equipment (except human factors) within one year, lifetime maintenance sevices.
4. After client use the machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years.
5. If quality problems arise, the supplier provide technical support and timely supply wearing parts.

FAQ

1. Q: What label material does your machine use ?
A: Self-adhesive sticker.

2. Q: The machine is automatic or semi-auto?
A: We only produce the automatic machine .

3. Q: Which kinds of machine are suit for our products labeling requirement?
A:Pls supply us your products and label size (the photo of products with label on it is rather helpful), then I will suggest you the suitable machine for reference.

4. Q: The machine can connect with the product line or not ?
A: Machine can connect with production line or put on the production line or operation alon all ok as you need .
