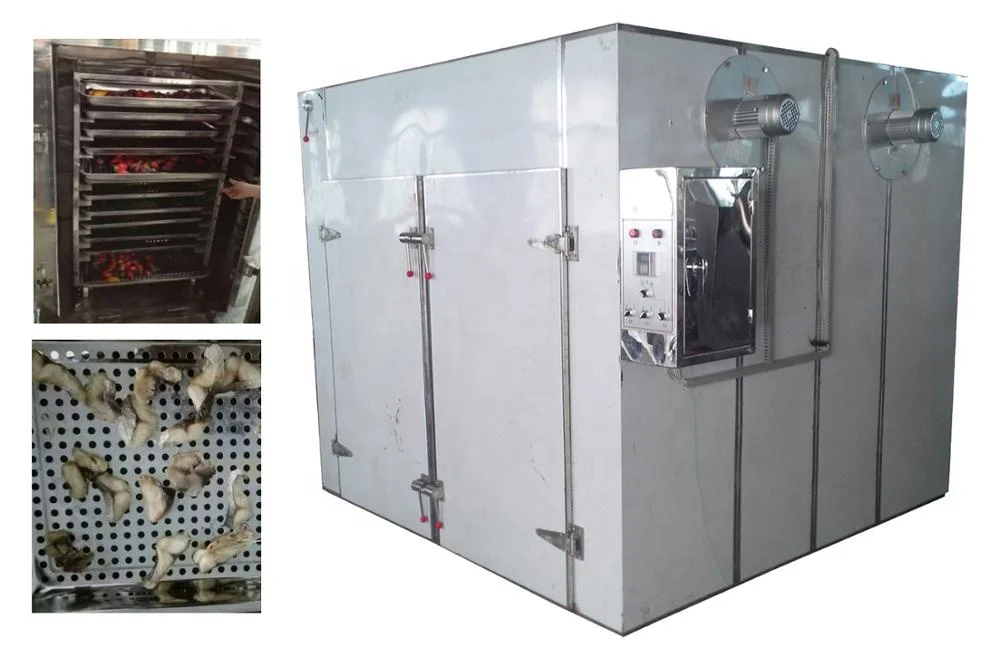

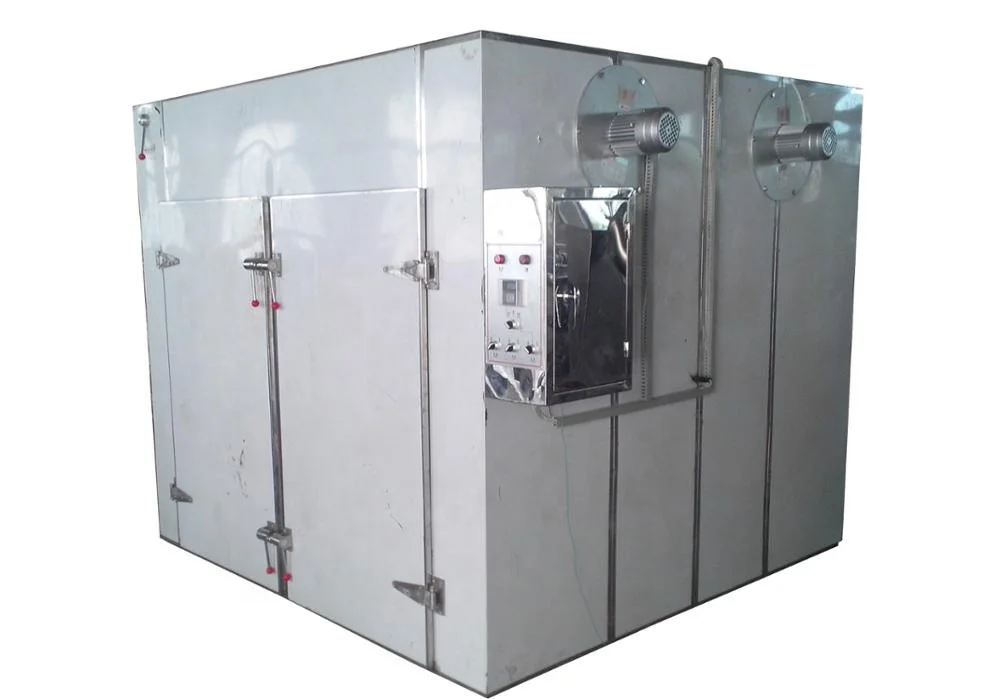

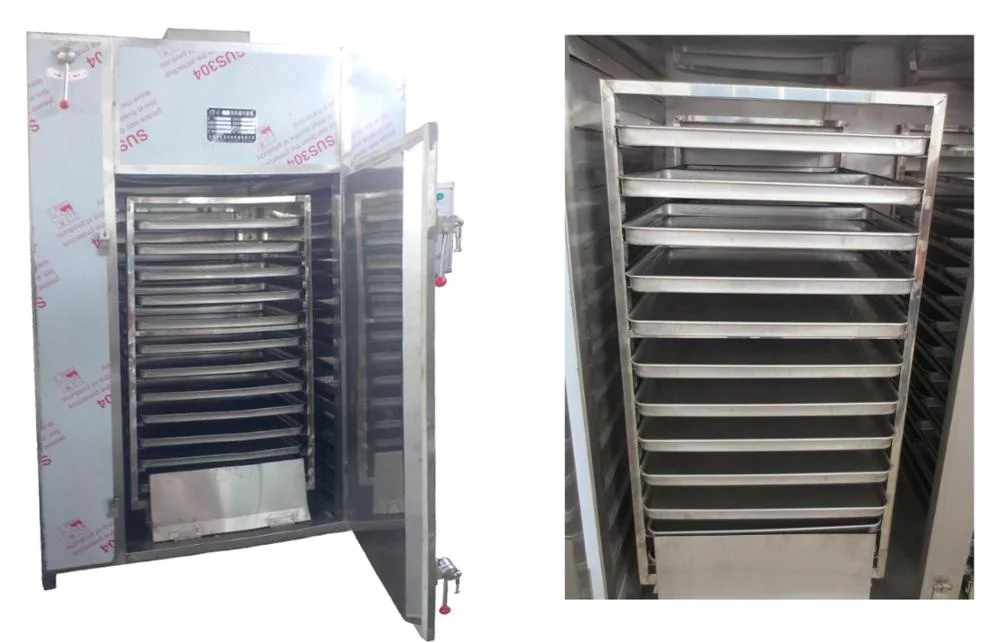

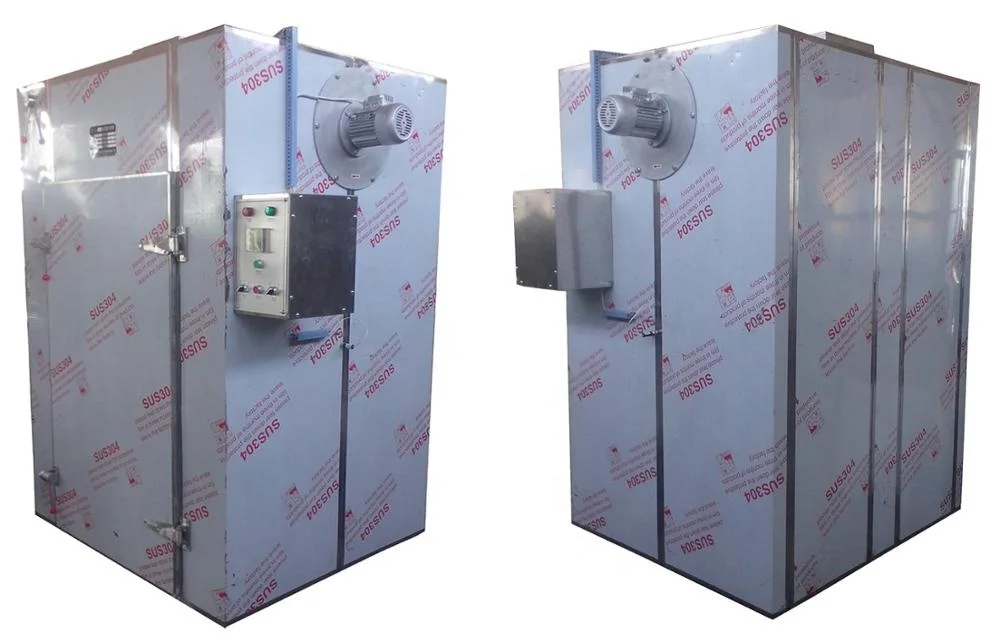

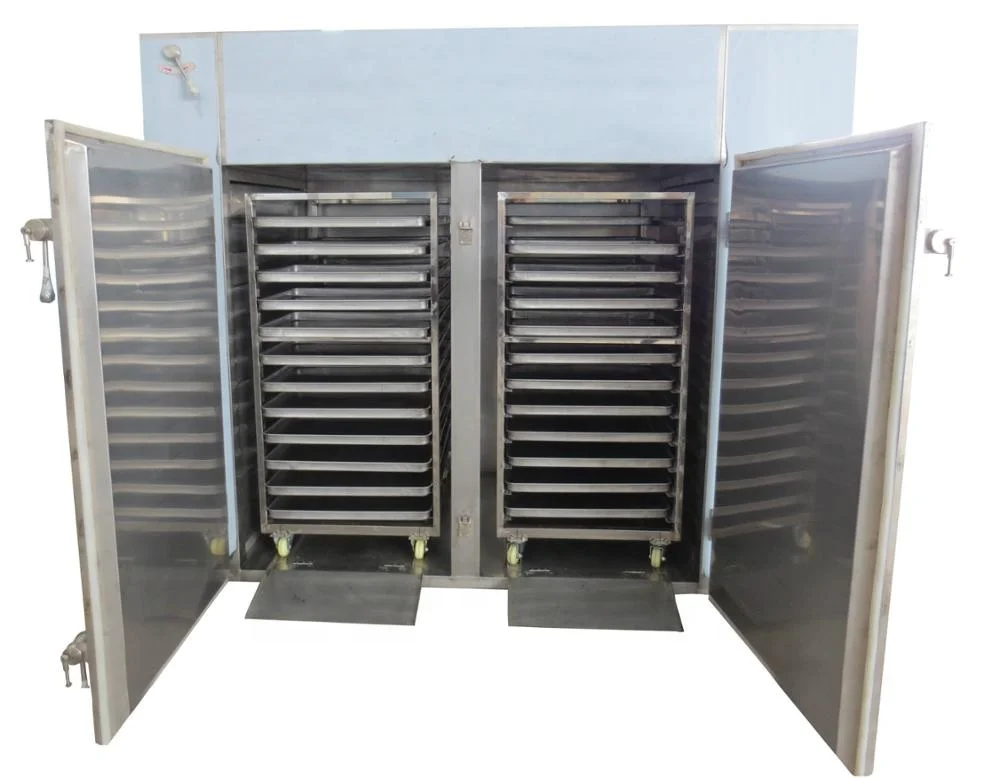

Сушилка для овощей и фруктов сушилка с горячим воздухом
- Категория: >>>
- Поставщик: Jiangyin,Yongchang,Medicine,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 5712.27 $* | 5998.47 $* |
| Aug-15-2025 | 5664.72 $* | 5947.14 $* |
| Jul-15-2025 | 4752.25 $* | 4990.91 $* |
| Jun-15-2025 | 5568.95 $* | 5846.8 $* |
| May-15-2025 | 4848.48 $* | 5090.60 $* |
| Apr-15-2025 | 5472.25 $* | 5746.90 $* |
| Mar-15-2025 | 5424.67 $* | 5695.35 $* |
| Feb-15-2025 | 5376.25 $* | 5645.45 $* |
| Jan-15-2025 | 5328.93 $* | 5594.56 $* |
Характеристики
Product Overview
Parameters and Remark:
1) Heating source: Vapor, heat conductive oil, hot water, electric heating pipe, FRI etc.
2) Operating temperature: Vapor heating from roomtemperature to 140℃, max 150℃.
3) By Electric, FRI heating, temperature range from room level to 350℃.
4) Auto-control system and computer control system as option.
5) Common vapor pressure 0.2-0.8 Mpa.
6) Electro-heating (type 1) 15 kw, actually 5-8 kw/h.
7) Special requirements should be indicated while ordering.
8) Non-standard dryer can be produced based on process parameter.
9) Operation ambient temperature high than 140℃ or less than 60℃ should be marked out while ordering.
10) Dry vehicle and tray's dimension are standard and changeable.
11) Dry tray dimension: 460x640x45mm.
2) Operating temperature: Vapor heating from roomtemperature to 140℃, max 150℃.
3) By Electric, FRI heating, temperature range from room level to 350℃.
4) Auto-control system and computer control system as option.
5) Common vapor pressure 0.2-0.8 Mpa.
6) Electro-heating (type 1) 15 kw, actually 5-8 kw/h.
7) Special requirements should be indicated while ordering.
8) Non-standard dryer can be produced based on process parameter.
9) Operation ambient temperature high than 140℃ or less than 60℃ should be marked out while ordering.
10) Dry vehicle and tray's dimension are standard and changeable.
11) Dry tray dimension: 460x640x45mm.
Product main application
Heat wind cycle baker can be used as drier of medicine, chemistry, foodstuff, sea food and products, sideline and agricultural products, light and heavy industies, such as raw material medicine, chinese herb, herb pill, extractum, powder, electuary, packaging bottle, dye, paint, fish waste, meat, dehydration vegetable, fruit and nut, bagger, plastic epoxy and components, nake paint etc.
Type | Vappprize Area m2) | Available Volume(m³) | Dry Volume (kg/batch) | Heating Power (kw) | Wind Motor power (kw) | Dimension(mm) | Tray Carriage Q'ty (pcs) | Dry Tray Q'ty (pcs) | Weight (kg) |
CT-C-0 | 7.1 | 1.3 | 60 | 6-9 | 0.45 | 1380x1200x2000 | 1 | 24 | 820 |
CT-C-I | 14.1 | 2.6 | 120 | 15 | 0.45 | 2360x1200x2000 | 2 | 48 | 1580 |
CT-C-II | 28.3 | 4.9 | 240 | 30 | 0.45x2 | 2260x2200x2000 | 4 | 96 | 1800 |
CT-C-II A | 28.3 | 4.9 | 240 | 30 | 0.45x2 | 4280x1200x2270 | 4 | 96 | 1880 |
CT-C-III | 42.4 | 7.4 | 360 | 45 | 0.45x3 | 4280x2200x200 | 6 | 144 | 2100 |
CT-C-III A | 42.4 | 7.4 | 360 | 45 | 0.45x3 | 3240x2200x2000 | 6 | 144 | 2210 |
CT-C-IV | 56.1 | 10.3 | 480 | 60 | 0.45x4 | 4280x2200x2270 | 8 | 192 | 2800 |
FEATURES AT A GLANCE
1) Nearly all hot air cycle within baker,high heating efficiency,energy saving 2)Utilizing forced heat air cycle within baker,without air separating plate,material can be dried uniformly,vapor,heat water,power,FRI all can be used as heating resources 3) Low noise,steady operation,temperature auto adjustment,easy access to temperature control,repair and maintenance 4）Various application,all kinds of materials drying,one of most common drying equipment
SIMILAR PRODUCTS
Company Profile
Company introduction:. Jiangyin Yongchang Medicine Machinery Co., Ltd was established in 2003, combining R&D, production, foreign trade and professional service of pharmaceutical machinery as an original manufacturer.Following sincerity, striving to be remarkable is our management concept. With strong ability in production of high-quality machine, we acquired great reputation in machinery market, well favoured by many customers. And leading in peer products while we tracking the new technology and adopt truly good steel material.In these years' development, we can assure 100% good quality and has been valued " one of the ten most potential enterpreneur" by Expo among pharmaceutical field.
Products include five series machine for pharmaceutical , foodstuff, and industrial fields, such as grinder, pulverizer, mixer,
sieve screener, sifter, granulator, conveyer, hot air flow dryer etc.
Welcome friends from all over the world to consult, negotiate and order all series machinery, it's our pleasure to provide
considerate service and solution for you.
Products include five series machine for pharmaceutical , foodstuff, and industrial fields, such as grinder, pulverizer, mixer,
sieve screener, sifter, granulator, conveyer, hot air flow dryer etc.
Welcome friends from all over the world to consult, negotiate and order all series machinery, it's our pleasure to provide
considerate service and solution for you.
Honor and certificates
Packaging&Shipping
Title goes here.
1)Size/weight:depends on customers 2)Packing details:A)Covered with waterproof plastic film. B) Then in export woodern box or in container.
(Size: L*W*H).
If export to european countries,the wooden
box will be fumigated. If container is too tight,
we will use pe film for packing or pack it
according to customers special request.
(Size: L*W*H).
If export to european countries,the wooden
box will be fumigated. If container is too tight,
we will use pe film for packing or pack it
according to customers special request.
FAQ
1.You are a manufacturing company or trading company?
---We are original factory specializing in manufacturing pharmaceutical machinery more than 15 years.
2.What quote do you offer?
---FOB , CIF, CFR, EXW, and others.
3.How pay?
---T/T, L/C, Western Union, Paypal, etc.
4.How transport?
---By sea.
5.What is the quality of your products guarantee?
---We have passed ISO, also make CE according to your need, engineers available to service machinery overseas.
6.Do you have after-sales service?
---Certainly, you can contact us at any time.
---We are original factory specializing in manufacturing pharmaceutical machinery more than 15 years.
2.What quote do you offer?
---FOB , CIF, CFR, EXW, and others.
3.How pay?
---T/T, L/C, Western Union, Paypal, etc.
4.How transport?
---By sea.
5.What is the quality of your products guarantee?
---We have passed ISO, also make CE according to your need, engineers available to service machinery overseas.
6.Do you have after-sales service?
---Certainly, you can contact us at any time.
