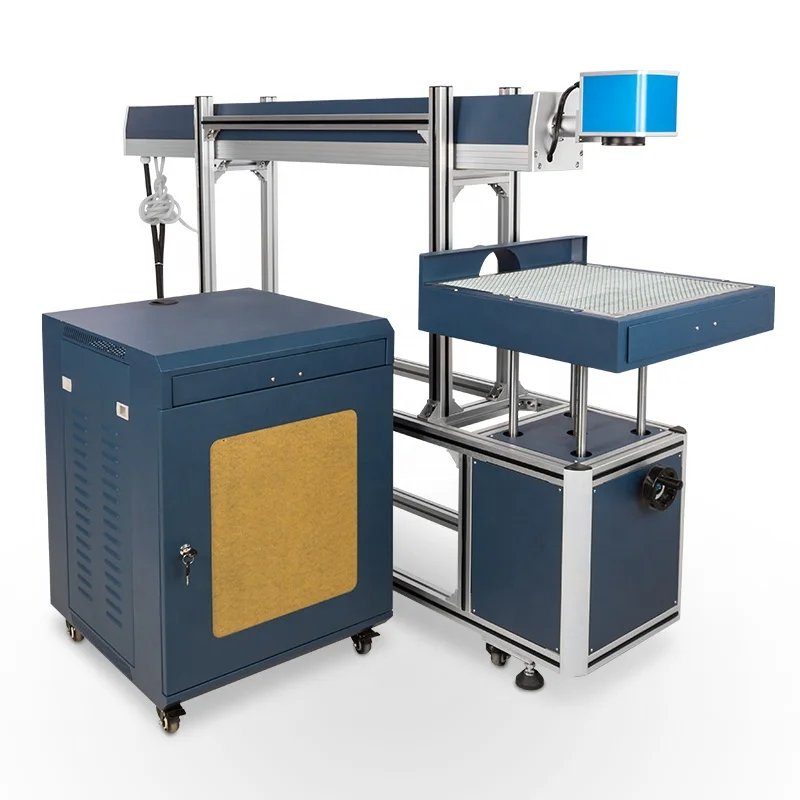

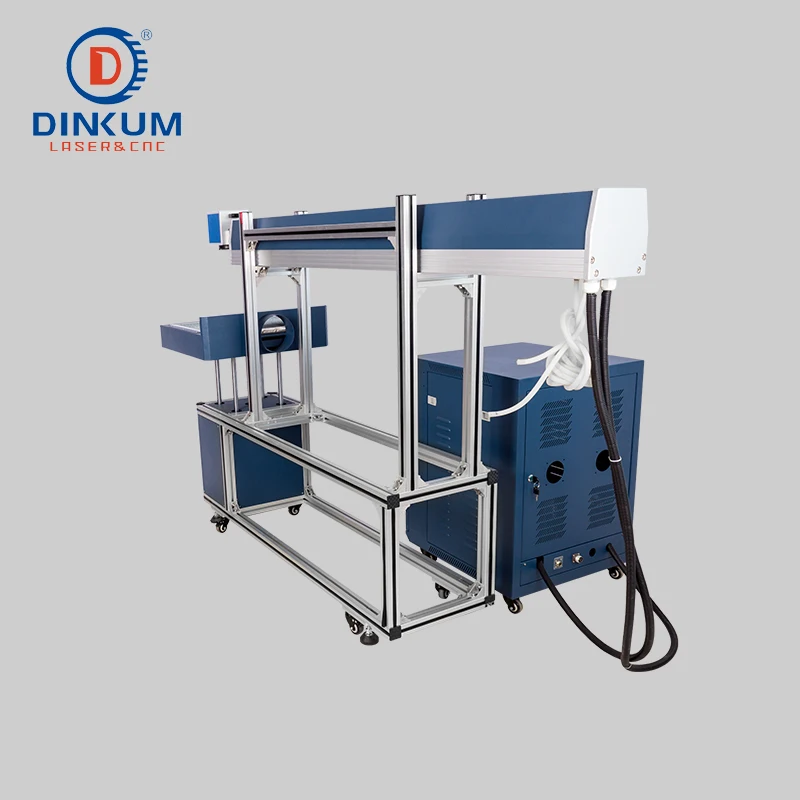

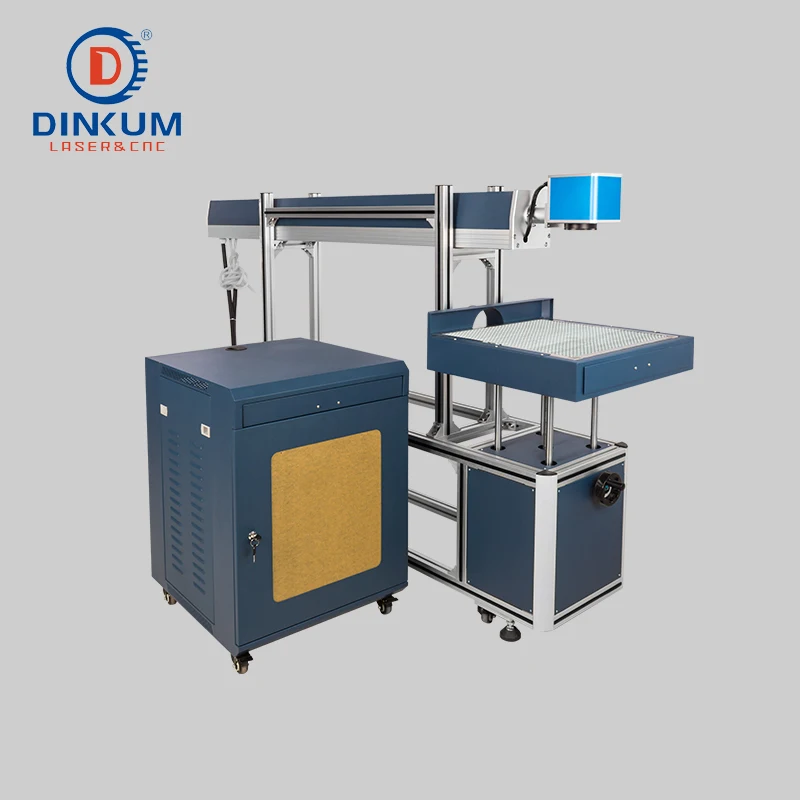

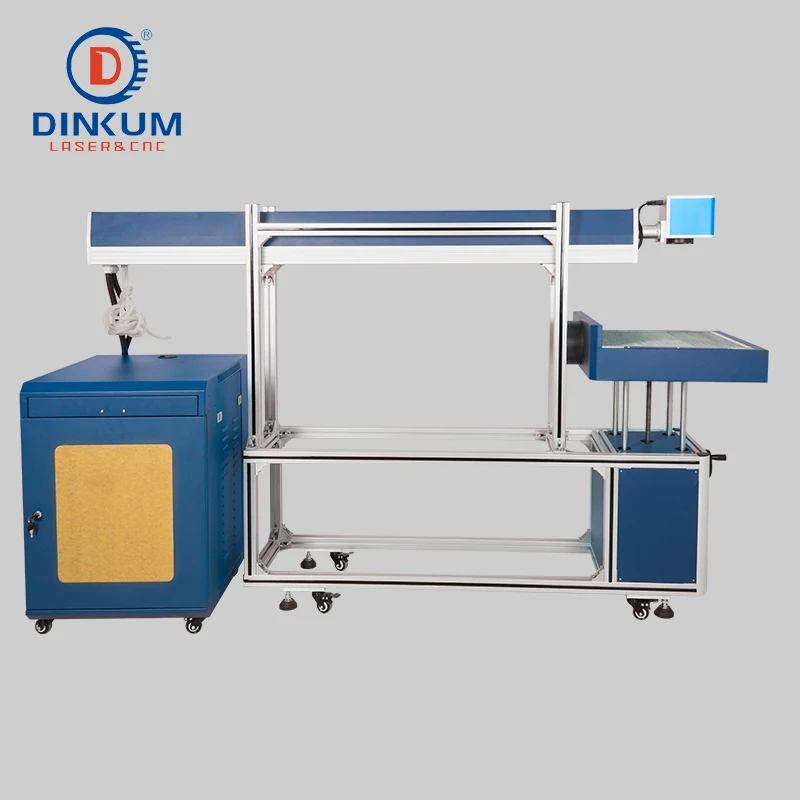

Высокоскоростная лазерная маркировочная машина Reci 100 Вт 300x300 мм CO2 для стеклянных трубок бумаги дерева пластика и других неметаллических
- Категория: Аппарат для лазерной гравировки >>>
- Поставщик: Shandong,Liaocheng,Dinkum,Laser,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.4 $* | 0.83 $* |
| Aug-16-2025 | 0.90 $* | 0.23 $* |
| Jul-16-2025 | 0.34 $* | 0.30 $* |
| Jun-16-2025 | 0.15 $* | 0.7 $* |
| May-16-2025 | 0.46 $* | 0.21 $* |
| Apr-16-2025 | 0.33 $* | 0.84 $* |
| Mar-16-2025 | 0.99 $* | 0.25 $* |
| Feb-16-2025 | 0.31 $* | 0.57 $* |
| Jan-16-2025 | 0.24 $* | 0.21 $* |
Характеристики
Product Description
high speed Reci 100W 300x300mm CO2 glass tube laser marking machine for paper, wood, plastic and other non-metal materials
Main Features of co2 laser marking machine for non-metal materials
1) Marking with high speed and high precision, marking depth can be controllable.
2) Applied for most non-metal materials
3) Excellent beam quality, high photoelectric conversion efficiency, good performance and can be competent at fine processing.
4) Windows interface adopted, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP etc.
5) Support PLT, PCX, DXF, BMP and other formats, execute SHX, TTF font directly, support automatic code, serial number, batch number, two-dimensional bar code marking, and garphic anti marking function available.
Application:
Materials: Majority of non-metal materials, such as leather, cloth, wood, bamboo, paper, organic materials, plastic, epoxy resin etc.
Fields: electronic components, medicines, food, drinking package, leather products, Cosmetics, woodworks, craftworks, garments, bags, shoemaking, buttons, glasses, package ect.
Technical Parameters for Glass Laser Tube CO2 Laser Marking Machine | ||||||
Model | DK-C100W | |||||
Laser power | 100W glass laser tube | |||||
Working area | 300*300mm | |||||
Laser Wavelength | 10.64μm | |||||
Response time | 0.5ms | |||||
Frequency of pulse | ≤ 30KHZ | |||||
Max marking depth | ≤1mm (adjustable according to materials) | |||||
Marking speed | 0-7000mm/s | |||||
Marking lines | 1-10 lines(in the marking area) | |||||
Minimum line width | 0.1mm | |||||
Minimum character | 0.4mm | |||||
Repeatability accuracy | ±0.01mm | |||||
Resolution ratio | 0.1mm | |||||
Marking content | text, pattern, date, bar code etc. | |||||
Graphic format supported | bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt etc. | |||||
Operation system | Microsoft Windows XP or Windows 7/8 /10 | |||||
Control software | Ezcad | |||||
Unit power | ≤ 1.2KW | |||||
Operation temperature | 5°C-45°C | |||||
Relative moisture | ≤ 90%, no fog | |||||
Supply Voltage | AC220±10% 50Hz / AC110±10% 60Hz | |||||
Cooling method | Water cooling | |||||
Accessories | exhausted fan, smoke pipe, water pump, water tube, user manual, software, data line etc. | |||||
Detailed Images
Field Lens
High precision, high light transmit to make the laser focus and don't waste laser power
Digital Scanning Galvonometer
it has a superior performance of zero drift: higher speed, smaller size, and stronger anti-interference
Lifting Wheel
1. Laser focus distance can be adjusted easily.
2. Can be put different thickness of materials on the worktable
3. The lifting height is 350mm.
Honeycomb working table
1. Easy for heat dissipation
2. the marking area can be 110x100mm, 200x200mm or 300x300mm
RECI W4 100W laser tube
the best quality laser tube in China, much more durable
Control box
main board, durable power supply ect.
Accessories
all the necessary spare parts are included, will be sent to you with the machine together.
Samples
Our Company
Since 2000, DINKUM laser has been providing Chinese and international customers with innovative CO2 laser engravers, laser cutters, laser marking machines and CNC routers. For those in the textile, decorative and gift industries, our CO2 laser machines can intricately cut images and text on wood, paper, glass, ceramics, plastics, and textiles with precise and smooth edges to create unique products. In addition to high quality laser cutting machines and laser engravers, we provide comprehensive services for replacing spare parts, training employees on equipment, and maintaining and repairing laser machining equipment. Operating with integrity and professionalism in every part of our business, DINKUM can guarantee you great laser processors and attentive customer services.
DINKUM Laser is a reliable and professional laser and CNC equipment manufacturer that dedicated in partnering with new and long-term customers all over the world.
Located in Liaocheng, China, DINKUM has obtained ISO9001, CE and FDA certificates.
Our Service
Warm welcome to contact us whether you are dealer or end user,We will give you our professional service timely and quickly.
Training Service
Our technician is available to your factory and offer training of how to use our machines.
As well, you may send your technician to our company to learn how to operate machines.
Quality Guarantee
We arrange final test before shipment. We run the machine without material for a few days, and then cut materials for test. After making sure machine is the best performance, then ship out the machine.
Operating guide
Explain the use of machines and software. Guide the customer proper use, extend product life and reduce energy consumption.
Machine maintenance&Warranty
Explain the maintenance of machine parts to extend product life and save the energy consumption
The whole set of machine warranty period is 1 year.
If you have other question about our machines, just contact me freely.
Contact Information
Contact Name: Jessie Jiang
Email: sale002 (at) dinkumlaser.com
Mobile: 0086 15906355721
Skype/WhatsAPP: 0086 15906355721
