50-100 т/день офисный сжигатель мусора вращающаяся печь сжигающее
- Категория: Управление отходами >>>
- Поставщик: Dalian,Sunshine,Boiler,Auxiliaries,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 148750.64 $* | 156188.48 $* |
| Aug-17-2025 | 147500.67 $* | 154875.62 $* |
| Jul-17-2025 | 123750.59 $* | 129938.98 $* |
| Jun-17-2025 | 145000.79 $* | 152250.4 $* |
| May-17-2025 | 126250.9 $* | 132563.81 $* |
| Apr-17-2025 | 142500.28 $* | 149625.32 $* |
| Mar-17-2025 | 141250.20 $* | 148313.9 $* |
| Feb-17-2025 | 140000.65 $* | 147000.88 $* |
| Jan-17-2025 | 138750.62 $* | 145688.25 $* |
Характеристики
Product Description

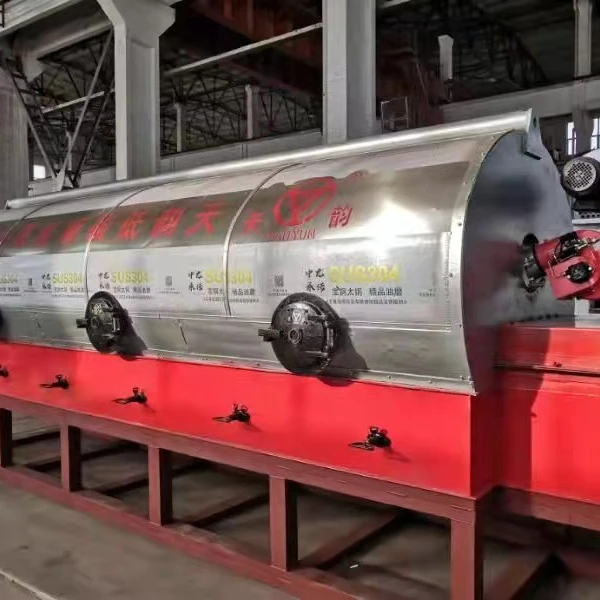

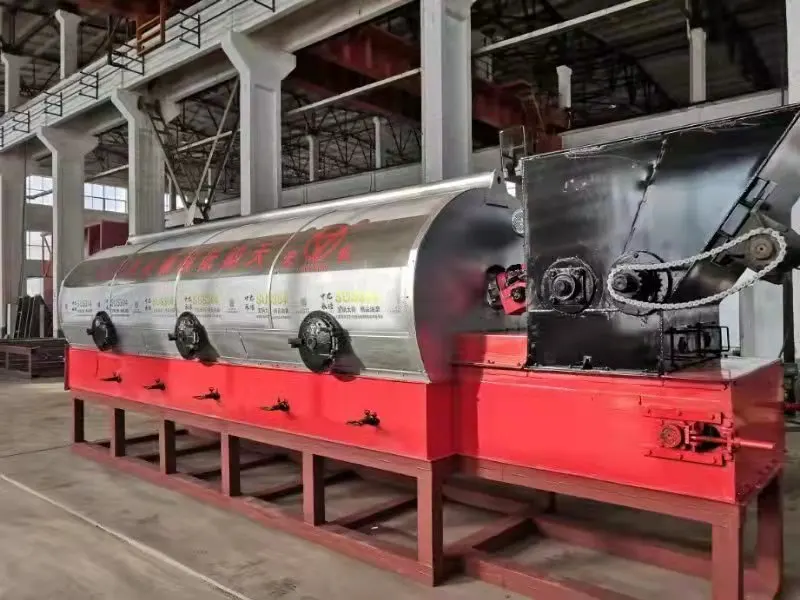

BsJj waste incineration boiler:
This boiler is: the only waste incineration boiler of all the boilers in the world today is: BsJj "beam focusing" which simulates the solar combustion and heat transfer plate standard wave radiation charged body photovoltaic source combustion, wave carrier heat transfer energy-saving and environmentally friendly integrated boiler; There is an electromagnetic wave dust collector on the side, and is equipped with an intelligent dust collector and a dust conveyor to send the dust intelligently controlled to the rear ballast remover and output to the ash storage bin together with the ash.
Since the standard wave radiation heat transfer is similar to the non-scattered infrared denitration, it can achieve high
efficiency denitration in the furnace, which is better than other special design. The high efficiency of denitrification equipment by 20% constitutes zero denitrification operating costs.
And the reciprocating grate of this boiler is a stepping reciprocating grate, which is the world's leading technology. Since the stepping reciprocating grate realizes the reciprocation of the grate, but also advances in a synchronous cycle, the traditional fixed reciprocating grate is innovated as a stepping The reciprocating grate can cyclically run to form the grate piece. If the grate piece is damaged, there is no need to stop the furnace. You do not need to wait for the furnace to cool before replacing the grate piece. You only need to step and cycle to a convenient maintenance position to be replaced smoothly. And because the grate is heated by circulation, Good reliability, long life, and the material of the grate piece is not demanding. It is economical and heat-resistant cast iron. Because the grate has no reciprocating support friction mechanism, there is no need to replace the expensive friction plate maintenance content.
The inside of the BsJj beam-focused garbage incineration boiler is burned by a charged photovoltaic source, and the temperature can reach 1200ºC-1400ºC, so it not only burns the garbage. And it constitutes dioxin in flue gas emission ngTEQ/m³≤0.1.
This boiler is: the only waste incineration boiler of all the boilers in the world today is: BsJj "beam focusing" which simulates the solar combustion and heat transfer plate standard wave radiation charged body photovoltaic source combustion, wave carrier heat transfer energy-saving and environmentally friendly integrated boiler; There is an electromagnetic wave dust collector on the side, and is equipped with an intelligent dust collector and a dust conveyor to send the dust intelligently controlled to the rear ballast remover and output to the ash storage bin together with the ash.
Since the standard wave radiation heat transfer is similar to the non-scattered infrared denitration, it can achieve high
efficiency denitration in the furnace, which is better than other special design. The high efficiency of denitrification equipment by 20% constitutes zero denitrification operating costs.
And the reciprocating grate of this boiler is a stepping reciprocating grate, which is the world's leading technology. Since the stepping reciprocating grate realizes the reciprocation of the grate, but also advances in a synchronous cycle, the traditional fixed reciprocating grate is innovated as a stepping The reciprocating grate can cyclically run to form the grate piece. If the grate piece is damaged, there is no need to stop the furnace. You do not need to wait for the furnace to cool before replacing the grate piece. You only need to step and cycle to a convenient maintenance position to be replaced smoothly. And because the grate is heated by circulation, Good reliability, long life, and the material of the grate piece is not demanding. It is economical and heat-resistant cast iron. Because the grate has no reciprocating support friction mechanism, there is no need to replace the expensive friction plate maintenance content.
The inside of the BsJj beam-focused garbage incineration boiler is burned by a charged photovoltaic source, and the temperature can reach 1200ºC-1400ºC, so it not only burns the garbage. And it constitutes dioxin in flue gas emission ngTEQ/m³≤0.1.
Working Process
1. The garbage truck unloads the garbage into the fermentation tank, each tank can hold 10t of garbage per tank, and the
fermentation period is ≥ 3 days. The garbage will be hoisted by an electric hoist and equipped with an electric rotating
hopper to load and unload the garbage inside the incinerator hopper.
2. Add biomass pellets or coal fuel into the front hopper of the incinerator.
3. Start the biomass feed and adjust the thickness of the material layer to a reasonable thickness (see the table below). Rubbish
into the furnace thickness: 90mm-110mm, according to the actual working conditions to determine the thickness of the
adjustment layer. The garbage is fed into the furnace, and the feed is between the first and second furnace doors.
4. Check the connected burner oil pipeline, valve and other safety and start to start burner, the garbage and biomass fuel in the
furnace.
5. According to the actual on-site adjustment of the feed rate of the grate, see (10t/d Waste Incineration Feeding Table).
fermentation period is ≥ 3 days. The garbage will be hoisted by an electric hoist and equipped with an electric rotating
hopper to load and unload the garbage inside the incinerator hopper.
2. Add biomass pellets or coal fuel into the front hopper of the incinerator.
3. Start the biomass feed and adjust the thickness of the material layer to a reasonable thickness (see the table below). Rubbish
into the furnace thickness: 90mm-110mm, according to the actual working conditions to determine the thickness of the
adjustment layer. The garbage is fed into the furnace, and the feed is between the first and second furnace doors.
4. Check the connected burner oil pipeline, valve and other safety and start to start burner, the garbage and biomass fuel in the
furnace.
5. According to the actual on-site adjustment of the feed rate of the grate, see (10t/d Waste Incineration Feeding Table).
Speed ratio of reducer i | Thickness of garbage into the furnace(Dm) | Thickness of biomass into the furnace(Dm) | Blast | Draw the wind | Remarks | ||||
Air volume m³/h | Frequency conversion | Air volume m³/h | Frequency conversion | Make detailed adjustments according to actual working conditions | |||||
0.15 | 0.9 | 0.4 | 2031 | 58 | 3453 | 54 | |||
0.15 | 1.0 | 0.5 | 2346 | 67 | 3988 | 62 | |||
0.15 | 1.1 | 0.6 | 2655 | 75 | 4514 | 70 | |||
6. Garbage is burned into the furnace due to beam focusing (BsJj) combustion constitutes the furnace 1100ºC to 1300ºC. When burned at high temperature, the dioxin is completely decomposed by heating and photochemical. Causes dioxins in smoke almost close to zero,zero emission. The infrared electromagnetic wave in the furnace is reliable for non-scattering conditions . Control the emission of nitrogen oxides (NOX) ≤ 0-170mg/m³ ( 20% higher than dedicated NOx equipment ).
7. The flue gas enters the beam and focuses the heat exchanger. This structure has the effect of controlling dust particles. The exchanged hot water is used for constant temperature fermentation in the fermentation tank and a heat source for life.
8. After the flue gas enters the dust particle separator and is controlled by the dust emission, the induced draft fan sends the flue gas into the degasser Sulfurizer, the desulfurization uses the density difference of harmful flue gas to be greater than that of harmless flue gas to oxidize dioxide sulfur (SO2) flue gas is distributed to the outer circle of the desulfurizer by centripetal rotation, and concentrated on the outer wall to spray liquid (PH value ≥11). After the desulfurization is achieved after separation, the desulfurization and desulfurization without separation are reduced. The volume is 1/2600, which saves a lot of power consumption and the operating cost of desulfurization liquid. The lower part of the device has a molecular weight desulfurizer to control the escaped sulfur dioxide (SO2), sulfur emission control ≤30mg/m³. Operating costs are reduced by more than 20 times.
9. Exhaust gas controller: Control the harmful flue gas escaped in the flue gas and control the dehydration, and also continue to control the emission of dust particles in the flue gas.
7. The flue gas enters the beam and focuses the heat exchanger. This structure has the effect of controlling dust particles. The exchanged hot water is used for constant temperature fermentation in the fermentation tank and a heat source for life.
8. After the flue gas enters the dust particle separator and is controlled by the dust emission, the induced draft fan sends the flue gas into the degasser Sulfurizer, the desulfurization uses the density difference of harmful flue gas to be greater than that of harmless flue gas to oxidize dioxide sulfur (SO2) flue gas is distributed to the outer circle of the desulfurizer by centripetal rotation, and concentrated on the outer wall to spray liquid (PH value ≥11). After the desulfurization is achieved after separation, the desulfurization and desulfurization without separation are reduced. The volume is 1/2600, which saves a lot of power consumption and the operating cost of desulfurization liquid. The lower part of the device has a molecular weight desulfurizer to control the escaped sulfur dioxide (SO2), sulfur emission control ≤30mg/m³. Operating costs are reduced by more than 20 times.
9. Exhaust gas controller: Control the harmful flue gas escaped in the flue gas and control the dehydration, and also continue to control the emission of dust particles in the flue gas.
Company Vision:To become A World-class Energy-saving Combustion Enterprise.
Dalian Sunshine Boiler Auxiliaries Co., Ltd is located in Dalian City. Our branch is located in Wafangdian City,is now one of the largest boiler auxiliary manufacturers in China.
Our company has five workshops and three casting plant,well-equipped,with various auxiliary components can ensure the casting.precision machining,welding equipment more than 200 sets.Our company hhave been cooperated with tsinghua university.Peking University Peking University Professors for years to keep us in a leading position.
PROJECT A (MAY, 2018)
INDONESIA 35T/H FLAKE TYPE CHAIN GRATE INSTALLATION SITE
IN MAY 2018, DALIAN SUNSHINE BOILER AUXILIARVIETNAM MARKET-45T/H RECIPROCATING GRATE INSTALLATION SITEIES CO., LTD'S OVERSEAS INSTALLATION TEAM:35T/H FLAKE TYPE CHAIN GRATE INSTALLATION SITE FOR ONE OF THE BEGGEST FACTORY IN INDONESIA IN 2019.
PROJECT B (MAY, 2019)
VIETNAM MARKET-45T/H RECIPROCATING GRATE INSTALLATION SITE
OVERSEA SERVICE TEAM:45T/H RECIPROCATING GRATE INSTALLATION SITE. THIS GRATE BURUS WOODCHIPS AS FUEL, WITH TWO GEAR MOTOR REDUCERS. HIGH HEAT RESISTANCE MATERIAL GRATE CASTINGS. FOR ONE OF THE BIGGEST BOILER MANUFACTURER IN VIETNAM.
PROJECT C (DECEMBER, 2019)
CROSS BEAM TYPE CHAIN GRATE-THE MOST POPULAR GRATE
CHAIN GRATE IS FOR DRYING FUEL, WHICH IS MADE BY DALIAN SUNSHINE BOILER AUXILIARIES CO.,LTD. THIS GRATE WITH HIGH HEAT RESISTANCE MATERIAL GRATE CASTINGS FOR ONE OF THE BIGGEST BEER FACTORY IN MEXICO.
MATERIAL TEST
The manufacturing of the chain grate is in accordaned with the standard of "JB/T 3271-2002".
All high-temperature materials grate will be inspected strictly before leaving the factory.
All high-temperature materials grate will be inspected strictly before leaving the factory.
Certificate of utility model patent
Instead of traditional structure, we improved and greated one type of big flake chain grate with duide block structure dricing system.
Name: Coal feeder/ fuel loader for boiler chain grate
Width: 1200mm, Height: Customized according to Chain Grate.
Capacity: 1ton/h~20t/h
Advantages： Small but convenient, Suitable for 1t/h-30t/h chain grate boiler.
Advantages： Small but convenient, Suitable for 1t/h-30t/h chain grate boiler.
Fuel Feed Equipment / Conveyors
Advantages:
This machine is an efficient, fast and stable feeding equipment without vibration. As a bulk material continuous conveying
equipment. Feeder is widely used in coal, metallurgy, electric power, and other industries
This machine is an efficient, fast and stable feeding equipment without vibration. As a bulk material continuous conveying
equipment. Feeder is widely used in coal, metallurgy, electric power, and other industries
Grate parts
.Grate bar for different type of grate, including travelling grate (aka. Flake Type Grate, Chain Grate,Cross-beam Grate), step
grate (Reciprocating Grate),etc
grate (Reciprocating Grate),etc
FAQ
1.Q: Can you give us a quotation right now?
A: Sorry, our products are all customized. Please give us your required dimension of capacity. Then we will make a design and quotation for you ASAP.
A: Sorry, our products are all customized. Please give us your required dimension of capacity. Then we will make a design and quotation for you ASAP.
2. Q: Can you give us your price list?
A: Sorry, we don't have any. Our products are all manufactured according to customers' requirements.
3. Q: What is your MOQ?
A: 1 piece/set.
4. Q: Do you have any one in stock?
A:Yes. For the chain grate parts, we have in stock. Grates assembly are manufactured.
5. Q: Do you accept a special order?
A:Yes, we do. We can manufacture all kinds of casting products and grate,according to your technical drawings.
6. Q: Can you give us the technical drawing and data?
A:We will give you the overall dimension drawing for your plan and project. But the detailed drawing and data will be sent you after we signed the contract and confidentiality agreement.
7. Q: Do you provide after-sales service?
A: Yes, we do.Our productsare guaranteed for the wearing parts one year.
8. Q: Can your engineer come to our place for installation guide?
A:Yes, we can. We will provide a video and document for installation.And if necessary, we have professional installation team with rich experience, we can send our engineers oversea for installation guide.
A: Sorry, we don't have any. Our products are all manufactured according to customers' requirements.
3. Q: What is your MOQ?
A: 1 piece/set.
4. Q: Do you have any one in stock?
A:Yes. For the chain grate parts, we have in stock. Grates assembly are manufactured.
5. Q: Do you accept a special order?
A:Yes, we do. We can manufacture all kinds of casting products and grate,according to your technical drawings.
6. Q: Can you give us the technical drawing and data?
A:We will give you the overall dimension drawing for your plan and project. But the detailed drawing and data will be sent you after we signed the contract and confidentiality agreement.
7. Q: Do you provide after-sales service?
A: Yes, we do.Our productsare guaranteed for the wearing parts one year.
8. Q: Can your engineer come to our place for installation guide?
A:Yes, we can. We will provide a video and document for installation.And if necessary, we have professional installation team with rich experience, we can send our engineers oversea for installation guide.
