HQJ-1100 модель автоматический бумажный автомат для резки
- Категория: Paper Production Machinery >>>
- Поставщик: Ruian,Lingfeng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 24990.55 $* | 26240.54 $* |
| Aug-19-2025 | 24780.19 $* | 26019.17 $* |
| Jul-19-2025 | 20790.23 $* | 21830.51 $* |
| Jun-19-2025 | 24360.14 $* | 25578.62 $* |
| May-19-2025 | 21210.92 $* | 22271.19 $* |
| Apr-19-2025 | 23940.26 $* | 25137.2 $* |
| Mar-19-2025 | 23730.38 $* | 24917.88 $* |
| Feb-19-2025 | 23520.76 $* | 24696.27 $* |
| Jan-19-2025 | 23310.63 $* | 24476.95 $* |
Характеристики

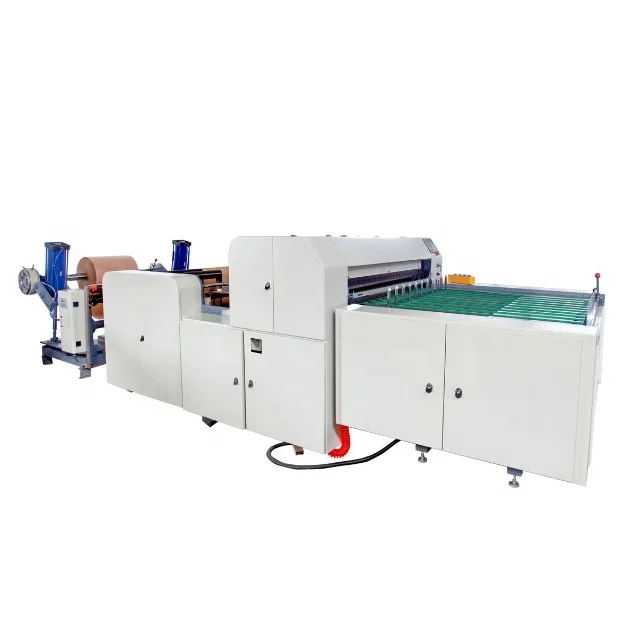

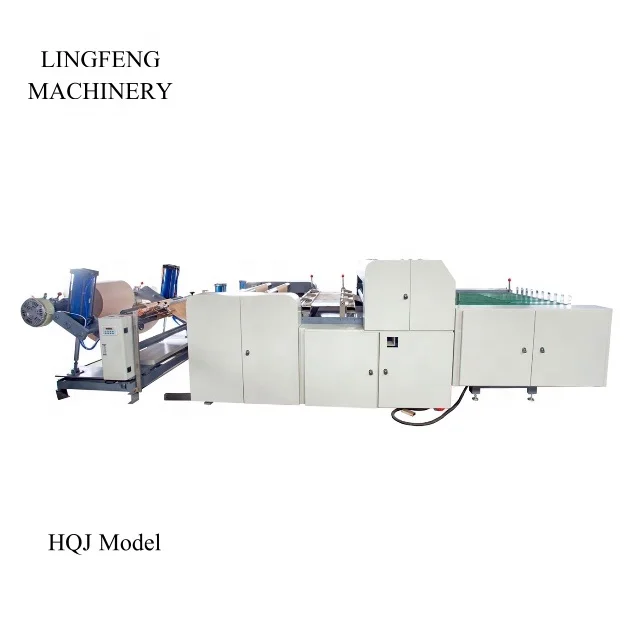

HQJ-1100/1400/1600mm Series Paper&Plastic Film Roll to Sheet Cutting Machine
Feature:
This Machine suitable for different kinds 20-450gsm thickness reels paper,different kinds plastic film, main use for producing sheet from reels . So it is roll to sheet cutting machine.
This machine model special suitable for paper and plastic film counting the quantity then delivery to the table.
1) This Machine adopt Servo Motor (INVT,CHINA),PLC(Panasonic,Japan) Touch Screen (Weinview,Taiwan China)control system, auto counting quantity, auto stop when reached your set quantity , auto tension control and auto conveyor belt etc function.

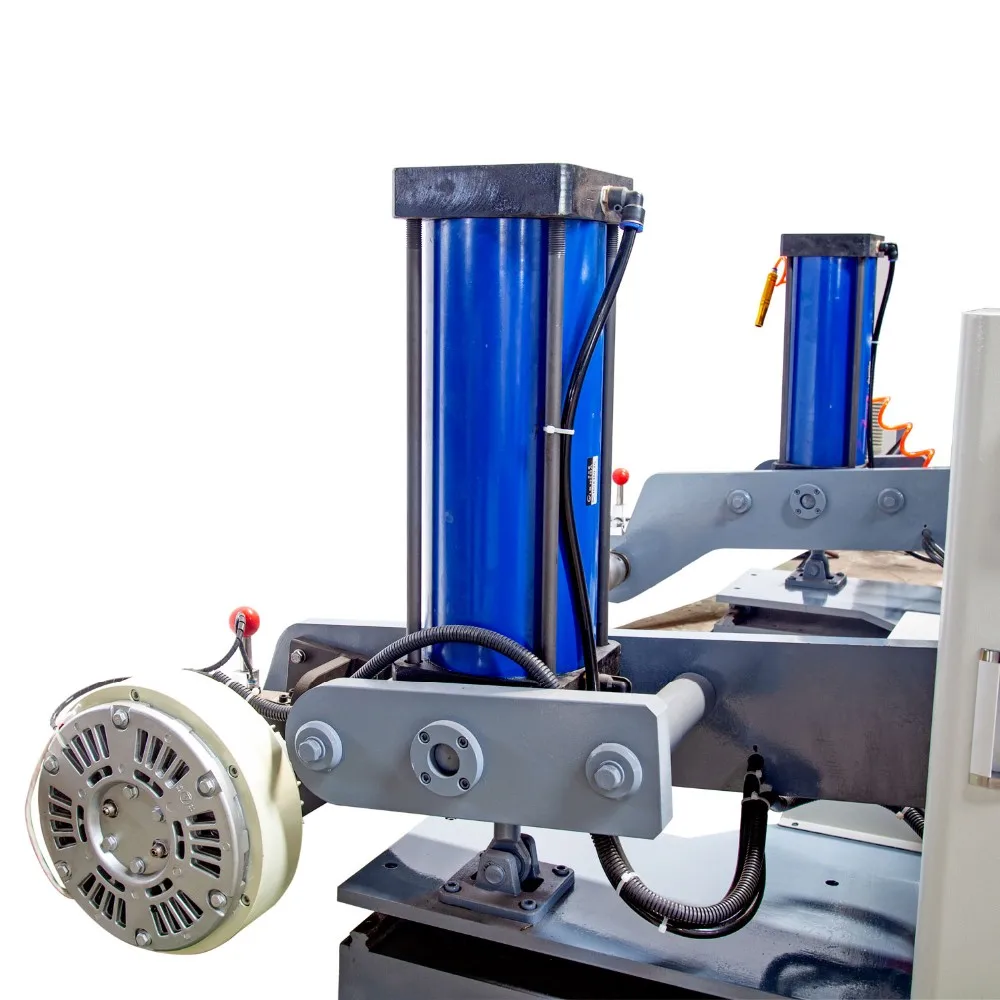

2) Machine Standard Unwinding device adopt auto pneumatic loading system(Standard 3 inch air shaft), it can loading 1.2Ton roll weight.
Option : 3/6 inch shaft-less device, extra charge 3000USD difference .

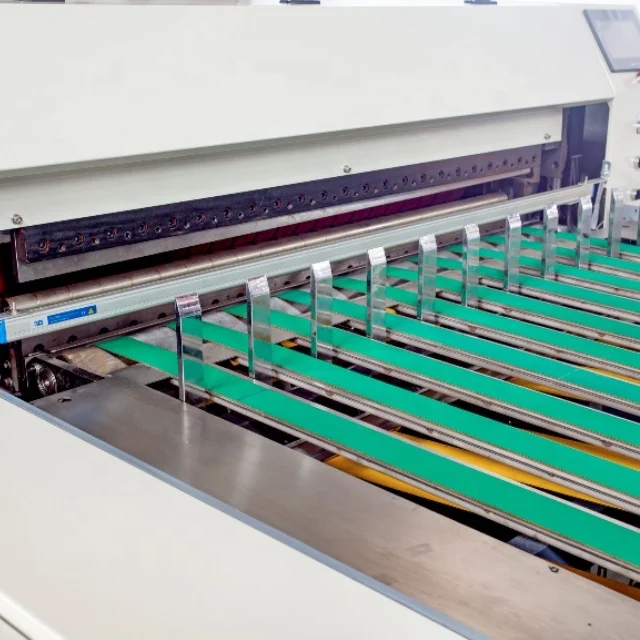

3) Machine Conveyor device adopt newest technology to guarantee delivery thin paper quality and effect.
4) Paper cutting device adopt high precision and quality Germany cutting blade to guarantee durability and use life.
5)Option for Slitting blade, some customer want machine can producing Multi line, so machine have option for slitting big wide raw material then cut it to get Multi line product.
6)Option for printing sensor, some customer want to cutting exact printed material ,so we have option for Germany or USA brand printing sensor.
7) Machine has Three Motor (One Servo Motor to control cutting length, One Normal Motor to control cutting blade move, One Normal Motor to control material feeding)
Specification:
| Model | HQJ-1100 | HQJ-1400 | HQJ-1600 |
| Maximum Cutting Width | 1100mm | 1400mm | 1600mm |
| Sheet Cutting Length Range | 300-1200mm | 300-1200mm | 300-1200 |
| Cutting Precision | ±0.2mm | ±0.2mm | ±0.2mm |
| Material Thickness | 20-450gsm | 20-450gsm | 20-450gsm |
| Cutting Speed | 100-160cut per mins | 100-160cut per mins | 100-160cut per mins |
| Machine Size | 5700*1900*1600mm | 5700*2100*1600mm | 5700*2300*1600mm |
| Voltage | 380V50HZ | 380V50HZ | 380V50HZ |
| Machine Weight | 2300KG | 2500KG | 2800KG |
Machine Details:
Packaging:
Company Information
1. 20 YEARS TECHNOLOGY EXPERIENCE AND PROFESSIONAL WORKER TEAM
2.FOCUS ON PAPER ROTARY CUTTING MACHINE, CROSS SHEET CUTTING MACHINE, SLITTING REWINDING MACHINE,REWINDING MACHINE,PAPER BOX FORMING MACHINE,PAPER CUP MAKING MACHINE,PAPER BAG MAKING MACHINE ETC
3.PROVIDE PROFESSIONAL 24H TECHNOLOGY SUPPORT ONLINE
4. 20DAYS DELIVERY TIME FOR STANDARD MACHINE ORDER
5.SUPPORT OEM SERVICE,PROFESSIONAL ENGINEER TECHNOLOGY SUPPORT.
6.OWNNER WORKSHOP
FAQ
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about
2hrs. We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes,
color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
