Product Description

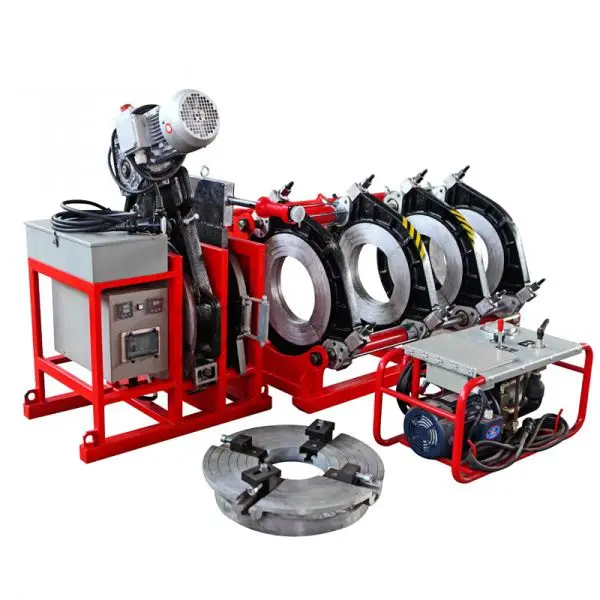

HDPE Butt Fusion Welding machine
Features

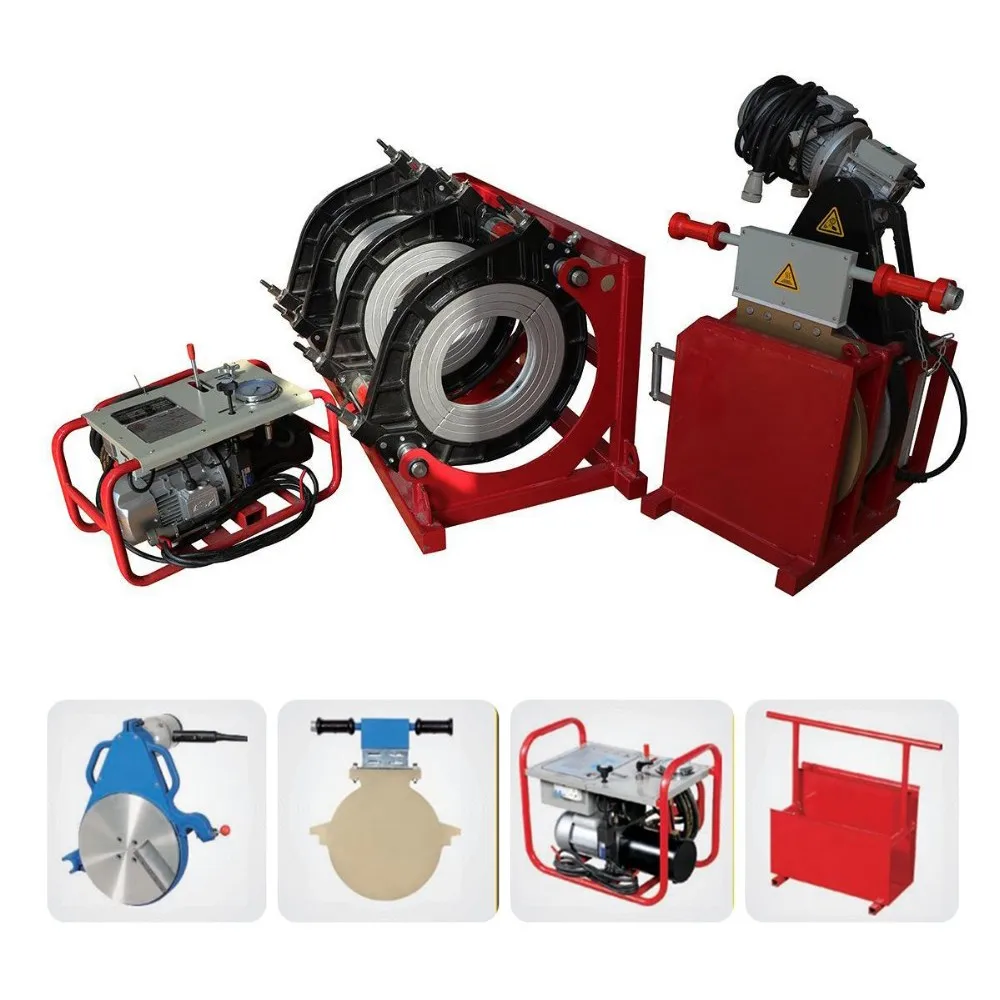

1. Consists of basic frame, milling cutter, heating plate, hydraulic unit, and support.
2. Working Environment must be between -40ºC- +40ºC
3. Pressure adjustable range: 0-6mpa
4. Heating plate max. Temprature:270ºC
5. Suitable for material of PE, PP, PVDF.
1. Consists of basic frame, milling cutter, heating plate, hydraulic unit, and support.
2. Working Environment must be between -40ºC- +40ºC
3. Pressure adjustable range: 0-6mpa
4. Heating plate max. Temprature:270ºC
5. Suitable for material of PE, PP, PVDF.
Model | HJC800 | ||||
pipe size (mm) | 450mm, 500mm, 560mm, 630mm, 710mm, 800mm | ||||
Heating plate Max temp | 270℃ | ||||
Temp deviation in surface (170-250) | ±5℃ | ||||
Max tolerence of welding joining | 0.3mm | ||||
Max working pressure hydraulic station | 16mpa | ||||
working voltage | 380V | ||||
Working Frequency | 50-60HZ | ||||
Motor power/voltage of hydraulic station | 1.5KW/380V | ||||
Power/Voltage of heating plate | 12.1KW/380V | ||||
Power/ voltage of planning tool motor | 2.2KW/380V | ||||
Total power | 15.8KW | ||||
Overall weight of machine (kg) | 1345KG | ||||

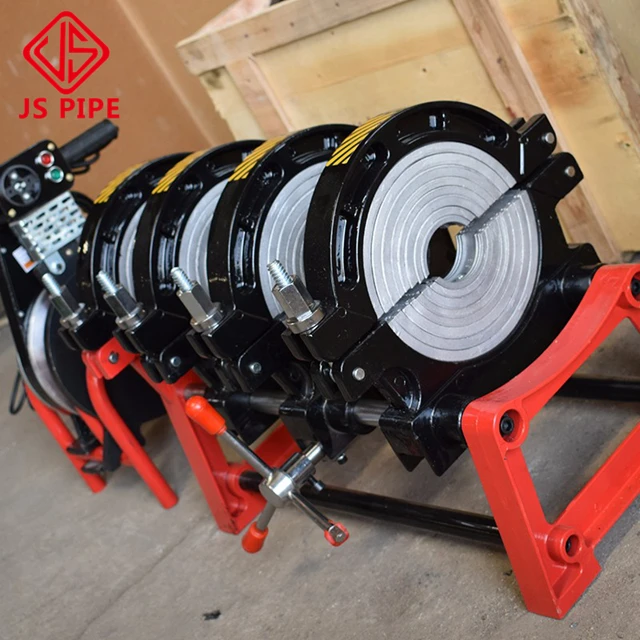

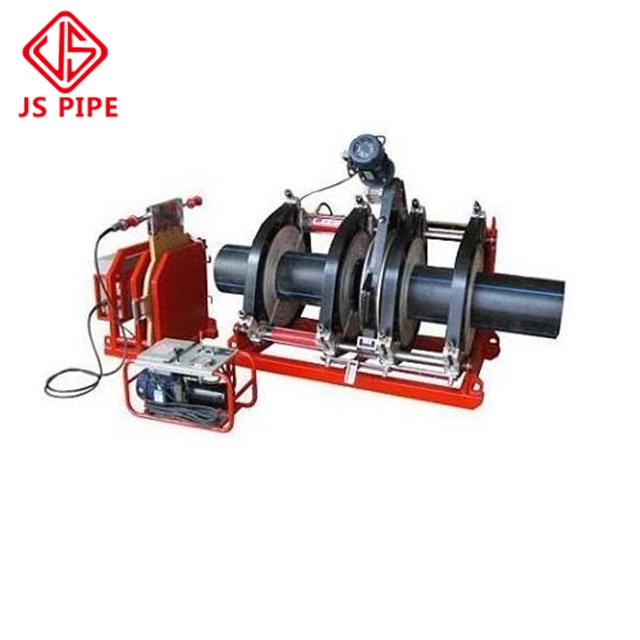

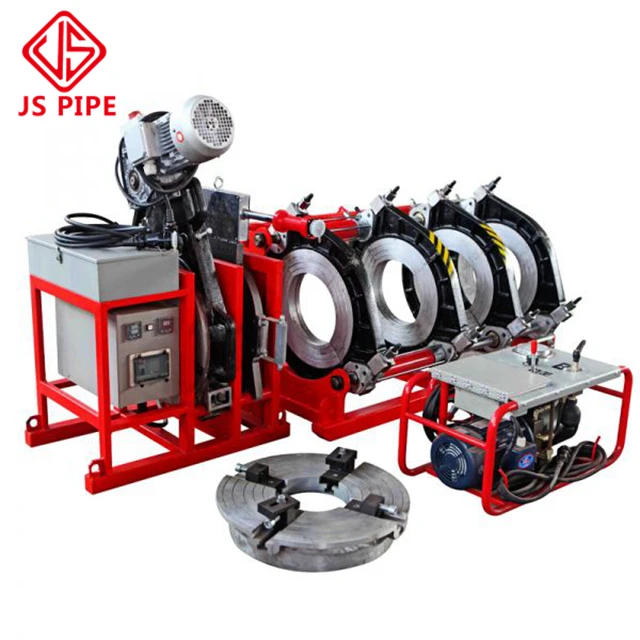

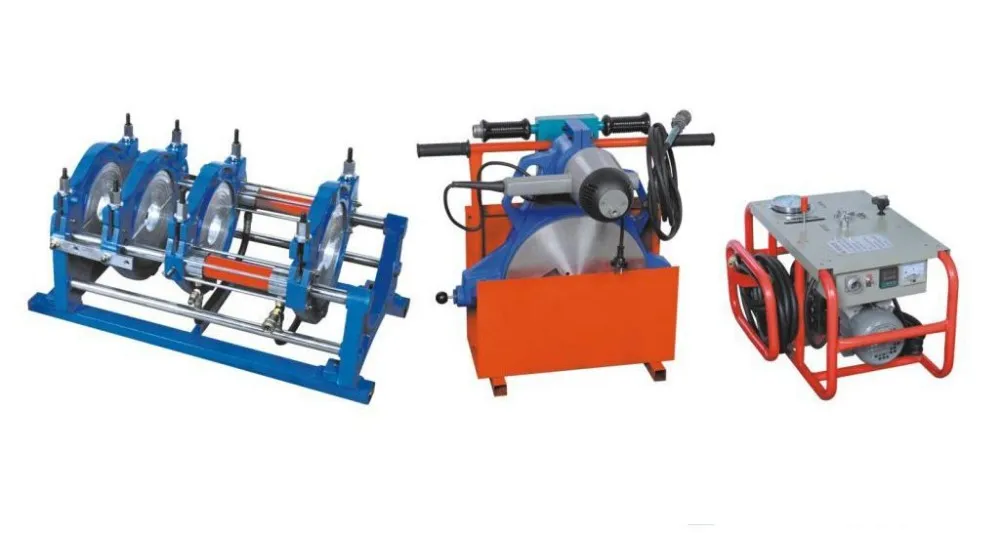

Detailed Images
HDPE butt fusion welding machine welding method
1. Fix the pipe on the machine frame, with 5-8 cm between the two pipe end.
2. Put the milling cutter in the machine frame, adjusting the pressure of the milling cutter and cutting two pipe end. When
receive continuous cutting, reduce the cutting pressure and withdrawal the cutter in order to keep smooth of the pipe's end.
3. When the welding plate keep the stable temperature, put it in the machine frame and welding the pipe, please adjust the welding time and pressure according to the pipe size and environment.
4.Finished welding, fusion the pipe at the first time, please adjust the pressure according to the pipe size.
5.When the temperature of the fusion side is cooled, move the pipe from the the frame, the strength of welding part will be same as pipe itself.
2. Put the milling cutter in the machine frame, adjusting the pressure of the milling cutter and cutting two pipe end. When
receive continuous cutting, reduce the cutting pressure and withdrawal the cutter in order to keep smooth of the pipe's end.
3. When the welding plate keep the stable temperature, put it in the machine frame and welding the pipe, please adjust the welding time and pressure according to the pipe size and environment.
4.Finished welding, fusion the pipe at the first time, please adjust the pressure according to the pipe size.
5.When the temperature of the fusion side is cooled, move the pipe from the the frame, the strength of welding part will be same as pipe itself.
Application
HDPE Pipe Joint Welding Machine is Suitable for welding of plastic pipes and fittings made of PE,PP,PVDF and can be operated in any complex working condition.
Packing & Delivery
Related Products
Our Company
Henan Jiashang Information Technology Co., Ltd. Established in 2006, is a large-scale environmental plastic pipe enterprise integrating R&D, production and sales. The company's headquarters is located in Zhengzhou Economic Development Zone, Henan Province. It covers an area of 6,000 square meters and has first-class research and development. Production technology.
The company's main products are: HDPE, PP-R, PVC-U, CPVC, MPP and other series, widely used in construction engineering, municipal engineering, agricultural irrigation and drainage, gas transportation, home improvement, power cable sheathing and other fields.There are nearly 3,000 kinds of pipes, fittings and valve products of different varieties and specifications. Among them, the production and sales of PE water supply pipes and HDPE drainage pipes are among the best in the industry.
The company's main products are: HDPE, PP-R, PVC-U, CPVC, MPP and other series, widely used in construction engineering, municipal engineering, agricultural irrigation and drainage, gas transportation, home improvement, power cable sheathing and other fields.There are nearly 3,000 kinds of pipes, fittings and valve products of different varieties and specifications. Among them, the production and sales of PE water supply pipes and HDPE drainage pipes are among the best in the industry.
Work shop
Engineering department
Foreign trade department
At present, the company has more than 200 advanced production units at home and abroad, including 72 automatic pipe production lines, more than 40 computer-controlled injection molding machines, and more than 70 other auxiliary equipment. The annual production capacity of various series products reaches 200,000 tons.
Certifications
OUr Exhibition
FAQ
Q: What is your MOQ?
A: As customer's request.
Q: Why choose us?
A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.
Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately. More specify the information that you provided more faster and easier you will get the quotation.
Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.
Q: What's the payment term?
A: Order amount <=1,000USD, 100% in advance.
Order amount>=1,000USD, 30% T/T in advance, balance before shipment.
Order amount>20,000USD, 30% T/T in advance, balance L/C at sight acceptable.
Order amount>100,000USD, 100% L/C at sight acceptable.
Q: Still have more questions?
A: Please use the table below and send your questions to us. Thank you.
