Ультразвуковой сварочный аппарат из полипропилена
- Категория: Plastic Welders >>>
- Поставщик: Dongguan,Chaobo,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 9387.3 $* | 9856.63 $* |
| Aug-15-2025 | 9308.24 $* | 9773.90 $* |
| Jul-15-2025 | 7809.22 $* | 8199.62 $* |
| Jun-15-2025 | 9150.17 $* | 9608.63 $* |
| May-15-2025 | 7967.65 $* | 8365.92 $* |
| Apr-15-2025 | 8992.84 $* | 9442.71 $* |
| Mar-15-2025 | 8913.65 $* | 9359.39 $* |
| Feb-15-2025 | 8835.94 $* | 9277.68 $* |
| Jan-15-2025 | 8756.56 $* | 9194.17 $* |
Характеристики
Please contact us to confirm the parameters before placing the order.

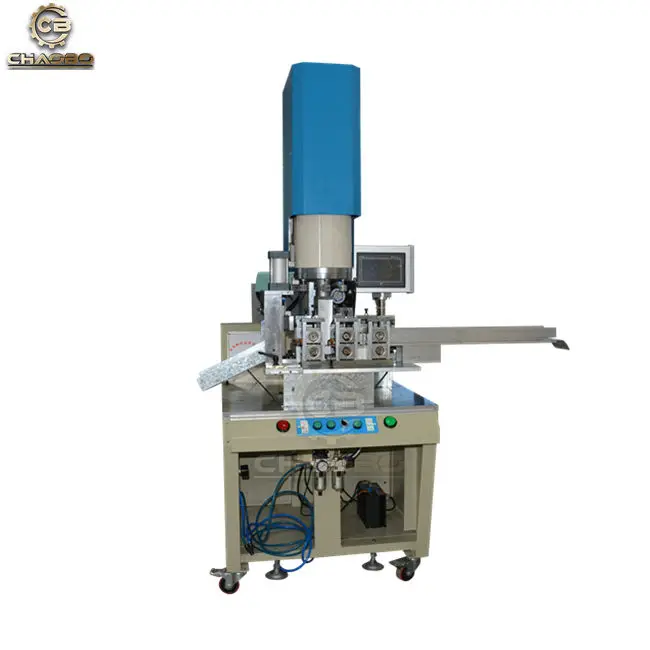

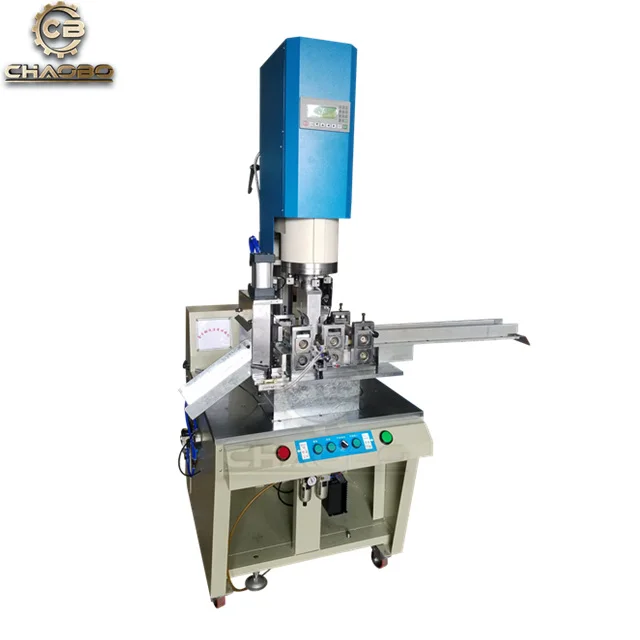

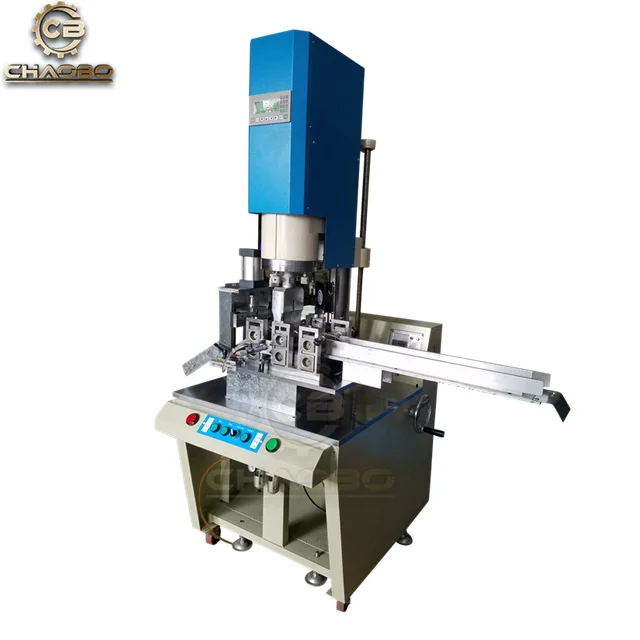

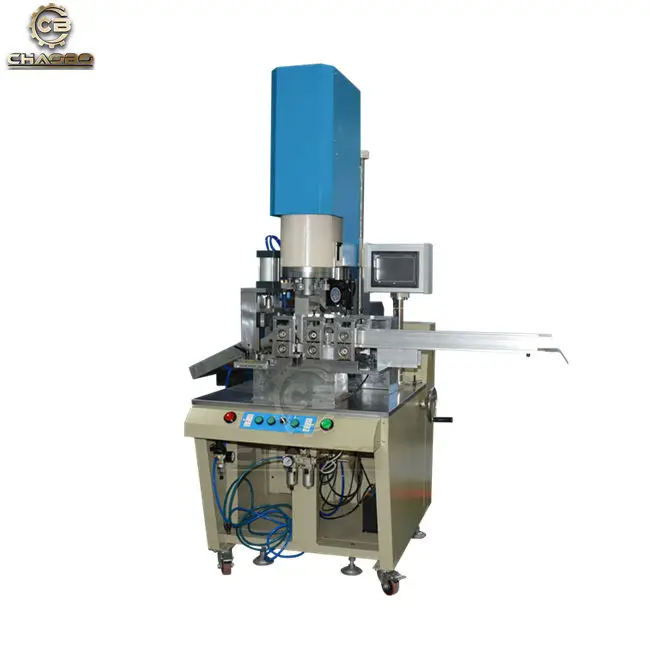

AUTOMATIC SPONGE SCOURING PAD MAKING MACHINE
Main Features
1. Funtion: Automatic material feeding, ultrasonic sealing, cutting and hole punching(optional), counting.
2. 3200W& 4200W ultrasonic power output for thick sponge welding purpose.
3. Pad length is adjustable to accommodate a variety size range of scourer pad.
4. Welding by time, Delay time, weld time and hold time.
5. Suitable for high cadences and short cycle times production needs.
6. Solid-steel structure design can last for multiple decades.
7. Imported Pneumatic parts guarantee the stable welding.
8. High quality transducer and booster, durable and stable.
9. Three levels self-protection are provided: Over-Current, Frequency Deviation, Over-Temperature
10. PLC/HMI touch screen interface -- quick, easy parameter input and adjustment.
Main Features
1. Funtion: Automatic material feeding, ultrasonic sealing, cutting and hole punching(optional), counting.
2. 3200W& 4200W ultrasonic power output for thick sponge welding purpose.
3. Pad length is adjustable to accommodate a variety size range of scourer pad.
4. Welding by time, Delay time, weld time and hold time.
5. Suitable for high cadences and short cycle times production needs.
6. Solid-steel structure design can last for multiple decades.
7. Imported Pneumatic parts guarantee the stable welding.
8. High quality transducer and booster, durable and stable.
9. Three levels self-protection are provided: Over-Current, Frequency Deviation, Over-Temperature
10. PLC/HMI touch screen interface -- quick, easy parameter input and adjustment.
Advantages of Ultrasonic Welding
The process of ultrasonic welding eliminates the use of glue and allows the thermoplastic parts to bond to itself. Ultrasonic welding with the proper time setting and pressure is the fastest most reliable method for thermoplastic parts welding.
* Eliminate use of consumable material.
* Produce airtight and watertight seams.
* Increase production time.
* Eliminate use of consumable material.
* Produce airtight and watertight seams.
* Increase production time.
Model | CB-1526S | CB-1532S | CB-1542S | ||||
Ultrasonic Power | 2600W | 3200W | 4200W | ||||
Ultrasonic Frequency | 15KHz | ||||||
Voltage | AC 220V, Single Phase, 50/60Hz | ||||||
Production Speed | 1200-3000 PCS Per Hour | 1500-4000 PCS Per Hour | |||||
Driven Mode | Pneumatic | ||||||
Stroke | 75&100MM(Customization offered) | ||||||
Working Pressure | 0.4-0.7MPa | ||||||
Welding Time | 0.01-9.99S | ||||||
Delay Time | 0.01-9.99S | ||||||
Holding Time | 0.01-9.99S | ||||||
Pad Length Range | 95-150MM | ||||||
Pad Width Range | 60-110MM | ||||||
Sponge Thickness Range | Less than 50MM | ||||||
Sealing Size | 12-14MM | ||||||
Weight(KGS) | 100 | 280 | 360 | ||||
Dimension(MM) | 770*550*1200 | 1020*800*1930 | 1070*890*2090 | ||||
Brand: DELTA
PLC/HMI touch screen - quick, easy parameter input and adjustment.
PLC/HMI touch screen - quick, easy parameter input and adjustment.
* Automatic feeding and cutting.
* Height is adjustable for different thickness of sponges.
Brand: FUJI
Original: JAPAN
Adopts Japan FUJI Piezoelectric ceramic, stable and durable.
Brand: AirTAC
Original: TAIWAN
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.
1. Overseas site installation, training & maintenance available
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
2. 12-24 hours Online service by Email, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Providing assistance in manufacturing and modifying tools;
5. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Improve your operations, increase production speed, improve accuracy and maximize product demands with any of our welders designed specifically for your needs. Let us help you choose or build the right machine for your application.
Question: Are you trading company or manufacturer ?
A:We are factory, all machine is made by ourselves and we can provide customize service offered.
Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.
Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service?
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge
to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
A:We are factory, all machine is made by ourselves and we can provide customize service offered.
Question: How long is your delivery time?
A: Generally it is 1-3 days for standardized machinery. 7-30 days if the goods are not in stock, it is according to quantity.
Question:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).
Question: How to order the machine?
1. Confirm the machine model and other terms by email/whatsApp/Skype.
2.We accept payment T/T or L/C terms
3.Delivery by sea or air.
4.Installation and operation.
Question: How do we pack the machine?
1.The machine will be packed with strong plywood case(export standard, no need additional fumigation)
2.Fragile parts will be seperately packed with cushion packing material
Question: How about the installation and training?
1.Most machines will be packed with no take apart, it comes to be a complete machine; You can start the operation with connect power and air compressor.
2.For other cases, videos and manul book will be sent for the installation.
3.Parameters will be set up before delivery. Customer will do little adjustment.
4.Overseas service is available
Question: How about the after sale service?
1.All our machines is one year warranty, spare parts will be freely provided within 12 months
2.We have all spare parts in stocks
3.12-24 hours Online service by Email or Video Online for basic setup and repairs
4.Engineer overseas service is available.
Question: Do you have the customized service?
1.The voltage of the machine can be 110/220/380/440V, 50/60 Hz. Please confirm us the voltage details when place an order
2.The color of the machine can be customized, please send us the color sample
3.The function of the machine can be customized, such as: PLC control, auto-turntable, robotic, etc
Question: Could you make die / mould for me, if I buy machine from you?
We make mould/die up to the products. We will need samples or drawings to be sent for making moulds.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Question: Is there any assurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge
to replace the new one to you . The warranty will begin after the machine send out we received the B/L .
