Проводящее мини-скользящее кольцо OD 12 5 мм 6 проводов/2 А длительный срок службы слив
- Категория: Электрические контакты и контактные материалы >>>
- Поставщик: Shenzhen,Jinpat,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.36 $* | 0.29 $* |
| Aug-18-2025 | 0.87 $* | 0.36 $* |
| Jul-18-2025 | 0.5 $* | 0.87 $* |
| Jun-18-2025 | 0.5 $* | 0.87 $* |
| May-18-2025 | 0.10 $* | 0.56 $* |
| Apr-18-2025 | 0.83 $* | 0.85 $* |
| Mar-18-2025 | 0.33 $* | 0.1 $* |
| Feb-18-2025 | 0.95 $* | 0.69 $* |
| Jan-18-2025 | 0.87 $* | 0.27 $* |
Характеристики
Product Description
Bargain Price Only in Alibaba
The sliding contact is established by a brush that presses against a metal ring. The “brush” can look like a brush made from metal fibers, but more often it looks like a single wire or a spring with a pad of material affixed to the end that contacts the ring.

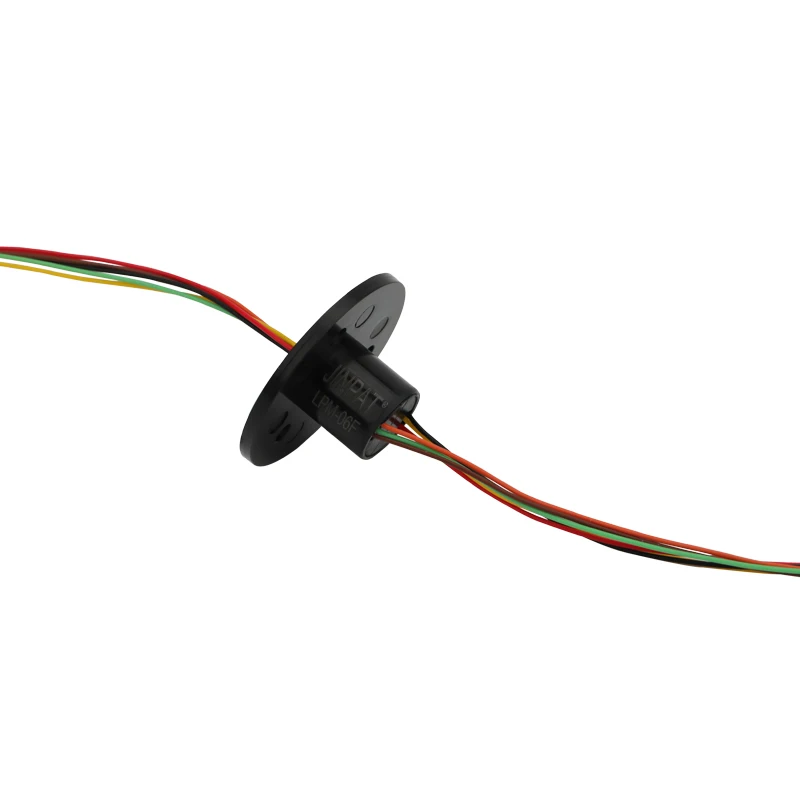

The LPM-06F miniature slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.
The LPM-06F allows tremendous flexibility in dealing with system size restrictions. It is available in 1- 6 circuit configurations
Specifications | |
Operating Speed | 0-200 rpm |
Number of Circuits | 6 |
Voltage | 240 VAC/DC |
Current Rating | 2 amps per circuit |
Temperature Range | -20 to +60 |
Contact Material | Gold to Gold |
Lead Size | 30# silver plated copper |
Lead Length | Standard 250 mm |
Dielectric Strength | ≥200 VAC @50Hz, between each circuit |
Insulation Resistance | 50MΩ @ 500 VDC |
Electrical Noise | 30mΩMin |
FEATURE
- 6 circuits models
- 2 amps per circuit, 240 VAC/ DC
- Precision assembly to provide exceptional rotational life
- Speed up to 300 rpm continuous
- Gold-Gold contacts
- Flexible, color-coded, silver-plated, lead wires
- Superior handling of low level control signals
- Metal housing optional
ADVANTAGE
- Low torque minimize system torque budget
- Tight packaging to fit in the most demanding space.
- Smooth running
- Low electrical noise
- Quick shipment per your urgent requirement
- 360°continuous rotation
- Addition of special components
Company Information
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
