Высокопроизводительное скользящее кольцо размер отверстия 50 мм 6 схем 5 А быстрая

 Bargain Price Only in Alibaba

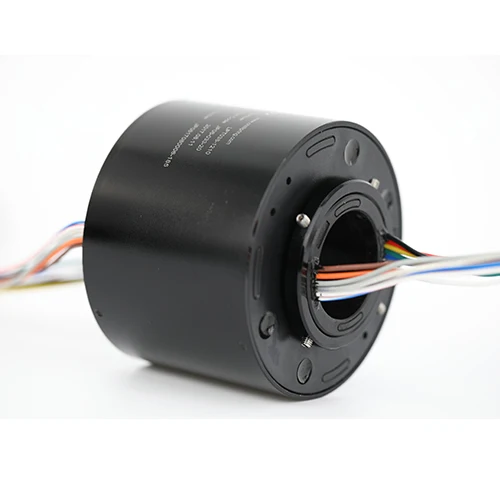

LPT050-0605 has features of 6 connectoins ,5A per ring.The 50mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount. The LPT050 uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT050 features field serviceable brush blocks.

Features

• 50 mm through-bore


• Compact 119mm outside diameter


• Modular design - a single module can have: one 50 amps ring; two 30 amps rings; one, two or three 10 amps rings or six 5 amps signals


• Up to 20-50 amps circuits


• Speed up to 300 rpm continuous


• Steel bearings and machined shaft and housing for harsh environment


• Collar mounting is standard; flange mounting is optional


• Various lead exits are available


• Silver plated rings are standard. Gold plated optional.


• Continuous 360 degrees rotation of power or data signals


• Sealed unit

Advantage

• Transfers control and data signals


• Fiber brush technology provides maintenance-free operation (no lubrication required)


• Modular design meets special requirements through off-the-shelf manufacturing techniques


• Customized configurations for your application

Main Application

• Packaging / wrapping machinery


• Semiconductor handling systems


• Industrial machinery


• Exhibit Display machinery


• Medical equipment


• Rotary index tables


• Process control equipment


• Emergency lighting, robotics Palletizing machines,


• Heavy equipment turrets or cable reels
