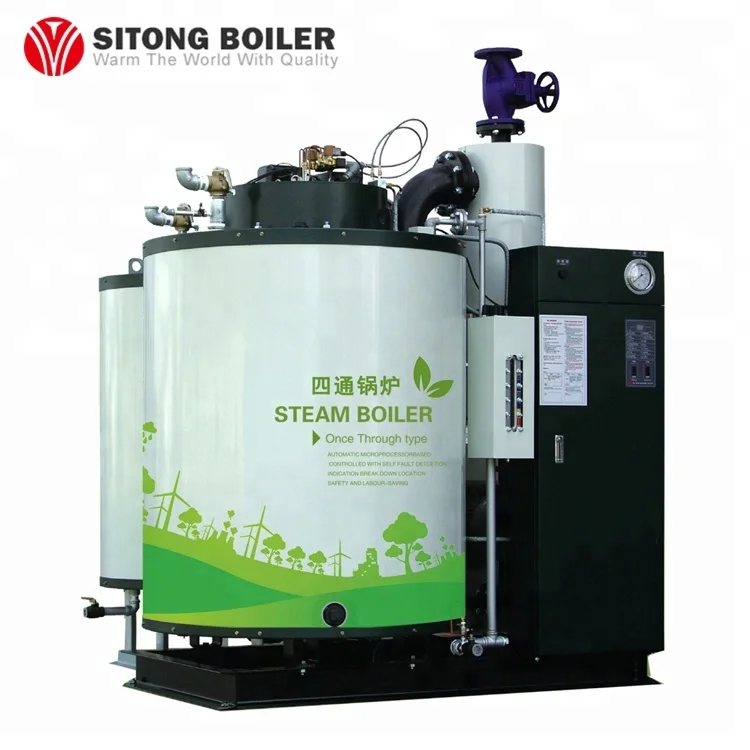

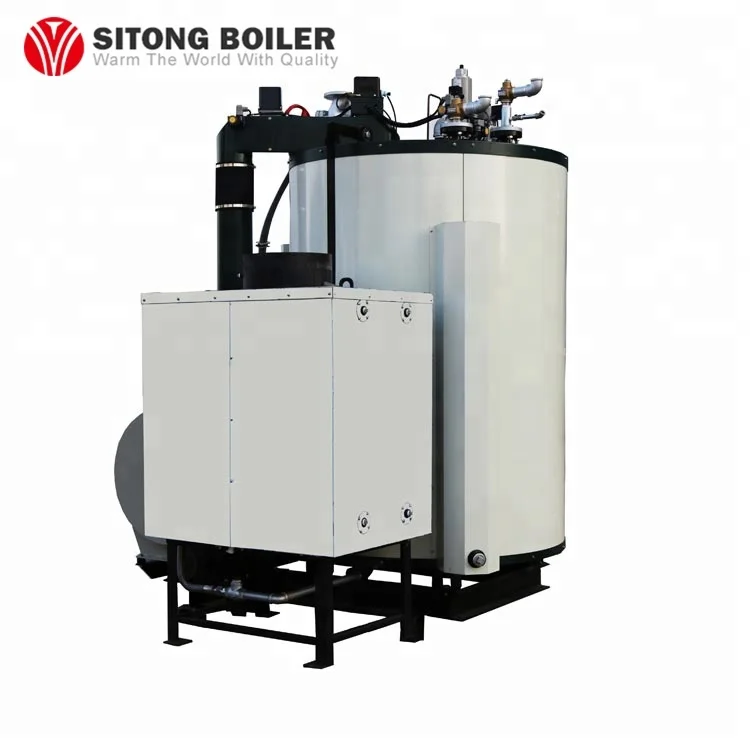

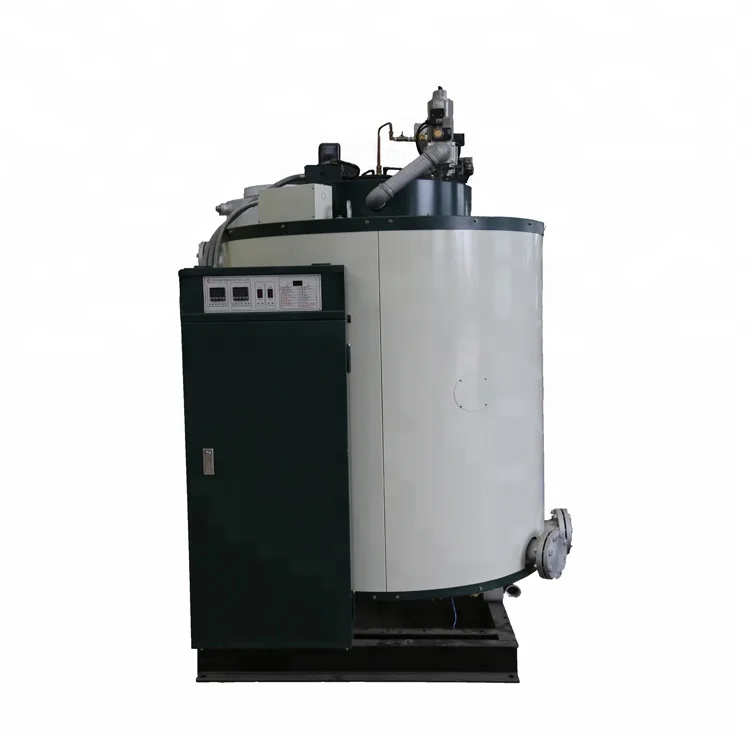

0.1t 500kg/h 4t/h Small Vertical Diesel Oil HFO LNG LPG Fired Steam Boiler for Industry Price

Model	LSS Once Through Boiler
Structure	Crossflow Structure
Rated Steam Capacity	0.1-2t/h (100kg-2000kg/hour)
Max. Pressure	1.0Mpa(10Kgf/cm2)
Heat Output	53900-1080000Kcal/h
Application	Medicine,Chemical,Light Industry,Textile Mill,Slaughter Plant,Paper Making, Washing etc.





Model Item			ZH-100G	ZH-200G	ZH-300G	ZH-400G	ZH-500G	ZH-600G	ZH-750G	ZH-1000G	ZH-1500G	ZH-2000G
Capacity (kg/h)			100	200	300	400	500	600	750	1000	1500	2000
Heat Output (kcal/h)			53900	108000	162000	216000	269000	323000	404300	539000	808000	1080000
Heating Surface Area(M2)			2.8	3.8	5.2	5.7	7	7.6	8	9.9	9.9	9.9
Max.Pressure (kgf/cm2)			10
Water Content (L)			33	48	75	80	95	102	106	176	176	163
Boiler Efficiency (%)			92	92	93	96	96	96	96	97	97	97
Combustion Type			ON-OFF							TWO-STAGE
Fuel  comsumption	Natural Gas (Nm3/h)		6.2	12.4	18.6	24.8	30.9	37.1	46.4	61.9	90.7	121.2
	Lpg (Kg/h)	propane	5.3	10.7	16.1	21.4	26.7	32	40.1	53.4	78.3	102.4
		ethane	5.6	11.3	16.9	22.5	28	33.7	42.1	56.2	82.4	110.1
Weight(kg)			366	470	620	640	910	950	1040	1430	1800	2000
Boiler Dimensions (mm)	Length		1020	1154	1279	1279	1481	1481	1581	1597	1972	1958
	Width		711	788	915	915	1098	1098	1118	1456	1915	1908
	Heigth		1550	1615	1804	1904	2115	2215	2230	2222	2330	2307
