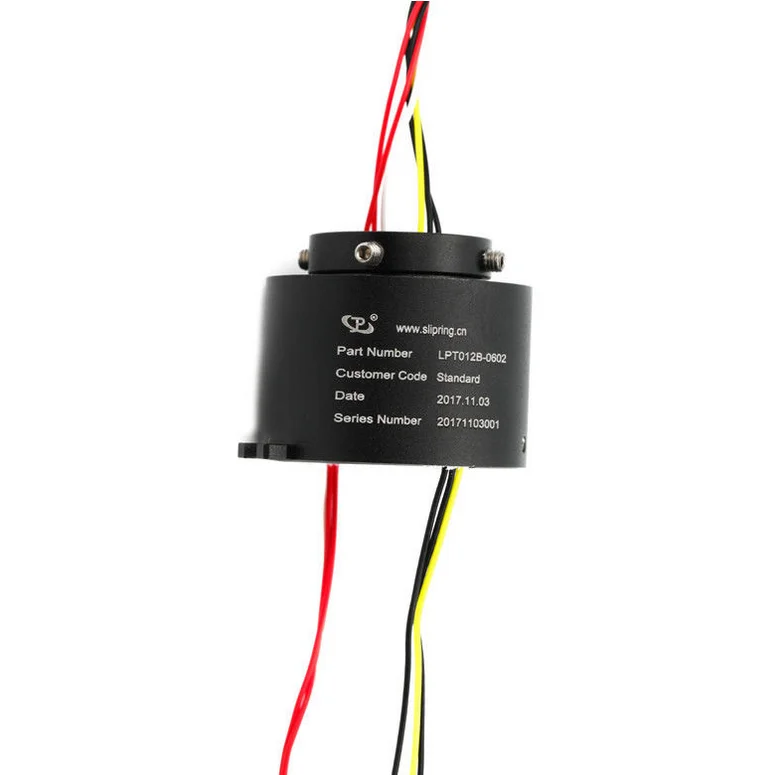

The LPT012B-0602 provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 12.7mm through-bore for routing hydraulic or pneumatic lines. The 2 amps / circuit are available in 1-6 rings.
Advantage
High speed
Unique signal handling performance with minimal electrical noise
Compact design to fit in the most demanding space constraints
Low torque minimizes system torque budget
Rapid delivery
Feature
Precious metal contacts
2 amps rings
Precision ball bearings for long life
Speed up to 200 rpm continuous
Compact size
Sealed units available
Fully compatible with both analog and TTL control level signals
Rugged black anodized aluminum construction
Specification
Specification
Circuits
6 circuits
Operating Speed
0-200rpm
Working Temperature
-20℃~ +60℃
Working Humidity
60%RH or higher
Electrical:
Voltage Rating
380VAC/DC
Current Rating
2A per circuit
Dielectric Strength
≥200V@50Hz between each circuit
Insulation Resistance
50MΩ@ 500VDC
Electrical Noise
≤70mΩ
Mechanical:
Contact Material
Precious metal
Lead Wire Size
AWG26
Lead Wire Length
Standard 200mm (11.811inch)
Housing Material
Aluminum alloy
Torque
≤9.25 g·m (for reference )
Protection
IP44or higher
Company Information
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. How long have we been in the business?
Jinpat established slip rings business since 1996. We have thousands of customers accepted our products or services.
3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
