Раздельное кольцо скольжения 12 схем компактные LPS-12 золото-золото контакты плавный бег и низкий электрический

Description

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanically capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

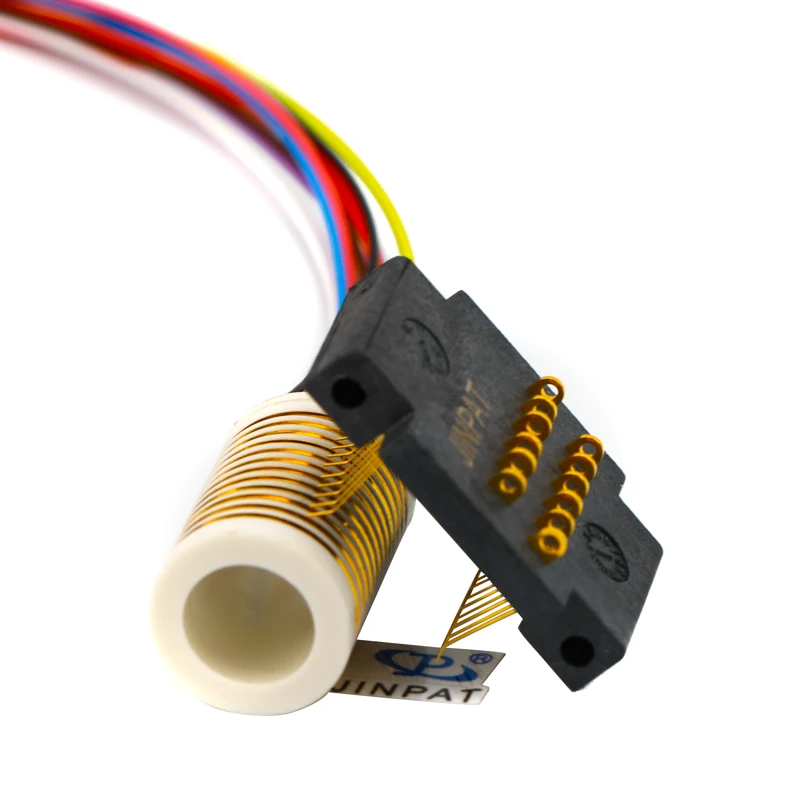

The LPS-12 separate slip ring is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Using a 90° V-groove ring design for each ring, the LPS-12 provides smoother running, lower torque and lower electrical noise than competitive slip rings.

Features

• 12 circuits models


• Speed up to 200 rpm continuous


• Gold-Gold contacts


• 250mm standard lead length


• Compatible with data bus protocols


• Sealed units are available


• Flexible, color-coded, silver-plated, lead wires


• Precision ball bearings meet or exceed life requirements for most commercial applications

Advantage

• Low torque minimizes system torque budget


• Compact design to fit into the most demanding space.


• Smooth running


• Low electrical noise


• Quick shipment per your urgent requirement


• 360°continuous rotation


• High bandwidth transfer capability

Main Application

• Electrical test equipment


• Manufacturing and process control equipment


• Indexing tables


• CCTV pan / tilt camera mounts


• Robotics, rotary sensors, urgent illumination equipment


• Exhibit/display equipment


• Medical equipment


• Aviation, military, instrument


• Mini-type wire-rolling machine


• Custom Machinery


• OEM Machinery
