Скользящие кольца для блинов 5 цепей с золотым контактом и широким диапазоном рабочих
- Категория: Электрические контакты и контактные материалы >>>
- Поставщик: Shenzhen,Jinpat,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.71 $* | 0.77 $* |
| Aug-18-2025 | 0.21 $* | 0.57 $* |
| Jul-18-2025 | 0.16 $* | 0.18 $* |
| Jun-18-2025 | 0.55 $* | 0.11 $* |
| May-18-2025 | 0.83 $* | 0.68 $* |
| Apr-18-2025 | 0.3 $* | 0.89 $* |
| Mar-18-2025 | 0.91 $* | 0.95 $* |
| Feb-18-2025 | 0.23 $* | 0.69 $* |
| Jan-18-2025 | 0.31 $* | 0.19 $* |
Характеристики
Product Description
Bargain Price Only in Alibaba

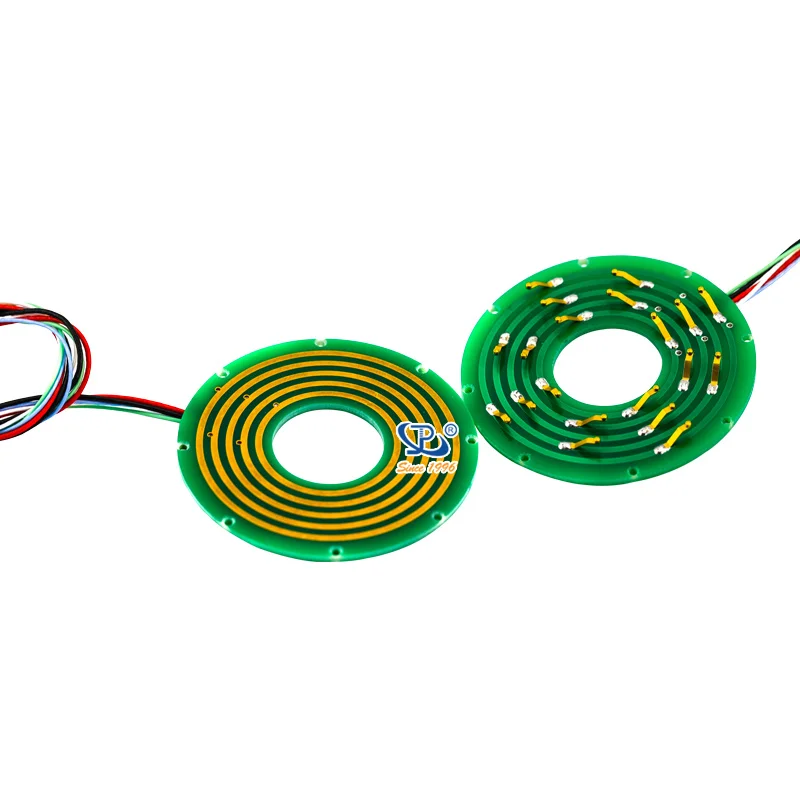

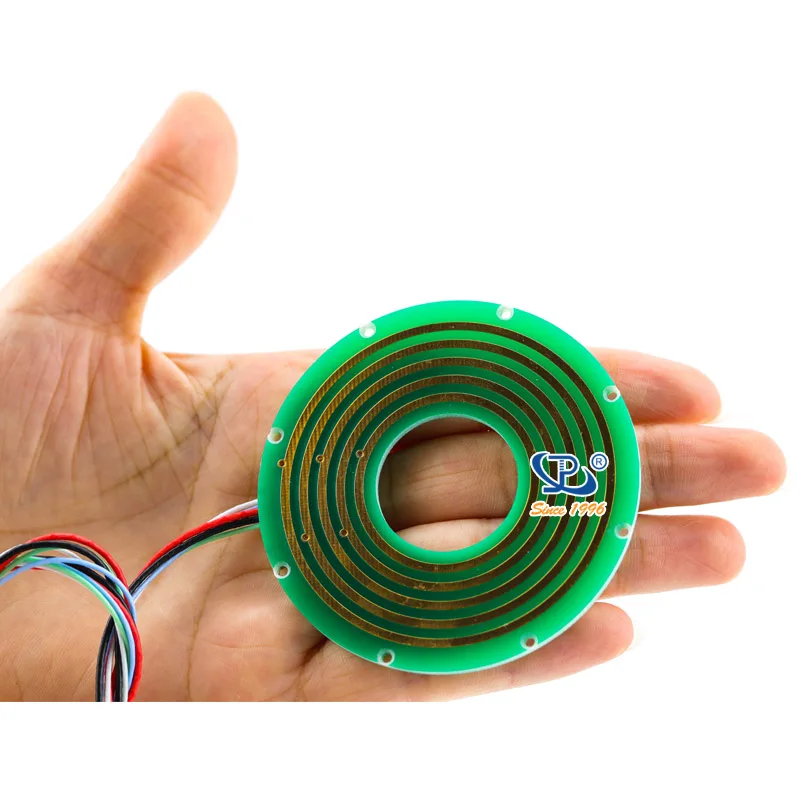

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot.
Features
- High Rotating Speed
- Unfailing contact, light figure
- Extremely low physical noise
- Transmitting power and signal in 360° rotation
- No interference or connection drop
Advantages
- Ready-made photoelectric encoder
- Optional solid and hollow shafts
- Rapid delivery
- Custom solution
Specification
Circuits | 4circuits * 10A 9circuits * signal
| Working Speed | 0~50rpm |
Working Voltage | 380VDC/AC | Contact | Gold to gold |
Dielectric Strength
| ≥1000V@50Hz(Current) ≥500V@50Hz(signal) | Housing | Oxidation black of aluminum alloy |
Insulation | 500MΩ@500VDC(Current) 100MΩ@300VDC(signal) | Wire Length | Stator Wire:700mm Rotor Wire: 700mm |
Environment | Remarks | ||
Temperature | -20°C~+60°C | Installation Method
| Stator is fixed on the spindle provided by customer
|
Humidity | ≤60%RH | ||
IP | IP54 | ||
Main Application
1. Packaging / wrapping machinery
2. Semiconductor handling systems
3. Industrial machinery
4. Exhibit Display machinery
5. Medical equipment
6. Rotary index tables
7. Process control equipment
