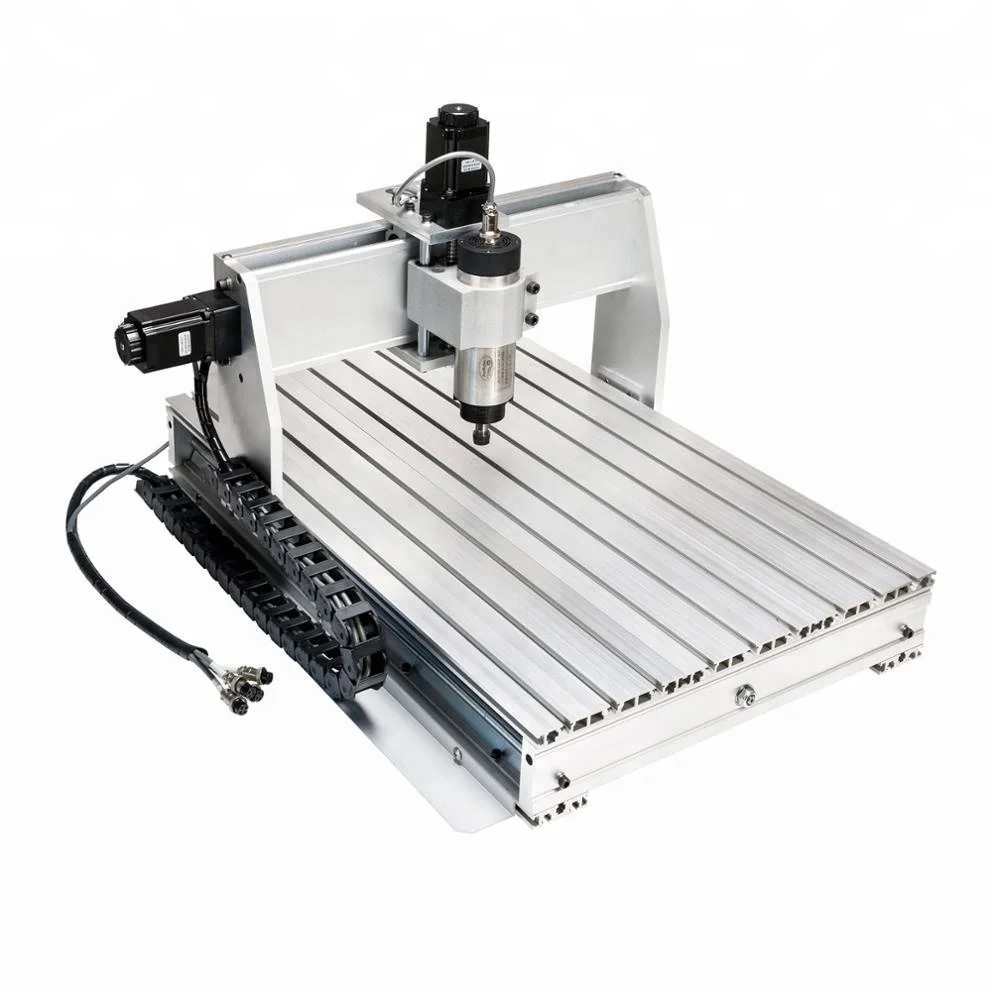

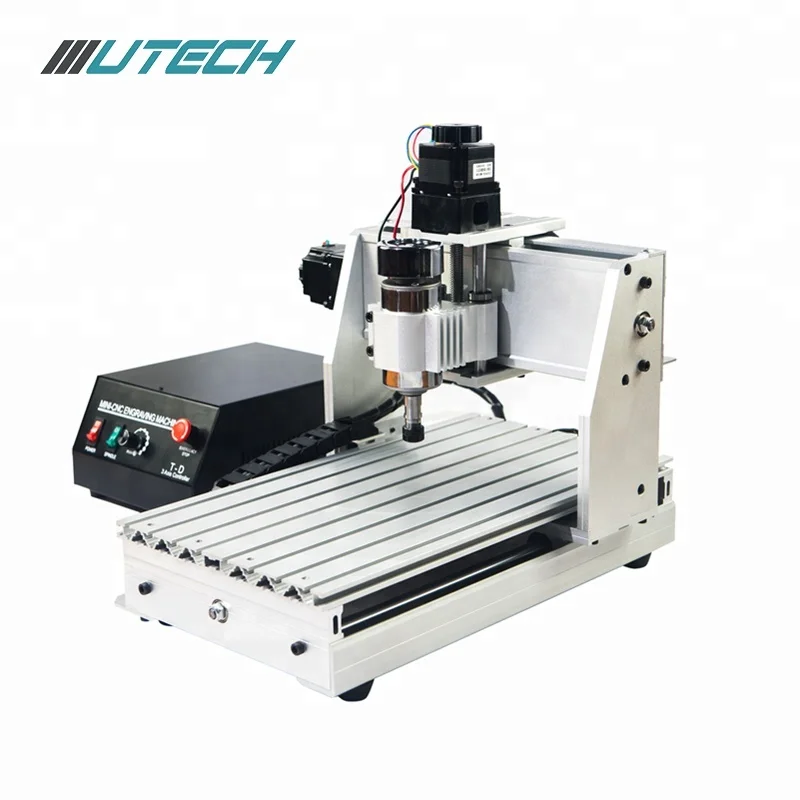

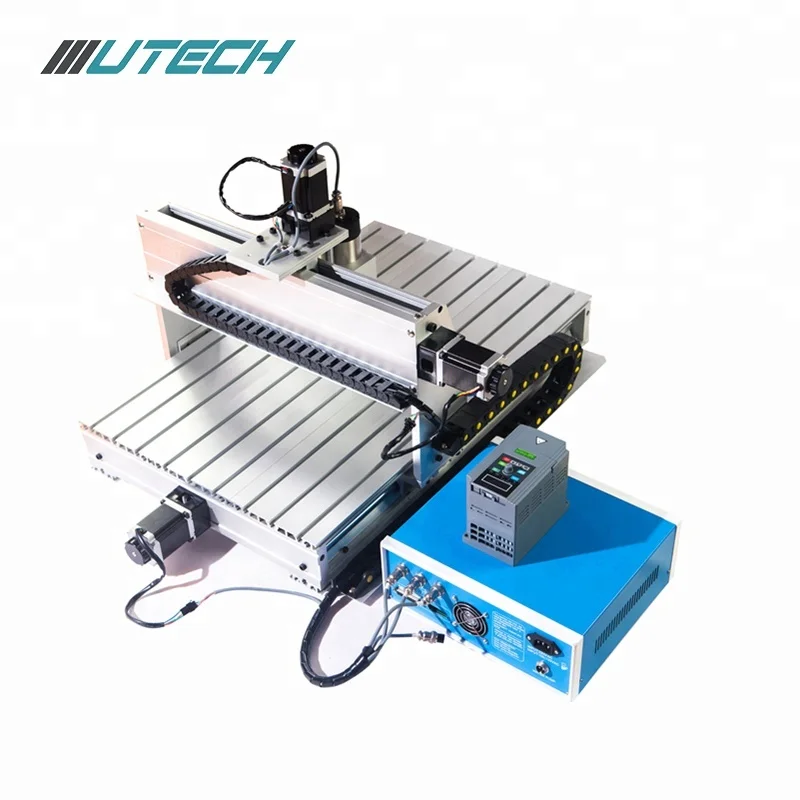

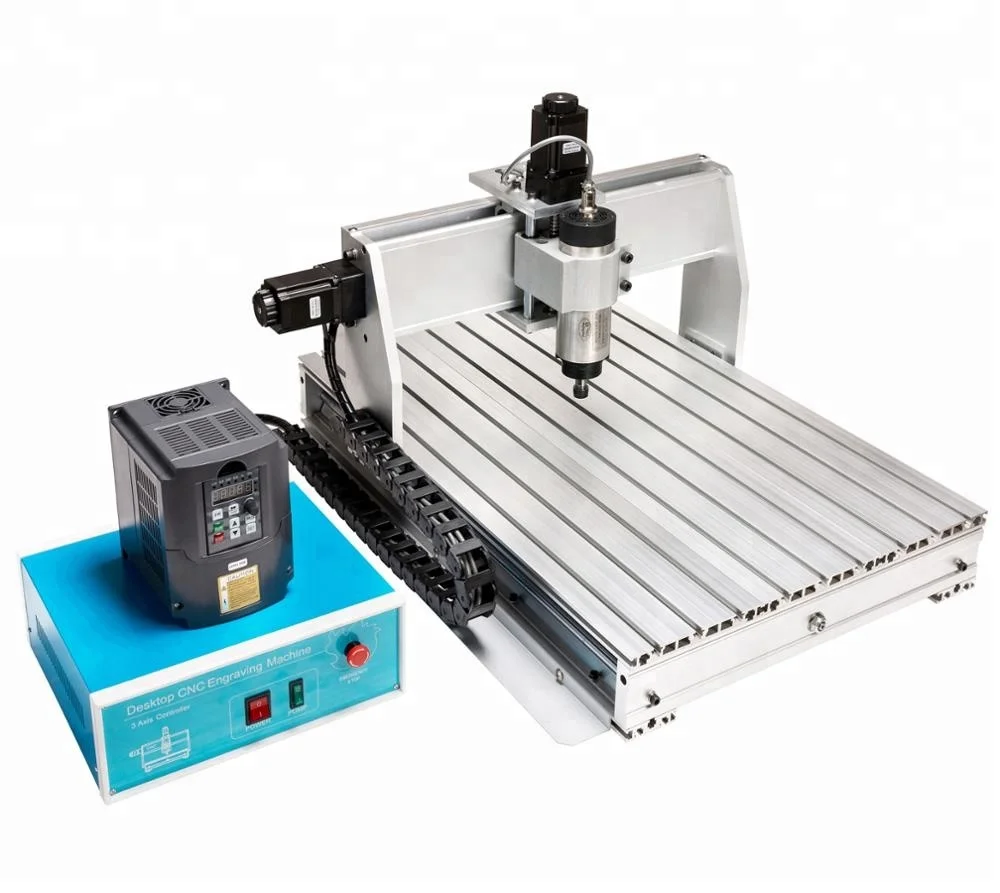

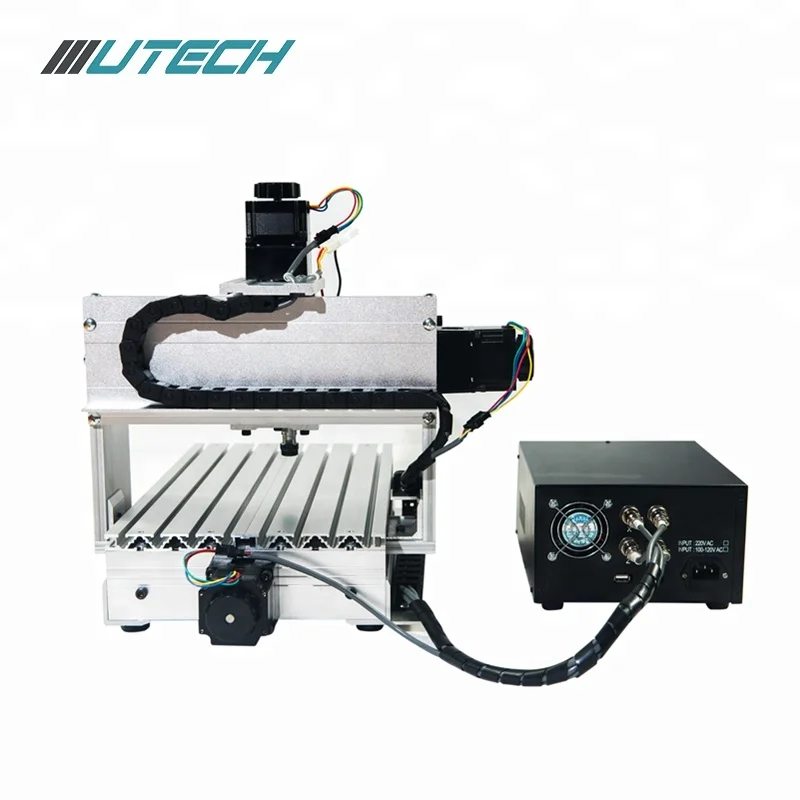

UTECH Small 3040 3 Axis 4 Axis CNC Carving Machine With Rotary



Type	3040
Max working travel	XYZ=290*380*60mm
Machinable material thickness	≤70mm
Dimensions	525*400*290mm
Frame material	6061-T5 aluminium alloy
Track type	Chrome-plated + linear bearing
Spiral type	T-screw, diameter of 12mm, Thread pitch 2mm
	Ball screw, diameter of 12mm, Thread pitch 4mm
Mechanical resolution	XYZ axis:0.0025mm/step
PositionaI accuracy	0.05mm
Spindle motor	2-300W DC spindle
Revolving speed	11000rpm/min
Holder	ER11(3.175mm,6mm)
XYZ motor	Stepper motor JK57HS41-2004XB-01AF
Stepper driver	High performance, independent of each axis
Feed rate	1500mm/min
Communication Interface	USB2.0
System requirement	WIN-XP or WIN-7
Instruction code	G code/.nc/.ncc/ .tab/.txt
Voltage	Input 85V-240VAC(400HZ)
Operating environment	Temperature: 5℃-40℃; Humidity: 35%-80%
Packaging size	25.5kg(61.5*48.5*38.5 mm)





The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

In addition, it can be upgraded to be installed a rotational axis.

More Precise Stepping Motor

The engraving process is visible as controlled by computer

Simple operation and installation

1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty







 Packing list:

1× CNC 3040 Engravine machine
1× Control box
1× Parallel port cable 25pin
1× Power cable
1× Tool box and tools
3× Axis motors
1× Rotation axis(optional)
1× tool auto-checking instrument
1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us).





How to use:

Please see the English user manual to see how to set up the software and how to use this machine.

1. Assembling and locating the CNC machine on steady desk well.

2. Make sure that your computer has a on-board parallel port output.

3. Installing a CNC control software and Drive such as the MACH 3 or EMC2 on your computer.

4. Connecting the control box with the CNC machine and you computer.

5. Fllowing our manual or guideline to set uo the software.

6. You can enjoy making you dream with using our CNC machine now.















PACKAGING:

Standard export carton packing

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity



1. This is the first time I use this kind of machine, is it easy to operate?
There are English manual or guide video that show how to use machine.
If there is still have any question, please contact us by e-mail / Skype/ phone online service at any time.

2. If machine have any problem after I ordered it, how could I do?

Free parts send to you in machine warranty period if machine have any problem.

Free after-sales service life for machine, please feel free contact us if your machine have any problem.

3. Do you have a setup and equipment commissioning service?

Yes, we have.

The machine was installed and debugged before delivery.You can use themachine directly after receiving it.Of course, we also could let our technologists go to your country to install and debug the machine.

4. How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.
