Бесщеточный двигатель постоянного тока 48 в 350
- Категория: Двигатель постоянного тока >>>
- Поставщик: Changzhou,Jinsanshi,Mechatronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.17 $* | 0.52 $* |
| Aug-16-2025 | 0.99 $* | 0.90 $* |
| Jul-16-2025 | 0.8 $* | 0.88 $* |
| Jun-16-2025 | 0.30 $* | 0.98 $* |
| May-16-2025 | 0.20 $* | 0.56 $* |
| Apr-16-2025 | 0.75 $* | 0.72 $* |
| Mar-16-2025 | 0.49 $* | 0.35 $* |
| Feb-16-2025 | 0.56 $* | 0.42 $* |
| Jan-16-2025 | 0.65 $* | 0.26 $* |
Характеристики

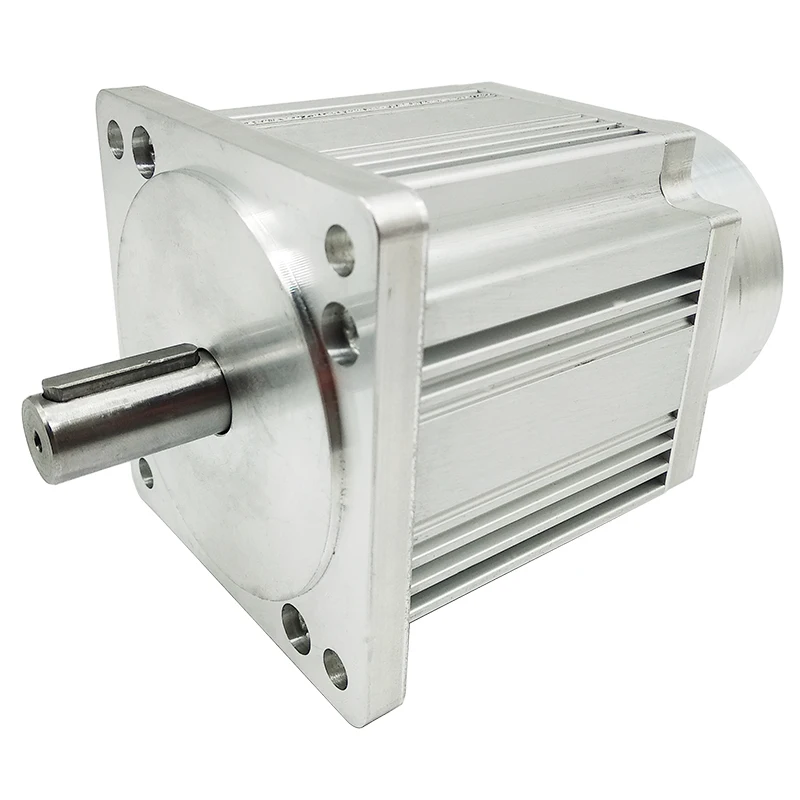

80mm Brushless DC Motor
Product Description
General Specification:
| Item | Specification |
| Widing type | Star/Delta |
| Hall effect angle | 120 degree electrice angle |
| Shaft runout | 0.025mm |
| Radial play | 0.06mm/50g |
| End play | 0.05mm/50g |
| Max radial force | 35N/20mm from the flange |
| Max axial force | 25N |
| Insulation class | Class B |
| IP class | IP40 |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩmin 500VDC |
Electric Connection:
| Lead No. | Lead color | Lead gauge | Function | Description | ||||
| 1 | Red | UL3266/28AWG | VCC+5VDC | SUPPLY VOLTAGE FOR HALL SENSORS | ||||
| 2 | Black | GND | GROUND FOR HALL SENSORS | |||||
| 3 | Yellow | HALL A | SIGNAL OF HALL A | |||||
| 4 | Green | HALL B | SIGNAL OF HALL B | |||||
| 5 | Blue | UL3266/22AWG | HALL C | SIGNAL OF HALL C | ||||
| 1 | Yellow | PHASE U | MOTOR PHASE U | |||||
| 2 | Green | PHASE V | MOTOR PHASE V | |||||
| 3 | Blue | PHASE W | MOTOR PHASE W | |||||
Electric Specification:
| Model | Rated Voltage (VDC) | Rated Current (A) | Rated Power (W) | Rated Torque (N.m) | Peak Torque(N.m) | Rated Speed(rpm) | Length(mm) | Mass(kg) |
| 80BL110-430 | 48 | 7 | 251 | 0.8 | 2.4 | 3000 | 110 | 1.8 |
| 80BL143-430 | 48 | 10.5 | 377 | 1.2 | 3.6 | 3000 | 143 | 2.8 |
| 80BL163-630 | 310 | 2.2 | 500 | 1.6 | 4.8 | 3000 | 163 | 3.6 |
Dimensions diagram:
