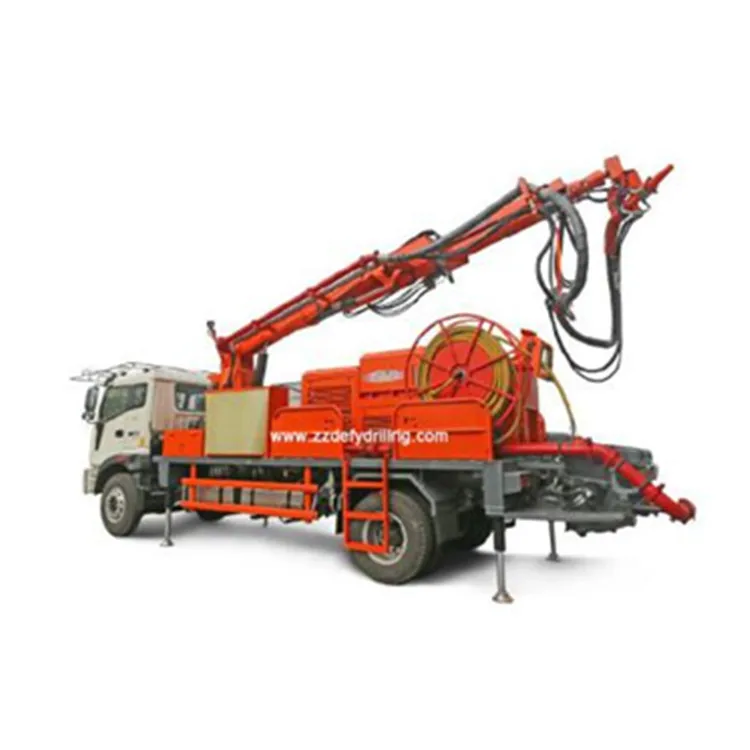

Construction Machine Concrete Shotcrete Injection Sprayer for Sale







Product Description






    The Concrete Injection Sprayer is a new generation of equipment, which has synthesised the technology of domestic and foreign Concrete Sprayer. It has solved the shortage that the traditional small model of Concrete Sprayer can not spay concrete well in long and big tunnel. And it has greatly improved the working environment for workers in the tunnel.

    Thanks to it, workers can construct higher efficiency, reduce concrete consumption, and grantee the construction quality. It works with dual working system. Low carbon emission can meet the practical environmental protection idea. So it is the best choice for the tunnel construction of hydro-power project, railway tunnel, road tunnel and so on.







Characteristics





1. Strong motility, easy transition, which can work for several sections meanwhile.

2. It is equipped with electrical system with strong adaptability and high reliability.



Concrete Spray Machine (3).jpg



3. The manipulator arm works flexiblely. The coverage area is big, without blind area left.

4. The quick-setting additive automatically matches with volume of concrete, so it reduce the consumption of quick-setting additive.



Concrete Spray Machine (4).jpg





5. The maximum The maximum injection quantity is 30 cubic meters per hour. The comprehensive rebound rate can be controlled no bigger than 15%.

6. It has high rate of quantity and price. It has strong durability, easy to maintain and easy to purchase the spare parts.







 Parameters





Concrete Wet Spray Machine

Model

DFP-S30

Total length

11500mm

Whole width

2500mm

Whole height

3410mm

Rated weight

16.8T

Structure style of boom



Big arm
small arm
pitching

Small arm,Telescopic  two section

Spraying height

15.8 m

Spraying width

25m

Pitching angle of big arm

0-70°

Pitching angle of small arm

0°-110°

Rotating angle of boom

360°

Axial rotation angle of sprayer head

360°

Vertical axial swing angle of sprayer head

240°

Brushing angle of sprayer head

360°

Core width of front supporting leg cylinders

2100mm

Core width of rear supporting leg cylinders

2100mm

Core distance of front and rear supporting leg cylinder

5180mm

Driving way

Electric motor

Rated power of motor

75kw

Working voltage of  motor

380/660V

Concrete output

30m³/h

Outlet pressure of concrete

7.5Mpa

Hydraulic system

open type

Diameter of pipe

Φ125~Φ80mm reducer

Diameter of spray nozzle

Φ50mm

Model of chassis

 Foton Chassis

Wheelbase

5250mm

Front axle wheel base

1940mm

Rear axle wheel base

1861mm

Volume of fuel tank

200L

Maximum tramming speed

≤90km/h

Maximum gradient

≤20%

Minimum ground clearance

260mm

Minimum turning radius

18m

Output flow of additive

0~800L/h

Maximum pressure of system exit for additive

18bar










FAQ

Q1: Are you trading company or manufacturer?
A1: We are original equipment manufacturer.we design,produce and sell.We master the core

      technology, and constantly adjust our products according to the market trend and customer

      feedback, ensure product quality.


Q2: How long is your delivery time?
A2: It is according to the model and quantity.
    Generally it is 3-5 days if the machines are in stock.
    It will be 15-30 days if you want to customize the machines.


Q3: What do I need to do after payment?
A3: a) If under FOB trading terms,you need to employ a ship forwarder to ship the goods to you;
      b) Under CIF trading terms,we send the goods to the destination port,and contact you to pick

    up the goods; All documents for customs clearance will be sent to you by international express

    after shipment.
