Introduction of Thermal Insulation Jacket for Reactor

Thermal Insulation Jacket for Reactor have three to six layers, liner is high silica glass fiber cloth, stainless steel braided cloth, ceramic fiber cloth, glass fiber cloth or high-SI aluminum cloth, and insulating layer is ceramic or glass fiber or aerogel blanket, and the protection layer is silicone coated glass fiber cloth, teflon cloth or stainless steel braided cloth, which is water, oil, acid and alkali proof. The thickness is 5-150mm, which could be customized, temperature resistance could be as high as 1000 cent degree. Normal lifetime is more than 5 years. And the energy saving rate is 25% to 40%.

Types of Thermal Insulation Jacket for Reactor

A) Cold insulation type

B) Low temperature insulation type (below 300ºC);

C) Standard type (300---600ºC).

 D) High temperature insulation type (above 600 C).

Features of Thermal Insulation Jacket for Reactor

• Thermal conductivity: 0.035 W/M•K- 0.045 W/M•K±0.005 (Normal temperature)

• Temperature tolerance: high temperature tolerance: 1000-280ºC, low temperature tolerance 70ºC

• Inflaming retarding: non flammable (Fireproof A class, GB8624-2006, German standard DIN4102, A1 class)

• Density: 110-220Kg/m

• Thickness: 5-150MM

• Moisture absorption rate:<5%

Application of Thermal Insulation Jacket for Reactor

• Barrel heater on injection molding machine, extruder etc.

• Molds and dies

• Flange, Pipe, Valve

• Exhaust Elbow

• Heater exchanger

• Exhaust pipe of engine

• Any other applications needed to reduce heat loss

Advantage of Thermal Insulation Jacket for Reactor

• Minimize heat loss by 20%-40%

• The surface temperature can be lowered to 40ºC, and thus safe to touch by hands
• We support customized design to ensure 100% fit your application
• Easy to install by buckles
• Water and oil proof, multi-layer protection, anti-corrosion, easy to clean, easy to bend, pollution free and neat out looking.
• Dimension, cut/hole sizes and positions are required for quotation. Drawings and pictures are preferred.

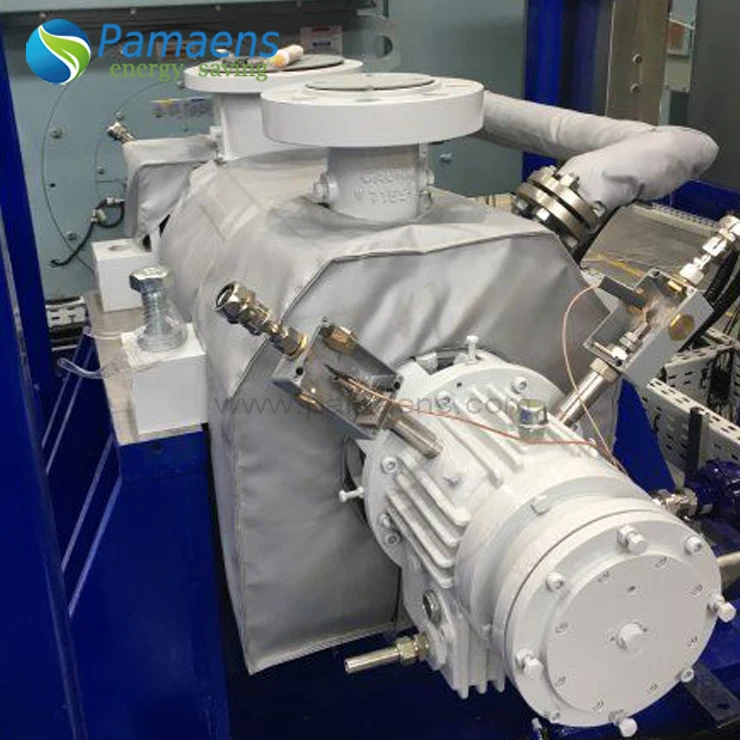

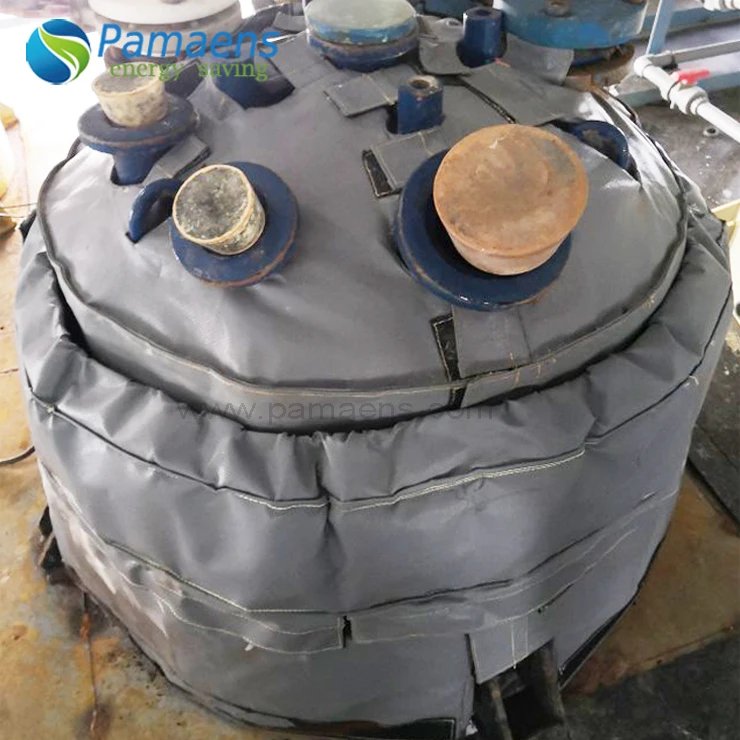

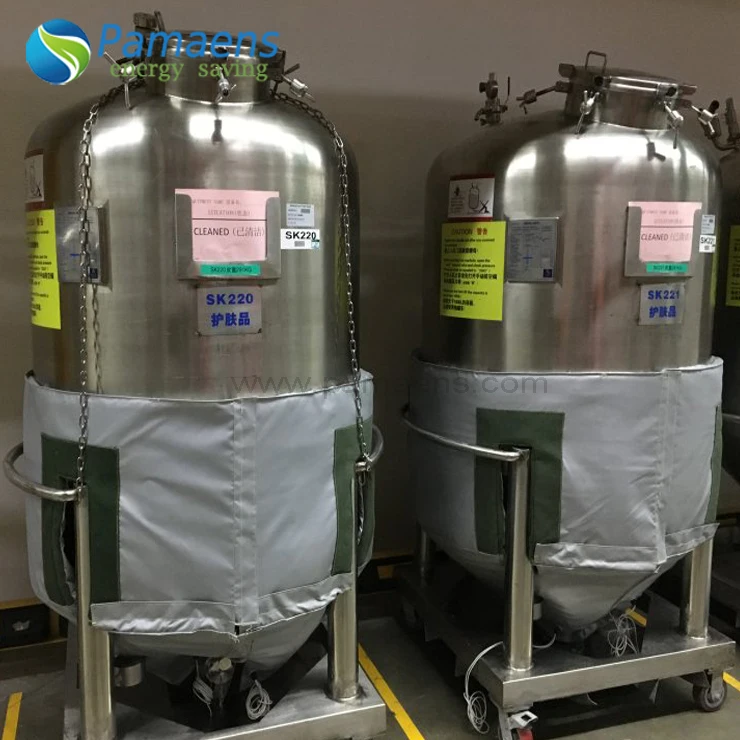

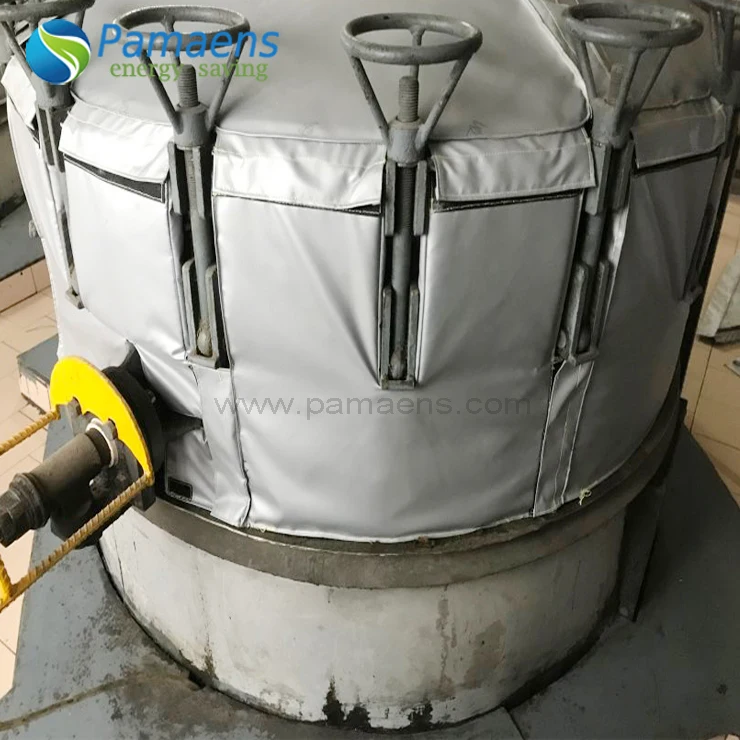

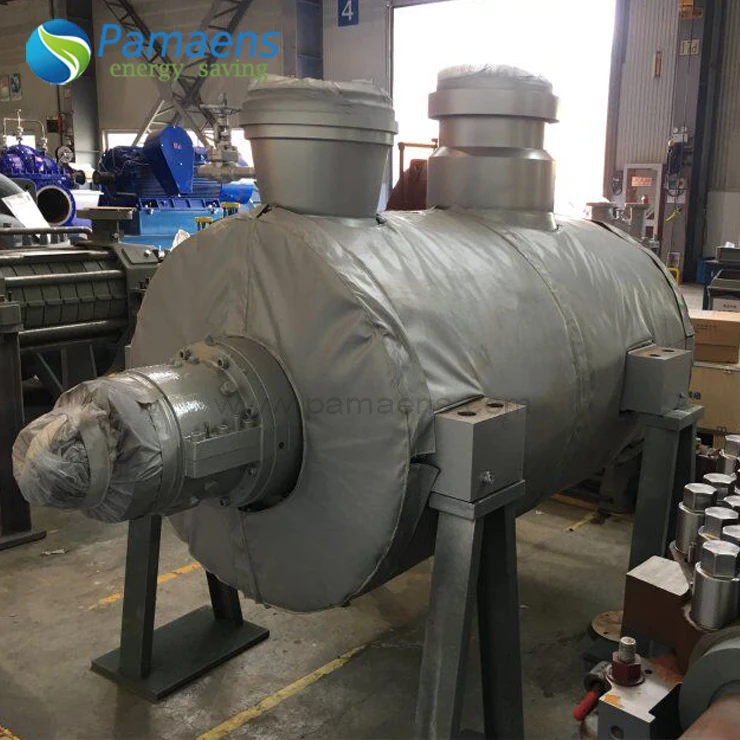

Products show case



Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, developping and manufacturing heaters, plastic machinery accessaries and energy saving products. We have strong researching and developping team, many of our engineers have more than ten years experience on manufacturing heaters, and we have stict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.

RFQ of Thermal Insulation Jacket for Reactor

You provide us the sizes, shape, working temperature of object which Thermal Insulation Jacket for Reactor will be applied.
