Цифровой зажим переменного/постоянного тока с двойной формой PM2108 6600

Цена:30,45 $ - 32,55 $*

Количество:

Product Description

Features (PM2108 True RMS Digital Analog AC DC Current Clamp Meter)
6600 counts Display
Auto Ranging and manual range
Inrush current
True RMS
Auto Power Off
MAX/MIN value Hold
Data Hold
Low Battery Display
Display Backlight

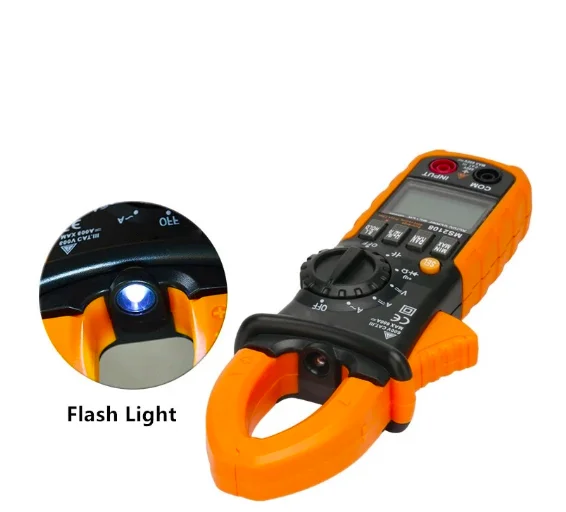

Work light
Diode	2.7V
Continuity Buzzer	<50Ω
Jaw Opening	Φ26mm/1.0”
Power supply	1.5V(AAA)x3 Batteries
Weight	Approx 245g
Size	280mmx78mmx35mm
Safety Rating	CE CAT.III600V RoHS
Specifications
DC Voltage	660mV/6.6V/66V	±(0.8% +3)
	660V	±(1.0% +5)
AC Voltage	660mV/6.6V/66V/660V	±(1.5% +5)
DC Current	66A/600A	±(3.0% +10)
AC Current	66A/600A	±(3.0% +10)
INRUSH CURRENT (100ms)	66A/600A	±(10.0%+60)
Resistance	660Ω/6.6kΩ/66kΩ/660KΩ/6.6MΩ	±(1.2% +2)
	66MΩ	±(2.0% +5)
Capacitance	6.6µF/66µF/660µF/6.6mF/66mF	±(4.0% +3)
Frequency	10KHz	±(1.5% +5)
Duty Cycle	10%~ 95%	±(3.0+2%)

2019-05-30 10.26.00.png 2019-05-30 10.26.09.png 2019-05-30 10.26.04.png

Packaging & Shipping

PM2108 True RMS Digital Analog AC DC Current Clamp Meter
