Wifi-сканер KONNWEI KW903 Elm327 Obd2 считыватель кодов неисправностей автомобильный диагностический сканер оранжевого и черного
- Категория: Vehicle Tools >>>
- Поставщик: Shenzhen,Jiawei,Hengxin,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 11.41 $* | 11.34 $* |
| Jul-18-2025 | 9.42 $* | 9.44 $* |
| Jun-18-2025 | 11.18 $* | 11.16 $* |
| May-18-2025 | 11.94 $* | 11.22 $* |
| Apr-18-2025 | 9.51 $* | 9.76 $* |
| Mar-18-2025 | 11.87 $* | 11.28 $* |
| Feb-18-2025 | 11.58 $* | 11.29 $* |
| Jan-18-2025 | 11.96 $* | 11.54 $* |
Характеристики
Product Description

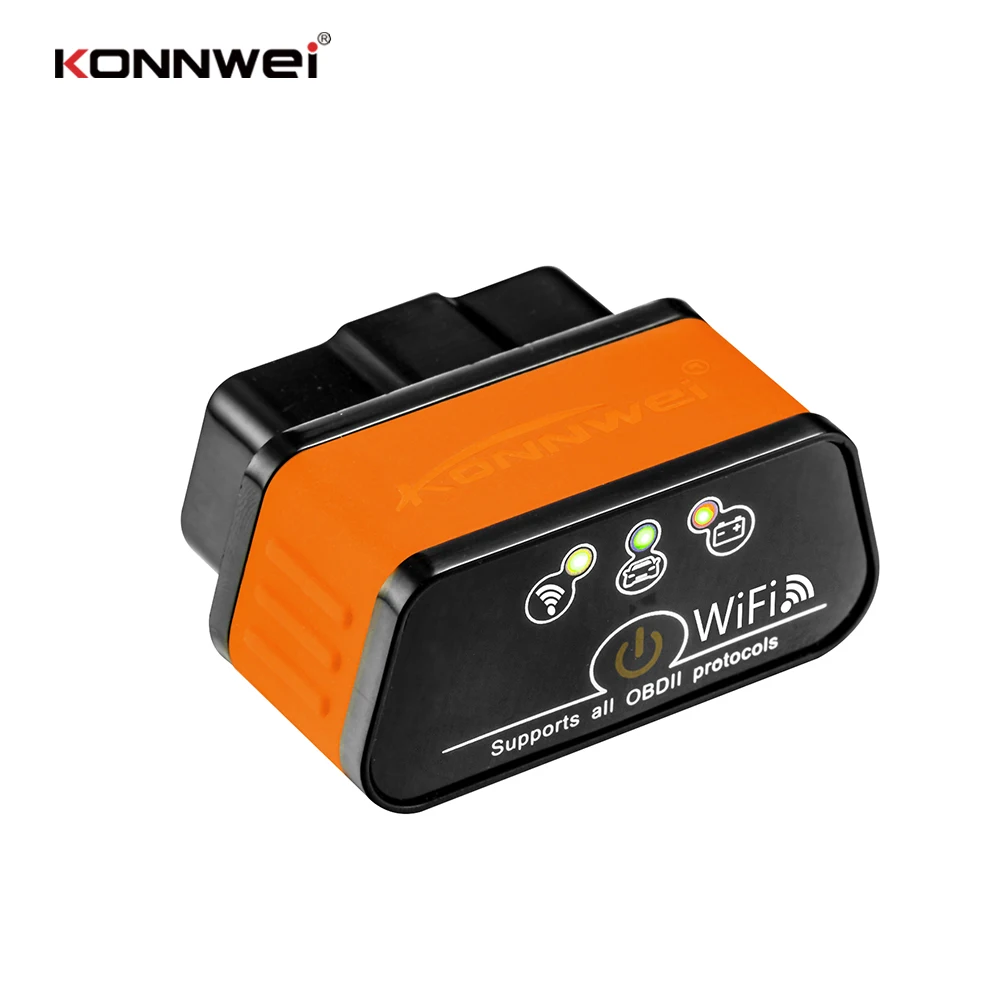

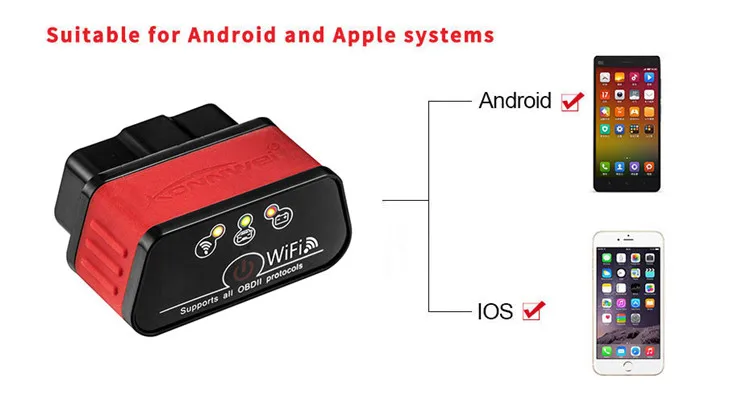

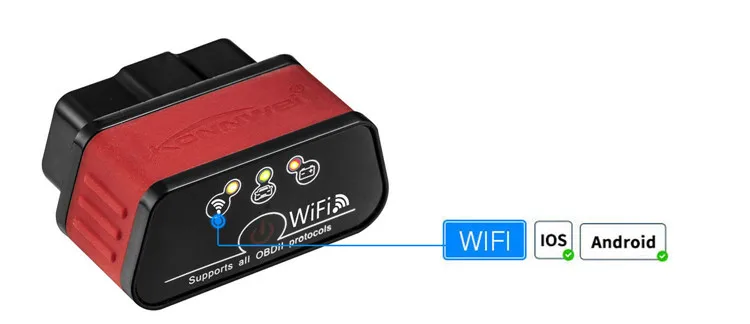

Konnwei KW903 WIFI for Android& IOS system ODB2 Code Scanner 5 Colors to choose

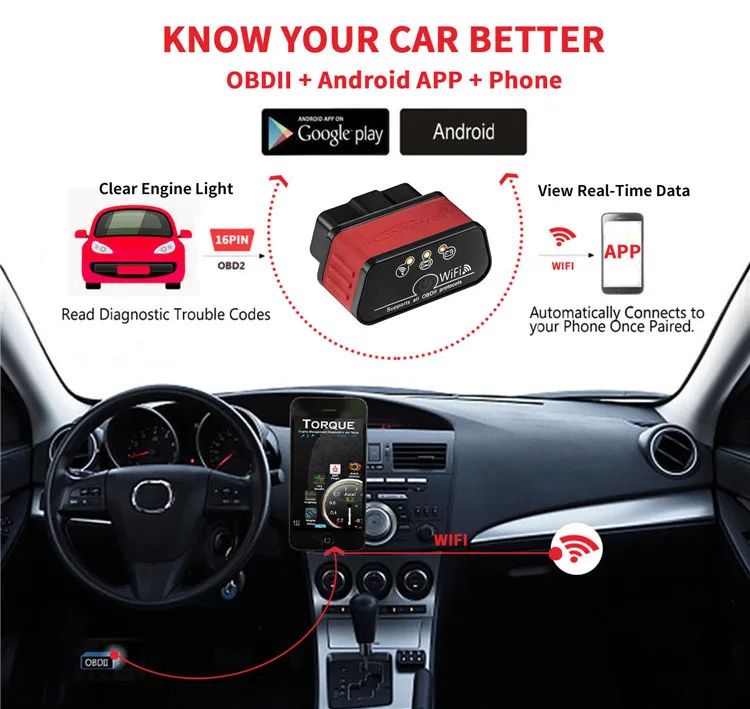

The device is a small adapter that plugged into the vehicle OBDII connector via bluetooth, it is suitable for smart phones and tablets with IOS system. With associated diagnostic procedures, Free obd software provided in the package ). With this product, you will be able to perform a complete computer diagnostic car and even to correct minor faults without resorting to service stations.

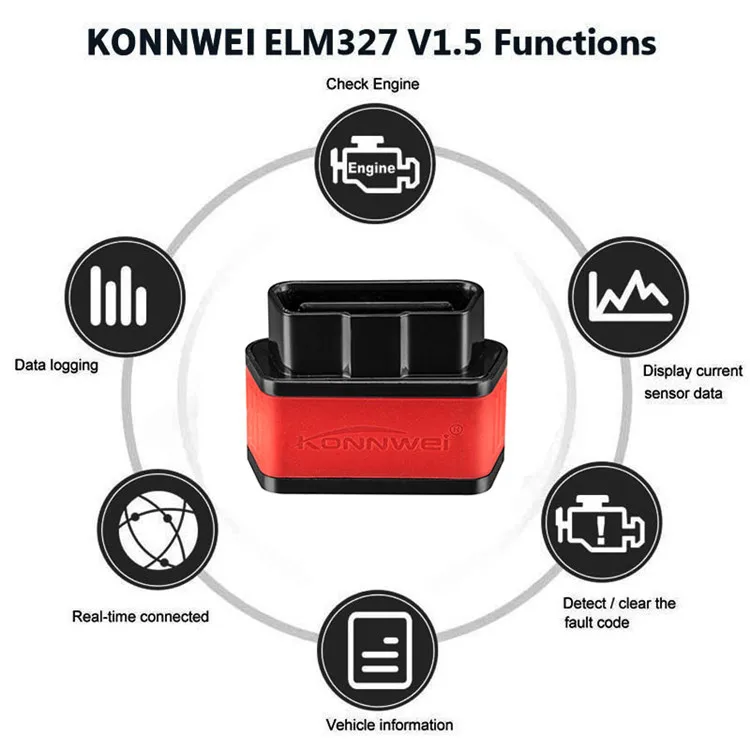

Functions:
1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning
(over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
Engine RPM
Calculated Load Value
Coolant Temperature
Fuel System Status
Vehicle Speed
Short Term Fuel Trim
Long Term Fuel Trim
Intake Manifold Pressure
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltages/associated short term fuel trims
Fuel System status
Fuel Pressure
Support car models:
Support most 12 V gasoline and diesel OBD2 cars.
Pleasae self-check with below rules.
For American Cars: Works on obd2 car from 1996 to now
For European cars: Works on obd2 car from 2001 to now
For Japanese Cars: Works on obd2 car from 2005 to now
For other Asian Cars: Works on obd2 car from 2009 to now
Vehicle Coverage:
FAQ
Supported OBD2 protocols cars:
American Car:
Need Standard OBD2 Protocols from 2000 to now
for Chrysler, for Ford, for GM, For Jeep ...
European Car:
Need Standard OBD2 Protocols from 2003 to now
For Alfa Romeo, for SAAB, for Acura, for Opel, for Audi for Seat, for Peugeot, for Renault
For Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Citroen, for Volvo, for Fiat, for VW, for Ford, for Jaguar...
Japanese/Korean Car:
Need Standard OBD2 Protocols from 2006 to now
for KIA, for Isuzu, for Honda, for Mitsubishi, for Hyundai, for Dacia, for Lexus, for Mazda, for Nissan, for Subaru, for Suzuki, for Toyota...
Chinese Car:
Need Standard OBD2 Protocols from 2009 to now
NOTE: Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is a special design, so it may not compatible with some cars which do not support OBD2 protocol
KONNWEI KW903 Bluetooth Scanner Features:

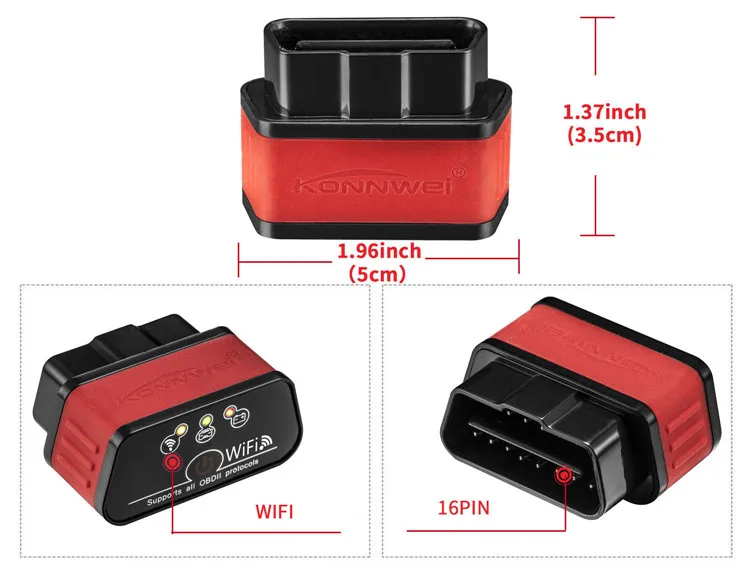

1. Small size, compact structure. Plug and never unplug, ON-OFF Switch allows you to turn off the device totally.
2. The adapter adopts fast and reliable chips which promise its stable wireless connection.
3. If the communication is terminated, this item will automatically switch to sleep mode in half a hour.
4. 100% High Quality Real V1.5 with 2 PCB board and PIC18F25K80 Chip set with ON/OFF Switch
Supports all OBDII 9 protocols:
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)
Packing list
1 * KW903 WIFI
1 * User's manual
1 * CD
