OBD2 16-контактный низкопрофильный плоский провод J1962 штекер для открытия шнура автомобиля OBD диагностический удлинитель DIY
- Категория: Vehicle Tools >>>
- Поставщик: Dongguan,Andu,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 1.85 $* | 1.95 $* |
| Jul-15-2025 | 1.53 $* | 1.90 $* |
| Jun-15-2025 | 1.62 $* | 1.79 $* |
| May-15-2025 | 1.82 $* | 1.51 $* |
| Apr-15-2025 | 1.14 $* | 1.80 $* |
| Mar-15-2025 | 1.32 $* | 1.90 $* |
| Feb-15-2025 | 1.54 $* | 1.48 $* |
| Jan-15-2025 | 1.19 $* | 1.53 $* |
Характеристики
Product Description

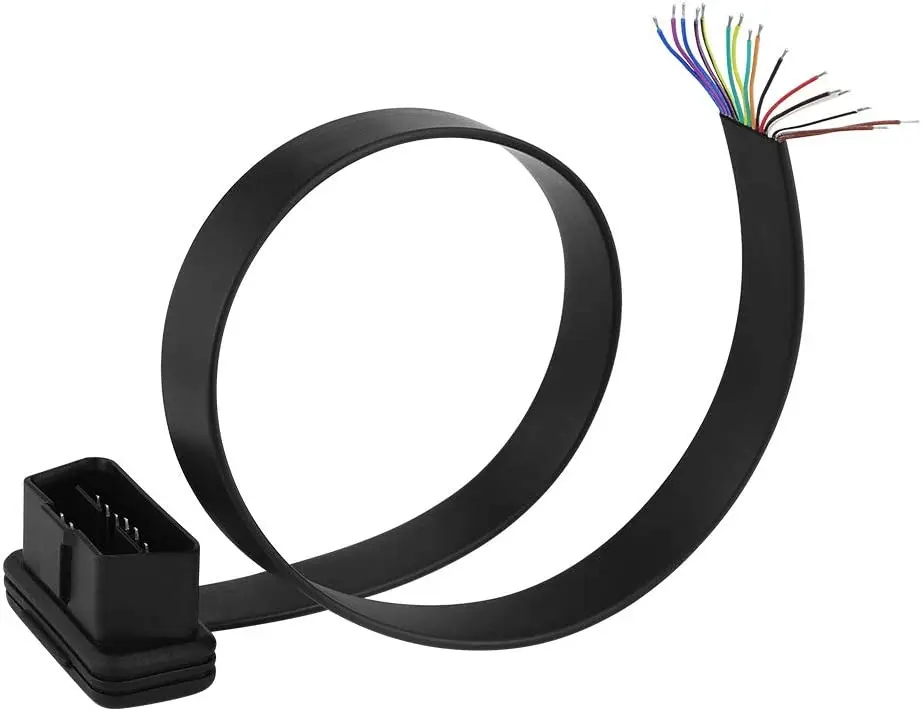

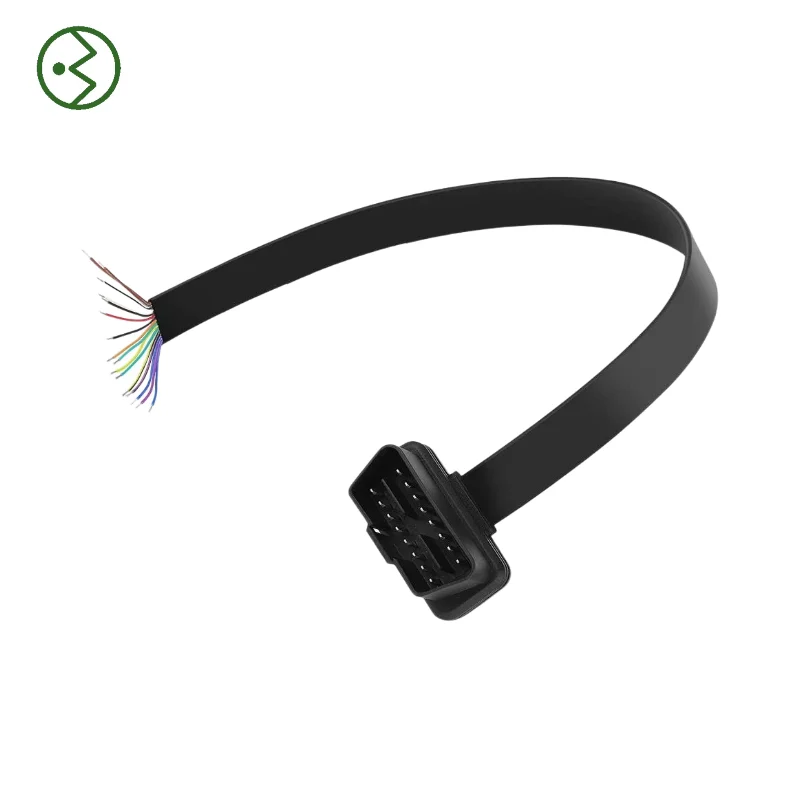

1.64ft 50cm OBD2 16 Pin Low Profile Flat Wire J1962 Male Connector to Open Plug Cord Auto Car OBD Diagnostic Extension DIY Pigtail Mobley Cable Adapter (Male Connector Pigtail)
Power Source Battery PoweredItem Dimensions LxWxH 19.69 x 0.79 x 0.39 inchesOperating System OBD OBDii OBD2 ODBScreen Size 20 Inches
Detailed Images
Type | .64ft 50cm OBD2 16 Pin Low Profile Flat Wire J1962 Male Connector to Open Plug Cord Auto Car OBD Diagnostic Extension DIY Pigtail Mobley Cable Adapter (Male Connector Pigtail) |
About this item
* 16 Pin J1962 OBD2 Male Connector Cable Plug Pigtail,This obd opening cable END with terminal solder which can save your much time and easily assemble with your PCBA.

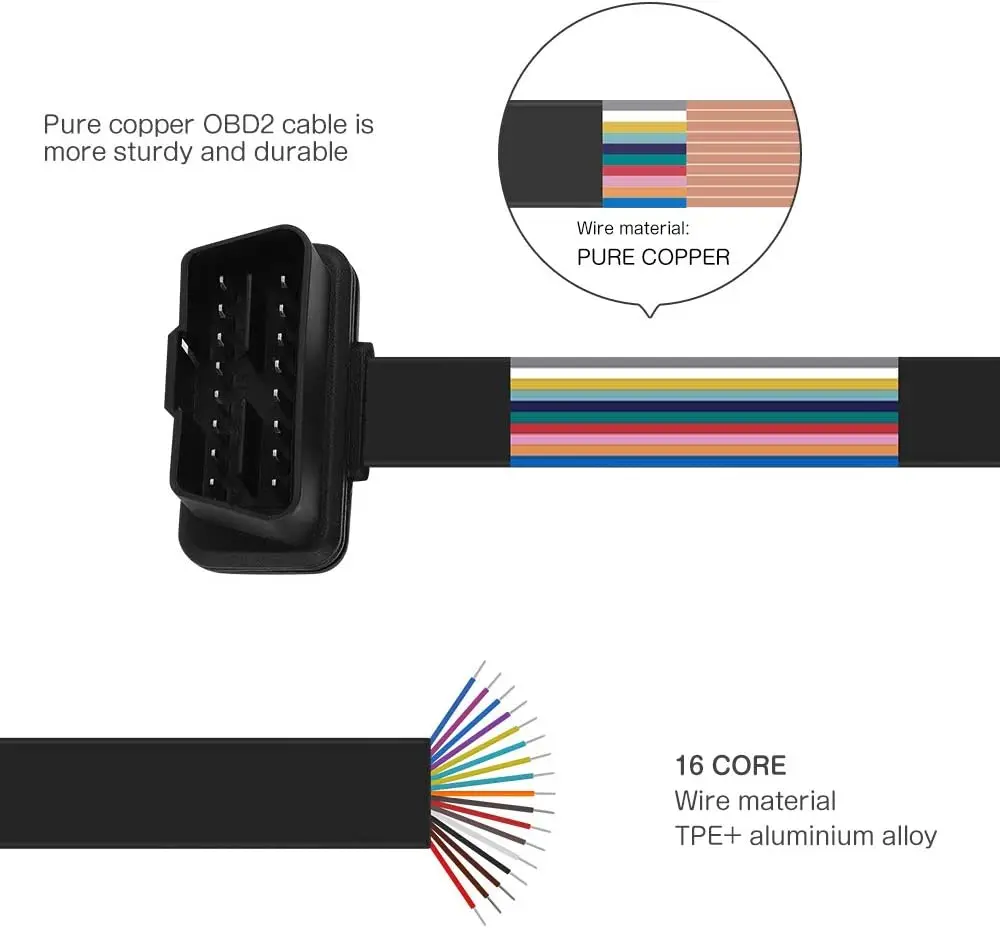

* All 16 Pins Male Connected with different colors wires for different applications.
* Cable Length:50cm / 20"/1.64 feet.
* Great for DIY and homemade projects.
* Full all 16 Pins Connected,with high quality, work for your unique project.
* 16 Pin J1962 OBD2 Male Connector Cable Plug Pigtail,This obd opening cable END with terminal solder which can save your much time and easily assemble with your PCBA.
* All 16 Pins Male Connected with different colors wires for different applications.
* Cable Length:50cm / 20"/1.64 feet.
* Great for DIY and homemade projects.
* Full all 16 Pins Connected,with high quality, work for your unique project.
Specification:
Cable Pigtail Length: 50cm / 20"

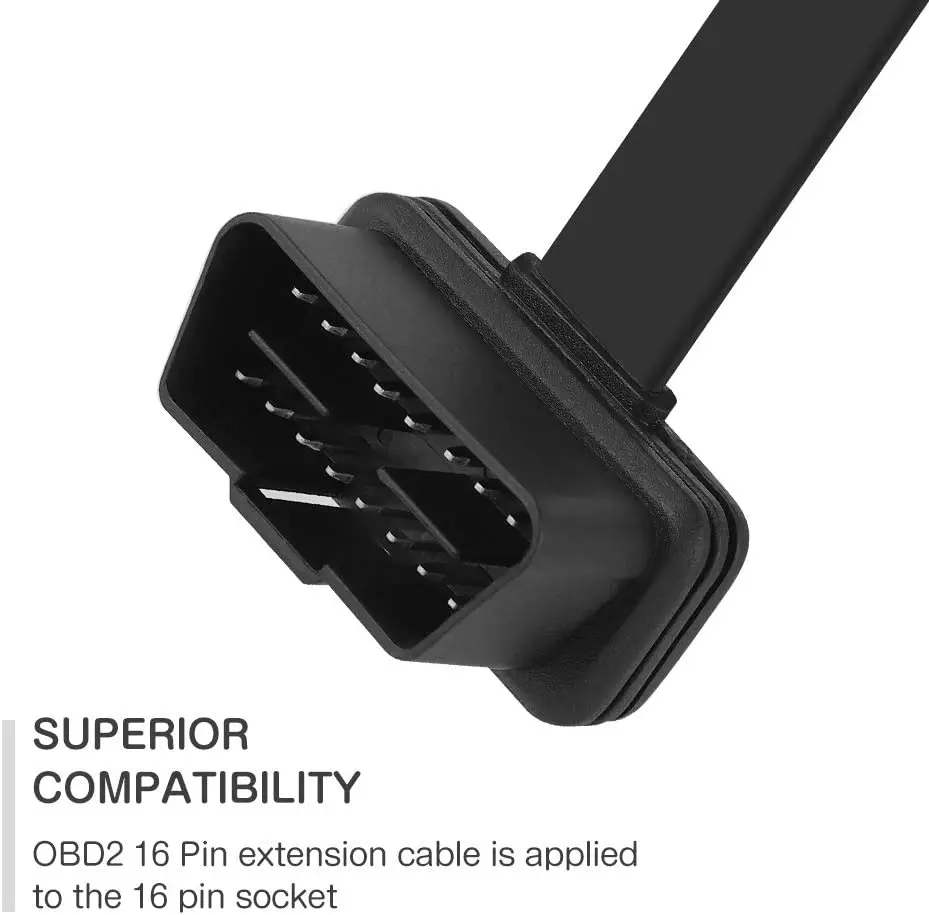

Connection: "T " Type 16 Pin OBDII J1962 Male Connector, Open Plug Wire.
Item Weight:47g/1.65oz
Package Weight:50g/1.70oz
Note :If you are not sure to confirm the the pin-out shown in the description ,please grab a tester and be sure to map the pins
before you wire it up.
OBD2 Connector Pinout:
- PIN 1 (Brown)- Manufacturers discretion
- PIN 2 (Brown-Black) - SAE J1850 Line (Bus +) *
- PIN 3 (Black-White)- Manufacturers discretion
- PIN 4 (White)- Chassis Ground
- PIN 5 (Orange-Black)- Signal Ground
- PIN 6 (Red) - SAE J2284 (CAN High) *
- PIN 7 (Red-Black)- K Line of ISO 9141-2 & ISO/DIS 4230-4*
- PIN 8 (Orange)- Manufacturers discretion
- PIN 9 (Green-Black) - Manufacturers discretion
- PIN 10 (Yellow)- SAE J1850 Line (Bus -) *
- PIN 11 (Green) - Manufacturers discretion
- PIN 12 (Yellow-Black)- Manufacturers discretion
- PIN 13 (Purple-Black) - Manufacturers discretion
- PIN 14 -(Blue-Black) SAE J2284 (CAN Low) *
- PIN 15 (Purple)- L Line of ISO 9141-2 & ISO/DIS 4230-4*
- PIN 16 (Blue)- Unswitched Vehicle Battery Positive
Package included:
1 x 16 Pin OBDII J1962M Male Connector DIY Open Pigtail Cable
Cable Pigtail Length: 50cm / 20"
Connection: "T " Type 16 Pin OBDII J1962 Male Connector, Open Plug Wire.
Item Weight:47g/1.65oz
Package Weight:50g/1.70oz
Note :If you are not sure to confirm the the pin-out shown in the description ,please grab a tester and be sure to map the pins
before you wire it up.
OBD2 Connector Pinout:
- PIN 1 (Brown)- Manufacturers discretion
- PIN 2 (Brown-Black) - SAE J1850 Line (Bus +) *
- PIN 3 (Black-White)- Manufacturers discretion
- PIN 4 (White)- Chassis Ground
- PIN 5 (Orange-Black)- Signal Ground
- PIN 6 (Red) - SAE J2284 (CAN High) *
- PIN 7 (Red-Black)- K Line of ISO 9141-2 & ISO/DIS 4230-4*
- PIN 8 (Orange)- Manufacturers discretion
- PIN 9 (Green-Black) - Manufacturers discretion
- PIN 10 (Yellow)- SAE J1850 Line (Bus -) *
- PIN 11 (Green) - Manufacturers discretion
- PIN 12 (Yellow-Black)- Manufacturers discretion
- PIN 13 (Purple-Black) - Manufacturers discretion
- PIN 14 -(Blue-Black) SAE J2284 (CAN Low) *
- PIN 15 (Purple)- L Line of ISO 9141-2 & ISO/DIS 4230-4*
- PIN 16 (Blue)- Unswitched Vehicle Battery Positive
Package included:
1 x 16 Pin OBDII J1962M Male Connector DIY Open Pigtail Cable
