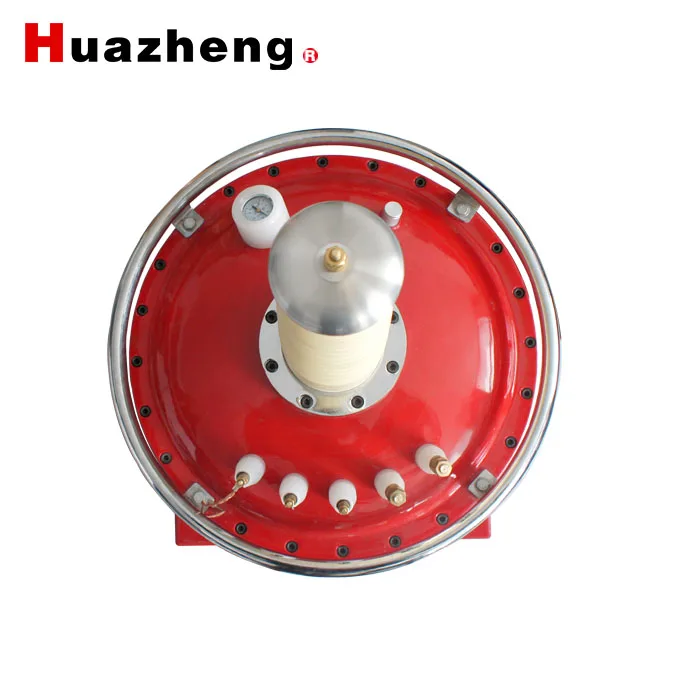

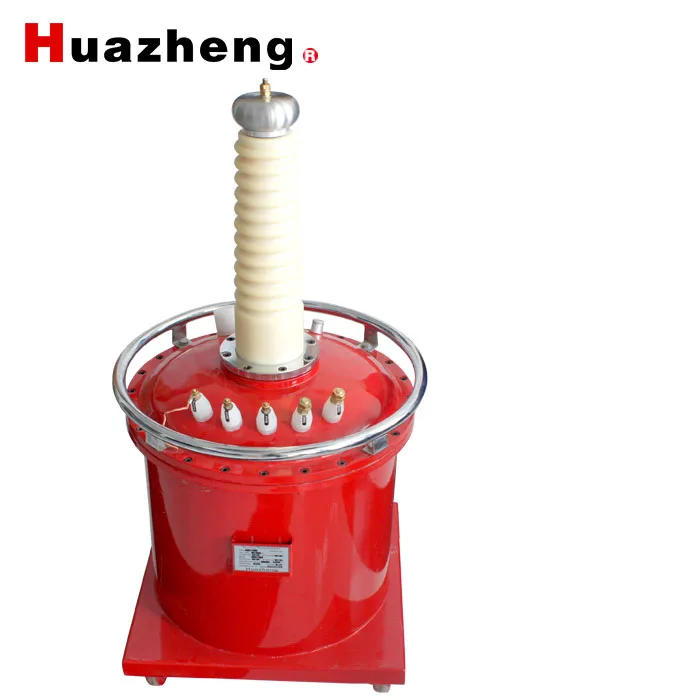

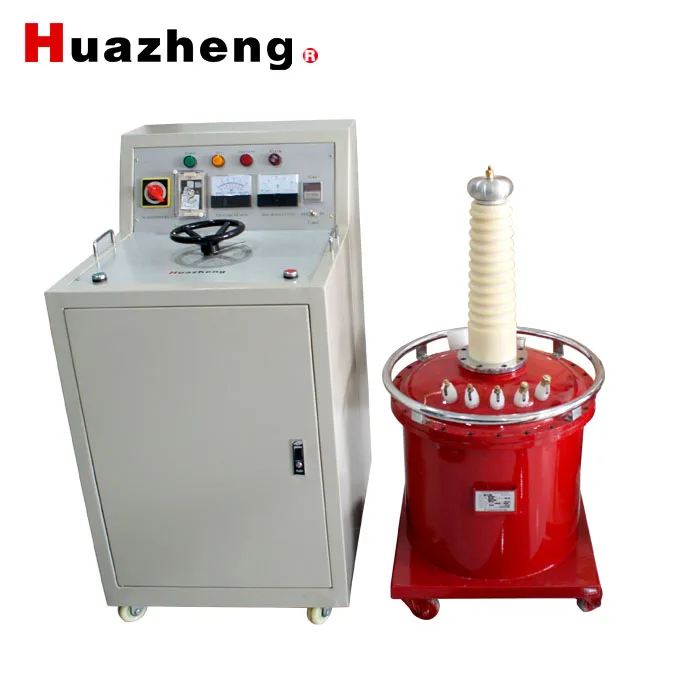

China 50kv 100kv 150kv 200kv Hipot (PFWV)Test set AC and DC High Voltage Test Transformer
Product Description
Product Overview
The test transformer calls the booster, it is the basic test equipment used by the power station, supplying and distributing the electrical power system and the scientific research unit. Which used in the insulated intension test on all kinds of electrical products, electrical equipments and insulated materials, testing the insulated level of products, discovering the insulated objection of quizzee, scaling the capacity burdened voltage.
Structure
They make up of the high quality cold rolling silicon steel piece by HZJ alternating current test transformer, HZJZ alternating and direct current amphibious light high voltage test transformer. The winding is the concentric pagoda and multilayer cylindrical type, low-voltage winding in inner, high-voltage winding in outside; Outer cover is portable which has characteristics, such as volume smallness, weight light, the shape prettiness and move convenience and so on.
Technical Parameters
Model | Capacity(KVA) | High Frequency Voltage Output Voltage (KV) | High Frequency Voltage Output Current(mA) | Low Frequency Voltage input | Ratio | Tempera- ture(℃) raised/ 30 minute | |
|
|
|
| V | A |
|
|
HZJ-1.5 | 1.5 | 50 | 30 | 200 | 7.5 | 500 | 10 |
HZJ -3 | 3 | 50 | 60 | 200 | 15 | 500 | 10 |
HZJ -5 | 5 | 50 | 100 | 200 | 25 | 500 | 10 |
HZJ -10 | 10 | 50 | 200 | 220/380 | 50/26 | 500 | 10 |
HZJ -20 | 20 | 50 | 400 | 380 | 53 | 500 | 10 |
HZJ -30 | 30 | 50 | 600 | 380 | 79 | 500 | 10 |
HZJ -40 | 40 | 50 | 800 | 380 | 105 | 500 | 10 |
HZJ -50 | 50 | 50 | 1000 | 380 | 132 | 500 | 10 |
HZJ -5 | 5 | 100 | 50 | 200 | 25 | 1000 | 10 |
HZJ -10 | 10 | 100 | 100 | 200/380 | 50/26 | 1000 | 10 |
HZJ -20 | 20 | 100 | 200 | 380 | 53 | 1000 | 10 |
HZJ -30 | 30 | 100 | 300 | 380 | 79 | 1000 | 10 |
HZJ -40 | 40 | 10 | 400 | 380 | 105 | 1000 | 10 |
HZJ -50 | 50 | 100 | 500 | 380 | 132 | 1000 | 10 |
HZJ -100 | 100 | 100 | 100 | 500 | 263 | 1000 | 10 |
HZJ -150 | 150 | 15 | 10 | 400 | 375 | 1000 | 10 |
HZJ -200 | 200 | 100 | 2000 | 500 | 400 | 1000 | 10 |
HZJ -250 | 250 | 100 | 2500 | 380 | 500 | 1000 | 10 |
Note: 100KVA and the above input voltage may enhance to 3000V or proposed by the users.
Certifications
Quality Control
Our Services
Company Information
Huazheng Electric Manufacturing (Baoding) Co.,Ltd Established in March 2008. We are located in Baoding near Beijing and have convenient transportation access.
Huazheng Electric is a professional manufacturer engaged in the research, development, production, sale and service of electric power systems. our products are extensively used in power systems, railway systems, large-scale petrochemical plants and enterprises have a lot of electrical equipment. In addition, we have attained CE ISO9001 certificates.
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. To learn more about what we can do for you, contact us at any time. We look forward to establishing a good and long-term business relationship with you.
