20 Вт 30 50 100 глубокая гравировка mopa цвет Raycus ipg Металл Сталь 3d волоконный лазерный маркировочный станок
- Категория: Аппарат для лазерной гравировки >>>
- Поставщик: JINAN,LXSHOW,MACHINERY,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 2618.57 $* | 2749.72 $* |
| Aug-16-2025 | 2596.99 $* | 2726.1 $* |
| Jul-16-2025 | 2178.3 $* | 2287.28 $* |
| Jun-16-2025 | 2552.84 $* | 2680.69 $* |
| May-16-2025 | 2222.63 $* | 2333.73 $* |
| Apr-16-2025 | 2508.55 $* | 2633.45 $* |
| Mar-16-2025 | 2486.19 $* | 2610.23 $* |
| Feb-16-2025 | 2464.66 $* | 2587.70 $* |
| Jan-16-2025 | 2442.48 $* | 2564.97 $* |
Характеристики
20W 30W 50W 100w deep engraving mopa color ipg metal steel 3d fiber laser marking machine price
Application:
1).Materials:
Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card )
Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)
2).Industry:
Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.

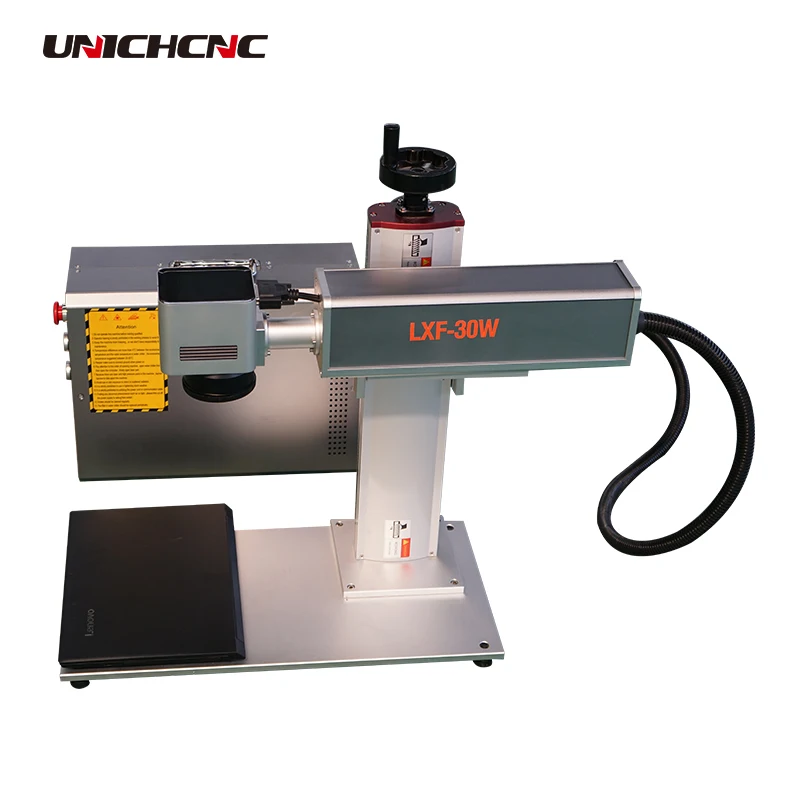

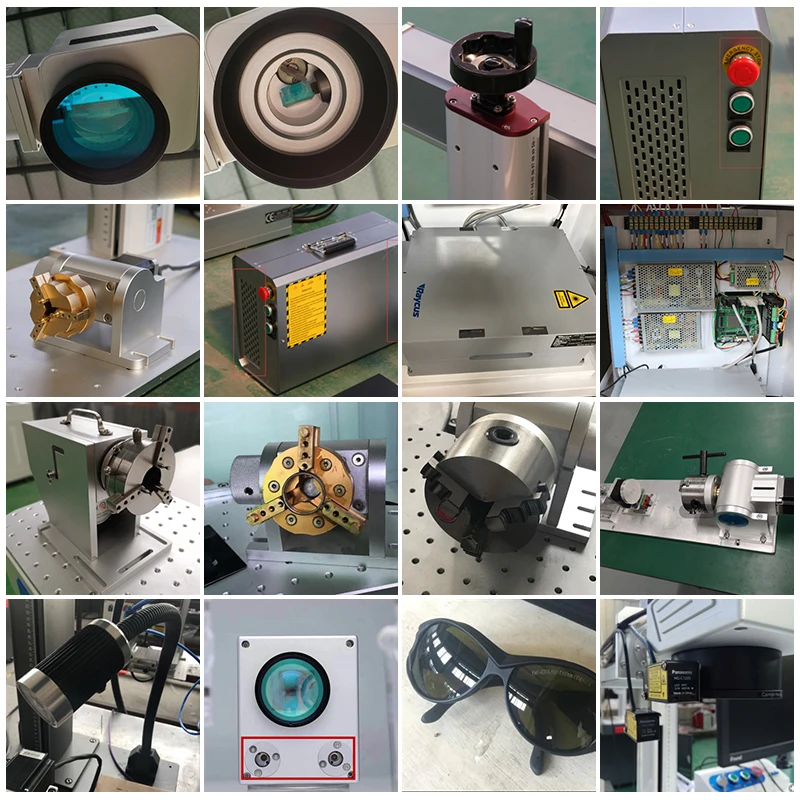

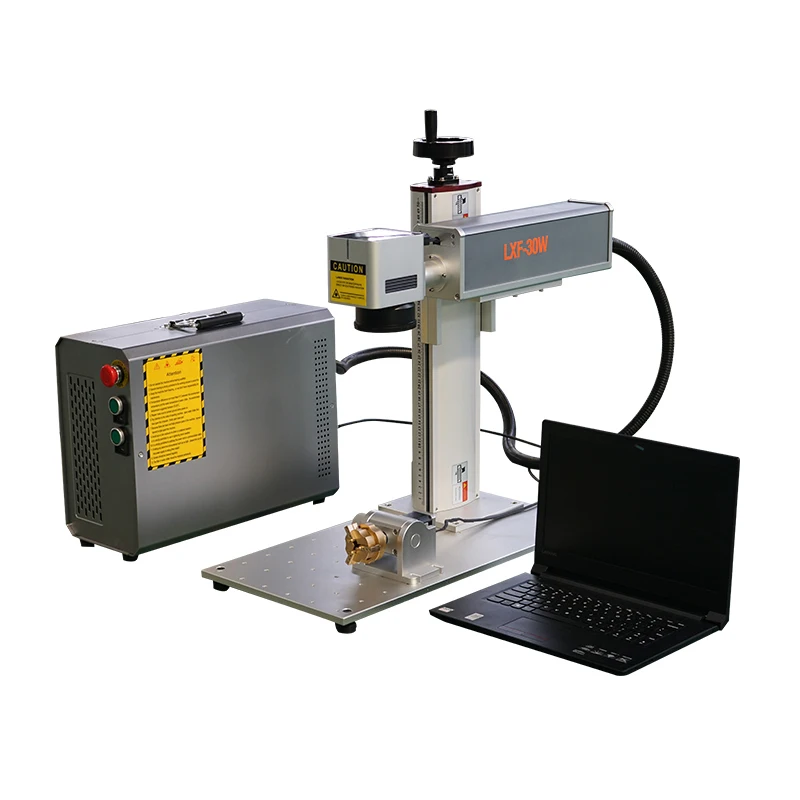

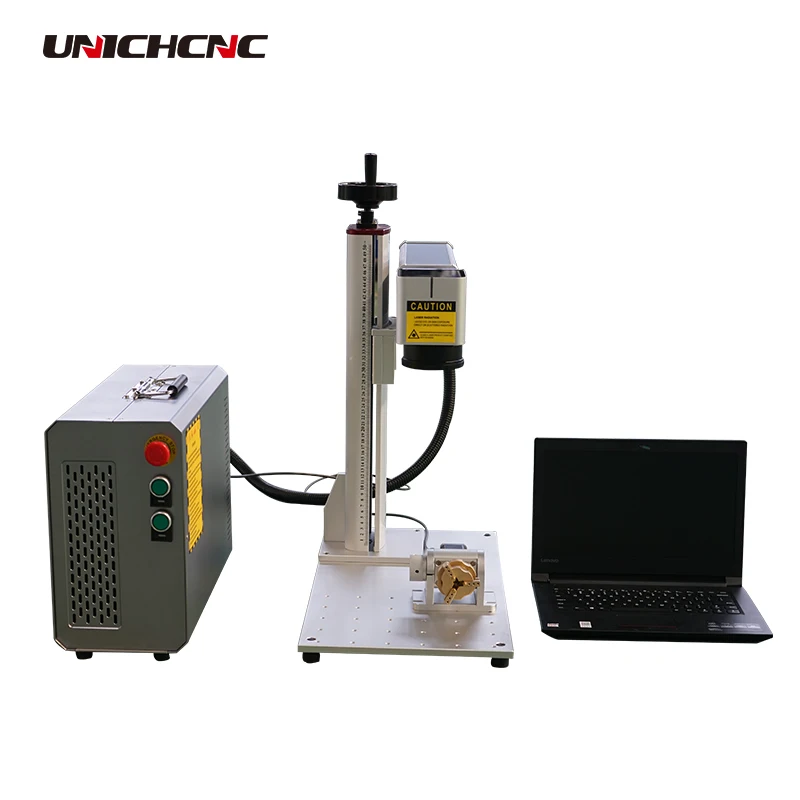

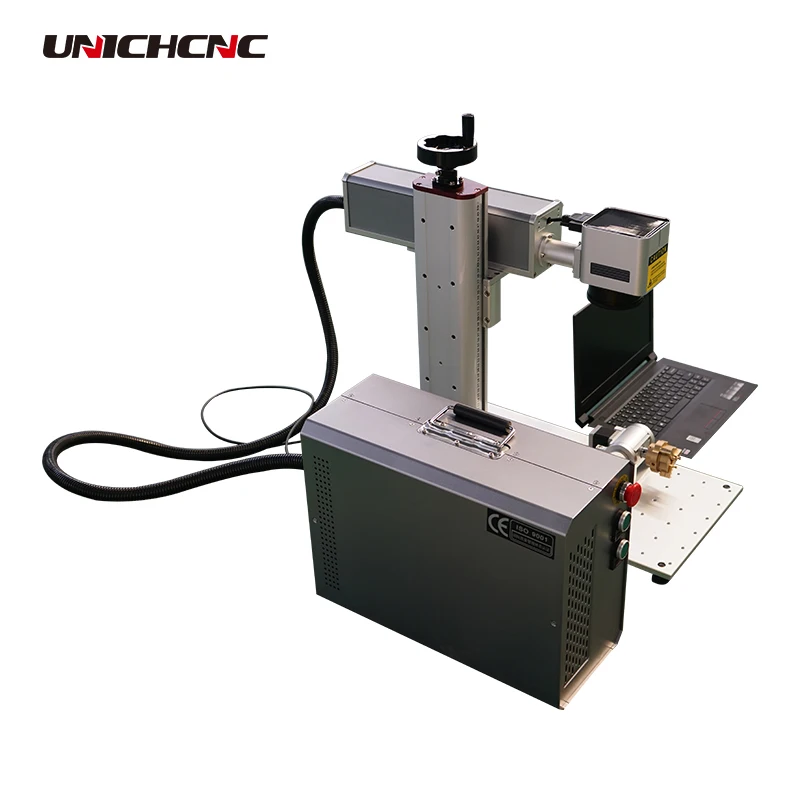

Machine Details
Description:
Fiber laser marking machine is a new generation laser marking system made with newest laser technique in the world. It is designed with fiber laser maker as laser source, and thru high-speed vibration-mirror scan system to actualize marking function, the fiber laser making machine have high conversion efficiency of electric-light, mainly used to the field which request high quality to deepness, smoothness and precision, such as horologe, communication products, jewelry, images marking etc.
| Technical parameters of fiber marking machine | |
| Product name | Fiber laser engraver |
| Power | 20w/ 30w/ 50w /60w/70w/100w/120w(optional) |
| Laser source | RAYCUS, IPG,CAS,MAX ( optional) |
| Working area | 110*110mm, 150*150mm, 175*175mm, 200*200mm, 300*300mm (optional) |
| Laser wave length | 1064nm |
| Marking depth | ≤1.2mm |
| Marking Speed | 800 standard characters/second |
| Minimum Line Width | 0.012mm |
| Minimum Character | 0.15mm |
| Repeated Perecision | ±0.003mm |
| Life-span of fiber laser module | 100 000 hours |
| Beam Quality | M2 <1.5 |
| Focus Spot Diameter | <0.01mm |
Output Power of Laser | 10%~100% continuously to be adjusted |
System Operation Environment | Windows XP / W7--32/64bits / W8--32/64bits |
| Cooling mode | Air-cooling-Built-in |
| Temperature of Operation Environment | 15℃~35℃ |
| Power input | 220V / 50HZ / single phase or 110V / 60HZ / single phase |
| Power Requirement | <400W |
| Communication Interface | USB |
advantages of fiber laser engraver:
1. Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery. It is small design and the complete weight is 95kg.
2. High Precision: Re-position precision is 0.002mm.
3. High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s
4. Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.
5. High Reliability: MTBF>100,000 hours.
6. Energy Saving: The efficiency of optic-electrical converting is up to 70%.
7. Low Running Cost: No wearing part. Free maintaining, no need to adjust the laser path.
2. High Precision: Re-position precision is 0.002mm.
3. High Speed: Imported scanning system makes the scanning speed is up to 7000mm/s
4. Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.
5. High Reliability: MTBF>100,000 hours.
6. Energy Saving: The efficiency of optic-electrical converting is up to 70%.
7. Low Running Cost: No wearing part. Free maintaining, no need to adjust the laser path.

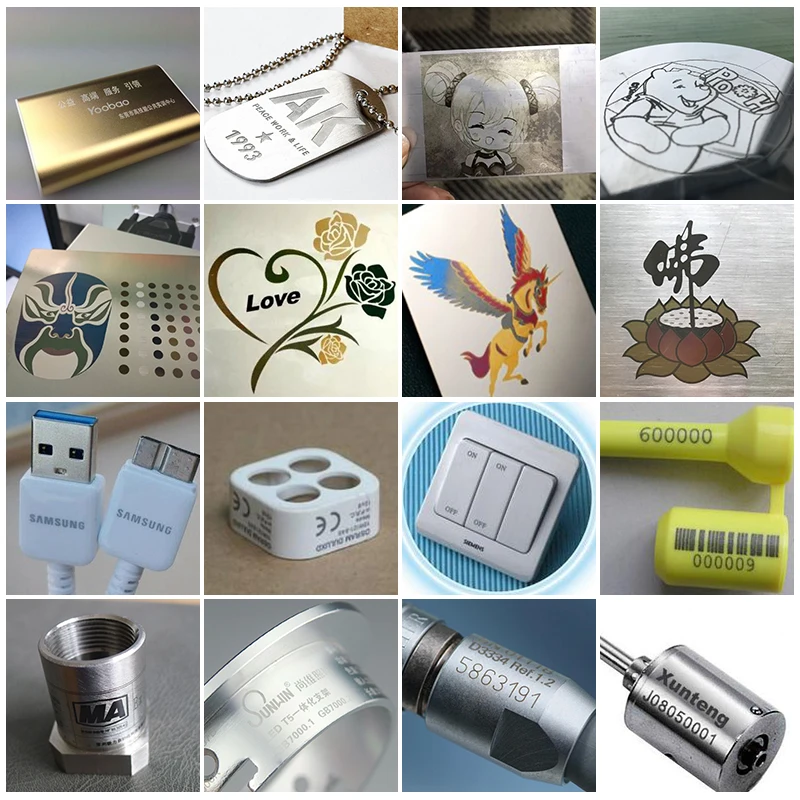

mark samples
 |
|
HOT PRODUCTS
Company Information
Is established in July 2004 ,owns more than 500 square meters of researching and office space,
more than 32000 square meters factory.All machines ,passed the European Union CE authentica-tion. Products are sold to USA, South
east Asia,Europe,Canada, Australia, Africa etc,more than 120 countries and areas, and supply
OEM service for more than 30 manufactures.
Our Products includes All kind of:
1. Laser marking machine(Fiber/CO2/UV/Green light) and laser-welding machine.
2. CNC knife cutting machine.
3. Fiber cutting machine.
4. Plasma cutting machine.
5. Cnc router machine.
6. Co2 laser machine and so on.
We can also customized non-standard assist equipment as your detailed work requirements.
Packaging & Shipping
Customers' show
FAQ
Q1 :How about warranty?
A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q2:2 I don’t know which one is suitable for me ?
A2:Please tell me your
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness::choose most suitable power.
Q3:Payment terms?
A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q4:Do you have CE document and other documents for customs clearance?
A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q5:I don’t know how to use after i receive Or i have problem during use,how to do?
A5:
1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.
2) If have any problem during use,you need our technician to judge
The problem elsewhere will be solved by us. We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Q6:Delivery time
A5:General configuration:7 days. Customized:7-10 working days.
